Krones, Profipack , Heuft, Robopac Line for Returnable Glass Bottles (1998)

Krones, Profipack Abfülllinie für Glasflaschen (Mehrweg)

Overview

This returnable glass bottling line consists mainly of equipment from KRONES and selected components from other established European manufacturers such as Hormes, RINK and HEUFT.

The line is designed for a nominal output of 33,000 bottles per hour and includes the main process steps from depalletizing to palletizing.

The labeling machine will be completed according to the buyer’s requirements, allowing the line concept to be adapted to the intended bottle and product portfolio.

The line is suited for returnable glass beverage applications.

Based on the listed machines, the line is structured for crate handling, bottle washing preparation, empty bottle inspection, high-capacity filling/capping and returnable crate repacking.

For bottles with screw caps, the RINK machine can be used upstream of the bottle washer; for crown cork bottles, an additional format set is required as per your note.

Technical Data

Capacity: 33,000 bottles per hour

Line type: Returnable glass bottling line

Main machine years: mainly 1998 and newer

Bottle type: Returnable glass bottles

Closure types: Crown cork and screw cap

Packaging type: Beverage crates / returnable plastic crates

Filling system: Isobaric filling block by KRONES

Special Notes:

RINK KM 790/4K-3K QL: only for bottles with screw closure For crown cork bottles, a corresponding format set is required

Labeling machine: will be completed according to customer requirements

Scope of Delivery

Depalletizer | Profipack | – | 2006

Decrater | KRONES | Linapac A-T 1600 | 1998

Crate Washer | Hormes | Crate Washer | 1992

Crate Decapper | RINK | KM 790/4K-3K QL | 2020

Bottle Washer | KRONES | Lavatec-KES | 1998

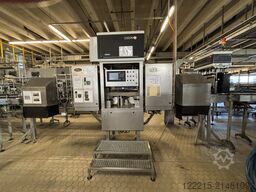

Empty Bottle Inspector | HEUFT | Spectrum TX | 2015

Filler Block | KRONES | Sensometic VPVI 77-103 / KK11 / SV11 | 1998

Labeling Machine | To be completed according to customer requirements

Crater | KRONES | Linapac F-T 1800 | 1998

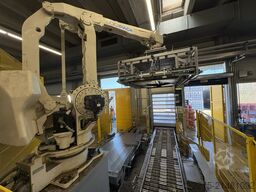

Palletizing system | Profipack | 2006

Pallet Wrapper | Robopack | 2006

Pallet Security | Vertical Strapping | 2006

Additional Information:

Bottle Formats:

- 0.25 L Individual bottle – Ø 57.5 × 215 mm
- 0.33 L Ale bottle – Ø 61 × 236.5 / 238 mm
- 0.33 L Ale bottle – Ø 68.5 × 234.5 mm
- 0.5 L Ale bottle – Ø 68.5 × 270 mm
- 0.5 L Steinie bottle – Ø 70.5 × 174 mm
- 0.5 L Bavaria bottle – Ø 70 × 260 mm
- 0.5 L NRW bottle – Ø 67 × 260 mm
- 0.5 L Individual bottle – Ø 82 × 295 mm
- 0.7 L GDB bottle – Ø 79 × 290 mm
- 0.75 L GDB bottle – Ø 79 × 290 mm
- 1.0 L GDB bottle (light) – Ø 84 × 305 mm
- 1.0 L AMG bottle – Ø 83.7 × 298 mm

Crate Formats:

- 5 × 4 – 400 × 300 × 300 mm
Rsdpfx Ajytvyfembsw
- 6 × 4 – 400 × 300 × 270 mm
- 5 × 4 – 400 × 300 × 210 mm
- 4 × 3 – 355 × 275 × 345 mm
- 4 × 3 – 400 × 300 × 330 mm
- 5 × 4 – 355 × 275 × 255 mm
- 5 × 4 – 400 × 300 × 290 mm
