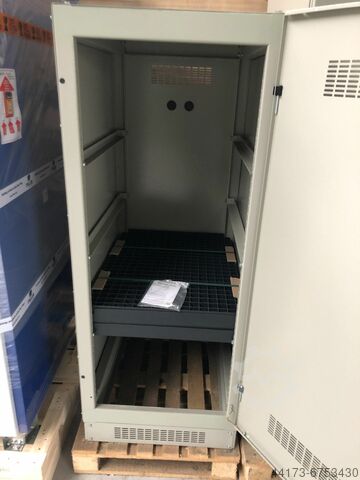

Battery cabinets

Kunstmann Standart

Condition: good (used), functionality: fully functional, type of input current: three-phase, overall weight: 800 kg, total width: 600 mm, total length: 820 mm, total height: 1,600 mm, input voltage: 400 V, Used Liebert NX 40kVA / 32kW 3-phase UPS battery backup system (tested and includes good batteries) Rated power: 0.8 PF: 40 kVA Output power 32KW Battery Battery type VRLA 40x YUASA NPL24-12 I 12V 24 AH Width mm 600 Depth mm 825 Height mm 1600 Weight (approx.) without battery kg 341 Blsdpfxst H Irlo Af Hsr Input Parameters Rectifier Type IGBT-based Vector Controlled PFC (PF Corrected) Input Voltage to Rectifier Vac 380 / 400 / 415 (400V : Nominal) 3-ph, 3-w Input Voltage to Bypass Vac 380 / 400 / 415 (400V : Nominal) 3-ph, 4-w (Ph+N) Permissible Input Voltage Range for Rectifier Vac 305 to 477 Input Frequency Hz 50 or 60 Permissible Input Frequency Range for Rectifier Hz 40 to 70 Input Current THD at nominal voltage % < 3* without any Filter Input Power Factor at nominal voltage ≥ 0.99* without any Filter Flexi Power Walk-In seconds 5 to 30 (selectable) Output Parameters Inverter Type IGBT-based Vector, Repetitive & PI Controlled Output Power kW 24 32 48 64 Output Voltage Vac 380 / 400 / 415 (400V : Nominal) 3-ph, 4-w (Ph+N) Output Voltage Regulation % +/- 0.5 (3-phase RMS average) Output Frequency Hz 50 or 60 Output Frequency Regulation % +/- 0.05 Output Voltage THD at nominal voltage % 1% (max) Capability to handle High Crest Factor Load 3 : 1 (compliant with IEC 62040-3) Capability to handle Step Load 0-100 or 100-0 Transient Recovery mseconds < 0.5 (recovery to 95% of the voltage level) 10 (recovery to 99% of the voltage level)
