Universal machining center

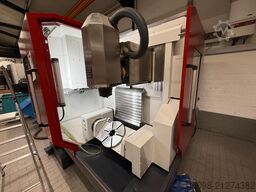

Kunzmann WF 650

Condition: excellent (used), Year of construction: 2007, Universal milling machine Manufactured by KUNZMANN. WF 650 Year of manufacture 2007 Technical specifications Manufacturer Kunzmann Type WF 650 Year of manufacture 2007 X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Clamping area 1000 x 600 mm Spindle mount SK 40 Spindle speeds 5 - 6500 rpm Quill stroke 60 mm Vertical head swivels +/- 90 Max. table load 400 kg Feed rates - longitudinal/transverse/vertical 0 - 4000 mm/min Rapid traverse 25 / 25 / 20 m/min Itedpowhm S Nofx Afvec Distance between table and vertical milling spindle 100 / 550 mm Distance between table and horizontal spindle 270 / 720 mm Number of tool magazine positions: 20 Tool diameter: 95 mm Tool diameter with 2 free positions: 135 mm Max. tool length: 300 mm Max. tool weight: 7 kg Spindle power: 13 kW Total power requirement: 20 kVA Machine weight: approx. 5.5 t Machine dimensions: L x W x H: 3.80 x 2.70 x 2.40 m Equipment - Heidenhain iTNC 530 control system - Operating instructions - Enclosure - Vertical head with extendable spindle sleeve - Hydraulic tool clamping - Fixed table - Electronic handheld control panel - Coolant system - Chip conveyor All information is subject to change without notice. A demonstration is available at any time in our showroom.

Condition: good (used), Year of construction: 2008, New spindle in 2025 Kunzmann WF 650 Year of manufacture: 2008 Power: 16 kW Control: Heidenhain iTNC 530 Table dimensions: 1000 x 600 mm Max. workpiece weight: 400 kg Spindle taper: SK40 Max. tool weight: 7 kg Tool stations: 20 X: 650 mm Y: 500 mm Z: 450 mm Number of T-slots: 9 pcs T-slot spacing: 63 mm Speed range: 5–6500 rpm Torque: 290 Nm 3D touch probe Iodeydv E Ajpfx Afvstc High-pressure through-spindle coolant (IKZ) Internal chip conveyor Machine from single-shift operation

Condition: used, Year of construction: 2004, Operating hours: Isdpswglapefx Afvjtc Control on: 3123 h Machine on: 2970 h Program run: 902 h Spindle runtime: 988 h Controlled axes: 3 Technical Data: Travel X/Y/Z: 650 / 500 / 450 mm Clamping surface: 1000 x 600 mm Spindle taper: SK 40 Spindle speed: 12,000 rpm Max. table load: 400 kg Number of tool magazine positions: 20 Power: 24 kVA Machine weight, approx.: 5,500 kg Equipment: - Heidenhain iTNC 530 CNC control - 20-position automatic tool changer - Heidenhain tool probe - Heidenhain workpiece probe - Heidenhain handwheel - Menzel minimal quantity lubrication - approx. 25 tool holders

Condition: excellent (used), Year of construction: 2009, operating hours: 12,959 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 12,000 rpm, total height: 2,450 mm, total width: 2,400 mm, total length: 3,100 mm, table width: 630 mm, table length: 630 mm, table load: 350 kg, overall weight: 6,800 kg, Kunzmann WF 650 5-Axis Simultaneous Machining Center (2009) Manufacturer: Kunzmann Type: WF 650 5-Axis Simultaneous Machining Center Year of manufacture: 2007 Commissioned: 2009 Isdpfx Aoxwl T Uefvstc Condition: Used, very good Machine ON: 46,181 h Spindle hours: 12,959 h Control: Heidenhain iTNC 530 Software Package 1 for iTNC 530 X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Vertical milling head tilting range: -5° + 95° NC built-in rotary table Ø 630 mm Table load: 350 kg Spindle speed: 12,000 rpm Tool holder: SK40 Tool changer with 20 spindles Tools Internal coolant supply: Tool clamp with coolant supply and blow-out device through the spindle. Flow rate 25 l/min at 40 bar Optional water/air through the spindle Paper belt filter Controlled CNC milling head (B-axis) Mounting kit for TS 640 probe head 3D probe with infrared transmission Dimensions LxWxH approx.: 3.1 x 2.4 x 2.45 m Weight approx. 6,800 kg Coolant system LxWxH approx.: 1.6 x 2.00 x 0.50 m Scope of delivery: – Documentation – Machine feet – Machine light

Condition: like new (used), Year of construction: 2010, The machine comes from the Daimler Benz technical center and has 150 operating hours. X 650 mm Y 500 mm Z 450 mm Iedpfx Aotdfbmsfvstc Table size 1,100 x 600 mm Table load 450 kg Spindle speed range 6,500 rpm Spindle taper SK 40 Tool changer 24 positions Control system Siemens 840 D Total power 20 kW Machine weight 5,500 kg Bm9zrnafs87 Space requirement (W x D x H) 2.3 x 3.1 x 2.3 m Condition: very good
