Planer

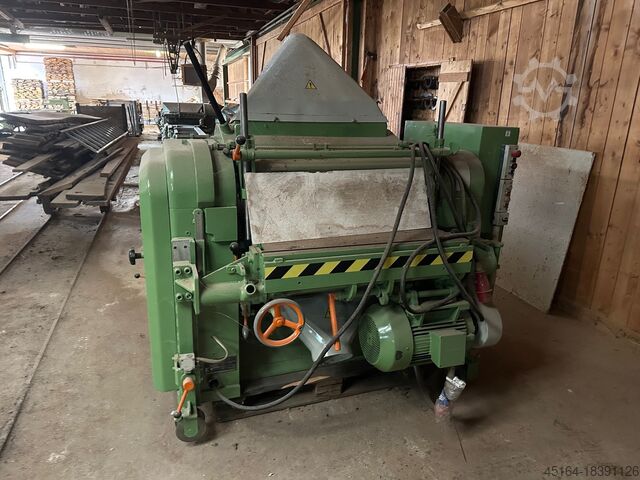

Kupfermühle VUIN 860

Condition: used, Empty weight: 6.000 kg Laedpfsxbf Iasx Ah Aji Dimensions (LxBxH): 340 x 210 x 190 cm Price: On request - Documentation available: No - Max. working width: 860 - Transport dimensions: 3400mm x 2100mm x 1900mm (l x w x h) - Transport weight [kg]: 6000kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: good (used), Code: 0046 Brand: KUPFERMUEHLE - GERMANY Laodsv D N Efspfx Ah Aji Model: DOIN - VUIN 605 2-shaft planing machine + multi rip saw for wood carpentry, wood beams, roofing, sawmill, coffins and various Technical data: Heavy cast iron structure Working width mm 605 Min/max working height mm 3/200 Min workpiece length mm 350 Automatic group lifting with possibility of manual adjustment Feed speed mt/min 7 - 9 - 11,5 - 14 - 18 - 23 Infeed table with 3 support guides and motorized top feed rollers Height adjustable guide saw unit - Motor Hp 2,5 - Blade diameter mm 180 - Suction port mm 120 Motorized towing roller on the table 1° shaft surface planer with 4 knives - Motor Hp 7,5 - Suction port mm 120 2° shaft thickness planer with 4 knives - Motor Hp 12 - Suction port mm 160 - Motorized towing roller on the table 3° Multiblade saw shaft - Motor Hp 40 - Blade diameter mm 230 - Cutting height mm 50 - Upper suction port mm 160 - Lower suction port mm 160 N° 2 upper motorized towing rollers and N°1 lower roller Control panel Overall dimensions mm 3300 x 1650 x 1600 h Weight kg 4000

Condition: ready for operation (used), Year of construction: 1979, functionality: fully functional, planing width: 860 mm, planing height: 230 mm, Five-axis Kupfermuhle Planing height: double-sided up to 230 mm, four-sided up to 200 mm with additional extraction hood and shaft. With the standard extraction hood and shaft up to 125 mm height. Bottom shaft: 15 kW Top shaft: 22 kW Extra bottom shaft: 11 kW Left shaft: 11 kW Right shaft: 11 kW Feed motor: 18 kW The bottom and top shafts are equipped with a jointer. Feed speed: 20-130 meters per minute The previous owner had the machine completely overhauled, after which we used it occasionally for 2 years. Ljdpfxexliccj Ah Asai

Condition: used, Swivel Spindle Milling Machine, Table Milling Machine, Bench Milling Machine -Spindle adjustment: height and angle -Swivel: -3° to 45° -Drive: 4.5/5.5 kW -Speed: 3000/4500/6000/9000/12000 rpm -Feed apparatus Holz-Her 3 rolls Lodpeh Nvyzefx Ah Aoai -Useful shaft length: 100 mm -Spindle: Ø 30 mm -Max. Milling cutter: Ø 220 mm -Dimensions: 1540/1100/H1520 mm -Weight: 962 kg

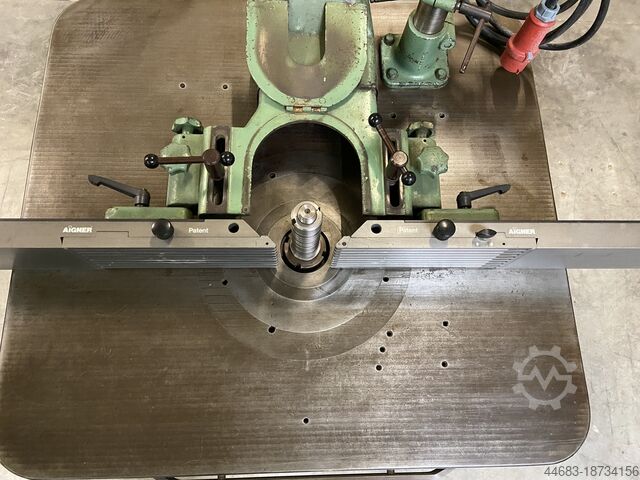

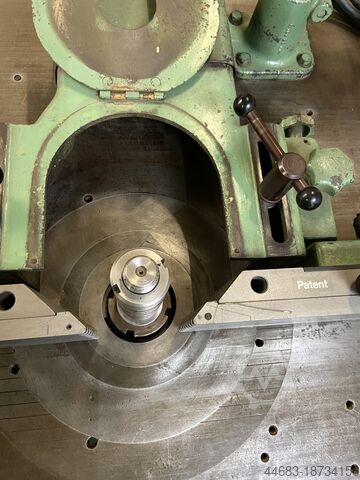

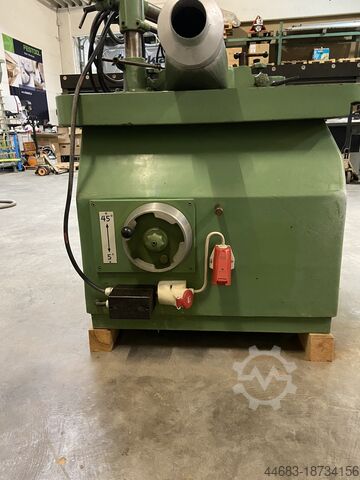

Condition: good (used), Used Kölle tilting spindle milling machine Model F 45 Table size 1070 x 1000 mm Table height 850 mm Motor 5.5 HP / 400 V Right/left rotation Speed 2800/4500/6000/10000 rpm Spindle Ø 30 + 40 mm, Lasdpfxsv N Dcpe Ah Aoi Spindle stroke 110 mm Electric height and tilt adjustment Swivel range -5 to +45 degrees Electric motor brake Aigner integral stop 650/650 mm Milling stop rotatable 360° Weight approx. 1050 kg

Condition: used, Number of spindles 5 St. Working width 20 - 230 mm Working height 8 - 120 mm Length of the planing table 2000 mm Feed motor 1,1 kW Feed speed stufenlos regelbar 2 - 12 m/min. 1 WEINIG VARIOMAT planer and moulder including multifunction / slotting table ----- Machine will be cleaned and functionally tested before delivery ! Technical manufacturer's description: ----- Working width: 20 - 230 mm Working height: 8 - 120 mm 1st spindle horizontal, bottom ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool radius 125 - 145 mm Axis adjustment range 5 mm Folding device including rebate cutter MarathonCoating for table insert before and after the 1st lower spindle 2nd spindle vertical, right ----- Motor with brake: 11 kW Common motor with left vertical spindle Diameter 40 mm mm Speed ??electronically adjustable 3000 - 6000 rpm (for 11 kW/15 HP) Tool cutting radius for longitudinal machining 93-232 mm Minimum tool diameter at stop plane: 93 mm Maximum tool diameter behind stop plane: 180 mm Maximum throat depth 45 mm Axially adjustable travel 30 mm Insertion segment, including additional stop lip 125 mm Insertion segment, including additional stop lip 150 mm 3rd vertical spindle, left POWERLOCK/HSK ----- Shared motor with 1st right spindle PowerLock tool holder Shared speed with right vertical spindle Tool cutting radius for longitudinal machining 93-232 mm Maximum throat depth 45 mm Minimum throat depth with tool cutting radius 200 mm: 20 mm Axially adjustable travel under table 30 mm Insertion segment 125 mm Insertion segment 150 mm 4th spindle, horizontal, top ----- Motor with brake: 5.5 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 30 mm Minimum chamfering depth with a tool cutting radius of 200 mm: 20 mm Axially adjustable range 30 mm Glazing bead removal after the upper spindle 5th spindle, second, horizontal, bottom ----- Motor with brake: 4 kW Diameter 40 mm Speed ??6000 rpm Tool cutting radius 125-200 mm Maximum chamfering depth 15 mm Axially adjustable range 10 mm Machine operation ----- Both axes of all spindles - with the exception of the first lower spindle - are equipped with mechanical digital displays. Central radial adjustment with mechanical digital display of the feed rate along with the pressure in front of the upper spindle. The pressure after the upper spindle can be adjusted separately. Memory function ----- For saving the setting values ??of profiles Tool holder axes and pressure elements before and after the upper tool holder with electronic dual displays: Function: -Saving the setting values ??of the finished profile at the touch of a button under a profile number - When the profile number is selected again, the electronic dual displays show the setting values - By manually adjusting the tool holders and pressure elements, the displays are aligned - 99 memory locations 3 axial CNC-controlled adjustment and positioning of the spindles Laedpfx Ahjwugpbj Aei in conjunction with the memory function. For spindles 2, 3, an...
