Double Column Drawing Press -Hydr.

LAEPPLE ZEH 500 (UVV)

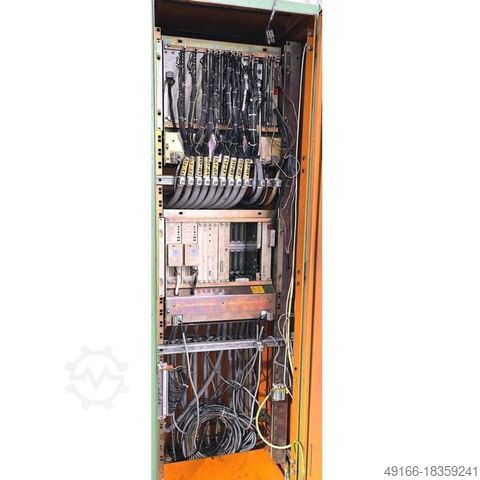

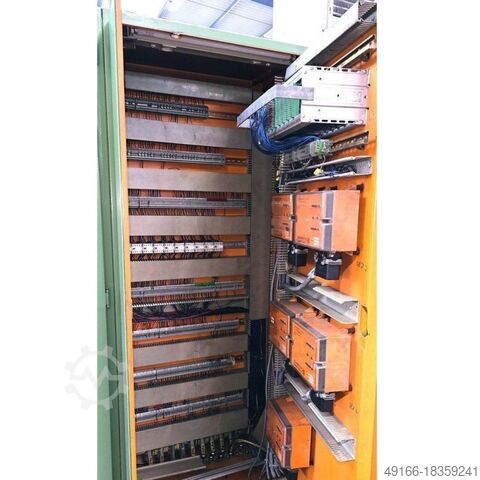

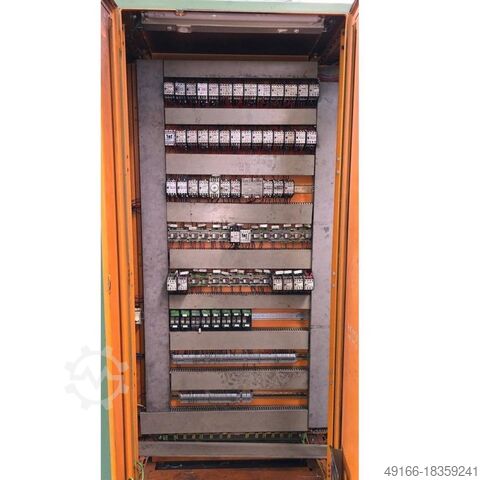

Condition: used, Year of construction: 1993, pressure 500 t distance between columns 2240 mm stroke 1180 mm distance table/ram, max. stroke up, adjustment up 1800 mm table surface area 2050 x 1800 mm pressure of drawing cushion in table 250 t stroke of drawing cushion in table 380 mm Cjdjvuk I Nspfx Agmsrh drawing cushion surface in table 1800 x 1200 mm pressure of drawing cushion in ram 122 t stroke of drawing cushion in ram 200 mm drawing cushion area in ram 1800 x 1200 mm ram surface 2215 x 1800 mm table height over floor 500 mm speed down 400 mm/s speed up 10 - 400 mm/s working speed 10 - 100 mm/s depth of the foundation 3,0 m power requirement 122 + 75 + 64,5 kW weight 110,0 t Dimensions (WxDxH) 3,6 x 2,2 x 8,5 m height over floor 6,8 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table and ram, cutting impact cushioning, ram interlocking Foundation depth approx. 3,0 m press is currently under revision with control Siemens S 7 / safety control Pilz a sister machine can be offered in as is where is condition, partially disassembled
