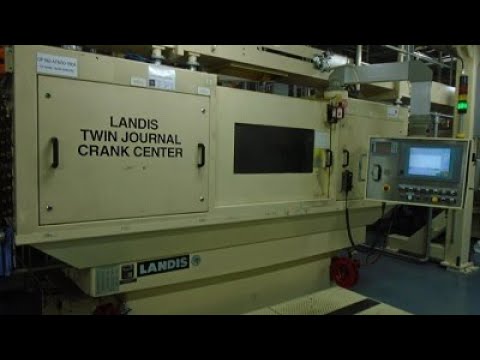

Crankshaft grinding machine

Landis LT2

Condition: excellent (used), Year of construction: 2007, operating hours: 36,900 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: Heidenhain, controller model: 530, spindle speed (max.): 28,000 rpm, 5-axis machining center Manufacturer: Hermle Model: C30U Year of manufacture: 2007 Control: Heidenhain iTNC-530 Power-on hours: approx. 36,900 h Operating hours: approx. 10,760 h S/N: XXXXX Rjdpfxsynb S Nj Afcsp Technical parameters: ----- • Travel X-Y-Z: 650 x 600 x 500 mm • C-axis: 360° • A-axis: +/-115° • Tilting rotary table Ø280 mm • 6x rotary union • Spindle: 28,000 rpm • Tool magazine: 32x HSK-A63 • Standard coolant system • 3D probe Renishaw • Option: Air blast through spindle • Option: Glass scales with purge air • Option: Electronic thermal compensation • Chip tray • Weight: 9,500 kg Accessories: ----- • Documentation • Rinsing gun • Handwheel • Holder package: 20x HSK-A63 tool holders

Condition: excellent (used), Year of construction: 2000, Nominal diameter: 4,500 mm Redpfsyk R Dyox Afcjp Swing diameter over bed: 820 mm Swing diameter over steady rest carriage: 650 mm Spindle bore: 115 mm Main spindle drive power: 40 kW Milling spindle drive power: 25 kW Milling spindle tool holder: HSK 100 Tool changer: 3 x 30 positions Control: SINUMERIK 840 C Including chip conveyor Including documentation Machine is under power and will be available in approximately 2 weeks!

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, Vertical Turret Lathe - Double Column Brand: WALDRICH SIEGEN | Year of construction: 2018, commissioning: 2019 High-performance turning and milling unit with a modular design system for optimal adaptation to customer requirements. Fully hydrostatic guidance of all main axes for the highest cutting performance and precision. Main structural components made of high-performance cast iron for the best damping characteristics and high stiffness. Condition: Ready for use / operational. The machine can be inspected by appointment. Total operating hours: 65.432 h TECHNICAL DATA: Portal, passage width: 6.000 mm Travel distances: - Horizontal support (X1/X2 axis): 5.160 mm - Spindle slide vertical (Z1/Z2 axis): 2.000 mm - Distance X1/X2 (centre of spindle): min. 2.100 mm - Crossbeam vertical (W axis): 1.800 mm - Horizontal measuring device (X3 axis): 7.065 mm - Vertical measuring device (Z3 axis): 2.350 mm Faceplate: - Clamping surface diameter: 5.000 mm Rotary table: - Drive power: 2 x 110 kW - Number of gear stages: 2 Support Spindle drive: - Spindle drive power: 63 kW - Number of gear stages: 2 - Speed range stage 1: 0 - 600 rpm - Speed range stage 2: 0 – 3.000 rpm Spindle carriage: - Cross-section: 400 x 400 mm Electrical: - Total connected load: approx. 361 kVA EQUIPMENT: - Two rotary and milling supports - CNC-Control: SINUMERIK 840D sl - External and internal cooling lubricant supply - Chip conveyor (belt filter) - Extraction and filter system, Keller Vario - Workpiece measuring probe: Renishaw, RMP 60 - Additional accessories ... Rsdpfx Afsynbxcjcop No guarantee is given for the completeness and accuracy of the technical data and equipment. Detailed technical data sheet and information on equipment available on request.

Condition: good (used), Year of construction: 2012, 5-Axis CNC Machining Center Manufacturer: AXA Machine Model: VPC-2800U Control System: Siemens Year of Manufacture: 2012 Rjdjyk T Emjpfx Afcsp Technical Specifications Working Area - X travel vertical (mm): 3,900 - Y travel (mm): 2,940 - Z travel (mm): 1,100 CNC Rotary Table - Clamping area (mm): ø 2,800 Feed Drive - Max. rapid traverse speed in X/Y/Z (m/min): 30/30/25 Working Spindle - Standard drive No.: 140 Spindle speed range (rpm): 30-7,500 Spindle power max. duty cycle 100% (kW): 63 Spindle torque max. duty cycle 100% (Nm): 191 Tool holder: SK50 Swivel Head - Swivel range B-axis (degrees): 90 - Indexing: freely interpolating Tool Changer - Tool stations: 60 Please note: The machine is NOT equipped with a turning function. Changes and errors in the technical data and information excepted.
