Through drill

Lazzoni Group Expert CNC L 100 GT(typu INSIDER FTT R8)

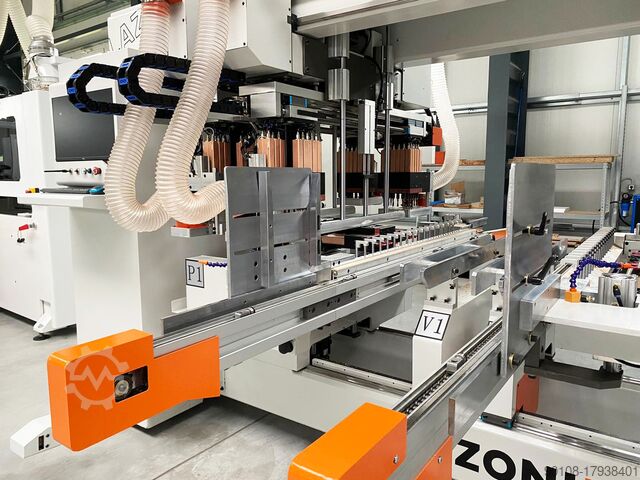

DESCRIPTION OF THE DRILLING MACHINE
This is a high-performance automatic drilling center designed for furniture components. The machine is dedicated especially to large-scale production in small batches. The drilling machine allows for drilling two components simultaneously.

WORKPIECE TRANSPORT
The machine is equipped with a magazine from which the components are collected by grippers mounted on a chain conveyor.

TECHNICAL SPECIFICATIONS:
Workpiece length: 280 – 1500 mm*
Workpiece width (1 piece): 45 – 450 mm
Workpiece width (2 pieces), three-sided drilling (right, left, top): 45 – 400 mm
Workpiece width (2 pieces), four-sided drilling (right, left, top, front/rear edge): 45–300 mm (mirror image: 45–350 mm)
Workpiece width (2 pieces), five-sided drilling (right, left, top, front edge, rear edge): 45–300 mm
Horizontal drilling: From 25 mm from the edge of the component along the X-axis
Workpiece thickness: 12 – 40 mm
Total power: Approx. 24 kW
Weight: Approx. 5,500 kg
Dimensions: 5,100 x 2,500 x 2,450 mm
Number of top drilling units: 4
Number of horizontal drilling units: 1 left, 1 right
Total number of spindles: 80 pcs.*
Number of material stops: 2 pcs.
Simultaneous drilling of 2 components: Yes
Supported file formats: .dxf, .mpr
*The drilling machine is available in two variants: maximum panel length 1,500 mm and 2,500 mm

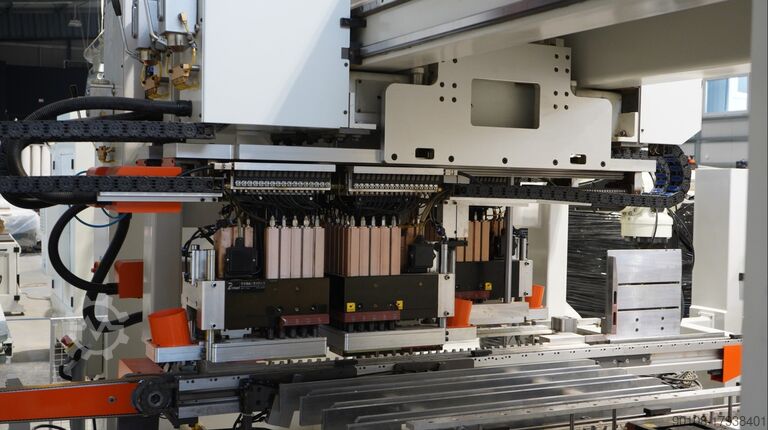

NUMBER OF DRILLING UNITS:
Top vertical heads: 4 pcs.
Fgedpfx Afsvdq Ubopeh
Left horizontal head: 1 pc.
Right horizontal head: 1 pc.

DUST EXTRACTION:
Vertical heads: With dust extraction ports
Horizontal heads: With dust extraction ports
