Leybold two-stage rotary vane vacuum pump Trivac D 40 B and exhaust filter with oil return AR 40

Leybold TRIVAC Vakuumpumpen

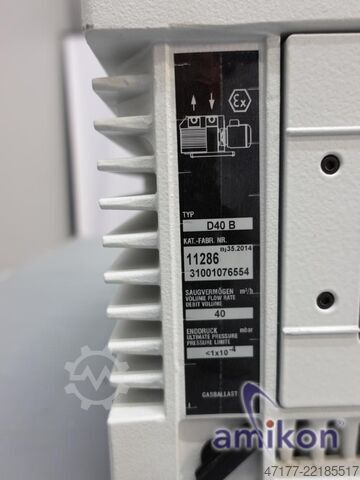

Condition: used, Leybold Type: Trivac D 40 B The TRIVAC B series are oil-sealed vacuum pumps based on the rotary vane principle. The oil injected into the pumping chamber serves as a sealant, lubricant, and coolant. The pump housing is made up of individual parts without sealing elements. These are pinned together to ensure easy disassembly and reassembly. Ultimate pressure: 2 x 10⁻³ mbar Motor: 3-phase, 230/400 V, 50/60 Hz Pumping speed (50 Hz): 40 m³/h Pumping speed (60 Hz): 48 m³/h Environmentally friendly: Quiet Vibration-free operation, energy-saving Energy-saving: Low power consumption Low heat dissipation Modern vacuum technology: High pumping speed up to the ultimate pressure Low ultimate pressure, even with gas ballast High water vapor tolerance Continuous operation even at 1000 mbar Built-in oil pump, force-lubricated plain bearings Minimal air intake Gsdezgbvqjpfx Aqgjuh High leak tightness (suitable for 4He) Technical data: Product: TRIVAC D 40 B Suction side connection flange: DN 40 ISO-KF Pressure side connection flange: DN 40 ISO-KF Nominal pumping speed at 50 Hz: 46.0 m³/h Nominal pumping speed at 60 Hz: 55.0 m³/h Pumping speed at 50 Hz: 40.0 m³/h Pumping speed at 60 Hz: 48.0 m³/h Ultimate partial pressure without gas ballast: 1.0 x 10⁻⁴ mbar Ultimate total pressure without gas ballast: < 2.0 x 10⁻³ mbar Ultimate total pressure with gas ballast: < 5.0 x 10⁻³ mbar Water vapor tolerance at 50 Hz: 40.0 mbar Water vapor tolerance at 60 Hz: 40.0 mbar Water vapor capacity at 50 Hz: 1,184 g/h Water vapor capacity at 60 Hz: 1,184 g/h Operating fluid volume min.: 1.7 l max.: 2.6 l Sound level according to DIN 45 635 without gas ballast: 57 dB(A) with gas ballast: 59 dB(A) Mains connection: 3-phase, 200 / 200-240 / 380-400 V ±10%, 50 Hz 3-phase, 200-240 / 380-480 V ±10%, 60 Hz Motor power: 2.2 kW Motor speed at 50 Hz: 1,430 min⁻¹ Motor speed at 60 Hz: 1,735 min⁻¹ Motor protection class: IP 55 Permissible ambient temperature: +12 to +40°C Weight: 73.0 kg Condition: used Scope of delivery: (See picture) (Changes and errors in the technical data are subject to change!) We will gladly answer any further questions you may have over the phone.
