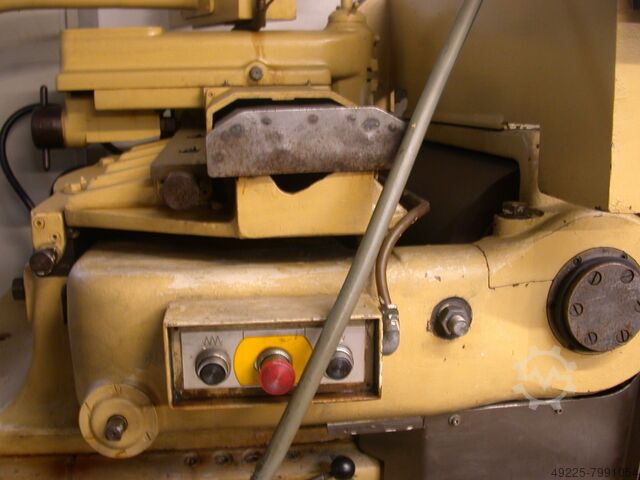

Centerless Grinder
Lidköping 46

Name: Lidköping 46
Brand: Lidköping
Availability: InStock

Condition

Used

Location

Fuente de Cantos Spain

Show map

Machine data

Machine type:: Centerless Grinder

Manufacturer:: Lidköping

Model:: 46

Condition:: used

Price & Location

Location:: Romanones sn, 06240 Fuente de Cantos, España

Call

Details about the offer

Listing ID:: A799-1054

Reference number:: 4549

Update:: 31.07.2024

Description

Grinding wheel dimensions (h x w x d x w): Ø 508 x Ø 305 x width 655 mm

Ø min/max to be ground: 5/240 mm

Min/max speed of regulating wheel (rpm): 0/115 rpm

Type of control (cnc/manual): manual

In feed Grinding (auto/manual): manual

Dimensions of the regulating grinding wheel (h x w x d x w): Ø 330 x Ø 203 x width 655 mm

Maximum length to grind in feed grinding: 655 mm

Grinding wheel head motor power: 45 hp

Total power: 60 HP

Length 3.000 mm

Width 1.400 mm

Height 1.600 mm

Lsdsix N Eropfx Ac Hsta
Weight 11.500 Kg
