CLAMP (CABINETS FURNITURE PRESS CLAMP)

LIGMATECH (HOMAG Group) MDE 110 / 28 / 08

Year of construction: 2016, condition: like new (used), Double column CMG *Installation in floor level design Measuring range * X 6,000 , Y 1,600 , Z 2,500 [mm] * Overlap of the uprights in Y = 100 mm Uncertainty of measurement single column : 25 + L/70, max. 60 [µm] at L=6.000 mm Double stand : 50 + L/70, max. 100 [µm] at L=6,000 mm Dynamics 3D traverse speed 400 mm/sec 3D acceleration 1200 mm/sec² Touch probe (per column) * Renishaw PH10M * Renishaw TP20+2 modules Control system (per stand) * WENZEL WPC2040 (Pantec Eagle Pro) Radio control unit * Hand control HT400 Software * POLYWORKS * alternative solutions possible Accessories * Calibration ball holder - 3 times equipped * stylus assortment * TP-20 modules * Calculator , Screen Keyboard (per stand) Services of the supplier * transport, commissioning , calibration , final inspection Warranty * 12 months from the date of acceptance Pgjdpfxjh T U Dfo Agqjw

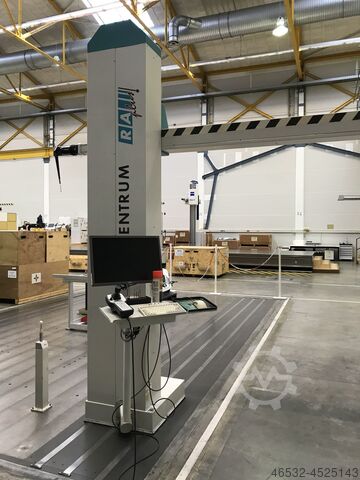

Year of construction: 1999, condition: excellent (used), Technical data Manufacturer: Wenzel Type: RAplus 1621 double stand Year of construction: 1999 Pgedpfx Ajfmdc Djgqjw Measuring range X = 6000 mm Y = 1600 mm / 1600 mm (total: 3000 mm) Z = 2100 mm Measuring plate 7550 mm x 5130 mm (divided into Y0) The machine can be upgraded with new software according to customer requirements.

Condition: like new (used), Year of construction: 2023, Mazatrol Smooth Ai 5-axis simultaneous machining Max. turning diameter 670 mm Max. turning length 1,519 mm Travel distances X-axis: 695 mm Y-axis: 300 mm Z-axis: 1,585 mm W-axis: 1,569 mm B-axis: -30 to 210° Rapid traverse X/Y/Z/W 50/40/50/30 m/min Main spindle Drive power: 30 kW Max. spindle speed: 4,000 rpm C-axis Max. bar capacity: 80 mm Sub spindle Drive power: 26 kW Max. spindle speed: 4,000 rpm C-axis Milling spindle Max. spindle speed: 12,000 rpm B-axis Capto C6 Tool magazine / ATC 38 tool stations Through-spindle coolant, preparation up to 70 bar 5-axis simultaneous machining package G00 slope constant Tool ID system ID chip Pgodpsww N Ixsfx Agqow Synchronized thread cutting Cylindrical interpolation Interface for bar feeder Automatic parts catcher Parts catcher Kitagawa B210X 3-jaw chuck for main spindle Kitagawa B210X 3-jaw chuck for sub spindle Cromar Series iV chip conveyor Drum filter High-pressure pump 15 bar Bar feeder EMT Super 80
