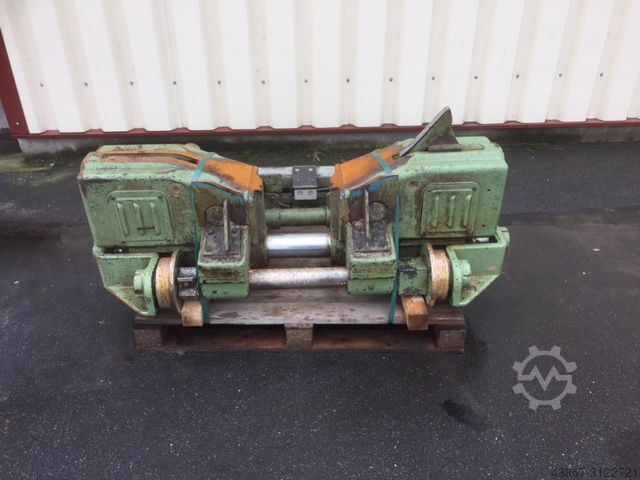

Linck gate clamping cars

Linck

Year of construction: 1998, condition: ready for operation (used), A complete sawmill including all peripheral equipment and conveyor units is available. 1) Log yard: Baljer & Zembrod Asterix sorting carriage, year of manufacture: 1998, operating hours: 16382h, rail system type: double-T-beam, rail system length: 66m, cross conveyor dimensions X/Y: 7300mm/3300mm, log train length: approx. 40m. Including cut-off table with scraper conveyor. The running rails of the rail system were renewed approx. 5 years ago. 2) Sawmill: 2.1) Linck U71 frame saw in reinforced design with larger main bearing and a general overhaul carried out in 1995. 2.2) Linck VAK carriage. Linck Vy auxiliary carriage in heavier-duty design. 2.3) Möhringer butt log reducer. 2.4) Linck splitter wedge. 2.5) 2x Diemer edging saw units, passage width: 500mm. 2.6) Dankert band saw, wheel diameter: 1200mm. 2.7) Hydraulic log carriages with 3 clamping supports, cutting length range: approx. 1800mm-5000mm. 2.8) Various roller conveyors. 2.9) Various cross conveyors, vibration troughs, etc. 3) Saw service room: 3.1) Albert sharpening machine with flank grinding for band saws. 3.2) Oppliger straightening machine for band saws. 3.3) Rolling bench for band saws. 3.4) Vollmer CNE sharpening machine for circular saws. 3.5) Meinert manual setting machine for circular saws. 4) 2x Hildebrand Brunner drying chambers, volume: approx. 30m³-60m³. 5) Schmid wood chip heating system, year of manufacture: 1995, heating output: 450kW. 6) Manitou rough-terrain forklift. 7) Lewecke vacuum lifting machine. This is a complete sawmill. Documentation available. An on-site inspection is possible. Gkodpozf Nbxsfx Aixoa

Condition: good (used), machine/vehicle number: 9049, LINCK DV 35 prism turner: Gkodpszrxfysfx Aixsa - Two toothed feed rollers, electrically driven (two separate motors) - Prism rotation, electrically driven (SEW 5.5 kW motor) - Large prism clamping cylinder, MADER KDI-125-0250-A-PPV-M, manufactured in 2017 Very robust machine construction.

Condition: excellent (used), Year of construction: 2010, The following components of a Linck VM50 saw line are available: Condition of the machines is very good! Infeed device ZV21, model EV 50 (in stock) Profiling chipper ZD31, model VM50, 2 × 200 kW (in stock) Outfeed device AV31, model VZM (in stock) Gsdpfx Aozfwlfjixoka Centering device VZ21, model VZV (in stock) Log rotator DV21, model DV70-2 (in stock) Additional components: Infeed and centering device EVP – available from September 2026 Profiling chipper VM50, 2 × 200 kW – available from September 2026 Profiling aggregate VMP450 F61, 4 × 110 kW – available from September 2026

Condition: like new (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 9911294-0120, Rotary indexing table DV 55, manufactured in 2014, can be used for pre- or post-machining. Gedpfjzpygtsx Aixeka In excellent condition! We have 2 units in stock at our Schlitz warehouse.

Condition: new, 2 new, two-part gang saw bottom rollers, 250 mm diameter, bore 105 mm, 685 mm long Gkedpfxjyctwts Aixsa

Condition: reconditioned (used), Year of construction: 1996, Sawing unit, manufacturer Linck, type KCS 6 Base frame with 4 saw spindle units Twin-spindle system with 6 adjustable saw heads Cutting height 370 mm, weight 12,400 kg Godpfx Aszdiuleixeka The machine is currently being overhauled in our workshop.

Condition: excellent (used), cutting height (max.): 120 mm, cutting width (max.): 700 mm, Right-hand machine, machine number 188 Electrically adjustable hydraulic width adjustment Infinitely variable feed rate from 0-80 m/min 37 kW drive motor with V-belt pulley, motor tensioning rail, Various saw heads, shims, and saws Gkjdsv Raqxspfx Aixoa Infeed table with individual trestles Fixed outfeed table The machine has been completely overhauled and is in excellent condition.

Condition: excellent (used), Year of construction: 1999, 1. Block conveyor 2. Transverse conveyor 3. Linck FWK quick-release carriage Track gauge: 900 mm Gkedpfoxtwwkjx Aixoa Travel speed (forward/reverse): 80/180 m/min Clamp opening: 750 mm Log length: 2.5–13.5 m 4. Sawing unit Linck KCSU-6 Round timber diameter: 120–650 mm Drive per side: 160 kW Max. cutting height (triple): 405 mm Residual: 370 mm Log length: 2.5–13.5 m Max. feed-through width: 750 mm Cutting width min/max: 18–720 mm Split wedge opening: 560 mm Saw blade diameter: 620 mm Edger distance: 370 mm Net weight approx.: 15,000 kg Stepless feed rate adjustment: 10–35 m/min 3. Timber removal device BM 1/MBH 4. Edger cross-cut saw Linck KA 1/ACF 5. Complete hydraulic system 6. Complete electrical/control system 7. Complete circulating conveyor technology 8. Discharge mechanisation 9. Waste removal underneath KCSU Year of manufacture: 1998. Commissioned in 2000 Various tools Sale according to customer order.

Condition: refurbished (used), 2 pieces 125 mm Ø x 170 mm Ø x 173 mm long Gjdpfjngz N Iox Aixjka 1 piece 140 mm Ø x 190 mm Ø x 173 mm long

Condition: excellent (used), functionality: fully functional, Linck High-Performance Frame Saw Type DS 71 Frame opening 710 x 710 mm. Stroke 500 mm. Speed 320 rpm. Hydraulic roller lift with adjustable roller pressure. Hydraulic feed continuously adjustable from 0 to 13 m/min. Automatic overhang adjustment of the saw frame. Electromagnetic remote control. Godpfx Aouqmu Hoixjka Jansen hydraulic saw blade tensioner with blade mount. 55 kW motor with gearbox. Hydraulic clamping carriage with hydraulic auxiliary carriage. Electrical switch cabinet with control and operator's panel. Dismantled and loaded free on truck. A video showing the saw in operation can be provided on request.
