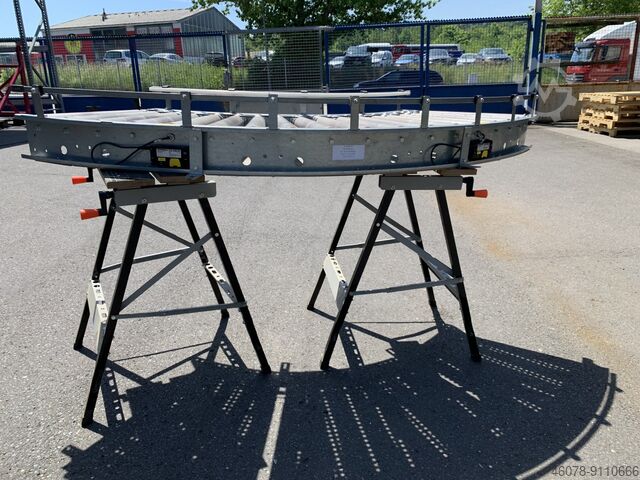

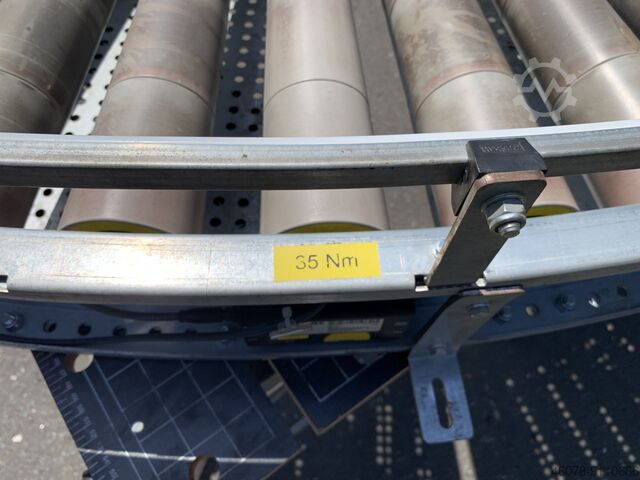

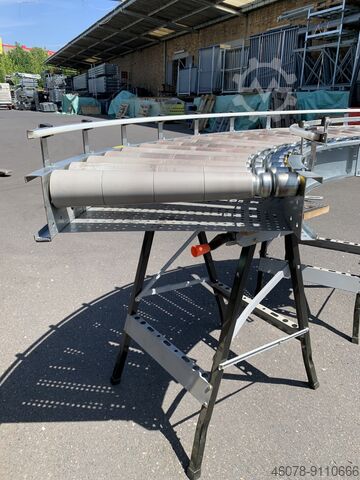

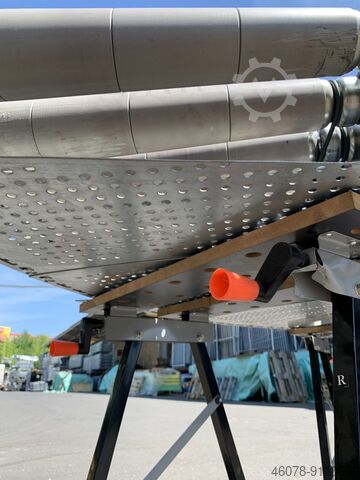

Lippert roller curve right or left 90°-570-500...

Lippert

Condition: used, Year of construction: 2001, Lippert belt conveyor ascending conveyor GF 6960-650-500 RA1459 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Technical data: Conveying length (NL): 6960 mm (ascending conveyor) Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor S37 DT80N4/MM07/BW1 Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1 Deflection roller (UR): Ø = 34 mm Drive drum (AT): Ø = 81 mm Belt: Type HSL 8 E Year of construction: 2001 Slope / Slope: adjustable Optionally available: Supports Side guide one and both sides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. Iodpfx Aok Abbfeltebb We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 3220-650-500 RA1466 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Ibodpok Abbuefx Altsb Technical data: Conveying length (NL): 3220 mm Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor S37 DT80N4/MM07/BW1 Electrical data: 50Hz V380-500, kW 0.15 / 0.75 / S1 Deflection roller (UR): Ø = 64 mm Drive drum (AT): Ø = 81 mm Belt: Type SNB-8E Year of construction: 2001 Optionally available: Supports Side guides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor ascending belt GF 4360-550-400 RA1606 The Lippert belt conveyor is from 2001 and in a good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT frequency converter to control the speed. Side guides and/or light barriers can be mounted on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures shown of the conveyor system were taken in a logistics center while it was still installed. Technical data: Conveyor length (NL): 4360 mm (leading belt + ascending belt with bend and upper straight) stand width (NB): 550 mm belt width (GuB): 400 mm overall height (BH): 105 mm support feet: optional Conveyor speed (v m/s): adjustable up and down with frequency converter Drive: SEW gearmotor SA37 DT80K4/MM05/BW1 Electrical data: 50Hz V380-500, kW 0.11 / 0.55 / S1 Idler pulley (UR): Ø = 81 mm Drive pulley (AT): Ø = 131 mm Belt: Type XVT-2128 Year of manufacture: 2001 incline / decline: adjustable Optionally available: Supports Side guides one and both sides Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany Isdpfx Aljk Abd Netsbb For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2012, Lippert inclined diverter Inclined inlet saw feed 45° RA1821 Year of manufacture: 2012 Feed angle: 45° (gusset) Nominal/outer width (NB): 570 mm Usable width (NUB): 500 mm Conveyor speed: adjustable Roller diameter: 50 mm Interroll, hexagon incl. compression spring Drive: 1x Drivecontrol 20 with 24V Material: galvanised steel Centre distance: 75 mm Overall height: 130 mm Transport dimensions: L x W x H = 705 x 570 x 130 mm For individual, expert advice, simply get in touch with us. Simply contact us by phone or email. We will be happy to help you plan and implement your projects. We look forward to hearing from you. Ijdok Abfujpfx Altebb With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 1710-650-500 RA1370 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW brand motor with MOVIMOT inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown were taken in a logistics center while still installed. Technical data: Conveying length (NL): 1710 mm Frame width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm Support feet: optionally available Conveying speed: adjustable up and down with frequency converter Drive: SEW gear motor R17 DT71D4/MM03/BW1 Electrical data: 50Hz V380-500, kW 0.07 / 0.37 S1 Deflection roller: Ø = 34 mm Drive drum: Ø = 81 mm Belt type: SNB 8 E year of construction: 2001 Optionally available: Ijdpfok Aa Tbex Altsbb Supports Side guide one and both sides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 1285-650-500 RA1378 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Technical data: Conveying length (NL): 1285 mm Frame width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm Support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor S37 DT71D4/MM03/BW1 Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1 Deflection drum: Ø = 64 mm Drive drum: Ø = 81 mm Belt type: SNB 8 E year of construction: 2001 Optionally available: Supports Side guide one and both sides Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg Isdok Aa Tijpfx Altjbb For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 780-650-500 RA1450 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Technical data: Conveying length (NL): 780 mm Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor S37 DT71D4/MM03/BW1 Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1 Deflection roller (UR): Ø = 34 mm Drive drum (AT): Ø = 64 mm Belt: Type SNB 5 E Year of construction: 2001 Optionally available: Supports Side guides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Ibsdpfxjk Aa Tmo Alteb Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 1045-650-500 RA1367 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. The conveyor belt was used as a folding belt. Folding device was removed during dismantling. On request, we can also supply this conveyor belt as a folding belt version. Technical data: Conveying length (NL): 1045 mm Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor R17 DT71D4/MM03/BW1 Electrical data: 50 Hz V380-500, kW 0.075 / 0.37 / S1 Deflection roller (UR): Ø = 34 mm Drive drum (AT): Ø = 64 mm Belt: Type SNB 5 E Year of construction: 2001 Optionally available: Supports Side guide one and both sides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg Ibjdpfxsk Aa T Ae Altob For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 780-650-500 RA1397 Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Technical data: Conveying length (NL): 780 mm Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): with frequency converter free adjustable Drive: SEW gear motor R17 DT71D4/MM03/BW1 Ibodjk Aa Ucopfx Alteb Electrical data: 50Hz V380-500, kW 0.07 / 0.37 S1 Drive drum (AT): Ø = 64 mm Deflection roller (UR): Ø = 34 mm Belt: Type SNB 5 E Year of construction: 2001 Optionally available: Supports Side guides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2001, Lippert belt conveyor GF 3000-650-500 RA1410 The Lippert conveyor belt is from 2001 and in good (used) condition. The belt conveyor has a SEW motor with MOVIMOT frequency inverter to control the speed. Lateral guides and/or light barriers can be installed on request at extra cost. Supports are not included in the delivery. These are optionally available on request. The pictures of the conveyor system shown here were taken in a logistics center while still installed. Technical data: Conveying length (NL): 3000 mm Framework width (NB): 650 mm belt width (GuB): 500 mm height (BH): 105 mm support feet: optionally available Conveying speed (v m/s): adjustable up and down with frequency converter Drive: SEW gear motor S37 DT71D4/MM03/BW1 Electrical data: 50Hz V380-500, kW 0.075 / 0.37 / S1 Iodpfek Aa U Dex Altebb Deflection roller (UR): Ø = 34 mm Drive drum (UR): Ø = 81 mm Belt: Type SNB-8E Year of construction: 2001 Optionally available: Supports Side guides Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics
