Wood lathe

Locatelli Ariete 3

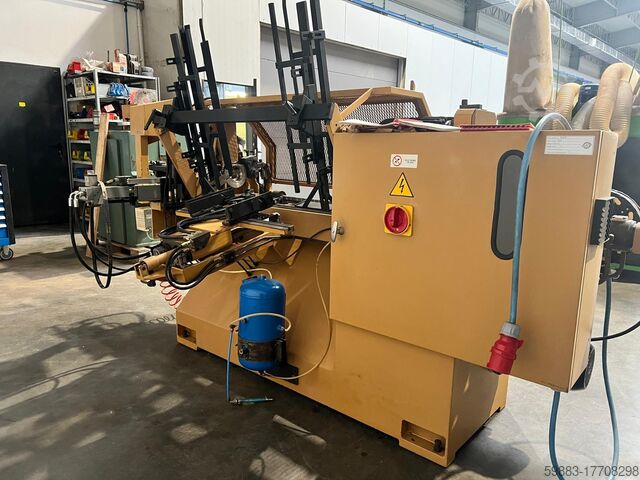

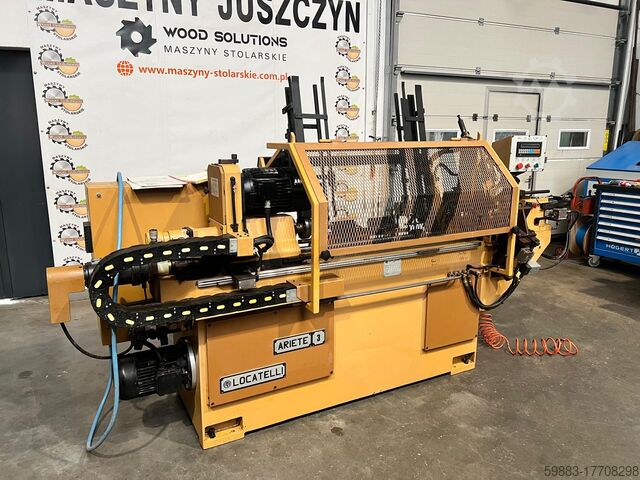

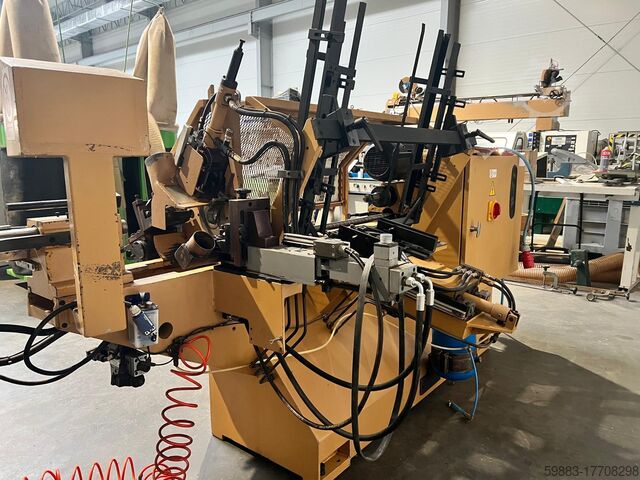

Condition: excellent (used), functionality: fully functional, Locatelli Ariete 3 Automatic Lathe Max/min billet length: 1000/200 mm Max/min billet cross-section: 85×85/20x20 mm Maximum workpiece length: 120 mm with hole, 150 mm without hole Automatic material feeder Hodjx Thylspfx Ahusng Complete DTR documentation Main motor: 3/4 kW Two spindle speeds: 2500/3600 rpm Oil pump motor: 2.2 kW Working pressure: 6–8 bar

Condition: new, IMH-OBC-Optimized block saw Cuts blocks for four-way pallets. How does the machine work? The block material is loaded onto the chain conveyor and transported to the pusher, which feeds it to the cutting zone. The block material is measured by the machine before cutting and it also calculates which lengths need to be cut in order to optimize usage and produce no waste (or as little waste as possible). The machine can process 4 different block lengths in the same pass and each block can be optimized separately. Hjdpfx Ahorkk Udjujng Optionally, the machine can be equipped with a double drive, which enables the simultaneous processing of two different block materials. block materials at the same time. The feed chain and the circular saw blade are driven by a standard electric motor, while the linear module is driven by an AC servo for optimum performance and precision. The measuring arm, the material holder in the saw and the air blower are pneumatically operated. The machine is controlled and monitored by its own PLC via a control panel. The machine is designed for continuous and reliable processing of pallets. It combines professional precision with a user-friendly set-up. Changeover time 1-5 minutes Block length 75 mm* 45 blocks / min * Block material length 3 900 mm or longer. Block: 75-150 x 75-150 x 75-100 mm ( length x width x height ) Squared timber material: 800-5800 x 75-150 x 75-100 mm ( length x width x height ) This machine is available in different versions. IMH has various additional machine modules that can easily be added to existing machines to achieve a higher degree of automation. This is just one example of the many possibilities that can be realized with IMH machines. Since 01.01.2024 we have taken over the exclusive representation for IMH machines in Germany. The range includes high-quality machines for pallet production that are known for their quality and reliability. Please contact us to find out more about IMH machines or to arrange a personal consultation. Gebrüder Göbel - your partner for IMH machines in Germany. We look forward to supporting you with your projects!

Condition: excellent (used), functionality: fully functional, Automatic lathe Locatelli Ariete 3 Length of the cant max/min 1000/200mm Dimensions of the cant max/min 85×85/20x20mm Hjdpfx Aex Thw Dshueng Maximum length of the processed material 120mm with a hole 150mm without a hole Automatic material feeder CE certificate Complete DTR documentation Main engine with a power of 3/4kw Two spindle speeds 2500/3600rpm Oil pump engine 2.2kw Working pressure 6-8bar

Condition: excellent (used), Automatic lathe Locatelli Ariete 3 Hsdpfjxhbyxox Ahueng Length of the cant max/min 1000/200mm Dimensions of the cant max/min 85×85/20x20mm Maximum length of the processed material 120mm with a hole 150mm without a hole Automatic material feeder CE certificate Complete DTR documentation Main engine with a power of 3/4kw Two spindle speeds 2500/3600rpm Oil pump engine 2.2kw Working pressure 6-8bar

Condition: ready for operation (used), Dryer for veneer with 4 levels. In-feed and out-feed system with quality sorting and sorting pockets. Hnodpfsw Ib A Usx Ahuog

Condition: good (used), Double saw for cutting side boards behind the canter. Good condition. Circular saw motors 2x 45kW; Saw spacing by hydraulic servos. Feed rate 60m/min. Hnjdpfx Ahjtrxlkoueg

Year of construction: 2008, condition: good (used), functionality: fully functional, machine/vehicle number: 10999, DESCRIPTION Double-sided grinding machine / grinding machine top/bottom Manufacturer Löwer Type DSM 3000 with workpiece return Bthgq0Ygu0 Working width: 290 mm Grinding thickness: 2-200 mm Shortest workpiece length: approx. 320 mm Equipped with: 1x grinding unit from above, 7.5 kW 1x brushing unit from above, 0.37 kW 1x grinding unit from below, 7.5 kW 1x brushing unit from below, 0.37 kW Grinding belt dimensions: 300 x 1800 mm Hnodpfxsv Dfp Ho Ahuog Electric height adjustment, 0.37 kW Adjustable feed, 6/11/16 m/min. Compressed air: 6-8 bar Dimensions approx. 2700 x 1100 x 1900 mm Weight approx. 1600 kg
