Lorenz gear sharpening machine MS 80

Lorenz Werkzeugschleifmaschine MS 80

Condition: good (used), Year of construction: 2009, functionality: fully functional, turning length: 1,500 mm, turning diameter: 550 mm, spindle motor power: 22,000 W, spindle speed (min.): 3,800 rpm, spindle bore: 80 mm, power: 22 kW (29.91 HP), Equipment: rotational speed infinitely variable, Okuma Macturn 350 2SW-1500 Big Bore main spindle, machine type CNC turning-milling center Fgsdovta Rdjpfx Aa Nsi Make / manufacturer Okuma Okuma Model / type MacTurn 350 2SW1500 BigBore Year of manufacture 2008 / 2009 Control OSP P 200 L IGF One Touch Advanced + CAS Spindle turning time 6437 h Technical data Max. turning diameter: 550 mm Max. turning length: 1,500 mm Travel path of upper turret (milling spindle): X-axis: 505 mm/190 mm/1670 mm Y-axis: 190 mm (+95 /-95) Z-axis: 1670 mm W-axis: 1680 mm Travel path of lower turret: X/Z 210 mm/ 1670 mm Main spindle “Big Bore” version Spindle motor main spindle 22 kW, 412 Nm Max. speed main spindle 3800 rpm Spindle nose main spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm C-axis 0.001 ° Counter spindle “Super Big Bore” version Spindle motor counter spindle 22 kW, 412 Nm Max. speed counter spindle 3300 rpm Spindle end counter spindle JIS A2-8 Spindle passage 80 mm Max. bar diameter: 71 mm Milling spindle Spindle motor milling spindle: 11 kW Max. speed milling spindle: 12000 rpm Tool holder: HSK 63 B-axis: 0.001° Tool magazine: 44 stations Lower turret Tool positions: 12 Tool holder: VDI-40, Driven tool stations: 12 positions Max. power of driven tools: 7.5 kW Max. speed of driven tools 4500 rpm Machine weight: approx. 15,000 kg Space requirement 6000 x 3500 x 3000 cm Other features - High pressure cooling 40 bar - Chip conveyor Interlit ISF 614 - Heavy crane filter Interlit SBP 4 - Touch Setter - Helical Cutting - 4 Extra M-Code Set - 2x hydraulic power chuck SMW BH-D 315-95 diam. 250 mm - DNC- T1 interface - RS 232 C interface - Chuck blow-off function main counter spindle - TAS -S + TAC-C Status report after commissioning in Bergisch Gladbach Geometry measurement results Reverse play XA - axis 0.015 mm Reverse play XB - axis 0.015 mm Reverse play ZA - axis 0.020 mm Reverse play ZB - axis 0.020 mm Reverse play Y - axis 0.010 mm XA - axis measured with measuring mandrel at 300 mm 0.02, YA at 300 mm 0.007in T1,T2, T3 B-axis: alignment and function good M-drive lower turret: tested and good Milling spindle: tested up to 6000 rpm, no abnormalities Main/counter spindle tested , no abnormalities High pressure pumps function well, no abnormalities Accessories - 2 x hydraulic crane chuck SMW - pallet with 16 driven tool holders, 10 HSK 63 holders, 3 VDI 40 holders - lifting hook on the front - all original axle locks Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, a tour of our showroom including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

Condition: good (used), Year of construction: 2006, operating hours: 21,437 h, functionality: fully functional, machine/vehicle number: 122574, Controller: OSP P200 L  Remarkably few spindle hours.    Max. turning diameter ø 720mm  2.000 mm distance between spindles  Spindle speed 3.500 rpm  Spindle power 30 kW  Sub-spindle; spindle speed 3.800 rpm  Spindle power 22 kW  Spindle speed aangedr. Ger 5.000 rpm  Spindle power aangedr. Ger. 22 kW  Number ger. Under 12 Turret  Fgsdpfx Aasurfz Io Noi Upper mill spindle HSK100 ATC 32 HSK 100   Y-axis 250 (+125 / 1-125) mm  Floor space: 6150 x 3073

Condition: used, Year of construction: 2002, functionality: fully functional, turning diameter: 1,600 mm, spindle motor power: 45 W, spindle speed (max.): 1,500 rpm, travel distance X-axis: 1,200 mm, travel distance Z-axis: 900 mm, rapid traverse X-axis: 10,000 m/min, rapid traverse Z-axis: 10,000 m/min, Daewoo Doosan PUMA V-1200M CNC vertical lathe, year 2002, equipped with FANUC Series 18-T control, designed for machining large and heavy workpieces, ideal for heavy-duty and industrial sector applications. Main technical specifications: Maximum swing and turning diameter: Ø 1,600 mm Maximum turning height: 1,200 mm Maximum workpiece weight: 6,000 kg Chuck diameter: Ø 1,200 mm RAM axes: X (horizontal): 1,200 mm Z (vertical): 900 mm C axis: 360° rotation, minimum positioning increment 0.001° Main spindle: Speed: 2 ÷ 320 rpm (2 ranges) Power: 37/45 kW RAM driven spindle: Taper ISO-50 Speed: 15 ÷ 1,500 rpm RAM section: 240 x 240 mm Tool turret: 16 stations, with BT-50 type tools Max. tool diameter: Ø 400 mm Max. tool length: 450 mm Max. tool weight: 50 kg Maximum tool weight in magazine: 600 kg Feeds: Rapid traverse X/Z axes: 10,000 mm/min Working feeds X/Z axes: 3,000 mm/min Fjdjwt S Rhopfx Aa Negi Included accessories: Chip conveyor Coolant tank with pumps Spindle line air conditioner Various fixed and driven tool holders Manuals, electrical diagrams, CE declaration Solid and high-performance machine for vertical machining of large workpieces with high precision.

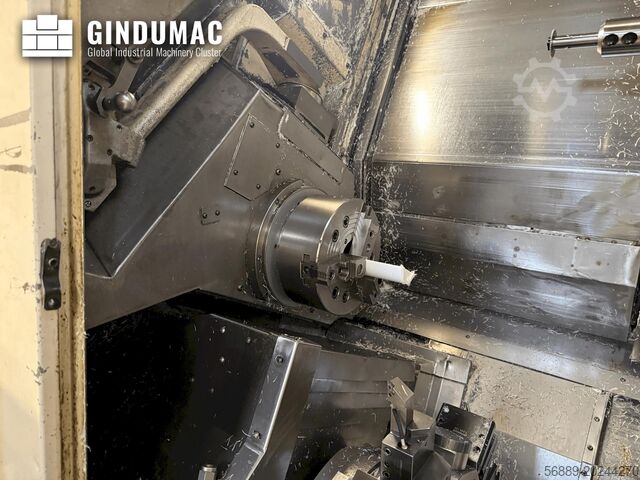

Condition: ready for operation (used), Year of construction: 2003, Control Unit Interface HSK 63 Brand OKUMA Model OSP-100L Main Drive Number of axis 5 Fsdpfx Ajxl H Hrsa Nsgi Tools Number of index 40 Max tool length 1500 mm Additional Equipment Autodoor This 5-axis Okuma MacTurn 350 was manufactured in 2003. It features an HSK 63 tooling system and can accommodate up to 40 tools. The machine includes an autodoor and supports a turning length of 1500 mm. Consider the opportunity to buy this Okuma MacTurn 350 Turn-mill centre machine. Contact us for more information. Application Types Turning
