Vertical balancing machine

97V10 (10kg)

High-Precision Vertical Balancing Machine for Disk-Type Rotors up to 10kg
Hedpfju U Nqdsx Afpsfn

The 97V10 is a versatile vertical balancing machine designed to efficiently balance disk-type rotors without their own bearing surfaces. Ideal for serial, small-scale, and single-piece production, it ensures optimal performance and reliability of your products.

HIGHLIGHTS
• High Accuracy: Delivers precise unbalance measurement with an accuracy of at least 4 g∙mm/kg.

• Versatile Design: Accommodates a wide range of disk-type rotors, including:
- Discs of various designs
- Pulleys and flywheels
- Fan impellers
- Brake discs and drums
- Couplings
- Pump impellers
- Cutting tools

• Efficient Operation:
- Vertical axis of rotation for quick part replacement and easy access.
- Semi-automatic mode for streamlined operation.
- Protective covers and compliance with CE and ISO safety standards.

• Flexible Configuration:

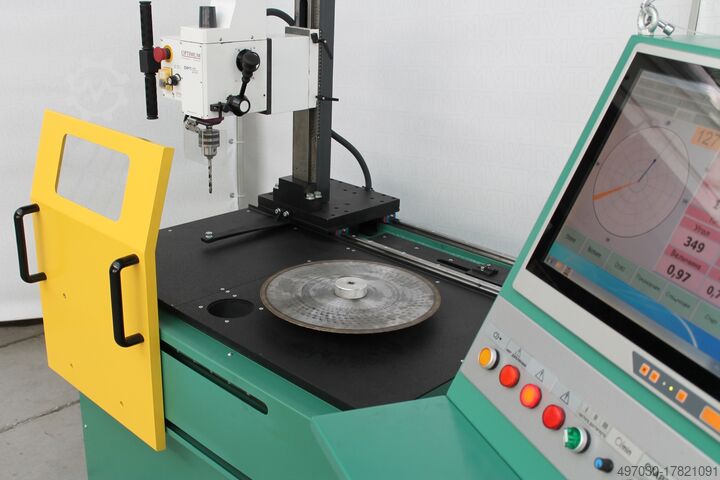

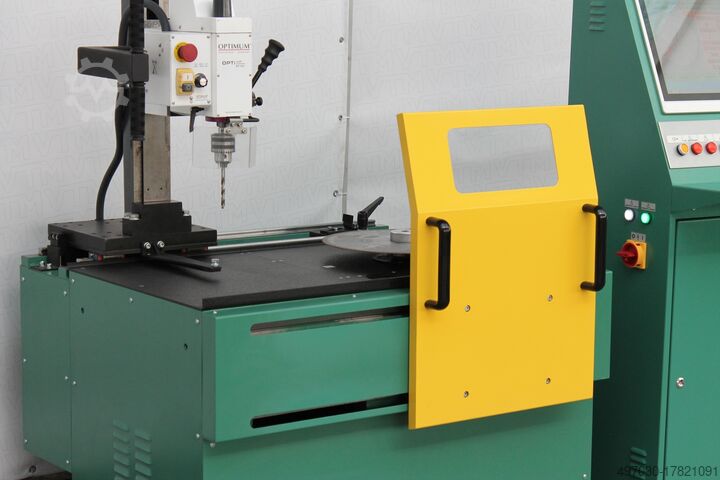

- Customizable with drilling or milling modules for in-situ unbalance correction.
- Available with various spindle fits (cylindrical or tapered) and mandrels.
- Options for pneumatic or manual collet chucks and hydraulic jacks for heavy workpieces.



SPECIFICATIONS
Weight range of balanced rotors 0.1 - 10 kg
Maximum rotor diameter 250 mm
Maximum rotor height 150 mm
Minimum achievable residual specific unbalance 4 g*mm/kg
Number of measurable rotor correction planes 1 & 2
Rotor speed range 300 – 1500 rpm
Electric motor power 1.0 kW
Parameters of the supply network 380V, 3 Ph, 50Hz

For more information and to discuss your specific balancing needs, please contact our sales team.
