Moving bezel

Condition: ready for operation (used), Year of construction: 2009, operating hours: 27,745 h, functionality: fully functional, machine/vehicle number: NT320110134, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The offer includes a comprehensive tool package (see attachment; an Excel table can be provided on request)! An inspection checklist for 2025 is also included. TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum machining diameter at tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Axes X-axis tool spindle: 685 mm Y-axis tool spindle: ±125 mm Z-axis tool spindle: 1,075 mm B-axis swivel range: ±120° X-axis turret 2: 130 mm Z-axis turret 2: 970 mm Main spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Counter spindle Maximum speed: 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Inner bearing diameter: 120 mm Tool spindle (Turret 1) Maximum speed: 12,000 rpm Maximum tool length: 200 mm Maximum tool weight: 4 kg Tool change time: 1.25 s Cpedpfx Aoyml Eqsh Ijw MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating Hours Power-on hours: 131,963 h Operating hours: 68,391 h Spindle hours: 27,745 h

Condition: good (used), Bezel, setting stick, lynette Cpedpfx Aoh Tr E Hjh Iow -Manufacturer: Meuser, steady rest with coolant connection from lathe M4L -Max. passage: Ø 500 mm -Peak height: 390 mm -Technical drawing: see photos -Dimensions: 840/140/H850 mm -Weight: 98 kg

Condition: ready for operation (used), Year of construction: 2008, operating hours: 29,709 h, functionality: fully functional, machine/vehicle number: NT320GE0052, turning length: 1,045 mm, turning diameter: 600 mm, travel distance X-axis: 685 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 1,075 mm, The machine's tool spindle was replaced in 2022! The offer includes a comprehensive tooling package (see attachment; an Excel tool list can be provided upon request)! TECHNICAL DETAILS Maximum workpiece swing diameter: 600 mm Swing diameter over cross slide: 600 mm Maximum distance between centers: 1,255 mm Maximum turning diameter with tool spindle: 600 mm Maximum turning length: 1,045 mm Bar capacity: 65 mm Travel paths X-axis (tool spindle): 685 mm Y-axis (tool spindle): ±125 mm Z-axis (tool spindle): 1,075 mm B-axis (swivel range): ±120° X-axis (turret 2): 130 mm Z-axis (turret 2): 970 mm Main spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Bearing inner diameter: 120 mm Counter spindle Speed: max. 5,000 rpm Gear stages: 2 Spindle nose: JIS A2-6 Spindle bore: 73 mm Indexing: min. 0.0001° Bearing inner diameter: 120 mm Milling spindle (turret 1) Speed: max. 12,000 rpm Maximum tool length: 200 mm Cjdpeymlvvofx Ah Iopw Maximum tool weight: 4 kg Tool change time: 1.25 s MACHINE DETAILS Dimensions (L x W x H): 3,765 x 2,966 x 2,765 mm Weight: 15,800 kg Operating hours Power-on hours: 138,593 h Operating hours: 66,865 h Spindle hours: 29,709 h

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 1,500 mm, controller model: Heidenhain 530, Equipment: chip conveyor, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 1,270 mm Z-axis travel: 1,500 mm Spindle speed: up to 4,000 rpm Tool holder: SK50 MACHINE DETAILS Control: Heidenhain 530 Cpodpfeymcu Aox Ah Ijw Internal cooling: 22 bar EQUIPMENT Diagonal milling head with 2.5 x 2.5 indexing Longitudinal chip conveyor

Condition: used, stationary steady rest /5155) Dimensions – see last photo SPH 370 mm Inner diameter 320 mm Total height 860 mm Total width 830 mm Base width 500 mm Base depth 170 mm Cpedpfsdb Unvox Ah Iow

Condition: like new (used), Year of construction: 2024, operating hours: 50 h, functionality: fully functional, paper width (min.): 130 mm, paper width (max.): 780 mm, paper height (min.): 6 mm, paper height (max.): 1 mm, production capacity: 8,000 unit/h, Machine in nearly new condition with only 50 operating hours! TECHNICAL DETAILS Maximum paper size: 950 x 780 mm Minimum paper size: 150 x 130 mm Maximum window size: 380 x 300 mm Minimum window size: 50 x 50 mm Paper thickness: 1 - 6 mm Speed: 8,000 pcs/h Cedpfxsyl U A Ao Ah Iepw MACHINE DETAILS Input voltage: 380 V Operating hours: 50h Dimensions & Weight Dimensions (L x W x H): 7,500 x 1,750 x 1,700 mm Total weight: 3,200 kg FEATURES Processing of standard and corner windows Precise positioning with automatic centering system High degree of automation User-friendly control with touchscreen Robust construction

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, turning length: 2,000 mm, spindle speed (max.): 1,000 rpm, travel distance Z-axis: 2,000 mm, overall weight: 40,000 kg, turning diameter over bed slide: 1,270 mm, controller model: Fanuc Serie 18i-TB, TECHNICAL DETAILS Turning length: 2,000 mm Swing diameter over bed: 1,550 mm Swing diameter over cross slide: 1,270 mm Spindle speed: 1,000 rpm Spindle diameter at front bearing: 240 mm Spindle bore: 185 mm Spindle power: 37/30 kW Bar capacity: 165 mm Travel in longitudinal direction (Z-axis): 2,000 mm Cross travel: 685 mm Rapid traverse speed X-axis: 10 m/min Rapid traverse speed Z-axis: 12 m/min MACHINE DETAILS CNC control: Fanuc Series 18i-TB Dimensions & Weight Dimensions (L x W x H): 9,800 x 3,695 x 5,292 mm Machine weight: approx. 40 t Cpjdpfx Aeylwl Tjh Isw EQUIPMENT 12-position turret

Condition: used, Bezel, stick, lynette -max. passage: Ø 450 mm -Tip height: 305 mm Cpedpfxjftvq Aj Ah Iow -Edition: ball bearings -Technical drawing: in the photos -Dimensions: 880/100/H870 mm -Weight: 169 kg

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 2338, travel distance X-axis: 6,700 mm, travel distance Y-axis: 2,090 mm, travel distance Z-axis: 70 mm, table width: 2,160 mm, table height: 915 mm, table length: 7,340 mm, TECHNICAL DETAILS X-axis travel: 6,700 mm Y-axis travel: 2,090 mm Z-axis travel: 70 mm Main drive: 1 x HSD Main drive power: 6.6 kW / 8.9 HP Max. main spindle speed: 24,000 rpm Cjdpfx Asylk Hdsh Iopw Secondary drives: 2 x ELTE Secondary drive power: 3.7 kW / 5 HP Max. secondary spindle speed: 24,000 rpm Table width: 2,160 mm Table length: 7,340 mm Table height: 915 mm Number of milling heads: 3 EQUIPMENT Vacuum pump: BUSCH MINK Manuals Integrated software

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 555 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 82 mm, travel distance Z-axis: 600 mm, workpiece diameter (max.): 250 mm, TECHNICAL DETAILS Counter-spindle speed: 59–4,500 rpm Bar capacity main spindle: 65 mm Bar capacity counter-spindle: 51 mm Travel X1/X2 axis: 195 mm Travel Y axis: ± 41 mm Travel Z axis: 600 mm Max. workpiece diameter: 250 mm Max. turning length: 555 mm Number of tool stations upper turret: 12 Number of tool stations lower turret: 12 All tools driven Main spindle nose: A 2-6 Counter-spindle nose: A 2-5 Cpedpfxjynhiho Ah Ijw Feed power X1/X2/Y axis: 1 kW Feed power Z1/Z2 axis: 2.1 kW Maximum loading length: 6,200 mm MACHINE DETAILS Control model: Fanuc 18 IT Main spindle power: 18.5 kW / 15 kW Counter-spindle power: 11 kW / 7.5 kW Bar feeder Max. bar length: 6 m 8 channels with diameters: 22 mm, 27 mm, 32 mm, 37 mm, 42 mm, 47 mm, 57 mm, 67 mm 8 pushers with pusher cone Intermediate sizes can also be loaded Unload magazine Max. bar length: 2 m EQUIPMENT Coolant tank Chip conveyor from 10/2021 Last overhaul of bar feeder 09/2020 (channel replacement, replacement of various bearings, replacement of push rods and spindle liners, including maintenance)

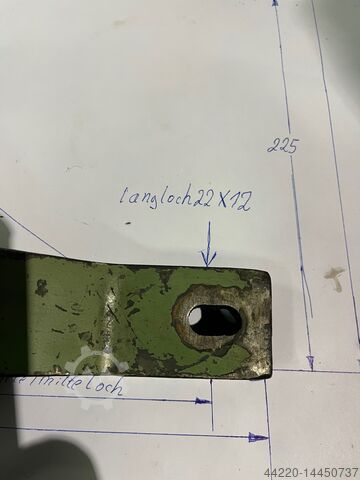

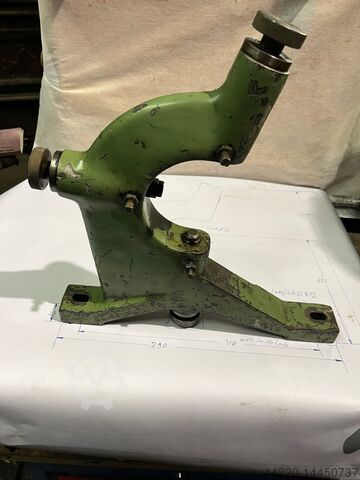

Condition: used, traveling Luenette Height without foot 300 mm diameter 110 mm Cpodpfx Ahecrcybe Isw Foot width 50 mm

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning length: 1,240 mm, turning diameter: 380 mm, spindle speed (max.): 3,200 rpm, quill diameter: 100 mm, controller model: Fanuc 18i-TB, TECHNICAL DETAILS Maximum turning diameter: 380 mm Maximum turning length: 1,240 mm Swing diameter over bed: 600 mm Rapid traverse X/Z-axis: 20 m/min Main spindle Maximum torque: 1,030 Nm Maximum speed: 3,200 rpm Maximum chuck diameter: 254 mm Maximum bar capacity: 76 mm Turret Number of turret stations: 12 positions (6 driven) Driven tool speed: 3,000 rpm Tool system (type): BMT C-axis: 0.001° Tailstock Quill diameter: 100 mm Quill stroke: 120 mm Taper: 5 MT Bar loader Type: Samsys Multisam 2000 Maximum bar length: 1,550 mm Cpedpfeyngzisx Ah Ijw MACHINE DETAILS Operating hours: 46,103 h Control model: Fanuc 18i-TB Main spindle power: 22 kW Turret drive power: 3.7 kW EQUIPMENT Chip conveyor 3 spindle reduction tubes Box guideways 3-jaw power chuck 250 mm (Type: Seoam ACE CAH-10) Full-featured C-axis Touchsetter Manuals

Condition: ready for operation (used), operating hours: 7,738 h, functionality: fully functional, turning length: 225 mm, turning diameter: 260 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 170 mm, travel distance Z-axis: 335 mm, TECHNICAL DETAILS Max. turning diameter: 260 mm Max. turning length: 225 mm Chuck size: 6" Swing diameter over bed: 550 mm Travel X-axis: 170 mm Travel Z-axis: 335 mm Rapid traverse X/Z-axis: 36 m/min Main Spindle Spindle nose (ASA): A2-5 Cjdeyngptepfx Ah Iopw Max. spindle speed: 6,000 rpm Spindle bore diameter: 56 mm Max. bar capacity: 45 mm Turret Number of turret stations: 12 positions Turret indexing time: 0.15 s Tailstock Quill diameter: 60 mm Quill stroke: 80 mm Taper/Quill mount: MT 4 Live Tooling Spindle Max. spindle speed: 5,000 rpm Bar Feeder Model: Fedek Machine Co. DH-65 Bar length min./max.: 280/1,200 mm Bar diameter: 5-65 mm MACHINE DETAILS CNC control model: Fanuc 0i-TD Control on-time: 30,811 h Cutting time: 7,738 h Spindle motor power: 15/7.5 kW Feed motor power X/Z-axis: 3.0/1.8 kW Live tooling spindle motor power: 3.7/2.2 kW Dimensions Dimensions (L x W x H): approx. 1,620 × 1,200 x 1,400 mm EQUIPMENT Side-mounted chip conveyor and chip cart Short bar loader magazine Interface for bar feeder Workpiece catcher (parts catcher) Chuck open/close confirmation switch C-axis indexing Driven tools Trailing (drag-along) tailstock Linear guides Manuals

Condition: excellent (used), rotating bezel (28442) diameter 150 mm Cjdpequ Rhtofx Ah Ispw Dimensions, see photos

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 516231X00505, Year of construction: 2020, operating hours: 14,926 h, load capacity: 2,000 kg, lifting height: 5,600 mm, free lift: 1,900 mm, mast type: triplex, construction height: 2,250 mm, TECHNICAL DETAILS Load capacity: 2,000 kg Lift height: 5,600 mm Free lift: 1,900 mm MACHINE DETAILS Mast type: Triplex with full free lift Overall height: 2,250 mm Cpedpfx Ahsynaddo Iew Battery: 48 V 750 Ah (very good performance measured at 51.3 V) Operating hours: 14,926 h EQUIPMENT 3rd + 4th valve Fork positioner with side shift All dimensions are approximate. No liability is accepted for typographical or measurement errors. COLLECTION CONDITIONS Side loading up to 5 t possible with a large forklift truck on site at your own risk. Collection ONLY with email payment confirmation! Collection WITHOUT prior appointment: Monday to Friday, 7:00 a.m. - 4:30 p.m. A mast that is too high for transport can be disassembled upon request. If collection is not made within the agreed period, a storage fee of €20 per machine per day will be charged (the balance must be paid before collection).
