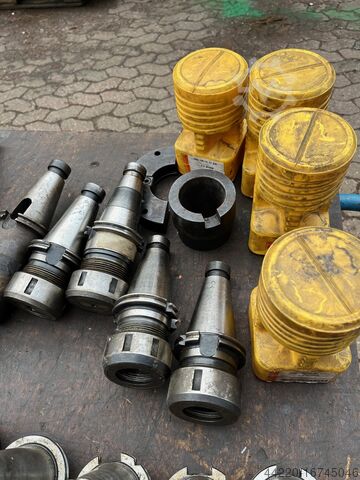

Tool holder / tool holder

Condition: not inspected (used), Year of construction: 2008, functionality: unexamined, machine/vehicle number: 71257, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Measuring volume: 3,000 mm Accuracy: 0.07 mm MACHINE DETAILS Gedpfx Aszhuyljhzjud Dimensions & Weight Installation dimensions L x W x H: 1,000 x 500 x 1,000 Weight: 30 kg SCOPE OF DELIVERY Laptop and software (completeness not guaranteed) Transport case Note: The red base on which the laptop is placed is not included in the offer.

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: F3S171901, table width: 180 mm, table length: 600 mm, coolant tank capacity: 30 l, pump capacity: 15 l/min, TECHNICAL DETAILS Clamping table dimensions: 600 x 180 mm Gedpozhm Afjfx Ahzsud Tool holder: SK30 Drawbar: M12 x 220 mm T-slots: similar to DIN 650 MACHINE DETAILS Coolant tank: 30 l Delivery rate: 15 l/min Saddle adjustment: handwheels Spindle drive: 2-pole motor via multi-ribbed belt EQUIPMENT Arbor clamping Cooling system with 30-liter tank Coolant tank with quick-release fastener Control panel Work light Coolant hose CE marking

Condition: ready for operation (used), Year of construction: 2006, operating hours: 5,366 h, functionality: fully functional, machine/vehicle number: 11415551674, controller model: Heidenhain i TNC 530, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 16, table diameter: 600 mm, TECHNICAL DETAILS Gujdpfszhmw Asx Ahzed Spindle speed: 10,000 rpm Table diameter: 600 mm Number of tool changer positions: 16 Tool system: SK40 MACHINE DETAILS Control model: Heidenhain i TNC 530 Dimensions & Weight Dimensions (L x W x H): 2,200 x 2,000 x 2,100 mm Weight: approx. 4 t Operating hours, control system on: 24,237 h Operating hours, automatic mode: 5,366 h

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 11065357454, spindle speed (max.): 6,000 rpm, control type: CNC control, number of axes: 3, TECHNICAL DETAILS Pallet size: 400 mm Spindle speed: 6,000 rpm Gujdpfx Ahezhmvljzod Tool holder: SK40 MACHINE DETAILS Control type: CNC controlled Number of axes: 3 EQUIPMENT Tool change: manual

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 06010056, total height: 1,620 mm, total width: 910 mm, total length: 980 mm, A coordinate measuring machine manufactured by Tesa, model: Micro-hite 3D, will be auctioned. MACHINE DETAILS Guodpozhmq Nsfx Ahzsd Overall length: 980 mm Overall width: 910 mm Overall height: 1,620 mm Installation date: March 24, 2006

Condition: ready for operation (used), Year of construction: 2013, operating hours: 23,831 h, functionality: fully functional, machine/vehicle number: 15465588584, travel distance X-axis: 400 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 375 mm, controller model: Heidenhain iTNC 530 HSCI, rotational speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 400 mm Travel range, Y-axis: 400 mm Travel range, Z-axis: 375 mm B-axis: -5 to +110 degrees C-axis: 360 degrees Table dimensions: 450 x 400 mm Maximum workpiece weight: 250 kg Spindle speed: 18,000 rpm Tool interface: HSK-A63 Number of tool positions: 60 Rapid traverse rate: 80 m/min MACHINE DETAILS Control system: Heidenhain iTNC 530 HSCI Machine weight (approx.): 7,150 kg Operating hours Spindle hours: 23,831 h Power-on hours: 57,330 h EQUIPMENT Band filter system NC rotary table Handwheel FS Gjdpszgt U Eofx Ahzoud Coolant gun Tool measurement system Chip conveyor Rotoclear viewing window Temperature monitoring

Condition: ready for operation (used), Year of construction: 2010, operating hours: 10,106 h, functionality: fully functional, machine/vehicle number: 107.86.00.246, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, rotational speed (max.): 24,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 600 mm Travel range, Z-axis: 500 mm Spindle speed: 24,000 rpm Table dimensions: 900 x 630 mm Number of axes: 3 MACHINE DETAILS Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (L x W x H): 3,000 x 2,550 x 2,900 mm Machine weight: 8,300 kg Connection: 400 V Operating hours Operating hours, control system: 58,372 h Operating hours, machine: 26,800 h Gusdpfx Aszgt Ulehzed Programmed hours: 10,106 h

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 0044, workpiece height (max.): 250 mm, workpiece width (max.): 750 mm, workpiece length (max.): 550 mm, feed length X-axis: 350 mm, feed length Y-axis: 250 mm, feed length Z-axis: 256 mm, The machine was manufactured in 2011, but it was not put into operation and modernized until 2016. As part of this process, an electrical update for the WorkPartner automation system was carried out! TECHNICAL DETAILS Workpiece weight max.: 200 kg Travel range X-axis: 1,800 mm Travel range Y-axis: 2,000 mm Travel range Z-axis: 1,100 mm Gujdezf E Nxjpfx Ahzsd Workpiece height max.: 250 mm Workpiece width max.: 750 mm Workpiece length max.: 550 mm Feed length X-axis: 350 mm Feed length Y-axis: 250 mm Feed length Z-axis: 256 mm MACHINE DETAILS Type of input current: Three-phase Dimensions & Weight Dimensions (L x W x H): 3,000 x 3,760 x 2,455 mm Total weight: 3,700 kg EQUIPMENT Documentation/Manual Cooling unit Note: The operating hours of the machine can be found in the last image.

Condition: ready for operation (used), Year of construction: 2001, operating hours: 26,897 h, functionality: fully functional, machine/vehicle number: 107.84.01.011, travel distance X-axis: 400 mm, travel distance Y-axis: 240 mm, travel distance Z-axis: 350 mm, controller model: Heidenhain TNC 430 M, spindle speed (max.): 42,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 400 mm Travel range, Y-axis: 240 mm Travel range, Z-axis: 350 mm Feed rate (X/Y/Z-axis): 40 m/min Gjdpfx Aozf E I Ujhzoud Axis acceleration (X/Y/Z-axis): 10 m/s² Spindle speed max.: 42,000 rpm Spindle torque (40% duty cycle): 4.25 Nm Spindle torque (100% duty cycle): 3.2 Nm Feed rate, B-axis max.: 54,000 °/min Feed rate, C-axis max.: 90,000 °/min Tool interface: HSK-E40 Tool magazine: 18/36/68 tools Tool change time: approx. 10 s Chip-to-chip time: approx. 12.5 s Erowa UPC pallet system (L x W): 320 x 320 mm Workpiece weight max.: 200 kg MACHINE DETAILS Control model: Heidenhain TNC 430 M Spindle power (40% duty cycle): 13 kW Spindle power (100% duty cycle): 10 kW Spindle operating hours: 26,897 h Dimensions & Weight Dimensions (L x W x H): 2,300 x 2,400 x 2,800 mm Total weight: 6,500 kg EQUIPMENT STEP-TEC spindle, type HVC140-SB-10-15/42-3F-HSK-E40 Erowa UPC pallet system

Condition: ready for operation (used), Year of construction: 2018, operating hours: 4,231 h, functionality: fully functional, machine/vehicle number: 107.44.00.407, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, overall weight: 11,000 kg, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 650 mm Travel range, Z-axis: 500 mm Gjdpfx Ajzf E I Iohzsud C-axis swivel range: 360° Tool interface: HSK-E63 MACHINE DETAILS Control system: Heidenhain iTNC 530 Spindle types: NCD 150 PL, NCD 200 PL Operating hours, control ON: 30,064 h Operating hours, machine ON: 10,322 h Operating hours, program execution: 4,159 h Operating hours, drives ON: 7,331 h Operating hours, spindle ON: 4,231 h Dimensions & Weight Dimensions (L x W x H): 3,400 x 3,000 x 2,800 mm Total weight: 11,000 kg EQUIPMENT Chip conveyor Coolant system with filter system Documentation available
