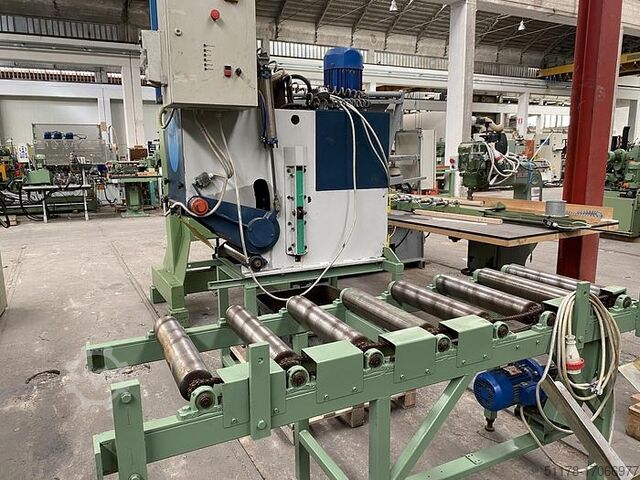

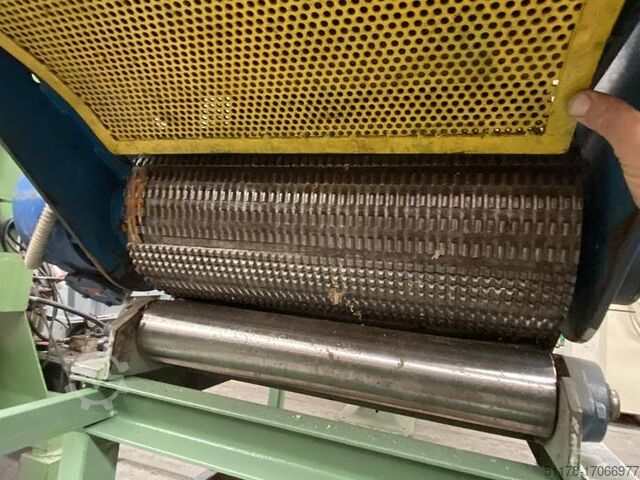

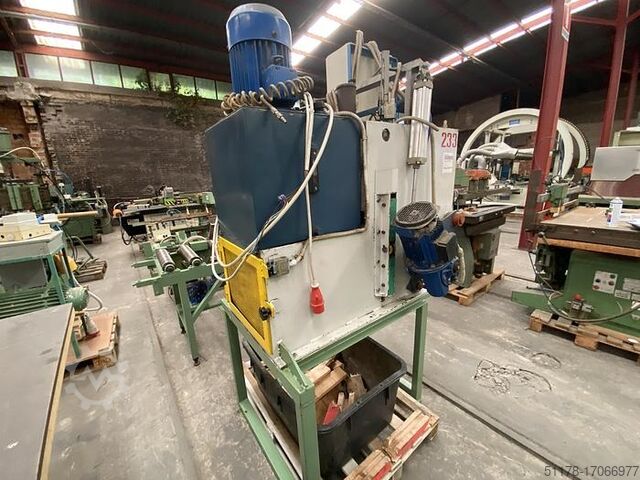

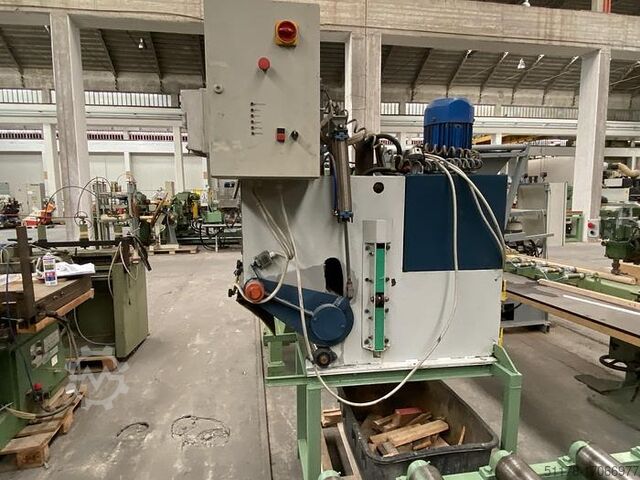

Hydraulic cutter for trims and long pieces of wood

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 2,134 mm, travel distance Y-axis: 813 mm, travel distance Z-axis: 762 mm, table load: 1,814 kg, spindle speed (max.): 8,100 rpm, The machine can be inspected while powered on during production! TECHNICAL DETAILS Travel range, X-axis: 2,134 mm Travel range, Y-axis: 813 mm Travel range, Z-axis: 762 mm Max. spindle speed: 8,100 rpm Spindle motor power: 22.4 kW Max. torque: 122.0 Nm at 2,000 rpm Table dimensions: 2,134 x 711 mm Max. load capacity on table: 1,814 kg Number of tool magazine slots: 31 Distance from spindle nose to machine table (max.): 864 mm Distance from spindle nose to table (min.): 102 mm MACHINE DETAILS Control system: HAAS Table dimensions: 2,134 x 711 mm Pedpfx Anjzg Drzepepu Max. load capacity on table: 1,814 kg EQUIPMENT Documentation/Manual Chip conveyor

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 2,700 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,050 mm, spindle speed (max.): 3,000 rpm, controller model: HEIDENHAIN iTNC530, The machine can be inspected while powered on during production! TECHNICAL DETAILS Travel range X-axis: 2,700 mm Travel range Y-axis: 1,000 mm Travel range Z-axis: 1,050 mm Max. feed rate X/Y/Z: 10,000 mm/min Table dimensions: 3,300 x 1,000 mm T-slots: 7 x 22 2-axis diagonal milling head: 1 x 2.5 Spindle speed: 60 - 3,000 rpm Motor power: 22/30 kW Tool holder: ISO 50 (DIN69872-B) MACHINE DETAILS Control system: HEIDENHAIN iTNC530 Coolant pressure through the spindle: 19 bar EQUIPMENT Adjustable control panel in front of the machine Enclosure with front-facing doors Machine documentation Cooling and chip disposal Pjdpfx Ajzg Dq Denpopu Chain conveyor in the longitudinal direction

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 020033, spindle speed (max.): 5,000 rpm, spindle diameter: 110 mm, controller model: Siemens SINUMERIK, empty load weight: 11,000 kg, counter spindle speed (max.): 5,000 rpm, The machine is expected to be available for approximately €4,000, including loading onto a truck (FOB). TECHNICAL DETAILS Working area X1-axis: 1,190 mm Working area Y1-axis: 120 mm Working area Z1-axis: 260 mm Working area X3-axis: 540 mm Working area Y3-axis: 120 mm Ppedpfxezdqdfe Anpeu Working area Z3-axis: 260 mm Handling space X1-axis: 490 mm Axes and Feed Feed force X1/Z1/Y1: approx. 8/10/10 kN Feed force X3/Z3/Y3: approx. 8/10/10 kN Rapid traverse speed X1/Z1/Y1: approx. 80/40/7.5 m/min Rapid traverse speed X3/Z3/Y3: approx. 40/40/7.5 m/min Acceleration X1/Z1/Y1: 7/7/7 m/s² Acceleration X3/Z3/Y3: 7/7/7 m/s² Spindle Speed at main and counter spindle: 5,000 RPM Power at 100% duty cycle, main spindle: 20 kW Torque at 100% duty cycle: 105 Nm Power at 40% duty cycle: 27 kW Torque at 40% duty cycle: 145 Nm Spindle bore: 65 mm Spindle diameter at front bearing: 110 mm Spindle nose diameter (cylindrical): 140 mm Hydraulic full-stroke cylinder OVS80 - Main spindle Piston stroke: 32 mm Piston area: 34.36 cm² Clamping pressure: 8 to 80 bar Tensile or compressive force at 80 bar: max. 27.2 kN Leakage oil volume at operating pressure 80 bar: max. 2.2 l/min Hydraulic full-stroke cylinder OVS65 - Counter spindle Piston stroke: 32 mm Piston area: 26.1 cm² Clamping pressure: 8 to 100 bar Tensile or compressive force at 100 bar: max. 26.1 kN Leakage oil volume at operating pressure 100 bar: max. 3 l/min Y-axis Slide travel: 120 mm Feed force: 10 kN Rapid traverse: 7.5 m/min Resolution: 0.05 mm Speed of driven tools: 6,000 RPM MACHINE DETAILS Control system: Siemens SINUMERIK Unloading device Swivel angle: 90 degrees Swivel time: 2 s Slide travel: 100 mm Rapid traverse speed: 6 m/min Workpiece weight: approx. 10 kg Workpiece diameter: 200 mm Electrical data Rated power: 45 kW Apparent power: 53 kVA Rated current: 76 A Voltage: 400 V Frequency: 50/60 Hz Dimensions and weight Dimensions with chip conveyor (L x W x H): 2,770 x 4,435 x 2,750 mm Weight: approx. 11,000 kg EQUIPMENT Two tool holders with 12 tool positions each, VDI 30 Note: Further technical data can be found in the attached data sheet. The machine is not equipped with a B-axis.

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 23022001, tilt adjustment saw blade: 45 °, workpiece width (max.): 80 mm, workpiece height (max.): 70 mm, main saw diameter: 350 mm, production capacity: 1,900 unit/h, This machine is an automatic double miter saw! TECHNICAL DETAILS Process stations: up to 6 Cutting angle: 45° Suitable materials: wood, MDF, strips, profiles, and aluminum, depending on the saw blade Cutting performance / production output Production output: 1,500 to 1,900 cuts/hour Cutting type: simultaneous double miter cut Workpiece dimensions Workpiece width max.: max. 80 mm Workpiece height max.: 70 mm Saw unit Saw blades: 2 x diameter 350 mm Cutting positions: 2 Saw blade position: 45° Feed / material feed Feed stroke max.: 1,200 mm Feed stroke optional max.: 1,600 mm Feed length max.: 3,200 to 6,200 mm Vertical feed length: 3,000, 4,000, 5,000, or 6,000 mm MACHINE DETAILS Motor power: 2 x 1.5 kW System: industrial pneumatic system Clamping system: vertical and horizontal pneumatic clamping Software version: 6.0.7.0 Operation: touchscreen, mouse, or external keyboard Programming methods: frame method and list method Production data: production reporting Extraction nozzle: 2 x diameter 80 mm Extraction: prepared for dust and chip extraction Control: PLC / control modules Control cabinet: industrial control cabinet with relays, transformer, circuit breakers, and cable ducts Cooling: forced ventilation Layout / installation dimensions / weight Installation length Layout 1: 6,282 mm Installation depth Layout 1: 1,100 mm Installation length Layout 2: 8,250 mm Installation depth Layout 2: 4,000 mm Installation length Layout 3: 13,952 mm Installation depth Layout 3: 9,000 mm Partial dimension Layout 2: 2,560 mm Partial dimension Layout 2: 2,490 mm Partial dimension Layout 2: 3,200 mm Machine weight: 550 kg EQUIPMENT Automatic double miter cut Vertical or horizontal material feed Primary material gripper system Optional advanced material gripper system Speed-feed servo system Vertical and horizontal clamping device Unloading belt with ejector Kick-out conveyor Pneumatic transfer conveyor Touchscreen control Password-protected software platform Manual control of all machine commands Programming via frame or list method Simulation and visualization of cutting programs Podpfx Anozdkttepjpu Cutting and material optimization Production data acquisition Operating panel with screen and indicators PLC / control modules Industrial relays Mean-Well power supply Transformer Circuit breaker Wiring in cable ducts Forced ventilation Industrial pneumatic actuators Tested connections and hoses Emergency stop Safety devices Prepared for dust and chip extraction

Condition: ready for operation (used), Year of construction: 2019, functionality: fully functional, machine/vehicle number: 71971, total length: 3,070 mm, total width: 2,425 mm, product height (max.): 350 mm, roller width: 950 mm, production capacity: 5,000 unit/h, Automatic shrink wrapping machine with continuous side sealing! TECHNICAL DETAILS Maximum production capacity: 5,000 units/hour Product dimensions Product height: max. 350 mm Product length: variable Film/roll dimensions Maximum film roll width: 950 mm Maximum film roll diameter: 350 mm Suitable films: Polyolefin, PVC, polyethylene, and polypropylene Sealing unit Sealing bar length: 820 mm Sealing system: continuous side sealing Transverse sealing bar: with PTFE coating MACHINE DETAILS Operation: 7" color touchscreen Operating modes: automatic and manual Control: integrated PLC control Production counter integrated Total power: 3,850 W Power supply: 380 to 415 V / 3 phases + N + PE Power consumption: 15.5 A Dimensions & weight Dimensions (L x W x H): 3,070 mm x 2,425 x 1,765 mm Machine weight: 1,140 kg EQUIPMENT SMIPACK T852H shrinking tunnel Continuous side sealing with hot knife Transverse sealing bar with PTFE coating Electronic temperature control Automatic film tension control Automatic adjustment of product spacing Electronic speed regulators Color touchscreen with extended user interface Integrated PLC control Production counter Diagnostic system for malfunctions Parameter monitoring Foldable top cover for quick maintenance Motorized, synchronized conveyor High-quality guides and rollers Pjdpfjzdkr Nox Anpspu Industrial control buttons from Lovato Access to the sealing area for cleaning and adjustment Suitable for polyolefin, PVC, and special films

Condition: ready for operation (used), functionality: fully functional, power: 30 kW (40.79 HP), filling opening length: 600 mm, filling opening width: 500 mm, rotor diameter: 400 mm, rotor width: 600 mm, No minimum price – guaranteed sale to the highest bidder! The machine has been completely overhauled! Robust shredding mill with high performance! Podpfx Anozdf Dnjpepu TECHNICAL DETAILS Number of rotor blades: 5 Number of stator blades: 2 Rotor width: 600 mm Rotor diameter: 400 mm Infeed opening (W x L): 500 x 600 mm MACHINE DETAILS Drive power: 30 kW Suitable for: Plastics processing, recycling, and material recovery The screen size can be adjusted to customer requirements.

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 15744, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, controller model: Heidenhain iTNC 530, table load: 1,500 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 600 mm Travel range, Z-axis: 600 mm Table length: 1,000 mm Table width: 560 mm Table load capacity: max. 1,500 kg Spindle mount: HSK63 Spindle speed: 10,000 rpm Tool changer: 30 positions Rapid traverse: 35 m/min Acceleration: 5 m/s² MACHINE DETAILS Control system: Heidenhain iTNC 530 Dimensions & Weight Dimensions (L x W x H): 4,200 x 2,500 x 2,800 mm Weight: 7,200 kg Pjdpfx Anozcymzspjpu Total connected load (including coolant pump): 42 kVA

Condition: ready for operation (used), Year of construction: 2014, operating hours: 2,802 h, functionality: fully functional, machine/vehicle number: 12230000107, spindle speed (max.): 10,000 rpm, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 560 mm, controller model: Siemens 840D sl, laser power: 100 W, Highly accurate 5-axis milling, laser texturing, and laser paint removal on a precision machine! TECHNICAL DETAILS Travel range X-axis: 650 mm Travel range Y-axis: 650 mm Travel range Z-axis: 560 mm Main spindle speed range: 20 - 10,000 rpm Main spindle drive power: 13 / 9 kW Torque: max. 83 / 57 Nm Tool holder: HSK A63 according to DIN 69893 Table clamping surface: 800 x 650 mm Table load capacity: max. 600 kg Swivel range B-axis: ± 120° Rotational range C-axis: 360° T-slots: 9 x 14 x 63 mm Psdpjzcxwrsfx Anpspu Workpiece dimensions: max. 650 (840) x 500 mm Number of tool positions: 30 Tool weight: max. 6 kg Tool diameter: max. 80 mm Tool diameter with free neighboring pocket: max. 160 mm Tool length: max. 315 mm Tool change time (tool to tool): 1.6 s Tool change time (chip to chip): 8.0 s Rapid traverse: 40 m/min Feed force: 7 / 13 / 10 kN Feed rate: 1 - 40,000 mm/min MACHINE DETAILS Control system: Siemens 840D sl Axes: 5 Total power consumption: 24 kVA Dimensions & Weight Footprint: approx. 4.5 x 3.5 x 2.3 m Machine weight: approx. 11.5 t Operating hours milling machine Spindle hours (according to counter): 4,738 h Power-on hours (according to counter): 18,703 h Operating hours laser Spindle hours (according to counter): 2,802 h Power-on hours (according to counter): 6,177 h EQUIPMENT Swiveling rotary table Laser head 100 W Coolant system Electronic handwheel Documentation

Condition: used, Year of construction: 1996, functionality: limited functionality, travel distance X-axis: 630 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 650 mm, controller model: Fanuc MSX-516, rotational speed (max.): 12,000 rpm, The P8 power supply, valued at €1,500, was only replaced in August 2024! The spindle was repaired in 2017 and has mostly only been used for single-layer operation since then! Pjdpfszcuyiex Anpspu TECHNICAL DETAILS Travel range X-axis: 630 mm Travel range Y-axis: 600 mm Travel range Z-axis: 650 mm Feed length X-axis: 630 mm Feed length Y-axis: 600 mm Feed length Z-axis: 650 mm Table width: 500 mm Table length: 500 mm Number of pallets: 2 Maximum speed: 12,000 rpm Number of tool magazine slots: 60 (BT40) MACHINE DETAILS Control: Fanuc MSX-516 Phases: 3 Frequency: 50 Hz Voltage: AC 200 V Full load current: 181 A Note: The rapid traverse rate of the X-axis is reduced by 20% to extend the service life of the telescopic guides. The sealing ring during pallet changes is likely defective. The seller temporarily resolved this by inserting a ball valve in between when the pallets needed to be changed. EQUIPMENT Documentation/Manual Chip conveyor

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, workpiece weight (max.): 12 kg, power: 45 kW (61.18 HP), controller model: SIEMENS Simatic, TECHNICAL DETAILS Drum diameter: 400 mm Maximum workpiece length: 700/1,000 mm Maximum individual workpiece weight: 12 kg Load capacity: 100 kg MACHINE DETAILS Control system: SIEMENS Simatic Installed power: 45 kW Centrifugal wheels: 4 units Centrifugal wheel type: Hurricane H 28 Power per centrifugal wheel: 7.5 kW Pedpszcl I Dsfx Anpspu
