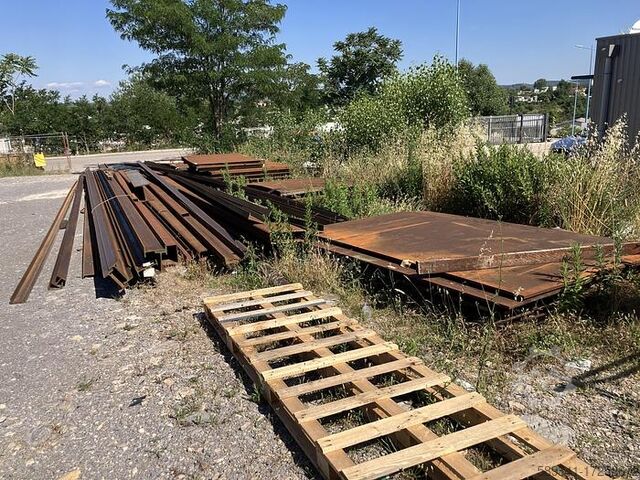

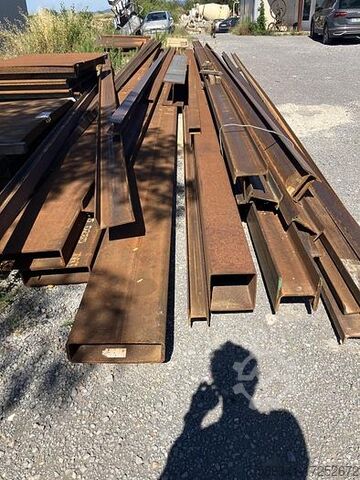

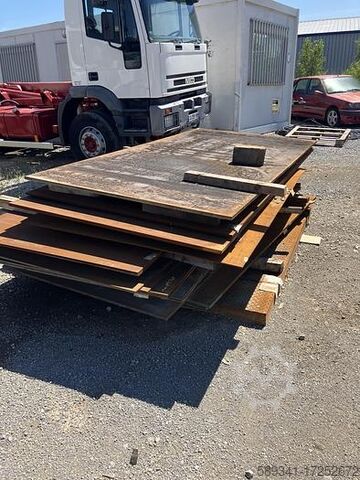

Lot of Sheet Metal

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, total length: 35,000 mm, total width: 17,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Bodpfx Agsyctu Sspjcu Heights Height, upper edge of floor covering: 4,860 mm Clear height, underside: 4,480 mm Load Capacity Net load capacity: 500 kg/m² Support Structure Column profile: Square tube 120 x 120 x 4 mm Base plates: 220 x 220 x 10 mm Main beam: C-profile 350 x 3 mm Cross beam: Sigma profile 350 x 2.5 mm Flooring Version: galvanized grating Mesh width: 33/11 mm Bearing bar: 30/2 mm Cross beam spacing: 1,000 mm Floor Surface Version: galvanized grating / pressed grating Area: approx. 595 m² Mesh width: 33/11 mm Bearing bar: 30/2 mm MACHINE DETAILS Dimensions Dimensions of steel structure: 17,000 x 35,000 mm Floor area dimensions: 17,000 x 35,300 mm Floor area: approx. 600 m²

Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, No reserve price – guaranteed sale to the highest bidder! Placing a bid obligates the bidder to collect the item by 20/02/2026! Auction of two mezzanine storage platforms in the following configurations: 1st platform: 60,000 x 10,000 mm 2nd platform: 38,600 x 10,000 mm The original purchase price in 2020 was EUR 113,000 net! TECHNICAL DETAILS 1st Mezzanine Platform (60,000 x 10,000 mm) Steel structure dimensions: 60,000 x 10,000 mm Floor area dimensions: 60,000 x 10,000 mm Bcjdeyctpcopfx Agpju Usable floor space: approx. 600 m² Height to top edge of flooring: 2,960 mm Clear height below platform: 2,630 mm Load capacity: 500 kg/m² Upright profile: square tube 100 x 100 x 3 mm Base plates: 200 x 200 x 10 mm Main beams: C-section 300 x 3 mm Cross beams: Sigma profile 300 x 2 mm Flooring: galvanized grating, bearing bar 30/2 mm, mesh size 33/11 mm Maximum cross beam spacing: 1,000 mm 2nd Mezzanine Platform (38,600 x 10,000 mm) Steel structure dimensions: 38,600 x 10,000 mm Floor area dimensions: 38,600 x 10,000 mm Usable floor space: approx. 386 m² Height to top edge of flooring: 2,960 mm Clear height below platform: 2,630 mm Load capacity: 500 kg/m² Upright profile: square tube 100 x 100 x 3 mm Base plates: 200 x 200 x 10 mm Main beams: C-section 300 x 3 mm Cross beams: Sigma profile 300 x 2 mm Flooring: galvanized grating, bearing bar 30/2 mm, mesh size 33/11 mm Maximum cross beam spacing: 1,000 mm Note: For further details regarding the scope of delivery and configuration, please refer to the attached offer.

Condition: refurbished (used), functionality: fully functional, grinding wheel diameter: 100 mm, grinding spindle speed: 7,500 rpm, grinding diameter: 160 mm, grinding wheel bore: 20 mm, Auction of a combination of a Christen AU-150 and a Haller UFS-155! Christen AU-150 TECHNICAL DETAILS Grinding range diameter: 1–160 mm Longitudinal grinding travel: 150 mm Longitudinal adjustment: 160 mm Cross grinding travel: 35 mm Cross adjustment: 180 mm Grinding head vertical adjustment: 110 mm Bcsdpfx Aeya Aw Rsgpou Concave radius: max. 65 mm Convex radius: max. 20 mm Workpiece spindle mount: ISO 40 Divisions: up to 38 Grinding wheel diameter: max. 100 mm Grinding wheel bore: 20 mm Grinding motor: 0.75 kW Grinding spindle speeds (tool): 3,700 / 4,900 / 6,075 / 7,500 rpm EQUIPMENT Clamping devices Grinding wheels Operating manuals

Condition: ready for operation (used), Year of construction: 2012, operating hours: 25,243 h, functionality: fully functional, machine/vehicle number: 12030320, travel distance X-axis: 810 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain TNC 620, spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel X-axis: 810 mm Travel Y-axis: 400 mm Travel Z-axis: 500 mm Table width: 900 mm Table length: 400 mm Spindle speed (max.): 10,000 rpm Number of spindles: 1 Number of tool magazine positions: 23 Bcjdpfx Ajyaq Sijgpju Tool holder: BT40 MACHINE DETAILS Control unit: Heidenhain TNC 620 Total weight: 3,500 kg Input voltage: 400 V Controller on-time: 25,243 h EQUIPMENT Documentation/manual Continuously adjustable speed Chip conveyor Internal coolant supply: 20 bar Disc wiper in coolant tank Air blast cooling through spindle or external External coolant gun Spiral chip conveyor Centralized lubrication

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: SVC5003396, measuring range X-axis: 500 mm, measuring range Y-axis: 450 mm, measuring range Z-axis: 300 mm, Equipment: documentation/manual, The machine was serviced by the manufacturer in August 2022! Bcodpfx Aoyaq Hyjgpsu TECHNICAL DETAILS Measuring range X-axis: 500 mm Measuring range Y-axis: 450 mm Measuring range Z-axis: 300 mm Total measuring range: 500 x 450 x 140 mm EQUIPMENT Documentation/Manual Calibration sphere Various probe extensions Renishaw 3-position probe change system ZONE3 training part Metrology software

Condition: not inspected (used), Year of construction: 2013, functionality: unexamined, machine/vehicle number: 131057, overall weight: 6,900 kg, number of axes: 3, Equipment: chip conveyor, cooling unit, No reserve price – guaranteed sale to the highest bidder! Bedjyaqliopfx Agpocu TECHNICAL DETAILS Number of axes: 3 Tool changer: 30 positions Control: SIEMENS Sinumerik 828D MACHINE DETAILS Machine weight: 6,900 kg EQUIPMENT Chip conveyor Cooling units

Condition: not inspected (used), Year of construction: 2007, functionality: unexamined, machine/vehicle number: ML 964F08, controller manufacturer: Siemens, controller model: SIEMENS Sinumerik, number of axes: 3, Equipment: chip conveyor, No minimum price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of axes: 3 Control: SIEMENS Sinumerik EQUIPMENT Bcjdpfoyaqi Iex Agpou Tool changer Chip conveyor

Condition: not inspected (used), Year of construction: 2017, functionality: unexamined, input voltage: 72 V, type of cooling: water, No minimum price – guaranteed sale to the highest bidder! Bodpoyaqbkjfx Agpscu Set includes the following components: 2x inverter welding machines HighPULSE 552 RS 2x water cooling units WK-350 Special wire feeder DV-31 Twin + additional accessories (hose packages, torches) MACHINE DETAILS Electrical data (welding unit) Current range: 20 A – 550 A Voltage range: 15 V – 41.5 V Mains voltage: 72 V Mains current: 35 A

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: HB32-287, TECHNICAL DETAILS Station 1: Sawing Station 2: Drilling Station 3V: Drill Station 3H: Drilling Station 4: CNC Station 5: CNC Station 6V: Thread cutting Station 6H: Drilling Station 7: Turning Station 8: CNC Facing Station 9: CNC Thread Cutting Station 10: Drill Station 11: Drilling Station 12: No Unit Station 13: CNC Station 14: 45° Milling Station 15: 45° Drilling Station 16: 45° Drilling MACHINE DETAILS Condition: Dismantled In storage since: August 2024 Bcjdpfjx U Tgaox Agpou Connection rating: 400 V, 40 kW EQUIPMENT - Loading magazine - Knoll chip conveyor - Knoll vacuum rotary filter VRF 500 - Machine is sold without the black platform

Condition: ready for operation (used), Year of construction: 2021, functionality: fully functional, overall weight: 1,298 kg, load capacity: 120 kg, arm reach: 3,900 mm, controller manufacturer: KUKA, number of axes: 6, TECHNICAL DETAILS Axes: 6 Payload: 120 kg Reach: 3,900 mm Availability: 99.9 % MACHINE DETAILS Bedpfxjycqb As Agpecu Robot control: KUKA Control protection class: IP54 Robot protection class: IP64 Robot pedestal height: 1,500 mm Weight: 1,298 kg
