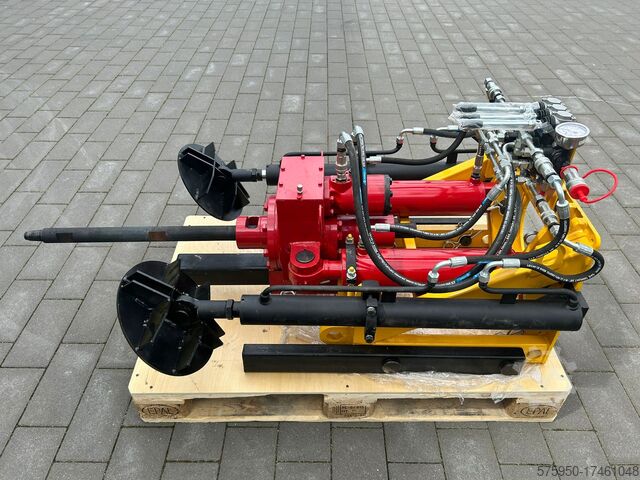

HDD, drilling rig, directional pressing plant

Condition: not inspected (used), Year of construction: 2020, functionality: unexamined, machine/vehicle number: 71193, measuring range X-axis: 3,000 mm, total width: 500 mm, total length: 1,000 mm, total height: 1,000 mm, overall weight: 30 kg, positioning accuracy: 0.045 mm, ● Availability: By arrangement ● Internal No.: ZM3 Technical data: Measuring volume: 3,000 mm Accuracy: 0.045 mm Scope of delivery: ● Includes laptop and software as shown in the images (completeness not guaranteed) ● Includes transport case Dimensions & weights: ● Installation dimensions (L x W x H): approx. 1,000 x 500 x 1,000 mm ● Weight: approx. 30 kg Additional notes: ►Upon request, we can offer transport to the desired location. Pgjdpsz A Tcfsfx Airet ►The goods are sold with no warranty of any kind. ►Technical data subject to change. ►The red base frame is not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2016, operating hours: 23,500 h, functionality: fully functional, machine/vehicle number: 8107000021B, spindle bore: 32 mm, spindle speed (max.): 8,500 rpm, overall weight: 4,300 kg, controller model: FANUC 32i MB, bar length: 3,200 mm, DMG MORI GILDEMEISTER SPRINT 32/5 – Short/Long Turning Automaton Well-maintained machine, low operating hours, including IEMCA BOSS 338/32 HD bar feeder (up to 3,200 mm bar length), year of manufacture 2016, as well as a conversion kit to a long turning automaton (Swisstype kit) for short and long turning on a single machine. Delivery terms: Free on truck Availability: Immediate - subject to agreement NOTE: The machine must be picked up on a fixed date in mid/late October 2026; we will provide the exact date in advance! Technical data: Control: FANUC 32i MB Operating hours recorded: 25,263 Spindle hours recorded: 22,772 MAIN SPINDLE DATA: Max. turning diameter: 32 mm (guide bushing bore: 38 mm) Stroke Z1: 100 mm Max. speed: 8,500 RPM Drive power S1: 5.5 kW TAILSTOCK SPINDLE DATA: Max. turning diameter: 32 mm (guide bushing bore: 38 mm) Stroke Z2: 200 mm Max. speed: 8,500 RPM Drive power S1: 2.2 kW AXIS DATA X1: Travel: 70 mm Max. speed: 40 m/min Max. acceleration: 5 m/s² AXIS DATA Y1: Travel: 405 mm Max. speed: 30 m/min Max. acceleration: 5 m/s² AXIS DATA X2: Travel: 300 mm Max. speed: 40 m/min Max. acceleration: 5 m/s² TOOL HOLDER DATA – SLIDE 1: Tool holder diameter: 25 mm Number of fixed tools for external machining: 6 Tool holder size: 16 × 16 mm Number of driven tools: 4 Collet type: ESX20 TOOL HOLDER DATA – SLIDE 2: Number of fixed tools for internal machining: 4 Tool holder diameter: 25 mm Scope of delivery: IEMCA BOSS 338/32 HD bar feeder (up to 3,200 mm bar length), year of manufacture 2016 Chip conveyor Available manuals Accessories as shown in the pictures Dimensions & Weight Footprint (L x W x H): approx. 7500 x 1600 x 2500 mm Weight: approx. 4300 kg Attention: Disc damaged! If you have any questions or would like to arrange a viewing, please do not hesitate to contact us! Pjdpfxoz A Tbuo Airegt Additional notes: ► Upon request, we can offer transport to your destination. ► The goods are sold without any warranty. ► Technical data is subject to change.

Condition: ready for operation (used), Year of construction: 2017, operating hours: 9,800 h, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 630 mm, controller model: Heidenhain 530, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel range X-axis: 1,200 mm Travel range Y-axis: 600 mm Travel range Z-axis: 630 mm Spindle speed max.: 15,000 rpm Tool holder: BT40 MACHINE DETAILS Control system manufacturer: Heidenhain 530 Operating hours: 9,800 h Machine weight: approx. 7,700 kg Podez Apd Uspfx Airsgt EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2011, operating hours: 16,140 h, functionality: fully functional, machine/vehicle number: 111214, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: Heidenhain 530, overall weight: 7,800 kg, TECHNICAL DETAILS Travel range X-axis: 1,100 mm Travel range Y-axis: 610 mm Travel range Z-axis: 610 mm Number of positions in tool changer: 30 Table dimensions: 1250 x 610 mm MACHINE DETAILS Control system: Heidenhain 530 Pedpfx Aioz Apdzjrjgt Operating hours: 16,140 h Machine weight: approx. 7,800 kg

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, turning length: 1,050 mm, turning diameter: 465 mm, spindle speed (max.): 3,250 rpm, overall weight: 7,600 kg, controller manufacturer: Heidenhain, TECHNICAL DETAILS Maximum turning diameter: 465 mm Maximum swing diameter: 680 mm X-axis travel: 300 mm Z-axis travel: 1,050 mm Turning length: 1,050 mm Maximum spindle speed: 3,250 rpm Spindle bore: 76 mm Torque at 40% duty cycle (ED) max.: 630 Nm Torque at 100% duty cycle (ED): 420 Nm Pgjdpsz Apdujfx Airjt Number of tool positions in tool turret: 12 stations Chuck diameter: 250 mm Maximum workpiece weight between centers: approx. 350 kg MACHINE DETAILS Control system manufacturer: Siemens Spindle power at 40% duty cycle (ED): 33 kW Spindle power at 100% duty cycle (ED): 22 kW Electrical connection: approx. 50 kVA Mains connection: 400 V Frequency: 50/60 Hz Dimensions & Weight Dimensions with chip conveyor: approx. 5,300 × 1,900–2,200 × 1,700–2,000 mm Machine weight: approx. 7,500 kg EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 65086, travel distance X-axis: 2,900 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, controller model: Heidenhain TNC530, spindle speed (max.): 6,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Pedpfx Ajz Apdnsiregt Travel range, X-axis: 2,900 mm Travel range, Y-axis: 1,000 mm Travel range, Z-axis: 700 mm Spindle speed: 6,000 rpm Tool interface: SK40 Number of tool magazine positions: 24 MACHINE DETAILS Control system model: Heidenhain TNC530

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, controller manufacturer: Siemens, TECHNICAL DETAILS Travel range, X-axis: 800 mm Travel range, Y-axis: 500 mm Travel range, Z-axis: 500 mm MACHINE DETAILS Podpfsz Apdhex Airegt Control system manufacturer: Siemens

Condition: used, Year of construction: 1989, machine/vehicle number: 1115.5117-25, turning diameter over cross slide: 700 mm, feed rate X-axis: 10 m/min, turning diameter over bed slide: 750 mm, controller model: Fanuc 15, distance between centers: 3,000 mm, TECHNICAL DETAILS Swinging diameter over bed: 750 mm Swinging diameter over cross slide: 700 mm Distance between centers: 3,000 mm Feed rate: 0.1 – 10,000 mm/min Rapid traverse: 10 m/min Spindle torque (max.): approx. 4,000 Nm Spindle power: approx. 65 kW Pedpoz Apc Rsfx Airjgt Spindle nose: Size 11 according to DIN 55026 Spindle bore: 130 mm Tool holder: 6 × VDI 60 according to DIN 69880 Tailstock diameter: 130 mm Tailstock travel: 120 mm MACHINE DETAILS Control system: Fanuc 15 Power chuck: Forkardt 3 FNC 500-125 Dimensions & Weight Machine dimensions (L x W x H): approx. 8.0 × 3.5 × 2.9 m Shipping dimensions (L x W x H): 8.0 × 2.3 × 2.9 m Machine weight: approx. 28,000 kg

Condition: ready for operation (used), Year of construction: 1973, functionality: fully functional, machine/vehicle number: 162 026, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, table load: 15,000 kg, TECHNICAL DETAILS Travel range, X-axis: 3,000 mm Travel range, Y-axis: 2,000 mm Travel range, Z-axis: 1,250 mm Travel range, W-axis (spindle stroke): 700 mm Table size: 2,000 × 1,500 mm Table load capacity: 15,000 kg Table rotation: 360° Table indexing: 1° Spindle speed: 8–800 rpm Psdpfxsz Ahabo Airegt MACHINE DETAILS Position measuring system: Heidenhain linear scales EQUIPMENT Heidenhain linear scales

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, bar diameter (max.): 32 mm, turning length: 80 mm, rotational speed (min.): 3,150 rpm, drilling depth: 80 mm, No minimum price – guaranteed sale to the highest bidder! The machine is sold complete with collets, holders, and additional accessories! For more Schütte multi-spindle machines from the same location, see below! TECHNICAL DETAILS Maximum turning length: 80 mm Maximum drilling depth: 80 mm Largest material passage: 32 mm Maximum bar feed: 125 mm Spindle speed (turning): 200–3,150 rpm Pedpfxez Ag A Is Airsgt Spindle speed (right-hand threading): 11.2–1,575 rpm Thread cutting unit: Right-hand thread via undercut MACHINE DETAILS Coolant capacity: 600 l Pump output: 170 l/min Dimensions & Weight Footprint: 7.3 x 2.5 m Height: 2 m Weight: 8,300 kg Voltage: 380 V Frequency: 50 Hz Main drive: 20.5 kW Immersion pump: 1.5 kW Feed drive: 1.5 kW Hydraulic pump: 1.5 kW Circulating oil pump: 0.25 kW EQUIPMENT 6 cross slides 6 longitudinal slides 6 cams for cross slides 6 cams for longitudinal slides Operating tools Collets Holders Additional accessories
