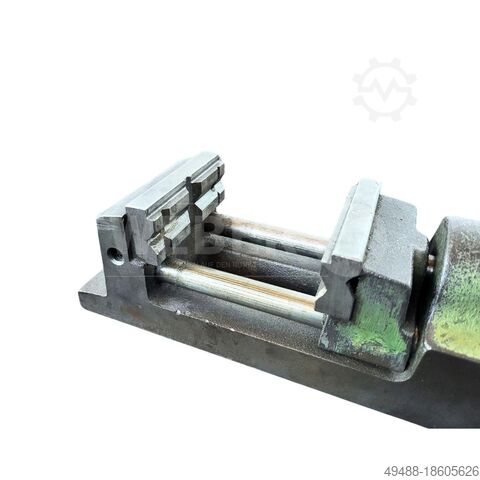

Quick-release vise

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 7024NL256160890J, spindle speed (max.): 10,000 rpm, travel distance Y-axis: 200 mm, rotational speed (max.): 4,000 rpm, bar diameter (max.): 80 mm, distance between centers: 700 mm, Condition: Ball screw drives in X, Y, and Z axes replaced; major maintenance package carried out approx. one year ago (machine has not been in operation since)! TECHNICAL DETAILS Distance between centers: 700 mm Spindle speed range: 1 - 4,000 rpm Tool spindle speed: 10,000 rpm Bar capacity: 80 mm Nljdpfoy A Icrox Ag Dsa Mounting: MT5, revolving tailstock Without center Turret: 12 stations, bolt-on turret Overhang for driven tools: ±100 mm Assemblies: Integrated MK4 bearing for live center Chip and coolant system: Scraper-type chip conveyor with magnetic separator, discharge height approx. 1,000 mm Coolant system: high pressure 5 bar, pump 800 W, delivery rate 20 l/min Coolant shower at chuck, including high-performance pump Compressed air blow-off system for tool holder sleeves Compressed air blow-off system for tailstock live center Line filter for coolant system MACHINE DETAILS Control: M730UM, CELOS - ERGOline Touch Total power: 18.5 / 18.5 / 15 kW (25% duty cycle / 50% duty cycle / continuous) Tool spindle power: 5.5 / 5.3 / 7 kW (3 min / 5 min / continuous) EQUIPMENT Interface for oil mist separator (diameter: 150 mm) Signal beacon: red, yellow, green, blue EtherNet/IP interface for automation Robot interface for portal robot DMG Mori Seiki Transformer: 45 kVA, three-phase autotransformer X-axis direction ISO Note: The machine is supplied without a chuck, tool pre-setter, or workholding devices.

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, TECHNICAL DETAILS Inserting speed: 22,000 mail pieces/h Envelope stacking capacity: 3,000 pieces (24#) Insert stacking capacity: 2,000 pieces (single, folded 20#) Feeder capacity: approx. 45.56 cm Tolerance: ± 0.08 cm Format range: 9.84 × 16.19 cm to 17.62 × 25.08 cm Nodpfx Aeyzpgisg Dsla MACHINE DETAILS Electrical data Power supply: 3 × 400 V, 3PN+E, 50–60 Hz Protection: 16 A Dimensions: approx. 11.89 x 0.92 m Counter reading: 145,000,000 The indicated dimensions and format sizes were taken from the data sheet and converted from US measurements (in./ft.) to cm. Note: The machine is currently under a full maintenance contract.

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 32, TECHNICAL DETAILS Travel X-axis: 1,250 mm Travel Y-axis: 500 mm Nsdpeyykhrjfx Ag Djla Travel Z-axis: 600 mm Maximum spindle speed: 6,000 rpm Spindle taper: SK 50 Spindle cooling: 15 bar Table dimensions: 1,400 x 550 mm Tool changer positions: 32 MACHINE DETAILS Spindle power: 18.5 kW Dimensions (L x W x H): 4,500 x 2,350 x 2,650 mm Note: The machine is sold without vises and tools.

Condition: ready for operation (used), Year of construction: 2006, machine/vehicle number: 6430025, functionality: fully functional, stroke length: 215 mm, overall weight: 10,000 kg, controller model: Cybelec ModEva 12 CNC, bending force (max.): 150 t, working length: 3,100 mm, TECHNICAL DETAILS Working length: 3,100 mm Bending force: 150 t Maximum stroke: 215 mm Descent speed: 190 mm/s Working speed: 10 mm/s Return speed: 150 mm/s MACHINE DETAILS Control: Cybelec ModEva 12 CNC CNC-controlled axes: Y1, Y2, X, R, Z1, Z2 Weight: 10,000 kg Nodpfxoyyb D Re Ag Dsla Main motor power: 11 kW Total connected load: 15 kW Operating voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Nominal pre-fuse current: 35 A Hydraulic operating pressure: max. 300 bar Pneumatic operating pressure: max. 8 bar Overrun distance: 9 mm EQUIPMENT Hydraulic upper clamp: RFA Hydraulic lower clamp: WILA 13 mm Complete tool set (model: P5)

Condition: ready for operation (used), Year of construction: 2005, operating hours: 1,476 h, functionality: fully functional, machine/vehicle number: 174275, travel distance X-axis: 1,050 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 510 mm, controller model: Mazatrol 640M, spindle speed (max.): 12,000 rpm, Due to spindle replacement – machine has only 1,476 spindle hours TECHNICAL DETAILS Nledpfx Aey Am Ndeg Dsa Travel X-axis: 1,050 mm Travel Y-axis: 510 mm Travel Z-axis: 510 mm Spindle speed: 12,000 rpm Number of tool changer positions: 30 Table size: 1,700 x 750 mm MACHINE DETAILS Spindle motor power: 18.5 kW Control: Mazatrol 640M Weight: 7,100 kg Operating hours Counter 1: 43,723 h Counter 2: 1,476 h EQUIPMENT Chip conveyor

Year of construction: 2001, condition: ready for operation (used), functionality: fully functional, punching force: 1,000 t, operating speed: 93 mm/s, stroke length: 55 mm, table length: 1,100 mm, table width: 800 mm, machine/vehicle number: 100597, TECHNICAL DETAILS Press force: 10,000 kN Table surface (W x D): 1,100 x 800 mm Stroke range: 15 - 55 mm Clearance at max. stroke: 28 - 98 mm Puzzle thickness: up to 3 mm Format width (max.): 1,100 mm Punching speeds Upwards: 47.8 mm/s Downwards: 93.7 mm/s Punching: 0.28 mm/s Hydraulic unit Type: 250 Dimensions (L x W): 1,310 x 910 mm Oil capacity: 670 l Unit weight: 1,000 kg Oil weight: approx. 550 kg Weight with oil fill: approx. 1,550 kg Automatic punching table Type: 355 Table top size (W x D x thickness): 1,000 x 700 x 10 mm Hardness: 62 HRC Surface finish: 7 MACHINE DETAILS Electrics Operating voltage: 400 V Frequency: 50 Hz Rated machine current: 50 A Incoming line protection: 63 A Control voltage: 230/24 V Rated power: approx. 30 kW Protection class: IP 54 Power requirement: approx. 8 kW Pneumatics Operating pressure: 6 bar Dimensions & Weight Puzzle disassembler dimensions (L x W x H): 3,150 x 1,620 x 2,900 mm Working height: approx. 1,700 mm Total weight: 33,000 kg Weight of puzzle disassembler: approx. 1.8 t Noise level: < 70 dB(A) Nlsdpfjy Ampdox Ag Dsa

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, input voltage: 400 V, total height: 2,200 mm, total length: 7,500 mm, total width: 1,500 mm, overall weight: 4,000 kg, TECHNICAL DETAILS Overall height: 2,200 mm Overall length: 7,500 mm Nljdey Akytopfx Ag Dja Overall width: 1,500 mm MACHINE DETAILS Weight: 4,000 kg Year of manufacture: 2007 Voltage: 400 V Power consumption: 46 A Fuse: 63 A Transport dimensions: 7,500 mm x 1,500 mm x 2,200 mm (L x W x H) Transport weight: 4,000 kg EQUIPMENT Tools included: Yes (for 1st, 3rd, 4th, 5th, 7th, and 8th unit) Tools included: No (for 6th unit)

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 241306, saw blade diameter: 500 mm, cutting height (max.): 170 mm, cutting width (max.): 395 mm, power: 7.5 kW (10.20 HP), borehole diameter: 30 mm, TECHNICAL DETAILS Nedpoy Akvnjfx Ag Dela Max. cutting width: 395 mm Max. cutting height: 170 mm Saw blade diameter min.: 490 mm Saw blade diameter max.: 500 mm Saw blade bore diameter: 30 mm Feed table length: 5,640 mm Output table length: 1,180 mm Feed speed: Automatic MACHINE DETAILS Voltage: 400 V Power consumption: 16.5 A Fuse: 32 A Power: 7.5 kW Transport weight: 800 kg Transport packages: 3 EQUIPMENT Automatic feed system

Condition: ready for operation (used), Year of construction: 2018, machine/vehicle number: P0220118, functionality: fully functional, pressing force: 9 t, number of cylinders: 6, workpiece length (max.): 2,500 mm, workpiece width (max.): 1,300 mm, workpiece height (max.): 200 mm, Equipment: CE marking, TECHNICAL DETAILS Nedpfoy Akuksx Ag Dola Max. workpiece length: 2,500 mm Max. workpiece width: 1,300 mm Max. workpiece height: 200 mm Number of cylinders: 6 Total working pressure: 90,000 N Working pressure: 294,200 N/m² MACHINE DETAILS Dimensions & weight Dimensions (L x W x H): 3,000 x 2,070 x 1,670 mm Unladen weight: 4,000 kg EQUIPMENT CE marking

Condition: ready for operation (used), functionality: fully functional, total length: 4,400 mm, total width: 1,400 mm, number of cylinders: 8, TECHNICAL DETAILS Nedpfx Agoy Akihs Dsla Number of levels: 1 Number of cylinders: 8 MACHINE DETAILS Type of heating: Oil Machine dimensions (L x W): 4,400 x 1,400 mm EQUIPMENT Glue roller Infeed/Outfeed
