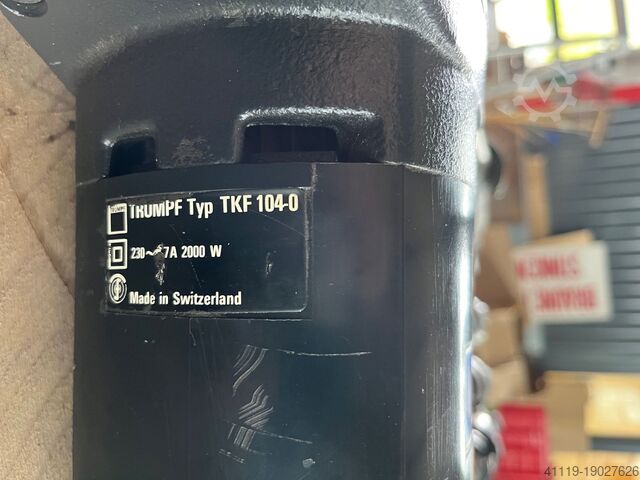

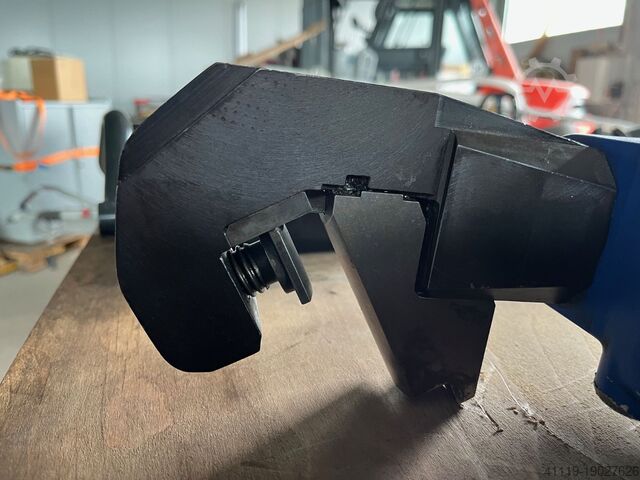

Welding bevel former Trumpf TKF 104-0

Condition: ready for operation (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 10019824, cutting speed: 110,000 mm/min, cutting range round steel at 90°: 320 mm, overall weight: 1,600 kg, saw band length: 5,300 mm, TECHNICAL DETAILS Cutting capacity for round steel at 90°: 320 mm Cutting capacity for flat steel at 90°: 520 x 320 mm Smallest dimension for cutting (round): 10 mm Smallest dimension for cutting (flat): 10 x 8 mm Cutting speed: 15 - 110 m/min Saw blade dimensions: 5,300 x 34 x 1.1 mm Shortest remaining material length: 40 mm MACHINE DETAILS Kedpfxszdi U Nj Anwjdn Drive power: 2.6 kW Total drive power: 3.7 kW Dimensions & Weight Installation dimensions (L x W x H): 3,100 x 1,100 x 2,200 mm Weight: 1,600 kg EQUIPMENT Available manuals Numerous saw blades

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, table width: 700 mm, table length: 500 mm, No minimum price – guaranteed sale to the highest bidder! Ksdszb Uz Djpfx Anwjdn Machining center with a manually rotatable and swiveling machine table! TECHNICAL DETAILS Travel ranges x-axis: 500 mm y-axis: 400 mm z-axis: 400 mm Table Table surface: 700 x 500 mm Spindle Tool holder: 40 SK/ISO Spindle speeds: 20 - 4,500 rpm Spindle drive: 12 kW Feed rates Feed rates: 5,000 mm/min Control system: Heidenhain TNC 124 MACHINE DETAILS Total power requirement: 13 kW Machine weight: approx. 2,800 kg Space requirement: approx. 3 x 2 x 2 m

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: YS-2674, turning height: 1,250 mm, workpiece weight (max.): 5,000 kg, turning diameter: 1,600 mm, faceplate diameter: 1,250 mm, controller model: Fanuc 0i-TD, TECHNICAL DETAILS Faceplate diameter: 1,250 mm Max. torque on faceplate: 12,500 Nm Turning height: 1,250 mm Max. turning diameter: 1,600 mm Max. workpiece weight: 5,000 kg Table speed: 2 - 300 rpm Travel range X-axis: 1,475 mm Travel range Z-axis: 900 mm Rapid traverse: 10 m/min Spindle taper: ISO BT50 Number of tool positions: 12 MACHINE DETAILS Control system: Fanuc 0i-TD Total power: 75 kW Dimensions & Weight Footprint: approx. 4.7 x 5.8 x 5.5 m Machine weight: approx. 32 t Kodpjzb Uy Tefx Anwsdn EQUIPMENT Tool changer magazine for 12 turning tools with BT 50 shank Note: The €5,000 for dismantling and loading applies to the preparation for EU transport. Preparation for sea transport is possible; costs upon request.

Condition: not inspected (used), Year of construction: 2019, functionality: unexamined, machine/vehicle number: 71267, total width: 500 mm, total length: 500 mm, total height: 500 mm, overall weight: 20 kg, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Measuring volume: 1,200 mm Accuracy: 0.015 mm MACHINE DETAILS Dimensions & Weight Installation dimensions (L x W x H): approx. 500 x 500 x 500 mm Kjdszb A Dtspfx Anwodn Weight approx.: 20 kg EQUIPMENT Laptop and software (completeness not guaranteed) Transport case Note: The red base frame on which the laptop is placed is not included in the offer.

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 70352, total width: 1,200 mm, total length: 1,200 mm, total height: 1,800 mm, overall weight: 100 kg, No minimum price – guaranteed sale to the highest bidder! Kodpszb A Avefx Anwedn TECHNICAL DETAILS Measuring volume: 3,000 mm Accuracy: 0.045 mm MACHINE DETAILS Dimensions & Weight Installation dimensions (L x W x H): 1,200 mm x 1,200 mm x 1,800 mm Weight: 100 kg EQUIPMENT Laptop and software (completeness not guaranteed) Base frame Transport case

Condition: excellent (used), Year of construction: 2014, total length: 18,000 mm, total width: 12,080 mm, total height: 3,210 mm, inner dimension height: 2,750 mm, Equipment: air conditioning, hot water, lighting, No minimum price – guaranteed sale to the highest bidder! The container was used as a training room and is in very good condition! TECHNICAL DETAILS Kdsdszddb Sopfx Anwen Overall length: 18,000 mm Overall width: 12,080 mm Overall height: 3,210 mm Room height: 2,750 mm Floors: 1 Scope of delivery 11 units of KLEUSBERG system container, type 3750 PLUS 1 unit of KLEUSBERG system container, type 3750E PLUS 1 unit of awning 3000/1250 mm, self-supporting 1 unit of kitchenette, type 3 according to the construction description EQUIPMENT Lighting Air conditioning Hot water Insulated glazing External, adjustable aluminum blinds Electric radiators Separate air conditioning systems per container Electrical system with server cabinet and patch panels CAT sockets at all workstations Complies with the Energy Saving Ordinance (EnEV 2009)

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: W261, repeat accuracy: 0.05 mm, workpiece weight (max.): 6,300 kg, working length: 4,000 mm, working width: 2,250 mm, working height: 230 mm, No minimum price – guaranteed sale to the highest bidder! The machine’s last inspection was carried out by a specialist company at the end of 2025! The machine can be inspected while powered on. TECHNICAL DETAILS Working area X: 4,000 mm Working area Y: 2,250 mm Working area Z: 230 mm Working area for round part machining, diameter max.: 440 mm Working area for round part machining, length max.: 3,700 mm Number of cutting heads: 1 to 4 Cutting carriage distance: max. 1,150 mm Positioning speed, axis-parallel X, Y max.: 60 m/min Positioning speed, simultaneous max.: 84 m/min Cutting speed max.: 50 m/min Travel speed min.: 0.001 m/min Machine tolerance according to VDI/DGQ 3441: ± 0.1 mm/axis Repeatability: ± 0.05 mm/axis Load capacity of the frame max.: 7,000 kg Load capacity per grating bar: 110 kg Number of grating bars max.: 70 Workpiece weight, flat part max.: 6,300 kg Workpiece weight, round part max.: 500 kg MACHINE DETAILS Waterjet source: Bypump 50 APC Operating pressure: max. 3,800 bar Flow rate: 0 to 5 l/min Nozzle size in single-head operation: max. Ø 0.4 mm Nozzle size in dual-head operation: max. Ø 0.3 mm Nozzle size in dual-head operation: recommended Ø 0.28 mm Dimensions & Weight Machine dimensions (L x W x H): approx. 9,000 mm x 7,550 mm x 2,050 mm Weight: approx. 10,000 kg Operating Hours Operating hours: approx. 41,130 h Cutting hours Head 1 / Head 2: 13,720 h / 956 h EQUIPMENT CNC rotary axis Motorized cutting carriage distance adjustment Four-jaw chuck Abrasive hopper Spare parts Kjdpfx Anozcwupowsdn PC with pre-installed programming software Note: The second head has been removed, and the cutting mechanism has been mounted on Head 1 as a spare part. However, after acquiring a new cutting head, the system can operate with two abrasive tools. The drilling spindle is seized. The crane and lifting device are not included in the scope of sale.

Condition: ready for operation (used), Year of construction: 2002, machine/vehicle number: 0-250-08-1590, functionality: fully functional, travel distance X-axis: 3,250 mm, travel distance Y-axis: 1,220 mm, travel distance Z-axis: 125 mm, controller model: Homatic 2000 IPC, number of spindles: 28, spindle speed (max.): 24,000 rpm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working area X-axis: 200 – 3,250 mm Working area Y-axis: 70 – 1,220 mm Working area Z-axis: 12 – 125 mm (clearance 150 mm) Tool changer positions: 18 Spindles Total number of drilling spindles: 28 Vertical drilling spindles: 22 Horizontal drilling spindles in X-axis: 4 Horizontal drilling spindles in Y-axis: 2 Milling spindle power: 12 kW Milling spindle max. speed: 24,000 rpm C-axis: 360° interpolation MACHINE DETAILS Vacuum pump capacity: 100 m³/h Control model: Homatic 2000 IPC Control software: WoodWop 4.5 incl. MDE and production list software FEATURES 4 axes Console table 8 manually adjustable supports in X direction 3 vacuum cups per console Kjdpjzcda Ssfx Anwsdn Vacuum connection for templates Laser positioning aid for vacuum cups Laser projection for cup positioning Liquid circulation cooling Operator terminal Note: The sale does not include the pictured adapter units, tools, or HSK holders.

Condition: ready for operation (used), Year of construction: 2021, operating hours: 300 h, functionality: fully functional, total height: 1,000 mm, total width: 550 mm, total length: 1,200 mm, laser power: 1,500 W, laser wavelength: 1,075 nm, ambient temperature (max.): 45 °C, The machine is in very good condition with less than 300 operating hours! TECHNICAL DETAILS Laser power at the workpiece: 1,500 W Wavelength: 1,075 ± 5 nm Type of laser beam delivery cable: LLK-A / BF 10 Laser safety Laser protection class: 4 Performance Level Emergency Stop button (PLE) Ksdpfx Anszb Nl Rswjdn TSS – Triple Security System Installation conditions and options Ambient temperature: 5–45 °C Integrated cooling Operating concept Machine control: Touch panel Programmable channels: 9 WLAN MACHINE DETAILS Dimensions (W x H x D): 550 × 1,000 × 1,200 mm EQUIPMENT Integrated pilot laser BLT laser welding device PenWelder Laser beam delivery cable Connection cable Contact tips and guide rail Configurable access control OPC-UA interface Remote service

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1998, operating hours: 4,624 h, control type: CNC control, sheet thickness steel (max.): 2 mm, year of last overhaul: 2012, No minimum price – guaranteed sale to the highest bidder! A complete overhaul was carried out by Salvagnini in 2012! TECHNICAL DETAILS Maximum infeed length: 1,850 mm Maximum infeed width: 1,500 mm Maximum outfeed width: 1,500 mm Kdjdpjzb H Txofx Anwen Minimum length: 285 mm Minimum width: 190 mm Maximum diagonal: 2,150 mm Maximum reference dimension: 2,000 mm Minimum sheet thickness: 0.50 mm Sheet thickness, construction steel (max. 410 N/mm²): 2.00 mm Sheet thickness, stainless steel (max. 600 N/mm²): 1.25 mm Processing of pre-coated material: 3.00 mm Maximum tool length for CLA option: 1,000 mm MACHINE DETAILS Control type: CNC control Operating hours: 4,625 h EQUIPMENT LS Upper bending blade LI Lower bending blade Manual sheet support length adjustment CLA Long flange bending unit HP12015 R81 Cooling unit
