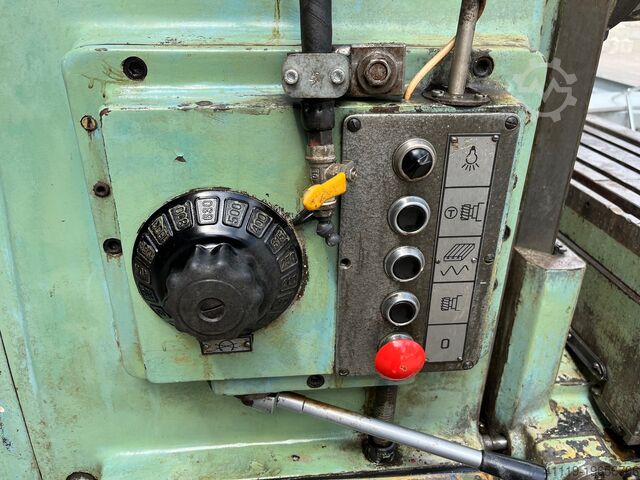

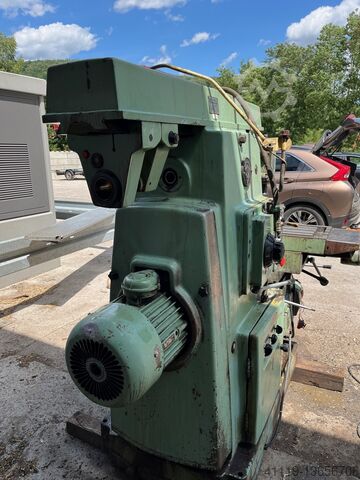

Universal milling machine Stanko 6R82G

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 3,250 mm, travel distance Y-axis: 1,220 mm, travel distance Z-axis: 125 mm, controller model: Homatic 2000 IPC, number of spindles: 28, spindle speed (max.): 24,000 rpm, TECHNICAL DETAILS Working area X-direction: 200 - 3,250 mm Working area Y-direction: 70 - 1,220 mm Working area Z-direction: 12 - 125 mm (clearance 150 mm) Number of tool changer positions: 18 Spindles Total number of drilling spindles: 28 Vertical drilling spindles: 22 Horizontal drilling spindles in X-direction: 4 Horizontal drilling spindles in Y-direction: 2 Milling spindle power: 12 kW Milling spindle max. speed: 24,000 rpm C-axis: 360° interpolation MACHINE DETAILS Vacuum pump capacity: 100 m³/h Control model: Homatic 2000 IPC Control software: WoodWop 4.5 incl. MDE and production list software EQUIPMENT 4-axis Console table 8 supports in X, manually adjustable 3 vacuum suction cups per console Vacuum connection for templates Laser positioning aid for vacuum suction cups Laser projection for positioning the suction cups Pgsdpfx Agey A N Uco Dsk Liquid circulation cooling Operator terminal Note: Sale does not include the adapters, tools, and HSK holders shown in the images.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 60,683 h, functionality: fully functional, turning length: 1,524 mm, turning diameter: 820 mm, spindle speed (max.): 3,300 rpm, rapid traverse X-axis: 40 m/min, milling spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Turning length: 1,524 mm Turning diameter: 820 mm Travel X-axis: 870 mm Travel Y-axis: 500 mm Travel Z-axis: 1,598 mm Main spindle Max. spindle speed: 3,300 rpm Main spindle drive power: 30 kW / 22 kW Max. torque main spindle: 588 Nm Main spindle nose: A2-11" Spindle bore: 104 mm Indexing: 0.0001 Sub spindle Max. spindle speed: 3,300 rpm Sub spindle drive power: 30 kW / 22 kW Max. torque sub spindle: 588 Nm Sub spindle nose: A2-11" Indexing: 0.0001 Milling spindle Milling spindle drive power: 37 kW Max. torque milling spindle: 260 Nm Milling spindle speed range: 0-10,000 rpm Rapid traverse X-axis: 40 m/min Rapid traverse Y-axis: 40 m/min Pgodpfx Agjy Akpnj Dsk Rapid traverse Z-axis: 40 m/min MACHINE DETAILS Control: Mazatrol 640M PRO Tool holder: SK50 Number of tool stations: 120 Operating voltage: 400 V / 50 Hz Connected load: 104 kVA Required floor space (L x W): 7 x 3.5 m Operating hours: 60,683 h EQUIPMENT Infinitely variable speed adjustment 120-position tool magazine High-pressure coolant 70 bar Renishaw Laser measuring system for rotating tools Interface set Air / water cooling through the spindle Overload monitoring system Mayfran Consep 2000 chip conveyor SMW quick-change chuck

Condition: ready for operation (used), Year of construction: 2015, operating hours: 2,795 h, functionality: fully functional, travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,500 mm, pump power: 2,200 W, The machine was overhauled in 2026 and serviced every 500 operating hours! TECHNICAL DETAILS Working area X-axis: 1,500 mm Working area Y-axis: 1,500 mm Cutting capacity steel: 120 mm (recommended: 60 - 80 mm) Pgedpfx Agoyzz N As Djk Cutting capacity aluminium: 120 - 200 mm Cutting capacity plastic, stone etc.: unknown MACHINE DETAILS Pump output: 22 kW (30 HP) Last pump overhaul: 3 operating hours ago EQUIPMENT Spare parts Computer Water softening system

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 306533, functionality: fully functional, cutting height (max.): 350 mm, cutting width (max.): 610 mm, overall weight: 550 kg, saw band length: 4,700 mm, TECHNICAL DETAILS Deflection pulley diameter: 630 mm Tool dimensions: 13 x 0.65 x 24 TPI Saw band length: 4,700 mm Loading height: 1,065 mm Cutting height: 350 mm Cutting width without rip fence: 610 mm Cutting width with fence: 150 mm Cutting speed: 10 - 100 m/min Table travel: 600 mm Table feed speed: 0.03 - 0.3 m/min MACHINE DETAILS Extraction connection diameter: 1 x 120 mm + 1 x 100 mm Required air velocity: minimum 25 m/s Required air volume flow: 1,725 m³/h Dimensions & Weight Dimensions (L x W x H): 1,850 x 1,200 x 2,300 mm Machine weight: 550 kg Motor power: 0.75 kW Operating voltage: 400 Volt / 50 Hz Pgsdpfx Agoyzy Dro Djk Power supply: 3 x 400 Volt Fuse protection: maximum 16 Amperes Minimum cross-section: 1.5 mm²

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: H18/X2090/202/00162, load capacity: 14 kg, arm reach: 1,000 mm, repeat accuracy: 0.03 mm, TECHNICAL DETAILS Load capacity: 14 kg Arm reach: 1,000 mm Repeatability: 0.03 mm Pgjdpfxjyzyxce Ag Djk Maximum rotation angle: 350° Maximum rotational speed: 16.8°/s Maximum linear speed: 0.6 m/s Platform positioning accuracy: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (without robot arm, W x D x H): 890 x 1,120 x 1,000 mm Total weight: 730 kg Power supply: 1 x 230 V / 16 A Battery capacity: 5.8 – 8.7 kWh Number of laser scanners: 3 Scan plane height: 150 mm Compressed air tank: 0.75 l / 7 bar Wrist protection rating: IP67 Arm protection rating: IP65 System protection rating: IP20 Average floor surface pressure max.: 10 N/mm² Drive type: Differential drive EQUIPMENT Tool parking station: 4 tools per station Tool changing system: MPS032 Navigation: based on laser scanner data Interfaces: WLAN, LAN, fieldbus Multi-coupling: compressed air, power supply, 2x Cat5e, 26 x 1 mm contacts Optical and acoustic signals: 4 LED units, storage for up to 16 audio files

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 635949, load capacity: 210 kg, arm reach: 2,696 mm, repeat accuracy: 0.06 mm, number of axes: 6, TECHNICAL DETAILS Payload: 210 kg Arm reach: 2,696 mm Outreach: 2,696 mm Axes: 6 Repeatability: 0.06 mm MACHINE DETAILS Pgsdpfx Agsyzyvhj Djk Control cabinet dimensions (L x W x H): 800 x 560 x 1,060 mm EQUIPMENT Robot Control cabinet Cables Teach pendant

Condition: ready for operation (used), Year of construction: 2008, operating hours: 27,167 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, rotational speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel X-axis: 850 mm Travel Y-axis: 700 mm Travel Z-axis: 500 mm Spindle speed: 18,000 rpm Tool holder: HSK-A63 Table type: NC-SRT 420 mm Table specification: Pallet clamping system Pallet changer: PW160, 400 x 400 mm MACHINE DETAILS Control: Heidenhain iTNC 530 Internal coolant supply: 80 bar Frequency: 50 Hz Operating hours: 27,167 h EQUIPMENT - Heidenhain DNC - DXF import - Kinematic Opt iTNC - Automatic cabin door - Additional magazine: ZM43 - Linear guides: Dynamic version - Rotary table axis: A-axis (not centered) - Manual cabin roof - Laminated safety glass window - Pallet storage - External MQL (minimum quantity lubrication) - Tool breakage monitoring A2 Blum - Heidenhain touch probe - Preparation for additional touch probe - Event Messenger - Tool identification HSK - Machine license TCS-Soflex Pjdeyzyttopfx Ag Dsgk - Electronic thermal compensation - Electronic hand control module - Oil mist extraction (prepared & with after-filter) - Flange for oil mist extraction - Sealing air for measuring units - Chip flushing pistol - Machine bed flushing - Internal & external air blast - Signal light - Coolant filter type: Paper band filter for coolant system - Scraper belt conveyor - Test protocol: C 40 iTNC 530 PW160

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1997, operating hours: 76,447 h, machine/vehicle number: 605970300001, controller model: DOC 85C, number of axes: 5, overall weight: 1,500 kg, Equipment: bar feeder, TECHNICAL DETAILS Number of axes: 5 Average output: approx. 2,400 sheets/hour Bending capacity round tube R = 45 kg/mm²: 4 - 12.7 x 1.5 mm Bending capacity round tube R = 35 kg/mm²: 4 - 14 x 1 mm Bending capacity round tube Al/Cu/Brass: 4 - 18 x 1.25 mm Positioning speed X-axis: 2,000 mm/s Bending speed H/Z Y-axis: 500 °/s Rotation speed Z-axis: 900 °/s Rotation speed Z-axis: 100 °/s Positioning speed T-axis: 500 mm/s Measuring tolerance X/T-axis: 0.1 mm Measuring tolerance Y/Z/Q-axis: 0.1 mm Maximum reach at maximum acceleration X-Y-Z: 1,000 mm - 90/90/0 - with tube 18 x 1.25 mm MACHINE DETAILS Control: DOC 85C Voltage: 380 V, 50 Hz Hydraulic pressure: max. 120 bar Machine weight: 1,500 kg Operating hours: 76,447 h Pjdpfeyzyh Djx Ag Degk EQUIPMENT BLM bar feeder BLM CARM 7 Note: The machine is sold without conveyor belt and safety fencing.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, machine/vehicle number: 611080402022, Equipment: bar feeder, TECHNICAL DETAILS Axis Speeds Positioning speed X-axis: 2,000 mm/s Bending speed Y-axis: 400 °/s Rotational speed Z-axis: 900 °/s Rotational speed R-axis: 110 °/s Positioning speed T-axis: 400 mm/s Tolerance Tolerance X-axis: ±0.05 mm Tolerance T-axis: ±0.05 mm Tolerance Y-axis: ±0.05° Tolerance Z-axis: ±0.05° Tolerance R-axis: ±0.05° Bending Capacity Round profile (R = 35 kg/mm²): min. Ø 4 mm, max. Ø 22 x 1.5 mm Round profile stainless steel: min. Ø 4 mm, max. Ø 20 x 1.5 mm Round profile (brass/aluminium/copper): min. Ø 4 mm, max. Ø 28 x 1.5 mm Average output: 1,700–2,000 bends/hour MACHINE DETAILS Hydraulics System Tank capacity: 80 l Pump delivery rate: 13 l/min Pressure MR200E: max. 140 bar Ambient Conditions Ambient temperature: 5 to 40 °C Storage temperature: max. 70 °C, 24 h Relative humidity: 5 to 75 %, 24 h Electrical Data Supply voltage: 400 V ±5 % Power type: Three-phase without neutral Frequency: 50 Hz ±0.1 % Connected load: 9.5 kVA Rated current: 15 A Dimensions & Weight Dimensions (L x W x H): 3,400 x 1,100 x 1,530 mm Podpfx Agoyzya To Degk Machine weight: 1,850 kg EQUIPMENT BLM bar feeder BLM CARM 7 Bar feeder weight: 650 kg Conveyor belt Note: The machine is sold without safety guards.

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 111146, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 10,000 rpm, controller model: Heidenhain 530, TECHNICAL DETAILS Travel X-axis: 1,100 mm Travel Y-axis: 610 mm Travel Z-axis: 610 mm Spindle nose to table: 120–730 mm Machine table: 1,250 x 610 mm T-slots in table: 5 T-slot width: 18 mm T-slot spacing: 100 mm Spindle speed: 60–10,000 rpm Torque: 332 Nm Power: 13 kW Spindle cooling: Oil-cooled Rapid traverse X/Y/Z: 32 m/min Feed rate: 1–12,000 mm/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool holder: SK40 Pull stud: DIN 69871/72 Tool changer: 30 stations Tool-to-tool change time: 1.5 s Tool weight: max. 7 kg Tool diameter: max. 76 mm Tool diameter with adjacent station free: max. 140 mm Tool length: max. 300 mm MACHINE DETAILS Control: Heidenhain 530 Compressed air: 3/8", 6–8 bar Power supply: 400 V / 75 A / 35 kVA Hydraulic oil: R32 (ISO 32) Central lubrication: R68 (ISO 68) Coolant tank: 250 l Guides X/Y/Z: Linear 45/45/45 mm Machine bed: Cast iron Pgodpfx Aeyzxz Nog Dsk Machine weight: 7,500 kg EQUIPMENT IKZ 22 bar (internal coolant supply) Tool changer with 30 stations Oil-cooled spindle Central lubrication Coolant tank Linear guides X/Y/Z Chip conveyor Handwheel Note: The machine is sold without tools and vise.
