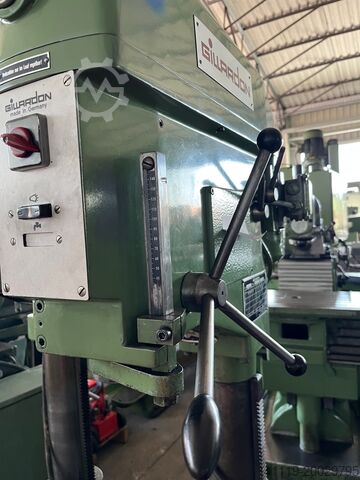

Column drill Gillardon GB20

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: P21902N92695, Year of construction: 2024, operating hours: 87 h, load capacity: 1,400 kg, lifting height: 7,100 mm, fuel type: electric, power: 6.5 kW (8.84 HP), empty load weight: 2,371 kg, Used reach truck with only 87 operating hours! TECHNICAL DETAILS Load capacity: 1,400 kg Lifting height: 7,100 mm Dodpfxsy Uy Ahj Aktokn MACHINE DETAILS Fuel type: electric Power: 6.5 kW Battery voltage: 48 V Operating hours: 87 h Unladen weight: 2,371 kg EQUIPMENT Battery Charger

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, clamping force: 9,500 kN, screw diameter: 120 mm, ejector stroke: 300 mm, opening stroke: 1,900 mm, TECHNICAL DETAILS Clamping force: 9,500 kN Opening force: 665 kN Tie bar distance: 1,400 x 1,150 mm Clamping plates: 1,960 x 1,710 mm Opening stroke: 1,900 mm Min. mould height: 500 mm Max. mould height: 1,200 mm Max. opening width: 2,400 mm Ejector stroke: 300 mm High-performance screw HPS-UN, diameter: 120 mm Nozzle radius: 30 mm Nozzle opening: 12 mm Screw diameter: 120 mm Shot weight (HDPE): 5,420 g Shot volume: 7,634 cm³ Specific injection pressure: 2,257 bar Dkodpfjy T H A Esx Akten MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 12,770 x 3,420 x 2,750 mm Machine weight: 61.5 t

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, clamping force: 8,000 kN, screw diameter: 130 mm, ejector force: 139,000 N, opening stroke: 1,030 mm, plate width: 1,500 mm, plate height: 1,620 mm, TECHNICAL DETAILS Clamping force: 8,000 kN Plate size (h x v): 1,620 x 1,500 mm Clear width between tie bars (h x v): 1,120 x 1,000 mm Mold height: 500 - 1,050 mm Maximum plate distance: 2,080 mm Opening stroke: 1,030 mm Ejector stroke: 350 mm Ejector force: 139 kN Mold weight: 7,200 kg Injection system Screw diameter: 130 mm Displacement: 7,300 cm³ Injection weight (PS): 6,640 g Dkedpfx Aey T Hz Ijkten Injection pressure: 1,300 bar Screw length: 20 l/d Electrical and hydraulic equipment Rated power of pump motor: 110 kW Heating power: 79 kW Oil tank capacity: 1,300 L MACHINE DETAILS Machine dimensions LxWxH: 12.3 m x 2.7 m x 2.7 m Total weight: 33,500 / 9,700 kg

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 8673 0023, clamping force: 15,000 kN, screw diameter: 145 mm, injection pressure: 1,454 bar, plate width: 1,880 mm, plate height: 2,150 mm, Regularly maintained machine - see repair history TECHNICAL DETAILS Clamping force: 15,000 kN Mounting plate dimensions (H x V): 2,150 mm x 1,880 mm Clear distance between columns (H x V): 1,500 mm x 1,250 mm Min./Max. mold height: 700 mm - 1,400 mm Maximum opening distance: 2,900 mm Control: DIAS Injection unit Screw diameter: 145 mm Injection volume: 10,981 cm³ Injection weight: 9,880 g Injection pressure: 1,454 bar Electrical and hydraulic equipment Rated power of pump motor: 165 kW Heating power: 97 kW MACHINE DETAILS Net weight with control cabinet: 21,000 t Dimensions (L x W x H): 14.4 m x 3.4 m x 2.9 m Electrical connection Main connection: 3 × 400 V, 50 Hz Control voltage: 3 × 400 V, 50 Hz Repair history 2010: New screw with RSP and tube 2015: New Ibed Dodpfx Akey T Hy Djtekn 2015: New wiring board 2017: Motor and pump 2 new 2017: Injection cylinder BS piston rod new with seals 2017: Circulation pump oil cooler replaced 2017: Teachbox replaced (Rob) 2018: Pumps P 1 + 3 replaced (at 65,800 h) 2018: Hydraulic oil change 2019: New injection valve 2019: Dosing inverter overhauled by Fa. Eichler 2021: Motor P1 new 2022: New RSP EQUIPMENT - Wittmann W 753 Robot - 2008 - Cage and conveyor belt

Condition: ready for operation (used), Year of construction: 2004, operating hours: 70,029 h, functionality: fully functional, machine/vehicle number: 51561, clamping force: 2,300 kN, screw diameter: 135 mm, injection pressure: 1,600 bar, opening stroke: 3,800 mm, tool height: 1,890 mm, TECHNICAL DETAILS Clamping force: 2,300 kN Platen size (H x V): 2,900 x 2,500 mm Tie bar distance (H x V): 2,000 x 1,600 mm Dksdpfoy T Hx Hsx Aktjn Minimum/maximum mould height: 700 mm/1,890 mm Maximum opening stroke: 3,800 mm INJECTION UNIT Screw diameter: 135 mm Shot volume: 8,870 cm³ Shot weight (PS): 8,071 g Injection pressure: 1,600 bar MACHINE DETAILS Net weight (with control cabinet): 113 t + 18 t Operating hours: 70,029 h

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 424227, clamping force: 4,200 kN, screw diameter: 80 mm, injection pressure: 1,829 bar, injection weight: 1,304 g, opening stroke: 1,400 mm, TECHNICAL DETAILS Djdpfx Akjy T Hwiotokn Clamping force: 4,200 kN Platen size (H x W): 1,270 x 1,200 mm Tie bar spacing (H x W): 800 x 800 mm Minimum mold height: 380 mm Maximum mold height: 1,020 mm Max. opening stroke: 1,400 mm Screw diameter: 80 mm Injection volume: 1,433 cm³ Shot weight: 1,304 g (PS) Max. injection pressure: 1,829 bar Max. temperature: 375 °C MACHINE DETAILS Supply voltage: 400 V Phases: 3~ Frequency: 50 Hz Total current consumption: 237 A Fuse rating: 250 A Pump power: 75 kW Heating power: 36 kW Dimensions & Weight Dimensions (L x W x H): 7.06 x 2.33 x 2.51 m Machine weight: approx. 22,000 kg

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 198346, clamping force: 3,600 kN, screw diameter: 70 mm, injection pressure: 2,000 bar, injection weight: 984 g, opening stroke: 1,400 mm, TECHNICAL DETAILS Clamping force: 3,600 kN Platen size (H x W): 1,040 x 1,040 mm Column spacing (H x W): 720 x 720 mm Minimum mold height: 300 mm Maximum mold height: 300 mm Maximum opening stroke: 1,400 mm Screw diameter: 70 mm Injection volume: 1,078 cm³ Shot weight: 984 g Injection pressure: 2,000 bar MACHINE DETAILS Electro-hydraulic system Rated power of pump motor: 55 kW Heating capacity: 30.3 kW Dkjdey T Hrmjpfx Akton Net weight with control cabinet: 17 t

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 138337-100, clamping force: 9,000 kN, screw diameter: 105 mm, injection pressure: 1,931 bar, ejector stroke: 300 mm, opening stroke: 2,100 mm, TECHNICAL DETAILS Screw diameter: 105 mm Screw stroke: 525 mm Screw L/D ratio: 22 Theoretical shot volume: 4,545 cm³ Injection pressure: 1,931 bar Maximum screw speed: 167 rpm Maximum plasticizing rate: 151 g/s Screw torque: 8,000 Nm Nozzle travel / nozzle thrust force: 950 mm / 129 kN Injection volume flow rate: 725 cm³/s Injection volume flow rate with double pump (option): 906 cm³/s Air injection volume flow rate with tank (option): 1,812 cm³/s Cylinder heating capacity: 53.9 kW Number of heating zones: 7 Dkedpfx Aksy T Hprotsn Clamping force: 9,000 kN Maximum opening stroke: 2,100 mm Min./Max. tool height: 500 – 1,000 mm Platen size: 1,720 x 1,550 mm Tie bar spacing: 1,200 x 1,000 mm Ejector stroke: 300 mm Ejector force: 165 kN Tool opening force: 300 kN MACHINE DETAILS Pump output: 90 kW Heating capacity: 53.9 kW Oil tank volume: 1,100 l Dimensions & Weight Machine dimensions (L x W x H): 10,100 x 3,400 x 2,700 mm Weight: 35,200 kg

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, clamping force: 8,500 kN, screw diameter: 135 mm, clearance between the columns: 1,140 mm, ejector stroke: 300 mm, TECHNICAL DETAILS Mold closing force: 8,500 kN Dsdpjy T Hmkjfx Aktekn Mold opening force: 560 kN Dimensions of the mounting plate (h x w): 1,600 mm x 1,600 mm Distance between columns (h x w): 1,140 mm x 1,140 mm Mold opening distance: 1,600 mm Mold height (min-max.): 500 mm - 1,100 mm Opening width: 2,100 mm Ejector stroke: 300 mm Ejector force: 200 kN / 100 kN Screw diameter: 135 mm Injection pressure: 1,389 bar Injection volume: 8,588 cm³ Injection weight per part: 6,098 g Injection rate: 1,414 cm³/s MACHINE DETAILS Electro-hydraulic system Motor rated power of the pump: 132 kW Dry cycle time according to Euromap 6: 965 1/h Oil tank capacity: 2,440 l Open nozzle with nozzle radius: 25 mm Nozzle opening: 9 mm Dimensions & Weight Installation space dimensions (L x W x H): 11.72 m x 2.92 m x 2.71 m Net weight with control unit: 49 t EQUIPMENT Krauss Maffei robot LRX 500 MC 5 control system with color monitor Integrated control panel and USB data storage Complete plasticizing unit for thermoplastics Check valve

Condition: ready for operation (used), Year of construction: 2011, operating hours: 61,666 h, functionality: fully functional, machine/vehicle number: 180299, clamping force: 6,500 kN, screw diameter: 90 mm, column diameter: 175 mm, injection weight: 2,520 g, opening stroke: 1,400 mm, The machine is in excellent condition; all hydraulic hoses were replaced in the fourth quarter of 2024! TECHNICAL DETAILS Clamping force: 6,500 kN Column spacing (H x V): 1,100 x 960 mm Platen size (H x V): 1,510 x 1,440 mm Tool height (min./max.): 650 / 1,150 mm Opening stroke: 1,400 mm Maximum distance between platens: 2,050 mm Maximum tool weight: 11,000 kg Ejector force: 95 kN Ejector stroke: 250 mm Column diameter: 175 mm Injection unit (Unit 5550) Screw diameter: 90 mm Maximum shot volume: 2,740 cm³ Maximum shot weight (PS): 2,520 g Injection pressure (max./boost): 2,180 bar Injection pressure (standard): 1,910 bar L/D ratio of the screw: 20 Screw stroke: 430 mm Maximum screw speed: 148 rpm Plasticizing rate: 77 g/s Nozzle pressure force: 150 kN Djdpfjy T Hfyjx Aktokn MACHINE DETAILS Control: CC200 Drive and Supply Installed drive power: 90 kW Cylinder heating power: 56 kW Number of heating zones: 6 Hydraulic tank capacity: 1,000 l Installed drive power: 90 kW Operating hours: 61,606 h EQUIPMENT Robot: Viper 40 Key features: 6 hydraulic circuits on the moving platen 2 hydraulic circuits on the fixed platen Cascade valves: 4 pieces (mounted on the fixed platen)
