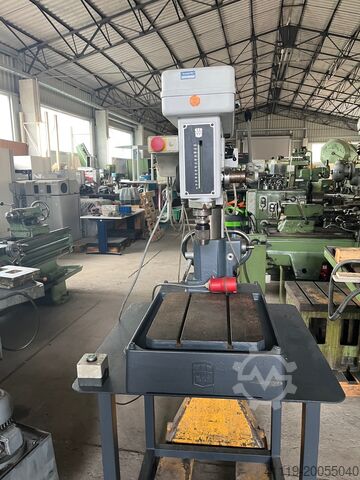

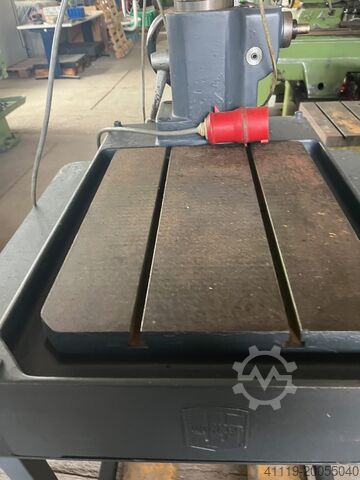

Bench drill Wörner B13

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, workpiece length (max.): 2,500 mm, workpiece width (max.): 8,000 mm, workpiece height (max.): 30 mm, workpiece weight (max.): 150 kg, TECHNICAL DETAILS Maximum plate length: 2,500 mm Maximum plate width: 8,000 mm Maximum plate thickness: 30 mm Maximum weight: 150 kg Iiedpfx Abjy Nbcxo Nob MACHINE DETAILS Tilting station transfer height: 680 mm Belt conveyor with lifting function for discharge: 40 mm Belt conveyor with lifting function for transfer to roller conveyor: 265 mm Roller conveyor and belt conveyor transfer height: 920 mm Conveying direction Lengthwise on roller conveyors Crosswise on toothed belt conveyors Electrical Data Operating voltage: 400 V +N +PE - 50 Hz Control voltage: 24 V DC Brake voltage: 230 V AC Drive Technology Manufacturer: SEW Protection class: IP54 Quick-connect plug and hybrid cable on SEW fieldbus modules EQUIPMENT Sensors: Leuze Metalwork

Condition: ready for operation (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 55DM2752, workpiece weight (max.): 1,500 kg, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 310 mm, wire diameter (max.): 0.3 mm, TECHNICAL DETAILS Travel range X-axis: 600 mm Travel range Y-axis: 400 mm Travel range Z-axis: 310 mm Travel range U-axis: ±75 mm Travel range V-axis: ±75 mm Wire diameter: 0.1 - 0.3 mm Max. workpiece dimensions: 1,050 x 820 x 305 mm Max. workpiece weight: 1,500 kg Table dimensions: 840 x 560 mm Table design: U-shaped Taper angle: max. 15° Taper angle at workpiece height: max. 260 mm MACHINE DETAILS Dielectric tank Tank capacity: 860 l Filtered particle size: 3 µm Water purifier: 10 l Dry weight: 350 kg Iedpfxjy I Uvcs Ab Noib General power supply: 13.5 kVA Air pressure: 0.5 - 0.7 MPa Air consumption: 75 l/min or more Dimensions & Weight Dimensions (W x H): 2,022 x 2,150 mm Weight: 3,500 kg

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 0/68679, product height (max.): 410 mm, paper weight (min.): 80 g/m², paper weight (max.): 120 g/m², TECHNICAL DETAILS Materials Paper covers: 80 - 120 g/m² Cover material thickness: 0.1 - 0.3 mm Board thickness: 1 - 4 mm Format range for book covers or folders Height: 105 - 410 mm Width: 170 - 720 mm Spine width: 5 - 15 mm Back width: 18 - 100 mm Cover flap, all sides: 12 - 17 mm Spine format from roll material Width: 6 - 80 mm Thickness: 0.3 - 0.5 mm Spine from magazine Width S: min. 6 mm Width S: max. 80 mm Thickness: 1 - 3 mm Spine trimming for roll material: approx. 2.5 mm per side Cutting deviation between individual units: max. 0.2 mm Spine roll dimensions Outer diameter: max. 500 mm Core diameter: 50, 75, 100 mm Format range for machines with rotary board cutter Single-piece board cutting Height: min. 105 - 410 mm Width B1: 150 - 700 mm Width B2: 170 - 720 mm Width S1: 6 - 80 mm Board and spine pass through rotary board cutter Height: 105 - 410 mm Width: 170 - 720 mm Width: 6 - 80 mm Iiodpfxoy Ixw Ro Ab Nob MACHINE DETAILS Processable materials Coated paper Paper-laminated plastics Paper-laminated fabrics Uncoated paper Note: The machine can also be optionally provided EXW. In that case, costs for disassembly and loading will not be incurred.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 6,170 mm, travel distance Y-axis: 1,395 mm, travel distance Z-axis: 180 mm, drill diameter: 35 mm, rotational speed (max.): 24,000 rpm, Submission of bids obligates timely collection by the end of May! TECHNICAL DETAILS Travel axis X: 6,170 mm Travel axis Y: 1,395 mm Travel axis Z: 180 mm Spindle Main spindle power: 7.5 kW to 12 kW Max. speed: 24,000 rpm Tool holder: HSK F63 Drilling head Vertical spindles X-direction: 10 Vertical spindles Y-direction: 10 Horizontal spindles X-direction: 6 Horizontal spindles Y-direction: 2 Max. drilling diameter: 35 mm Usable length: 45 mm Max. outreach: 60 mm Tool change system Iedpfoy Iwuhex Ab Neib Turret tool changer capacity: 18 tools Holder: ISO30 / HSK F63 Max. tool diameter: 200 mm Max. tool length: 160 mm Working length: approx. 7,300 mm MACHINE DETAILS Clamping and vacuum system Vacuum pump capacity: 90 m³/h Uniclamp clamping unit workpiece thickness: 4,098 mm Electrical system Connection: 400 V / 50 Hz / 3 Phase Power: 22 kW Compressed air Connection: 3/8" Operating pressure: 6 bar Consumption: approx. 400 NL/min Extraction Connection diameter: 250 mm Air requirement: 5,300 m³/h Air speed: 30 m/s Pressure drop: 1,500 Pa Dimensions & Weight Dimensions (L x W): approx. 8,850 x 4,020 mm Machine weight: approx. 4,750 kg EQUIPMENT Portal design with movable machining unit 10 consoles with adjustable vacuum supports 30 adjustable support elements Multi-zone vacuum system Automatic central lubrication Chip conveyor Blow-off device for spindle Pneumatic preparation system Safety equipment in accordance with Directive 98/37/EC CNC control (Biesse system)

Year of construction: 2010, condition: repair required (used), functionality: limited functionality, controller model: MTT AutoFab, inner dimension height: 250 mm, laser power: 400 W, machine/vehicle number: SLM2501004, laser type: fiber laser, Equipment: dust extraction, No reserve price – guaranteed sale to the highest bidder! Note: The machine is in visually clean condition. It is also technically complete and the laser has been replaced by the manufacturer. However, the printer has limited functionality with regard to focus quality at the edge areas, which is presumably due to the optics and therefore requires adjustment or repair. TECHNICAL DETAILS Process: Selective Laser Melting (metal 3D printing) Laser: IPG fiber laser (replaced by manufacturer) Laser power: 200 W Total power: 400 W Maximum power: 900 W Adjustable output power: 10 - 105 % Long-term output stability: ± 3 % Beam quality: < 1.1 M² Wavelength: 1,075 ± 5 nm Spectral linewidth FWHM: < 3 nm Maximum modulation frequency: 50 kHz Build height: 250 mm Shielding gas operation: Argon/inert gas Iiodpfsy H Hxyox Ab Neb Cooling: water-cooled Cooling temperature: < 30 °C MACHINE DETAILS Laser type: YLR-200-WC Electrical voltage: 85 / 240 V AC Current: 15 A Laser hours: 0.1 h Pump runtime: 2,644 h Power-on hours: 5,017 h Heating power: 1,000 W Nominal temperature: 18 - 30 °C Air pressure: 6 bar Ambient temperature: 0 - 45 °C Dimensions & Weight Dimensions (W x D x H): 3U 19" rack Machine weight: 60 kg EQUIPMENT • Powder System PSH 100 • Extraction and filtration system • Chiller unit • 5x powder bottles (5 L) • 6x substrate plates • 10x filter elements (H13) • 26x wiper lips • Spare sieves • Protective suits • Cleaning wipes for optics (F-theta) • Various small parts & spare components

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, power: 7.5 kW (10.20 HP), saw blade diameter: 450 mm, tilt adjustment saw blade: 46 °, rotational speed (max.): 5,000 rpm, cutting width at rip fence: 1,300 mm, TECHNICAL DETAILS Saw blade diameter max.: 450 mm Cutting width at CNC parallel fence: 1,300 mm Max. speed: 5,000 rpm Infinitely variable adjustment Double roller carriage length: 3,000 mm Mitre angle stop length: 3,200 mm Digitally adjustable Table extension: 840 mm Pneumatic quick-clamp range: 0-90 mm 2 quick clamps MACHINE DETAILS Power: 7.5 kW EQUIPMENT CE marking Iedpfey H Errox Ab Noib Saw blade guard Double roller carriage with TIP-SERVO-DRIVE Air cushion table Spray device with remote control Front support roller 2 pneumatic quick clamps Digital mitre gauge L CNC parallel fence

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 950 mm, table load: 3,000 kg, spindle diameter: 100 mm, table length: 1,200 mm, table width: 1,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Spindle diameter: 100 mm Spindle taper: ISO 50 Travel X-axis: 1,250 mm Travel Y-axis: 1,100 mm Travel Z-axis: 950 mm Travel W-axis: 630 mm Table size: 1,120 x 1,000 mm Table load capacity: 3,000 kg Ijdpfxoy Hrnto Ab Noib

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 3214, functionality: fully functional, workpiece height (max.): 40 mm, feed rate X-axis: 10 m/min, total height: 1,600 mm, total length: 3,700 mm, total width: 1,445 mm, overall weight: 1,080 kg, TECHNICAL DETAILS Feed speed: 10 m/min Panel thickness: 8 - 40 mm Max. edge thickness: 3 mm MACHINE DETAILS Iijdpfxsy Hih Ro Ab Nob Operating length: approx. 100,000 m Dimensions & Weight Dimensions (L x W x H): 3,700 x 1,445 x 1,600 mm Weight: 1,080 kg EQUIPMENT/FEATURES PLC control including touchscreen Power stop/trimming knife Jointing unit with DIA milling tools Application of hot melt adhesive to workpiece Robust chain drive Upper operator panel, rapid adjustment from operator side Double roller pressure Signal lamp for workpiece feed Quick-heating glue pot, maintenance-free Pneumatic end trimming for edge thicknesses up to 3 mm High-frequency crosscut saw High-frequency milling unit with replaceable cutter heads For radius, straight and chamfer milling Workpiece air blower Integrated collection container for edge material offcuts Extendable support arm on the front side Note: The machine can still be inspected under power until the middle of calendar week 19.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1998, operating hours: 4,624 h, control type: CNC control, sheet thickness steel (max.): 2 mm, year of last overhaul: 2012, In 2012, Salvagnini carried out a complete overhaul! TECHNICAL DETAILS Maximum feed-in length: 1,850 mm Maximum feed-in width: 1,500 mm Minimum length: 285 mm Minimum width: 190 mm Iisdpfx Ajy Ey Ixsb Nob Maximum diagonal: 2,150 mm Maximum discharge width: 1,500 mm Maximum reference dimension: 2,000 mm Minimum sheet thickness: 0.50 mm Maximum sheet thickness, mild steel (max. 410 N/mm²): 2.00 mm Maximum sheet thickness, stainless steel (max. 600 N/mm²): 1.25 mm Processing of pre-painted material: 3.00 mm Maximum tool length for CLA option: 1,000 mm MACHINE DETAILS Control type: CNC control Operating hours: 4,625 h EQUIPMENT LS Upper bending blade LI Lower bending blade Manual sheet holder length adjustment CLA Long tab bending unit HP12015 R81 Cooling unit

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: KMM 540.1196, travel distance X-axis: 3,000 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 550 mm, controller model: Fanuc 15 M, No minimum price – guaranteed sale to the highest bidder! Placing a bid obligates timely collection by 06/06/2026! TECHNICAL DETAILS Travel X-axis: 3,000 mm Travel Y-axis: 550 mm Iisdpfx Ajy Rl Aljb Neb Travel Z-axis: 550 mm MACHINE DETAILS Control: Fanuc 15 M Rotary axis: Fibro NC1
