Column Drilling Machine WMW BS16 AII

Condition: ready for operation (used), Year of construction: 2011, operating hours: 12,946 h, functionality: fully functional, travel distance X-axis: 935 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, controller model: Heidenhain iTNC 530 HSCI, spindle speed (max.): 15,000 rpm, No minimum price – guaranteed sale to the highest bidder! Tsdpfx Aszwn Etjfwjb TECHNICAL DETAILS Travel range X-axis: 935 mm Travel range Y-axis: 850 mm Travel range Z-axis: 650 mm Number of axes: 3 Table length: 1,200 mm Table width: 850 mm Max. table load: 2,000 kg Spindle connection: HSK-A63 Spindle speed: 15,000 rpm Tool changer: 30-position Rapid traverse: 40 m/min Feed rate: 40,000 mm/min MACHINE DETAILS Control system: Heidenhain iTNC 530 HSCI Internal cooling: 40 bar / 23 liters/min Operating hours: 36,420 h Spindle hours: 12,946 h EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2002, overall weight: 7,000 kg, center height: 160 mm, distance between centers: 2,000 mm, controller model: Siematic Rack PC 840, positioning accuracy: 0.001 mm, Automatic reamer tool grinding machine / reaming cutter grinding machine! For grinding the chip chamber and chip face on round reaming tools. TECHNICAL DETAILS Tooth length: 1,700 mm Center distance: 2,000 mm Center height: 160 mm Resolution X-axis: 0.001 mm Resolution Y-axis: 0.001 mm Resolution Z-axis: 0.001 mm Resolution W-axis: 0.001 mm Todjzt Si Uspfx Afwjb MACHINE DETAILS Axis control: 4 axes Control system: Siemens Rack PC 840 Processor: Pentium 3 Program memory: 20 GB Operating system: Windows 2000 Weight: 7,000 kg EQUIPMENT Simultaneous machining via 2 handwheels

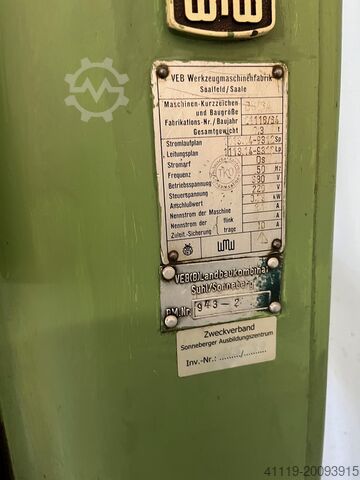

Condition: not inspected (used), machine/vehicle number: 23095, type of input current: three-phase, overall weight: 4,500 kg, input frequency: 50 Hz, input voltage: 380 V, input current: 17 A, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Power supply: 3~ Frequency: 50 Hz Tsdpfxezt Sfps Afweb Operating voltage: 380 V Control voltage: 220 V Rated current: 17 A Fuses Rated current main fuse, fast-blow: 35 A Rated current main fuse, slow-blow: 25 A Dimensions & Weight Dimensions (L x W x H): 3,800 x 2,100 x 2,000 mm Machine weight: approx. 4,500 kg

Condition: repair required (used), Year of construction: 2006, functionality: not functional, turning diameter: 450 mm, travel distance X-axis: 303 mm, travel distance Z-axis: 1,160 mm, overall weight: 10,000 kg, swing diameter over bed slide: 700 mm, controller model: Siemens 810D ShopTurn, Note: The main drive motor is currently not functional; an inspection and/or repair is required. TECHNICAL DETAILS Maximum turning diameter: 450 mm Swinging diameter over bed: 700 mm Swinging diameter over cross slide: 500 mm Maximum workpiece length: 1,100 mm X-axis travel: 303 mm Z-axis travel: 1,160 mm C-axis resolution: 0.001° Spindle speed max.: 3,500 rpm Distance between centers: 1,230 mm Chuck diameter: 315 mm Tjdpfx Afjzt Sbkswsb Bore in draw tube: 95 mm MACHINE DETAILS Control: Siemens 810D ShopTurn Total weight: approx. 10,000 kg EQUIPMENT C-axis Tailstock Steady rest Hollow chuck cylinder Chip conveyor Extraction system

Condition: ready for operation (used), Year of construction: 2003, operating hours: 28,000 h, functionality: fully functional, turning diameter: 309 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 89 mm, travel distance Z-axis: 406 mm, controller model: Fanuc Typ 18i-T, TECHNICAL DETAILS Maximum turning diameter: 309 mm Spindle speed range: 25 – 6,000 rpm Travel in X-axis: 89 mm Travel in Z-axis: 406 mm Collet diameter: 42 mm MACHINE DETAILS Control system model: CNC Fanuc Type 18i-T Spindle motor drive power: 11 kW Operating hours: 28,000 h Machine weight: approx. 5,000 kg EQUIPMENT C-axis Y-axis 12-station turret VDI 30 Powered tools at each station Power chuck, diameter 140 mm Hydraulic steady rest Workpiece collection system Chip conveyor Coolant system Todpezu Rz Eefx Afwob

Condition: ready for operation (used), Year of construction: 2006, functionality: fully functional, turning length: 1,040 mm, turning diameter: 580 mm, spindle speed (max.): 3,500 rpm, travel distance X-axis: 250 mm, travel distance Z-axis: 1,040 mm, TECHNICAL DETAILS Turning diameter: 580 mm Turning length: 1,040 mm Spindle speed: 3,500 rpm Travel range X-axis: 2,500 mm Travel range Z-axis: 1,040 mm Tailstock diameter: 85 mm MACHINE DETAILS CNC control: Fanuc 18T-C Dimensions & Weight Dimensions (L × W × H): 4,650 × 2,320 × 2,060 mm Machine weight approx.: 7,200 kg EQUIPMENT VDI turret with 12 driven tool stations Chip conveyor Todpfx Afjzu Rzrewjb Machine without tailstock Foot switch Chuck Turning chuck

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 1,889 h, laser power: 2,000 W, sheet thickness steel (max.): 15 mm, sheet thickness stainless steel (max.): 8 mm, working length: 3,000 mm, working width: 1,500 mm, The machine has been very well maintained, regularly cleaned, and serviced. It is in near-new condition! TECHNICAL DETAILS Laser power: 2,000 W Laser source manufacturer: IPG Laser type: Fiber laser Max. sheet thickness: 15 mm Max. steel sheet thickness: 15 mm Max. stainless steel thickness: 8 mm Working length: 3,000 mm Working width: 1,500 mm Positioning accuracy: 0.001 mm MACHINE DETAILS Control type: CNC control Control manufacturer: Mazak Tjdpfx Aozt R R Rofwob Cooling type: Water Degree of automation: Automatic Drive type: Electric Input voltage: 380 V Input current type: Three-phase Laser on-time: 8,212 h Cutting hours: 1,657 h Year of last overhaul: 2024 EQUIPMENT CE marking Documentation / manual Safety light curtain Shuttle table Extraction system

Condition: ready for operation (used), Year of construction: 2007, operating hours: 3,488 h, functionality: fully functional, machine/vehicle number: TM3507008, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 5,000 rpm, controller model: SELCA S 4045 PDH, The table and the dust extraction system are included in the price! TECHNICAL DETAILS Travel range X-axis: 3,500 mm Travel range Y-axis: 1,100 mm Tjdezr H H Sepfx Afweb Travel range Z-axis: 1,500 mm Table dimensions: 3,800 x 1,000 mm Spindle taper: ISO 50 Spindle speed: 5,000 rpm Tool positions: 40 Working feed rate: max. 15,000 mm/min Rapid traverse: 40,000 mm/min Maximum axis force (X, Y, Z): 1,500 N MACHINE DETAILS Control system: SELCA S 4045 PDH Operating hours according to image (as of: July 31, 2026) Total: approx. 29,147 h Partial: approx. 3,488 h A manufacturer's offer for dismantling and loading is available for €27,000.

Condition: ready for operation (used), Year of construction: 2008, operating hours: 14,812 h, functionality: fully functional, product width (max.): 480 mm, product height (max.): 12 mm, product length (max.): 320 mm, TECHNICAL DETAILS Performance (cycles/hour) Speed: max. 14,000/h Wrapping speed: max. 14,000/h Pre-folding: max. 12,000/h Piston opening: max. 12,000/h Offset stitching: max. 12,000/h Dimensions – Width × Spine Length Uncut: max. 320 × 480 mm Uncut: min. 85 × 128 mm Single-up Cut: max. 315 × 475 mm Minimum cut size: 80 × 120 mm Todpfx Aozw Ak Refwjb Double-up Uncut: min. 85 × 210 mm Trim mark Cut: min. 2 × 64 × 100 mm Product height (compressed) 3-knife cut: max. 12 mm Middle cut as trimming cut: 10 mm Middle cut as punching cut (half punching width): max. 6 mm Triple cut as trimming cut: 5 mm MACHINE DETAILS Operating hours (according to counter): 14,812 h EQUIPMENT 1 CHU feeder 2 DVU vertical feeders 2 DHU horizontal feeders 1 Stitchmaster three-knife cutting machine with middle cut 2 knife sets 4 stitching heads CHA forklift Note: Further technical details can be found in the attached document.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning diameter: 1,800 mm, turning length: 600 mm, spindle bore: 130 mm, spindle speed (max.): 400 rpm, controller model: Siemens 840D Powerline, TECHNICAL DETAILS Turning diameter: 1,800 mm Turning length: 600 mm Spindle bore: 130 mm Spindle nose: DIN 55027, size 11 Speed range: 1–400 rpm MACHINE DETAILS Tedpfszv Rlgox Afwjb Control system: Siemens 840D Powerline Total power requirement: 38 / 52 kW Dimensions & Weight Machine weight: approx. 25 t Transport width: 3,700 mm EQUIPMENT 6-jaw chuck
