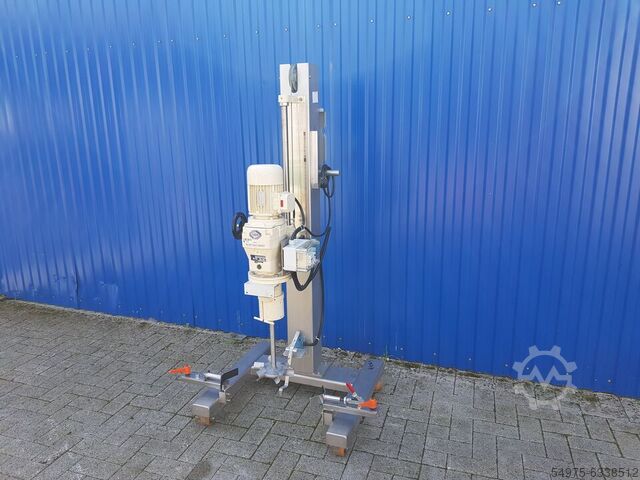

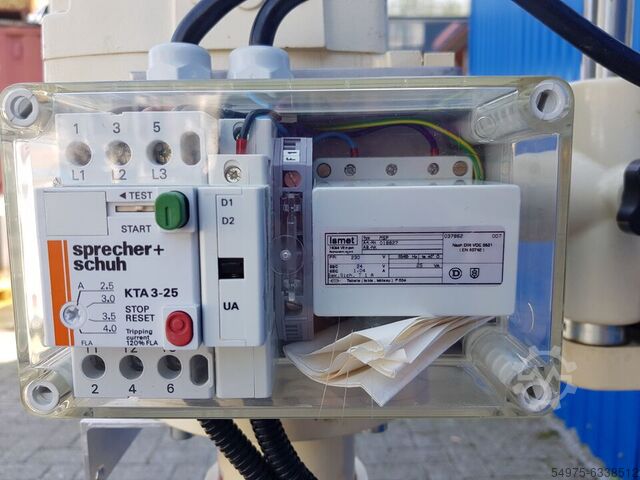

Stand agitator Agitator

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 1104104, measuring range X-axis: 1,205 mm, measuring range Y-axis: 2,005 mm, measuring range Z-axis: 1,005 mm, workpiece weight (max.): 2,000 kg, workpiece height (max.): 1,115 mm, The measuring table has been supplemented with milled aluminum plates. These plates are equipped with M6 holes in a 50 mm grid pattern, allowing for variable clamping options for workpieces. TECHNICAL DETAILS Measuring range X-axis: 1,205 mm Measuring range Y-axis: 2,005 mm Measuring range Z-axis: 1,005 mm Drive speed in CNC mode Traversing speed: 8–250 mm/s Measuring speed: 1–3 mm/s Drive speed in J/S mode Nodpfxsx U Sv Ho Agrswb High speed: 0–80 mm/s Low speed: 0–3 mm/s Fine speed: 0.05 mm/s Acceleration Acceleration per axis: 0.1 G Max. acceleration: 0.17 G Resolution: 0.0001 mm Measuring table Material: Granite Working area: 1,408 mm x 2,980 mm Clamping threads: M8 x 1.25 Max. workpiece height: 1,115 mm Max. workpiece weight: 2,000 kg MACHINE DETAILS Dimensions & Weight Main unit dimensions (D x W x H): 3,230 x 2,150 x 3,585 mm Weight (incl. stand and control unit): 5,388 kg Compressed air supply Air pressure: 0.4 MPa Air consumption in normal operation: 100 L/min Air consumption from air source: 150 L/min Temperature conditions Ambient temperature: 16–26 °C Thermal fluctuation per hour: 2.0 K Thermal fluctuation per day: 5.0 K Thermal gradient vertical: 1.0 K/m Thermal gradient horizontal: 1.0 K/m Accuracy Accuracy to ISO 10360-2: E = 4.9 + 5L/1,000 Probing error Probing error ISO 10360-2 (TP2): R = 5.2 µm Probing error ISO 10360-2 (TP200): R = 5.0 µm EQUIPMENT Geopack Cosmos 2.3 software PH 10 probe head TP 200 Change rack Note: The machine was in operation until 2013, after which it was professionally dismantled by the manufacturer. The machine was then stored in an industrial hall. The last factory calibration was carried out in 2013. The calibration certificate is available as an attachment in the listing.

Condition: ready for operation (used), Year of construction: 1999, operating hours: 78,000 h, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, bar diameter (max.): 20 mm, controller model: Fanuc 16i-T, number of axes: 9, CNC sliding headstock lathe with 9 axes! TECHNICAL DETAILS Axes: X / C1 / Y / E / B / A / X / C2 Maximum bar diameter: 20 mm Maximum turning length: 205 mm / 195 mm Maximum main spindle speed: 10,000 rpm Maximum sub-spindle speed: 10,000 rpm MACHINE DETAILS Nwsdpfox U Af Sox Agreb Control: Fanuc 16i-T Coolant: Oil Tank capacity: 170 L Operating hours: 78,000 h EQUIPMENT 4-position tool holder 3 cross drilling units Turret with 8 stations Various additional tool holders Tailstocks Parts conveyor Bar feeder FMB Turbo 3-26 /3200/A Fire extinguishing system Kraft & Bauer Chip conveyor Mayfran

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Bar diameter max.: 20 mm Turning length max.: 205 mm Main spindle speed max.: 10,000 rpm C-axis (main spindle): 0.001 degree Counter spindle speed max.: 10,000 rpm C-axis (counter spindle): 0.001 degree Tool capacity: 18 tools Axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Nodpfx Agjx U Afxjrswb Parts conveyor belt Bar feeder FMB Turbo 3-26

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, turning length: 205 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, controller model: Cincom Mitsubishi Meldas, counter spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Max. bar diameter: 20 mm Max. turning length: 205 mm Nwsdpfx Agsx U Ad Ujrjb Max. main spindle speed: 10,000 rpm Main spindle C-axis: 0.001 degrees Max. sub spindle speed: 10,000 rpm Sub spindle C-axis: 0.001 degrees Tool capacity: 18 tools Number of axes: 7 MACHINE DETAILS Control: Cincom Mitsubishi Meldas Dimensions & Weight Machine dimensions (LxWxH): 2,540 x 1,450 x 1,850 mm Machine weight: 1,750 kg Bar feeder dimensions (LxWxH): 3,900 x 900 x 1,450 mm Bar feeder weight: 850 kg EQUIPMENT Parts conveyor FMB Turbo 3-26 bar feeder

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 0501DN6870, Year of construction: 2024, operating hours: 128 h, load capacity: 1,500 kg, lifting height: 3,000 mm, overall weight: 2,940 kg, wheelbase: 1,475 mm, Equipment: sideshift, TECHNICAL DETAILS Load capacity: 1,500 kg Lift height: 3,000 mm Wheelbase: 1,475 mm Distance to load centre: 500 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,200 x 1,120 x 2,130 mm Total weight: 2,940 kg Max. battery weight: 283 kg Operating hours: 128 h EQUIPMENT Nwjdpfx Agox Ux Rkerob Side shifter Lighting Indicators Rear-view mirror Protective roof Trailer coupling Power steering Solid rubber tyres at the front, pneumatic tyres at the rear Charger

Condition: ready for operation (used), Year of construction: 2004, operating hours: 18,396 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 450 mm, controller model: Heidenhain 530, number of axes: 3, In 2022, the tool magazine door was replaced. In 2023, the SIMODRIVE 611/18A servo converter was replaced! TECHNICAL DETAILS Travel X-axis: 650 mm Travel Y-axis: 450 mm Travel Z-axis: 450 mm Tool holder: SK 40 Nwedpex Up E Esfx Agreb Number of axes: 3 MACHINE DETAILS Control: Heidenhain 530 Operating hours Spindle hours: 18,396 Machine hours: 56,040

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 508 mm, table load: 680 kg, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Nwedpfox Up Dhsx Agrjb Travel X-axis: 762 mm Travel Y-axis: 406 mm Travel Z-axis: 508 mm Table length: 914 mm Table width: 356 mm Table load capacity: max. 680 kg Spindle speed: 12,000 rpm Feed Rapid traverse X-axis: max. 35.6 m/min Rapid traverse Y-axis: max. 35.6 m/min Rapid traverse Z-axis: max. 35.6 m/min Tool Changer Capacity: 24+1 Tool holder: CAT 40 Max. tool diameter: 76 mm Tool change time: 1.6 s Chip-to-chip time: 2.2 s MACHINE DETAILS Machine weight: 3,629 kg

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, turning length: 81 mm, turning diameter: 99 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 300 mm, travel distance Z-axis: 240 mm, TECHNICAL DETAILS Nodpfxjx Upv Ro Agrswb Maximum turning length: 81.3 mm Maximum turning diameter: 99.1 mm X-axis: 300 mm Z-axis: 240 mm Spindle head: A2-6 Spindle bore: 33 mm Variable spindle speed: 4,000 rpm Spindle motor power: 11 kW Number of turret tools: 8 Number of driven tools: 10 MACHINE DETAILS Control: Fanuc 21iT Dimensions & Weight Machine dimensions (incl. chip conveyor): 290 x 235 cm Machine weight: 4,000 kg Transformer station dimensions: 65 x 60 cm Transformer station weight: 150 kg Overall dimensions (L x W x H): 2,600 x 2,300 x 2,400 mm Total weight: 3,900 kg EQUIPMENT Chip conveyor

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, working width: 1,300 mm, workpiece height (max.): 140 mm, controller model: Xinje XD5, empty load weight: 4,500 kg, working length: 200 mm, TECHNICAL DETAILS 1st Station: 15 cup grinding brushes with quick-change mount 2nd Station: 15 cup grinding brushes with quick-change mount 3rd Station: 9 tangentially arranged grinding brushes 4th Station: Crosswise roller with grinding brushes over the entire working width 5th Station: Crosswise roller with grinding brushes over the entire working width 6th Station: Air nozzle across the entire working width Working width: 1,300 mm Working length: 200 mm Workpiece height: 3 - 140 mm MACHINE DETAILS Control system: Xinje XD5 Total power requirement: 13.4 kW Dimensions & Weight Required floor space: approx. 5.1 x 2 x 2.3 m Machine weight: approx. 4,500 kg Nsdpjx Tt Uuefx Agrjwb EQUIPMENT Modular control of the module units Frequency converter for speed control Automatic adjustment of working height range Oscillating blowing air in the final section Easy maintenance and replacement of abrasive paper and brushes Spare brushes Grinding inserts Rubber conveyor belt with herringbone pattern, solid steel plate underneath across full width

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2025, machine/vehicle number: 2500461/01, overall weight: 5,091 kg, load capacity: 1,000 kg, throat depth: 2,000 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Load capacity: 1,000 kg Reach: 2,000 mm Max. wheel load: 2,279 kg Max. support load: 3,161 kg MACHINE DETAILS Total weight: 5,091 kg Nwedpjx Tt S Hsfx Agrjb Operating voltage: 400 V
