Combined machine

ROBLAND X31

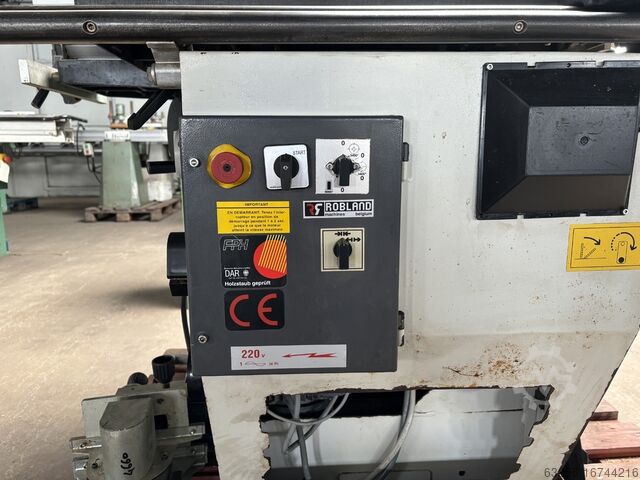

Condition: ready for operation (used), Technical characteristics 5-operation combination (planer, jointer, router, saw and mortiser) Thicknes planer : Usable width: 310 mm Useful height: 230 mm Surface planer : Usable width: 310 mm Table length 1400 mm Shaft diameter 70 mm, common to the robot and jointer Router : Shaft diameter 30 mm, length 125 mm Table width: 800 mm Saw: Blade diameter 250 mm, tiltable at 45°. Dksdpjtn H E Nefx Ahuok Cutting height with 250 mm blade: 80 mm Table width 800 mm Rip fence length: 635 mm Mortising machine : Wick mortising (0 to 16 mm) Power and Motors Voltage: 380 V Pluging: Three-phased Overall dimensions

Condition: used, Thickness planer: Max planing width: 400 mm Max planing height: 240 mm Min length of planed workpiece: 200 mm Cutter shaft diameter: 700 mm Number of knives: 3 Cutter shaft speed: 5000 rpm Manual adjustment of working height Jointer: Total table length: 1810 mm Adjustable tables Cutter shaft noise suppression Cutter shaft guard Extraction port: 2x120 mm Tilting fence Supply voltage: 400 V Motor power: 5 kW Overall dimensions: Dodpfjxwvqdox Ahuekk Length: 2030 mm Width: 800 mm Height: 1160 mm

Condition: excellent (used), Felder KF 700 Panel Saw-Spindle Moulder Panel saw and tilting spindle moulder – Felder combines two fully-fledged professional woodworking machines in the unbeatable KF 700 saw-moulder combination. Innovative detailed solutions, proven Felder technologies, and premium components for perfect woodworking – the solution for every challenge. Dkedpfx Ajylztzjhuok

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, For sale is a used Hammer C3-31 4-function combination machine with a cutting length of 1150 mm. The machine is in very good condition and has been refurbished and inspected by our qualified personnel. Technical data: - Cutting length: 1250 mm - Cutting width: 900 mm - Cutting height: 103 mm - 4 spindle speeds - Directional switch - 3-knife cutter block - Planing length: 1400 mm - 3 motors, each 3 kW Dkjdpfjxdknwsx Ahuok - Year of manufacture: 2020 The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Related terms: combination machine, combined machine, planer, thickness planer, thicknessing machine, circular saw Reference: R-B18YQ

Condition: good (used), Code: 0292 Djdpfxsyhp S Rs Ahuskk Brand: SCM MINIMAX Model: FORMULA F1 - CE Standard Surface planer for planing wood materials, plastics, composite materials and various - CE Standard Technical data: Working width mm 410 Table length mm 2610 N° 4 knives Shaft diameter mm 120 Shaft rotation speed rpm 5000 Guide tilting from 90° to 45° Max stock removal mm 8 Motor power Hp 5,5 Table height from ground mm 845 Suction hood diameter mm 120 Overall dimensions mm 2610 x 900 x 1070 h Weight kg 575

Condition: excellent (used), functionality: fully functional, working width: 410 mm, planing width: 410 mm, Planer, jointer SCM F410 Specification: • condition - used, after inspection • manufacturer - SCM Dodsx E Srvjpfx Ahuekk • model - F410 • working width - 410 mm • table length - 2610 mm • fence adjustable for angle • motor power - 4.0 kW • spindle speed - 5000 rpm • chip thickness indicator • max cutting depth - 8 mm • noise dampening combs at the shaft • motor brake • four-knife shaft, 120 mm diameter, for traditional knives • star-delta starter • dust extraction outlet - 150 mm dia • weight - approx. 650 kg • CE marked • overall dimensions: 261 x 90 x 110 cm (L x W x H) Additional information: • very good technical condition • the presented photos show the actual condition of the item for sale • possibility to start and test the machine on site.

Condition: new, Year of construction: 2026, For sawing, milling, planing/thickness planing and optional slot drilling in confined spaces High-precision format sliding carriage made of anodized aluminum, various lengths Large extension arm (1200 x 650 mm) with material roller and extendable aluminum telescopic fence up to max. 3200 mm with professional fence flaps Max. Saw blade Ø 315 mm, tiltable from 90° to -45°. Large swivel range of the milling spindle from 90° to -45° backwards Four milling speeds up to 10000 min-¹, manually adjustable With right-left rotation of the milling spindle Heavily ribbed dressing tables made of stress-free gray cast iron for decades of stability and flatness 2-stage feed for thickness planing Three independent industrial motors for continuous operation With lockable main switch, motor protection switch Fixed hand wheels Dimensions and weights Weight (net) approx. 857kg Dressing table Dressing table width 410mm Dressing table length 2000mm chip removal max. dressing 5mm Connection suction Suction port diameter 3 x 120mm Suction port diameter saw blade guard 60mm Installation information Required space length 5960mm Space requirement width/depth 5140mm Explanation of space requirements The dimensions take into account maximum travel distances or useful lengths. Working area length 1600mm Working area width/depth 1600mm Explanation of working area Please add the dimensions given with the space requirement to obtain the free installation area recommended for the machine. Thickness Thickness table length 757mm Thickness table width 423mm Working height thickness min. 3mm Working height thickness max. 230mm Chip removal max. thickness 5mm Electrical data Supply voltage 400V Mains frequency 50Hz Rated operating mode drive motor S6 Duty cycle drive motor 40% Power drive motor 3 x 5,0kW Sliding carriage and table sliding table length 2660mm Format sliding carriage width 360mm format sliding carriage height 142mm table length 1250mm table width 430mm table height 900mm Milling spindle spindle inclination 0 - -45 Dodpfxeih Dxle Ahuokk spindle mandrel diameter 30mm useful length of spindle 125mm Spindeldrehzahl(en) 3500/6000/8000/10000min⁻¹ Milling tool diameter max. Tool diameter max. lowerable 210mm tool diameter max. lowerable 45° 150mm tool diameter max. tenon milling 275mm Planer cutterhead Type of cutterblock TERSA planing shaft diameter 87mm Number of planing knives 4pcs planing shaft speed 5200min-¹ Circular saw unit trimming length 2600mm Cutting width with rip fence 900mm Max. Cutting width left of saw blade 3260mm saw blade inclination 90 - 45 Max. Cutting height at 90° 90mm Max. Cutting height at 45° 63mm Max. Saw blade projection 90° 100mm Max. saw blade Saw blade projection 45° 71mm Diameter (main) saw blade 315mm Explanation Diameter (main) saw blade with scoring device Speed (main) saw blade 4000min-¹ Feed rate Feed speed 6 - 12m/min Location: Ex stock 54634 Bitburg - immediately available -

Condition: excellent (used), Robland multi-function woodworking machine, combination panel saw and thickness planer Dedjytdfpepfx Ahuokk

Condition: used, Year of construction: 1993, Machine: Double-sided through-feed operation with additional: 4 drilling supports vertically from above 4 drilling supports horizontally from behind Units: Tiltable Workpiece length (mm): 330 - 2500 Workpiece width (mm): 40 - 180 (200 mm for straight cuts) Workpiece thickness (mm): 15 - 80 mm Dowels (mm): 8 + 10 + 12 x 30 + 40 + 50 Dksdpfxswbuw To Ahujk Dowel projection (mm): 10 - 25 Machine dimensions: Length (mm): 8040 Width (mm): 5850 Height (mm): 2500

Condition: good (used), functionality: fully functional, planing width: 520 mm, total width: 95 mm, total height: 110 mm, overall weight: 800 kg, total length: 299 mm, table length: 2,990 mm, Planer, thicknesser SCM F520 - after technical inspection, ready for operation Specification: • Technical condition - used, after professional inspection • Manufacturer - SCM • Model - F520 • Working width - 520 mm • Table length - 2,990 mm • Hydraulic raising and lowering of the table • Angle-adjustable fence, dimensions 175x1500 mm • Motor power - 4.0 kW • Spindle speed - 5,000 rpm • Chip thickness indicator • Maximum cutting depth - 8 mm • Noise-reducing combs at the cutterblock • 4-knife cutterblock, diameter 120 mm for traditional knives • Start-up - star-delta • Chip extraction outlet - diameter 120 mm • Weight - approx. 800 kg • Overall dimensions 299 x 95 x 110 cm (L x W x H) Additional information: • The machine is in good technical condition, ready for immediate use • The photos shown reflect the actual condition of the item for sale Djdeyg Rygspfx Ahuokk • It is possible to switch on and inspect the machine on site • The price listed in the auction does not include VAT or transport costs Financing and transport: • We organize transport by MDD fleet, courier companies, or external carriers • Financial support available in the form of leasing or a lease loan
