Vacuum tank truck

Schmies STS VR-2,0 Vakuumsaugfass-Anhänger 3,5to

++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++ BUY ++ RENT ++

- We deliver the right vacuum suction system for any application! -

Delivery worldwide / Dealer inquiries welcome!

Internal number: #565 Please note: images are sample pictures. Actual equipment and color may vary.

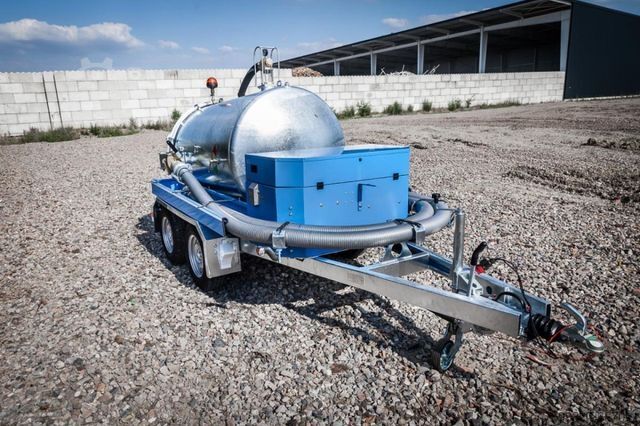

STS VR-2.0

Tank
- 2,000-liter tank capacity
- Hot-dip galvanized tank
- Tank tilted slightly to the rear for easier cleaning
- Hydraulic rear tipping approx. 20° for emptying via electro-hydraulic unit
- Side flush opening in the tank to remove contamination or blockages without opening the tank lid
- Tank lid opens fully to the passenger side and is secured with hook bolts
- Equipped as standard with 2 safety levels to prevent compressor damage
- Syphon separator – overflow with 2 balls and sight glass
- Manometer on suction fitting with protective bracket

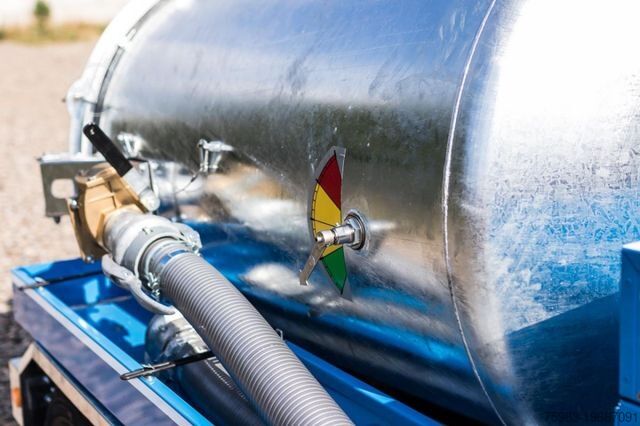

- Mechanical fill level indicator with color scale

Engine and Compressor
- MEC 3000 vacuum compressor with 3,500 L/min air flow
- Vacuum max. -0.8 bar (continuous operation at -0.5 bar)
- Overpressure max. 0.49 bar
- Maintenance-free V-belt drive for vacuum compressor
- Honda GX 390 industrial engine – electric start, oil sensor, control panel with ignition lock, battery and tank
- Internal suction hose to protect the motor unit
- Muffler for the vacuum compressor with oil catch
- Stainless steel heat deflector above muffler
- 1 liter of biodegradable compressor oil stored in an oil bottle holder
- 5-liter fuel canister in holder
- Standard funnel with long neck for changing and refilling engine oil
- All engine components and accessories stored in a lockable aluminum engine box, powder-coated in your preferred color

Kedjw Ehfxjpfx Afpedu
Chassis
- Fully self-supporting hot-dip galvanized chassis
- Electrohydraulics with wired remote control
- Low-bed tandem chassis 3.5 t
- Track width identical to car and Sprinter for optimal handling
- Lowest possible center of gravity for the suction tank
- 2 axles, each with 1,750 kg load capacity and single wheel suspension from a reputable manufacturer
- Continuous welded V-drawbar
- Sturdy metal fenders with integrated lamp housings
- Stake brackets for quick securing of suction hoses using rubber bands
- Storage options for tools and accessories

Suction Tank
- Overrun brake with reverse automatic
- Automatically locking ball coupling
- Reinforced jockey wheel
- 13-pin electrical connector

Connections and Hoses
- 2x suction hoses (3") 5m long with Perrot couplings
- 1x suction lance 3" (1,500mm long)
- 1x Perrot connection (3") at the bottom of the tank lid
- 1x Perrot connection (3") on the right-hand side in the direction of travel

Custom solutions and special equipment available on request -
