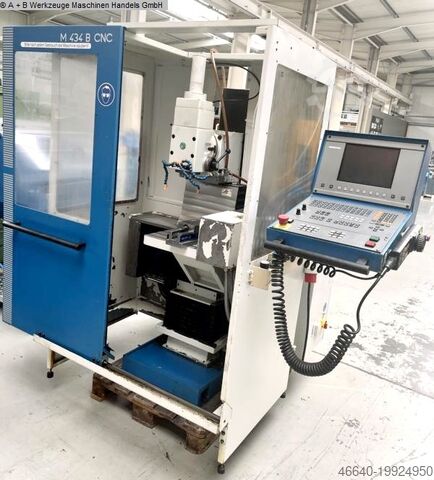

Universal Milling Machine

MACMOM / INAS M 343 B CNC

x-travel 400 mm
y-travel 250 mm
z-travel 400 mm
tool taper ISO 40
spindle turning speed range 30-6300 / 20-4200 U/min
feeds 0 - 10.000 mm/min
quill stroke 90.0 mm
table-size 600 x 320 mm
T-slots 5 x 14 x 63 mm
Control TNC 410 CA
spindle ein ~ 126 Std.
engine output 11.0 kW
weight 1300 kg
dimensions of the machine ca. 1600 x 1500 x 1900 mm
Original price incl. special accessories ~ 72.000 euros
Machine was very rarely used (!!)
with only approx. 126 spindle hours (spindle on)

Furnishing :

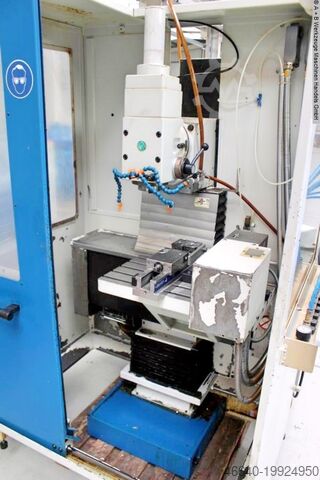

- MACMOM / INAS CNC universal milling and drilling machine
- HEIDENHAIN CNC path control TNC 410 CA
* workshop-oriented path controls, with
* Programming in easy-to-understand plain text dialog
* HEIDENHAIN electr. Remote control with handwheel

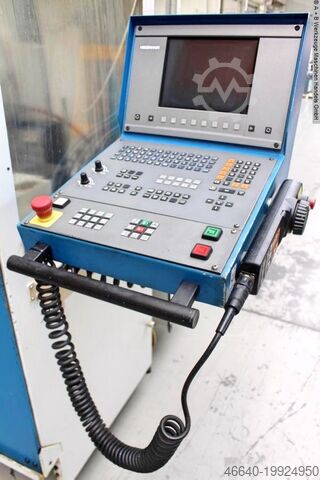

- Pivoting control panel, to the right of the machine
- hydraulic tool clamping (tie bolt DIN69872-A)
- Vertical milling head rotating on both sides - ISO 40
- Vertical speed range - infinitely variable .. 30-6300 rpm.
- Horizontal speed range - stepless .. 20-4200 rpm.
- robust, rigid angle table with 5x T-slots
- Coolant device, with tub
- Swarf spray protection cabin
- Instruction manual for machine

Special accessories included :
Credpfx Aexab T Ajbwjh
- 1x pneumatic clamping plate, with aggregate

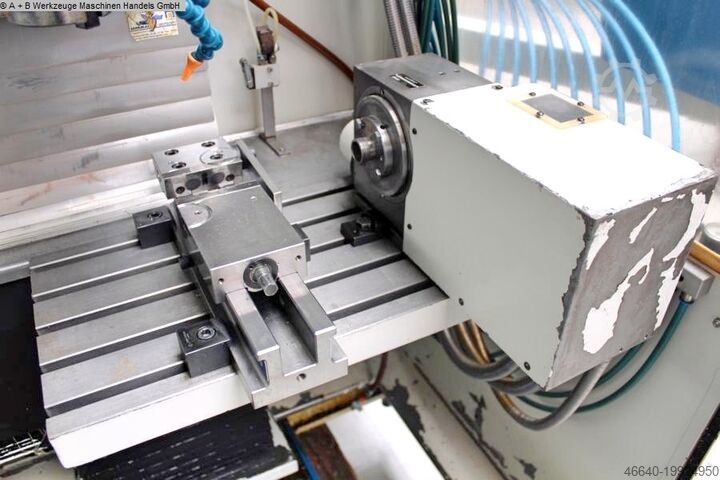

- 1x WALTER TANIH125 NEGI-R dividing head
- 1x machine vice - HILMA RÖMHELD type SM 100
- very many tool holders
- Machine swing feet
