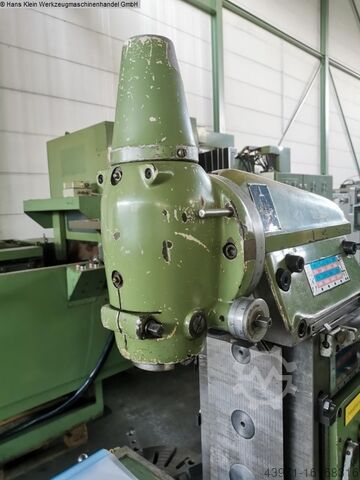

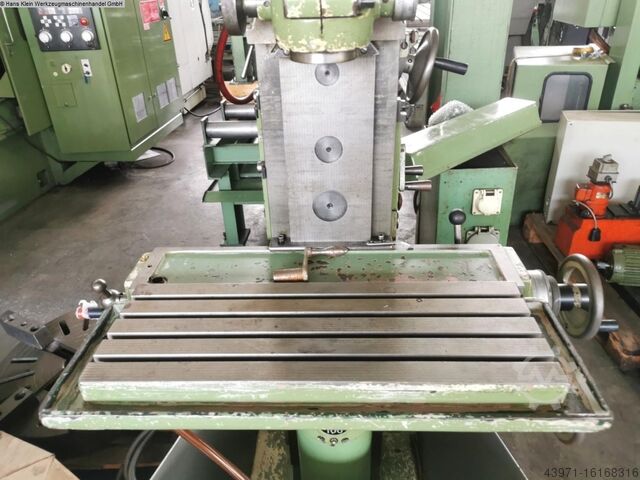

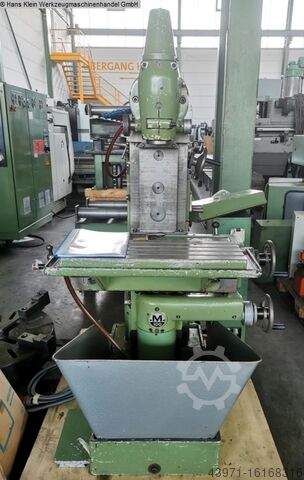

Tool Room Milling Machine - Universal

MACMON M 100

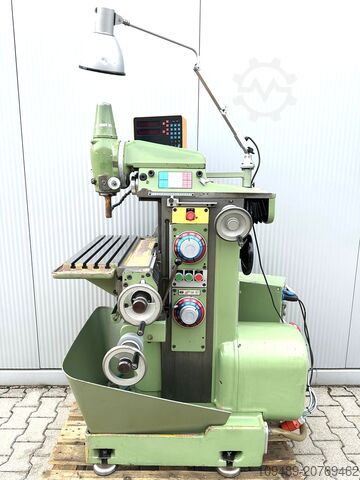

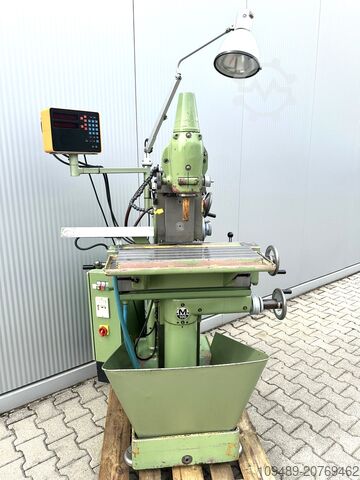

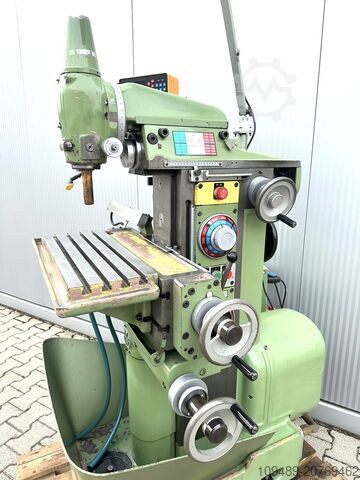

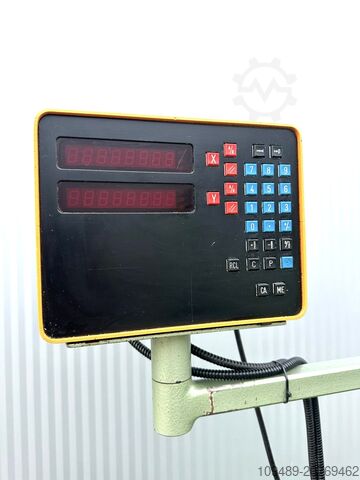

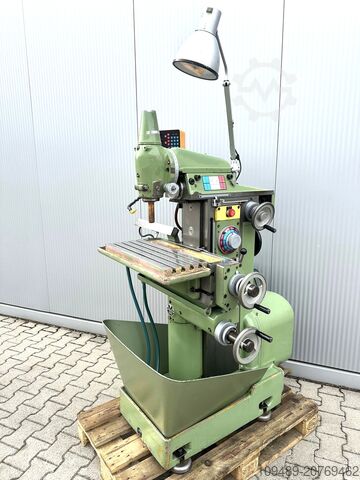

Condition: excellent (used), Milling Machine Macmon M100 (comparable to Deckel FP1) Speeds: 40-2000 rpm Travel X-axis: 310 mm Travel Y-axis: 170 mm Travel Z-axis: 340 mm Tool holder: SK 40 Drawbar thread: S20x2 Table clamping surface: 600 x 215 mm T-slot size: 12 mm Weight approx. 1120 kg Dimensions: 1066 x 1048 x 1330 mm Accessories/Equipment: - Machine lamp - 3-axis digital readout - Coolant system - Operating manual - Machine levelling feet Rodpfswu Egxsx Ac Hsck The machine has been technically inspected and is in good condition. Backlash X-axis: 0.1 mm Backlash Y-axis: 0.1 mm Backlash Z-axis: 0.2 mm Net price, ex stock, loaded.

Year of construction: 1991, condition: good (used), Hermle UWF 802 M tool room milling machine with Hermle HS track control. Machine is in good working condition, under current demonstration ready. Rsdpodubmkjfx Ac Hsck

Condition: good (used), Year of construction: 1972, functionality: fully functional, overall weight: 1,200 kg, x-travel: 290 mm y-travel: 170 mm z-travel: 310 mm Rodpsx I N N Dofx Ac Hsck Millung spindle number of milling spindle turning speeds: 16 milling spindle turning speeds: 40 - 2000 U/min inner taper of milling spindle: ISO 40 max. diameter of the vice bore: 25 Vertical milling head inner taper of milling spindle: ISO 40 spindle turning speed range: 50 - 2.500 U/min max. diameter of the vice bore: 25 dimensions: 1.100 x 1.100 x 1.660 mm

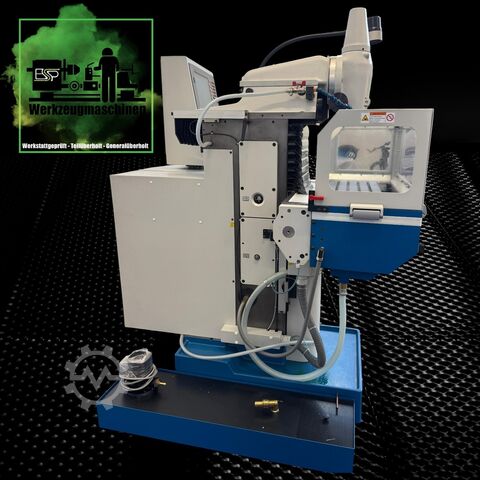

Condition: new, Year of construction: 2025, feed length X-axis: 300 mm, feed length Y-axis: 165 mm, feed length Z-axis: 280 mm, travel distance X-axis: 310 mm, travel distance Y-axis: 170 mm, travel distance Z-axis: 330 mm, quill stroke: 70 mm, spindle speed (max.): 2,600 rpm, spindle speed (min.): 40 rpm, overall weight: 730 kg, Dear Sir or Madam, We are pleased to offer you the Macmon M100 NC. This is a true all-rounder for training workshops and small batch production. The Macmon provides a conventional base in combination with a Heidenhain TNC128 CNC path control system, making this model an absolute must-have in certain work environments. And the best part: With a footprint of just one square meter, this machine fits into any workshop! Technical Standard Specifications: • Heidenhain TNC 128 control (integrated into the control panel) Rsdpfxsx H Nw So Ac Hsck • Ribbed cast-iron construction with hardened and ground guideways on the column and slide • 360º swivel vertical head • Extendable quill, stroke 70 mm • Removable vertical head for switching between vertical and horizontal milling operations • Dovetail guides on all axes • Precision ground leadscrews on all axes • Mechanical tool clamping for both vertical and horizontal spindles • Tool holder ISO 40 for tools according to DIN 2080 AT 3 with draw thread S 20 x 2 or M 16 • Fixed angle table 215 x 600 mm, T-slots 4 x 12 H7 (spacing 45 mm) • Vertical mounting surface 195 x 640 mm, T-slots 2 x 12 H7 (spacing 90 mm) • HEIDENHAIN linear measuring systems, direct, resolution 0.001 mm • Positioning accuracy 0.02 mm, repeatability 0.005 mm • Horizontal milling device, console and end bracket • Chip tray, blue RAL 5019 • Paintwork: blue RAL 5019, grey RAL 7035 • 1 operating manual • 1 CD with TNC 128 programming instructions • 1 inspection log and basic circuit diagram • 1 hand-operated oil pump • With counter bearing, plain bearing bush ø 16 mm (sliding bearing) for milling arbor length 230 mm • Machine lamp • Chip guard system (required safety device according to EN 13128 for EU countries)

Condition: used, Year of construction: 1985, x-travel 710 mm y-travel 600 mm z-travel 500 mm NC-rotary table 630 mm spindle taper SK 40 spindle turning speed range 18 - 6300 U/min control DIALOG 4 feed 2 - 3600 mm/min rapid traverse 6 m/min table load max. 485 kg Rsdstqqtbjpfx Ac Heck quill stroke 80 mm spindle drive 9,5 kW total power requirement 20 kVA weight of the machine ca. 4,6 t dimensions 3,8 x 2,24 x 2,35 m Accessories: vertical head with hydr. tool clamping and quill retraction, electron. handwheel, coolant

Condition: good (used), TOOL MILLING MACHINE - Macmon M 100 -Digital readout -Travels X/Y/Z 310x340x170 mm -Spindle speed range 40–2500 rpm -Automatic feeds -Feed range in steps 9–450 mm/min -Tool holder ISO 40 -Swiveling vertical head -Quill / vertical head 70 mm -Horizontal–vertical milling setup -Rigid angle table 600x225 mm -Cooling unit -Drive power 2.5 kW -Chip tray -Work light -Machine feet Rcedpfx Acox H Iz Ao Hsk -Documentation Dimensions (LxWxH): 1.5 x 0.8 x 1.7 meters / Weight: 950 kg Errors and omissions excepted

Condition: used, Year of construction: 1990, Universal tool milling machine Make: MACMON Rcodsx Ada Ropfx Ac Hjk Model: M 100 E Year of manufacture: 1990 – workshop tested Machine No.: 1479 Geometrical inspection with test protocol Accessories: - 3-axis digital readout K+C Arbah-M, new - Fixed table 600 x 210 mm (T-slot: 12 mm) - Vertical milling head SK 40 with draw thread S 20 x 2 - Coolant system - Operating manual Used as seen, without warranty The machine conforms technically to the state of the art at the year of manufacture.

Condition: good (used), Year of construction: 1990, Macmon M 100 E tool milling machine with 2-axis Elesta-Heidenhain digital readout from training department , rigid table , SK 40 spindle holder. Good working condition, can be demonstrated under power by arrangement. Rcjdpsrazzrofx Ac Hek

Condition: good (used), Year of construction: 2005, Internal article no.: 24012 Universal milling machine Macmon M100 NC YEAR OF MANUFACTURE: 2005 Control: Heidenhain TNC124 + coolant pump + machine vice Travel: X 310 / Y 170 / Z 330mm Rsdpfjrywa Rsx Ac Hock Speed: 40-2000 rpm Mounting: SK40 LxWxH: 1200 x 1600 x 1850mm Weight: approx. 1000Kg

Condition: good (used), Year of construction: 1995, Macmon M 100 E tool milling machine with 3-axis Elesta-Heidenhain digital display from the training department, rigid table, SK 40 spindle mount. Good working condition, can be demonstrated under power by arrangement. Rcodpfxsv Azb Nj Ac Hok

Condition: good (used), Year of construction: 1972, functionality: fully functional, travel distance X-axis: 290 mm, travel distance Y-axis: 170 mm, travel distance Z-axis: 310 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, overall weight: 1,200 kg, x- travel: 290 mm y-travel: 170 mm z-travel: 310 mm Rcedpsx I N H Aofx Ac Hjk Milling spindle number of milling spindle turning speeds: 16 milling spindle turning speeds: 40-2000 U/min inner taper of milling spindle: ISO 40 max. diameter of the vice bore: 25 mm dimensions: 1066 x 1048 x 1330 mm

Condition: good (used), Year of construction: 1998, functionality: fully functional, Universal tool milling machine Product: MACMON Type: M 100 ADR Technical Data: - Heidenhain TNC124 control - Machine number: 7989 - Year of manufacture: 1998 - Travel: X 310 mm Y 170 mm Z 330 mm - Speed range: 40-2500 rpm (infinitely variable in 2 ranges) - Feed rate: 10-800 mm/min (infinitely variable) - Rapid traverse: 800 mm/min - Equipment: Vertical & horizontal spindle (incl. lifting device for vertical spindle) - Table size: 600 x 215 mm - SK40 - Drive motor: 2.2 kW - Connected load: 5.5 kW - Weight: approx. 750 kg - Space requirement: 1000x1160x1400 Rsdpfx Aorwml Asc Heck Incl. complete documentation The machine can be tested / demonstrated under power on site. All information without guarantee. Subject to prior sale. The object of purchase is sold under exclusion of any warranty. The exclusion does not apply to claims for damages arising from grossly negligent or intentional breach of obligations by the seller or for any injury to life, limb or health.

Condition: good (used), Tool Milling Machine – MACMON M100 from Educational Institution - Travel X/Y/Z: 310x340x170 mm - Speed range: 40–2500 rpm - Automatic feed / rapid traverse - Tool holder ISO 40 - Swivelling vertical head Rodpfx Acoxw T Sro Hock - Horizontal / vertical milling device - Rigid angle table 600x215 mm - Coolant system - Drive power 2.5 kW - Documentation Dimensions: LxWxH: 1.5x0.7x1.7 meters Errors and input mistakes excepted.
