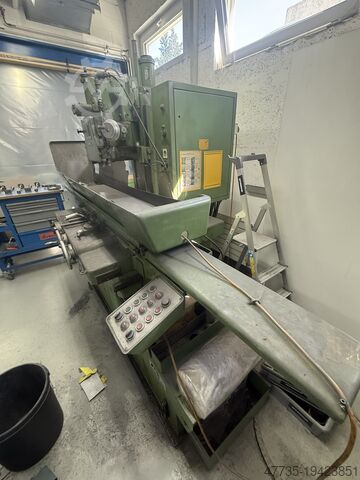

Surface grinding machine

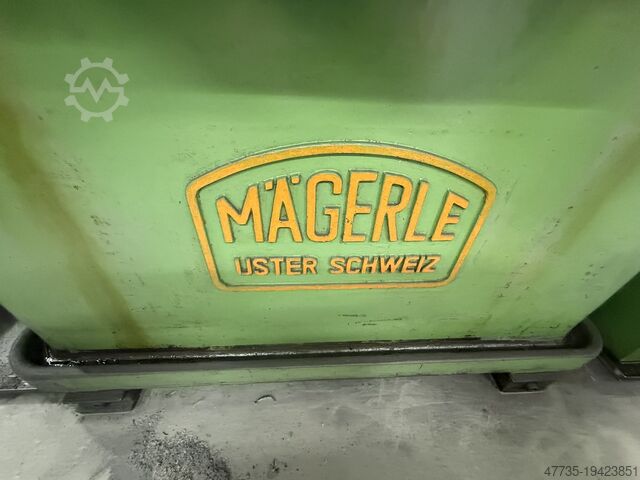

MAGERLE F12

Condition: ready for operation (used), Year of construction: 1981, functionality: fully functional, Surface Grinding Machine / Brand: ELB-SCHLIFF / Type: SWBE020NC-K Construction year: 1981 / Retrofit: 2013 Modernization in 2013: Control system, electrical system. The machine can be inspected under power by appointment. Condition: Functional / ready for use. TECHNICAL DATA: Working area: - Max. Grinding length: 2.000 mm - Max. Grinding width: 550 mm - Max. Working height with new/worn grinding disc: 400 / 475 mm Grinding spindle: - Vertical - horozontal: 1:5, 475 - Speeds: 1.400/2.800 rpm - Delivery/feed: 180 mm/min * 0,001 - 0,06 mm continuously adjustable via potentiometer - Grinding spindle motor (direction of rotation): 1.460 rpm Grinding spindle slide: - Stroke speed: Vq= 1,2 m/min * Cross feed: Sq= 1 - 60 mm/Imp. continuously adjustable Grinding spindle center: * Vertical movement: manually operated: 600 mm * Horizontal movement: manually operated: 475 mm * Swivel capability: 1° (degree) Table: - Clamping surface: 2.516 x 450 mm - Clamping slots: * Number: 3, distance: 125 mm, width: 16H7 mm - Cross movement: 450 mm - Longitudinal movement: 2.100 mm Ihodpfsxy Tdmjx Ahujt - Max. Table load: 1,5 tons - Table speed with magnetic plate attached: 30 m/min - Table creep mode: +30 m/min - Max. Cross path: 420 mm - Rapid traverse / Table spindle center: 800 mm Grinding tool: Disc 400 x 127 x 100 mm Space requirement: 6,70 x 2,31 x 0,254 m Machine weight: 9,9 tons EQUIPMENT: - Control: SIEMENS with SINAMICS S120 ..... - Extraction system - Coolant pump, brand ELB: 50 l/min There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale -

Condition: used, Year of construction: 1998, total height: 2,500 mm, total length: 5,900 mm, total width: 3,000 mm, Empty weight: 6.700 kg Price: On request Ihedpfx Ahsx E Uknouet - Year: 1998 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 199851086/1098 - Drive system: Conventional - Power [kW]: 11.0 - X-axis travel [mm]: 1200 - Y-axis travel [mm]: 680 - Z-axis travel [mm]: 400 - Table width [mm]: 1600 - Table depth [mm]: 670 - Magnet width [mm]: 1200 - Magnet depth [mm]: 600 - Control: Conventional - Motor power: 11.0kW - Transport dimensions: 5900mm x 3000mm x 2500mm (l x w x h) - Transport weight [kg]: 6700kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum
