Universal Milling Machine

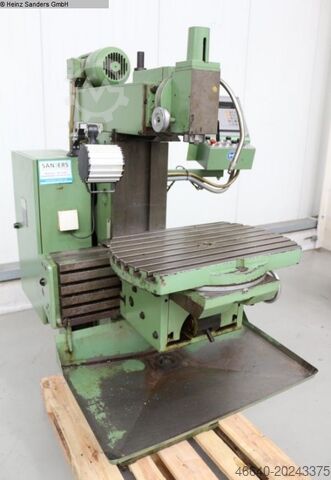

MAHO MH 500

Condition: ready for operation (used), Year of construction: 1989, Available immediately from location: MAHO Toolroom Milling Machine Type MH 500 M Year of manufacture 1989 Heidenhain Digital Display Table 800 x 360 mm SK 40 Nodpfxexy N Nxo Ah Dsli Spindle speeds 63 – 4000 rpm Quill stroke 50 mm Travel X/Y/Z 500/380/350 mm Drive 3 kW Feed rates 10 – 1000 mm/min Coolant system Weight 1600 kg Adapters Hydraulic vise Price: €3,000 plus VAT, ex location

Condition: used, x-travel 500 mm y-travel 380 mm z-travel 350 mm speeds 20 - 5000 U/min table surface area 800 x 355 mm tool taper SK 40 control HEIDENHAIN TNC 124 total power requirement 6,0 kW weight of the machine ca. 1800 kg dimensions of the machine ca. 2210 x 2680 x 1965 mm From a training center (“Daimler Chrysler AG”) Completely overhauled in 2006 for approx. 33,000 euros Includes new HEIDENHAIN “124” control Very little use since overhaul (!!) Operating hours – “machine ON” only: 10,407 hours Nsdpfsvuz Rujx Ah Djli Features: - Electric CNC universal tool milling machine - HEIDENHAIN TNC 124 linear control (installed in 2007) * Swiveling control panel, front right of the machine - Electro-hydraulic tool changer - Vertical milling head - ISO 40 with vertical work spindle * Manual spindle feed .. 50.0 mm * Scale ring for reading the quill adjustment - Horizontal work spindle incl. counterholder - Rapid traverse feed X-axis .. 0 - 4000 mm/min - Rapid traverse feed Y-axis .. 0 - 2000 mm/min - Rapid traverse feed Z-axis .. 0 - 4000 mm/min - Central lubrication, electric - Pneumatic minimum spray device (lubrication system) - Coolant device - Machine stand with base - Machine light - Original operating instructions + circuit diagram + acceptance report, etc.

Condition: used, x-travel 400 mm y-travel 400 mm z-travel 300 mm rapid traverse 1,2 m/min feed range 5 - 500 mm/min creep feed 1:100 tool taper ISO 40 stroke v60 h70 mm table - universal ca. 620 x 320 mm table vertical adjustable 350 mm Nodpfx Ahsxv D Uze Dsli weight of the machine ca. 1200 kg Machine was used in a public facility and is in good condition. Machine can be viewed under power by prior appointment

Condition: excellent (used), Year of construction: 1990, MAHO MH 500W with Heidenhain TNC 320 The machine comes from a training workshop and is in very good condition. The TNC 320 offers intuitive and highly flexible operation and programming according to current industry standards. Technical specifications: - Heidenhain TNC 320 retrofit - Travel X- 500 mm, Y- 380 mm, Z- 350 mm - Spindle taper SK 40 - Vertical quill stroke 50 mm - Spindle speeds 20–3150 rpm, stepless - Feed rate 1–3000 mm/min - Rapid traverse 5 m/min - Table load capacity 250 kg - Total power requirement 11.3 kW - Machine weight approx. 2 t Nedoxw N S Ispfx Ah Dsli - Handheld control unit - Safety guard An on-site inspection/test under power is, of course, possible. We are happy to offer transport, installation, and commissioning at your location. Everything from a single source: We, Baumgärtner CNC GmbH, are a company specialized in: - Service - Maintenance - Overhaul - Automation of DMG machines and equipment from other renowned manufacturers. We support you throughout the entire process! From machine purchase, transport, and delivery, up to commissioning and subsequent maintenance or repair work – you can rely on us.

Year of construction: 1988, condition: good (used), For sale is a milling machine of the company Maho and the type 500 W The machine is in good condition and fully functional Year of manufacture: 1988 Heidenhain TNC 232 travels X- 500 mm, Y- 380 mm, Z-350 mm spindle mounting ISO 40 Nljdpfxoittrlo Ah Dei quill stroke vertical 50 mm spindle speed 20-4000 rpm, infinitely variable feed range 1-3000 mm/min rapid traverse 5 m/min table load 250 kg total power requirement 11,3 kW Machine weight approx. 2 t All prices plus VAT machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES ETC. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or to contact us please visit our website

Condition: reconditioned (used), functionality: fully functional, feed length X-axis: 500 mm, feed length Y-axis: 380 mm, feed length Z-axis: 350 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 380 mm, travel distance Z-axis: 350 mm, feed rate X-axis: 2 m/min, feed rate Y-axis: 2 m/min, feed rate Z-axis: 2 m/min, spindle speed (max.): 4,000 rpm, spindle speed (min.): 63 rpm, quill stroke: 50 mm, rapid traverse X-axis: 4 m/min, rapid traverse Y-axis: 2 m/min, rapid traverse Z-axis: 4 m/min, table width: 800 mm, table length: 360 mm, table load: 200 kg, overall weight: 1,600 kg, workpiece weight (max.): 200 kg, power: 5 kW (6.80 HP), year of last overhaul: 2024, Ladies and Gentlemen, We are selling a Maho MH500M universal milling machine, which stands out due to its extremely simple and convenient operation. For example, all feeds can be infinitely adjusted by potentiometer. The machine has been extensively overhauled in our workshop so that it is technically and visually in excellent condition. All guides are in good order, the gears run quietly and the levers are easy to operate. Nsdornnf Nopfx Ah Djli Availability: on request Working range X: 500 mm Working range Y: 380 mm Working range Z: 350 mm Speed range of the main spindle: 63 - 4,000 min/-1 Gear stages: 2 Tool holder: SK 40 Tool clamping: Hydraulic Quill stroke: 50 mm Table variant: rigid Table clamping surface: 800 x 360 mm T-slots: 14H7 - 5 / 63 Max. table load: 200 kg Feed speed: 1 - 2,000 mm/min Rapid traverse ( X / Y / Z ): 4 / 2 / 4 m/min Total power requirement: 5 kW Machine weight: approx. 1.6 t Space requirement: approx. 3.0 x 3.0 x 2.5 m Additional equipment and accessories: coolant device, work lamp, electrical supports, foot pedal for tool clamping (optional) Our service promise to you: - We are a certified master company in the field of mechanical engineering - All machines are thoroughly checked - All lubricants and any worn parts are replaced in advance - On request, we can completely or partially overhaul your chosen machine - On request, we can repaint the selected machine in the color of your choice - On request, you can order additional accessories such as tools etc. directly with the machine - On request, we can install additional accessories such as safety devices etc. - We are happy to take care of shipping and/or installation

Condition: used, Year of construction: 1975, Technical details: x-travel: 300 mm y-travel: 350 mm z-travel: 350 mm quill stroke vertical: 60 revolution per minute: 40 - 2000 U/min feed:: 12,5 - 500 / 18 step mm/min. tool taper: SK 40 headstock adjustment: schwenkbar 90° rechts/links mm headstock adjustment: Y-Weg: 175 mm table surface area: 600 x 285 mm distance spindle nose and table: min./max.: 50 / 400 mm distance spindle center to column: min./max.: 170 7 345 mm total power requirement: 1,6 kW weight of the machine ca.: 0,8 t Nledpfju T Navjx Ah Dei dimension machine xH: 1,4 x 1,1 x 1,7 m Spindle vertical tool holder SK 40 Quill stroke 60 mm Speed 40 - 2000 rpm with 18 transmission steps Spindle horizontal Tool holder SK 40 Speed 40 - 2000 rpm with 18 transmission steps Equipment: 3-way display Heidenhain Coolant system *

Condition: good (used), Second-hand machine in good condition Control type: Conventional active digital Location : 35708 Haiger Price : 13.500€ excl. Technical data: Digital display 3-axis digital display HEIDENHEIN TNC 134 Travel X-axis 500 mm Travel Y-axis 350 mm Travel Z-axis 380 mm Tool holder Vertical milling head SK 40 with hydr. tool clamping DIN 2080 ring groove Table type Fixed table Table clamping surface 800 x 360 mm T-slot size 14 mm Weight 1,600 kg Dimensions Nlodpeigv Ipefx Ah Dsi 1500 x 2000 x 1900 mm Accessories - Central lubrication - coolant system - Operating instructions

Condition: good (used), Working travels 500x350x380mm Table size 790x360mm Spindle taper ISO40 Spindle speeds 63-4000 rpm Active digital read-out Misc accessories MARCELS MASCHINEN CH Nljdpfxoff R Slo Ah Dji

Condition: used, Year of construction: 1975, Technical details: x-travel: 300 mm y-travel: 175 mm z-travel: 350 mm quill stroke vertical: 60 mm revolution per minute: vert.+ horiz.: 40 - 2000 / 18 step U/min feeds:: 12,5 - 500 / 18 step mm/min. tool taper: SK 40 distance spindle nose and table: min./max.: 50 /400 mm distance spindle center to column: min./ax.: 170 / 345 mm table surface area: 670 x 285 mm total power requirement: 1,5 kW weight of the machine ca.: 0,8 t dimension machine xH: 1,4 x 1,05 x 1,6 m Spindle vertical tool holder SK 40 Quill stroke 60 mm Speed 40 - 2000 rpm with 18 transmission steps Spindle horizontal Tool holder SK 40 Speed 40 - 2000 rpm with 18 transmission steps Equipment: Nedpfevc Avuox Ah Djli 3-way display Heidenhain Coolant system *
