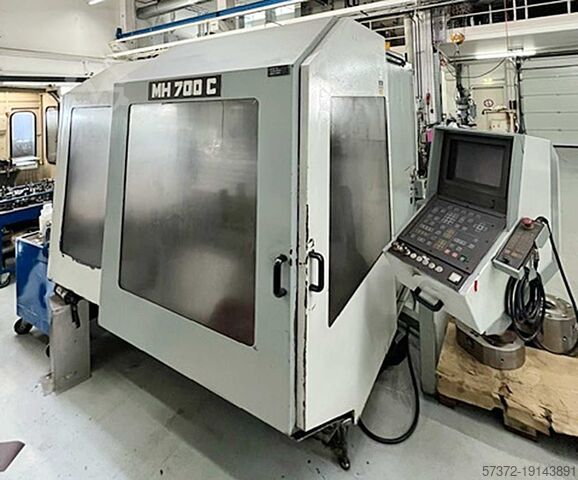

Tool room milling machine

MAHO MH 700 C

Year of construction: 1983, Condition: ready for operation (used), Travel X/Y/Z: 700mm/500mm/450mm, table dimensions X/Y: 900mm/500mm, spindle mount: ISO40, speed: 3150rpm, feed: 3m/min, rapid traverse: 6m/min, spindle stroke: 100mm, machine dimensions X/Y/Z: approx. 3800mm/3600mm/2200mm, weight: approx. 3500kg, control: Philips CNC 432, on-site inspection is possible. Dcslhcdwewpu Ibs Ioi

Operating hours: 63,151 h, Condition: used, Empty weight: 3.000 kg Dimensions (LxBxH): 205 x 260 x 210 cm Price: On request - Digital readout: Yes - Number of axes: 3 - Travel X [mm]: 600 - Travel Y [mm]: 450 - Travel Z [mm]: 450 - Max. spindle speed [rpm]: 4000 - Table size length [mm]: 900 - Table size width [mm]: 500 - Max. workpiece weight [kg]: 250 - Documentation available: Yes - Serial number: 65391 - Operating hours: 63151 - Transport dimensions: 2050mm x 2600mm x 2100mm (l x w x h) Dcslhcdewnh Dyow Ioi - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Bram van Summeren

Condition: used, NC universal tool milling machine MAHO type MH 700 P with HEIDENHAIN TNC 121 linear control . 71247 Circuit diagram no. ET 226 Built in 1979 Travel paths X: 600 mm, Y: 400 mm, Z: 400 mm Table size 900 x 500 mm Spindle mount ISO 40 Spindle speed 40-2000 rpm, 18 steps Feed rate X, Z-axis 1 - 600 mm/min, continuously variable Feed rate Y 1 - 300 mm/min, continuously variable Rapid traverse X, Z-axis 1.5 m/min Rapid traverse Y-axis 0.75 m/min Vertical spindle travel 80 mm Horizontal spindle travel 80 mm Spindle drive 4 kW Power supply 380 V, 50 Hz, 10 kW - HEIDENHAIN TNC 121 NC linear control - Vertical milling head with automatic Quill feed - Hydro-mechanical tool clamping - Coolant system in the machine base - Universal built-in rotary table, swiveling and tilting via threaded spindles +/- 30° - Universal built-in rotary table with manual transverse adjustment of 200 mm - Universal built-in rotary table with 360° rotation function and hydraulic clamping - Rotary table with direct indexing 72 x 5° and indirect indexing via hole plate 1:120 = 1 rev = 3° - Pivoting control panel - Central lubrication system - Electrical diagram Space requirement L x W x H 2000 x 1650 x 2250 mm Weight approx. 2800 kg Good condition Delhcdswd Szbew Ioci

Condition: ready for operation (used), Maho turntable for MH 800 C without motor and encoder - Height: 59cm / Width: 61cm / Length: 90cm, used, normal signs of wear, 100% functional, scope of delivery according to photos ATTENTION: Please inquire for charges for packing and transport separately! ATTENTION: Please enquire for charges for packing and transport separately! Djlotvct Hohcdw Isci

Condition: ready for operation (used), Functionality: fully functional, machine/vehicle number: 77533, feed length X-axis: 700 mm, feed length Y-axis: 500 mm, feed length Z-axis: 600 mm, spindle speed (max.): 6,300 rpm, spindle stroke: 80 mm, TECHNICAL DETAILS X-axis travel: 700 mm Y-axis travel: 500 mm Dolhcdwjwtq T Uj Ioci Z-axis travel: 600 mm Spindle stroke: 80 mm Spindle speed: 20 - 6300 rpm Feed rate: 1 - 4000 mm/min Rapid traverse X and Z: 12 m/min Rapid traverse Y: 10 m/min Accuracy: 0.001 mm

Condition: used, Year of construction: 1986, operating hours: 68,000 h, Functionality: fully functional, machine/vehicle number: 20290, feed length X-axis: 1,600 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 650 mm, feed rate X-axis: 3,000 m/min, feed rate Y-axis: 3,000 m/min, feed rate Z-axis: 3,000 m/min, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, rapid traverse X-axis: 5,000 m/min, rapid traverse Y-axis: 5,000 m/min, rapid traverse Z-axis: 5,000 m/min, table width: 800 mm, table length: 1,800 mm, table load: 3,500 kg, overall weight: 12,000 kg, space requirement width: 3,500 mm, space requirement length: 4,500 mm, space requirement height: 2,900 mm, Equipment: documentation/manual, Maho MH 2000 C Year of manufacture: 1986 Operating hours: approx. 68,000 Control system: Philips CNC 432/10 V702 X travel: 1600 mm Y travel: 1000 mm Z travel: 650 mm The machine is equipped with both a horizontal and vertical spindle. For use of the horizontal spindle, the vertical head can be swiveled away hydraulically. Dcolhswhd Smecdw Isi Spindle taper: ISO SK50 Spindle speed: 40 - 2000 rpm Power: 11 kW, 800 Nm Feed rate: 0-3000 mm/min Rapid traverse: approx. 5 m/min Automatic central lubrication and hydraulic power unit Weight: approx. 12 tons Dimensions approx.: 4.50 x 3.50 x 2.90 m (LxWxH) Various accessories included: tool holders with pull studs, drill adapter with coolant supply, various milling tools, clamping cube, manual rotary table, complete documentation, as well as various spare parts. The Philips CNC control was upgraded to the latest specification with an I386 processor and software version 6701.702. Since the retrofit, the machine has 1MB memory, and the serial interface for program transfer operates much faster. Running larger CAM-generated programs and BTR operation is also possible without any problems and has been used frequently. Included in the price is disassembly and loading the machine onto a truck. Transport not included!

Condition: repair required (used), Year of construction: 1987, For sale is a small milling center of the brand Maho and type 300 C The power supply unit is defective but can be repaired Technical data: YEAR OF MANUFACTURE 1987 Type: MH 300 C CNC control Phillips 432 Table: 550x275 mm Travel x/y/z : 300/350/220 mm SK 40 holder Spindle speed: 20-4000 rpm Main drive: 3.3 kw Rapid traverse: 3 m/min Quill stroke: 50 mm Dimensions: 2000 x 2000 x 2000 mm Weight: approx. 1900 kg Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website Dceloir U H Eehcdw Isi

Condition: used, Empty weight: 3.200 kg Dimensions (LxBxH): 300 x 230 x 200 cm Price: On request - Documentation available: No - Control: Conventional - Transport dimensions: 3000mm x 2300mm x 2000mm (l x w x h) - Transport weight [kg]: 3200kg - Transport packages [pcs.]: 1 Dcelhcdswnif Sjw Iji Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Bram van Summeren

Condition: ready for operation (used), Year of construction: 1989, Travel X/Y/Z: 700mm/500mm/600mm, speed: 6300rpm, power: approx. 10kW, feed X/Y/Z: 4m/min, rapid traverse X/Y/Z: 10m/8m/10m/min, machine dimensions X/Y/Z: approx. 4500mm/2300mm/2500mm, weight: approx. 6000kg, operating hours: 65425h. On-site inspection is possible. Dcslhcjwmqxkjdw Isi

Condition: used, Technical data: Working range X axis: 500 mm Dslhceqbq Ufodw Ieci Y axis: 400 mm Z axis: 300 mm Work spindle Tool holder: ISO 40 Automatic feeds: 0.2 - 0.6 - 0.12 mm/min Spindle speeds: 20 - 4000 1/min, directly programmable Feed range: X / Y / Z = 1 - 3000 mm/min Rigid table: 700 x 350 mm, 5 T-slots Fixed table: max. load capacity 250 kg Connection: 400 V Weight, approx.: 1900 kg Machine dimensions, approx.: 2400 x 1850 x 1850 mm Space requirement: 3200 x 4100 mm, height 1920 mm Features: - CNC control - Fixed table - Milling head swivels +/- 90 - Hydr. clamping device - Coolant device - Emergency stop button
