Used Mexpol - Defum Table Type Boring And Milling Machine for sale (89,352)

Condition: used, Year of construction: 1978, spindle diameter 105 mm x-travel 1250 mm y-travel 1000 mm z-travel 600 mm table length 1100 mm table width 900 mm Dkedpfx Aket Hwtxjton tool adaptor 50 ISO / MK total power requirement kW weight of the machine ca. t CNC Table Borer, Reconditioned 2002, BOSCH CC 300

Condition: excellent (used), SPINDLE 130 MM LONGITUDINAL : 4000 MM Dkjdpfx Aszazpfjkton VERTICAL: 2500 MM ACCESORIES: FACING HEAD VERTICAL HEAD 2 FLOOR PLATES

Condition: good (used), Year of construction: 2003, feed length X-axis: 3,500 mm, feed length Y-axis: 2,500 mm, feed length Z-axis: 1,250 mm, total length: 7,200 mm, total height: 5,300 mm, table width: 1,800 mm, total width: 6,800 mm, table length: 2,200 mm, workpiece weight (max.): 12,000 kg, Table type boring mill TOS VARNSDORF - WHN13CNC MACH-ID 9629 Make: TOS VARNSDORF Type: WHN13CNC Control: HeidenHain TNC430 Year: 2003 1e owner machine ca 16.000 Spil hours Chip conveyor Under power  X - Travel: 3500mm Y - Travel: 2500mm Z - Travel: 1250mm W - Travel: 800mm Table Length: 2200mm Table Width: 1800mm Table load: 12000 Speeds / ranges: 2800Rpm Power: 37kW Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Feed rate W-Axis: 10000mm/min. Number of controlled axis:5 Length: 7200mm Width: 6800mm Height: 5300mm Weight: 36850kg Dksdpfjy T E Itjx Aktsn Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 2009, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,500 mm, travel distance Z-axis: 2,350 mm, feed rate X-axis: 13,000 m/min, feed rate Y-axis: 13,000 m/min, feed rate Z-axis: 13,000 m/min, total length: 12,000 mm, total height: 4,800 mm, table width: 2,000 mm, total width: 6,800 mm, table length: 2,500 mm, drilling capacity: 180 mm, rotational speed (min.): 2,000 rpm, feed length W-axis: 1,000 mm, Coolant true spindel 20 Bar Paper filtration system ATC Tool changer 60 Positions  Spindel extension L = 550 mm Dodpfxjy Hq Dyo Aktekn Full B-Axis 360.000 with ROD880C Table load 28.000 Kg X - Travel: 5000mm Y - Travel: 3500mm Z - Travel: 2350mm W - Travel: 1000mm Table Length: 2500mm Table Width: 2000mm Table load: 28000 Speeds / ranges: 2000Rpm Power: 51kW Spindle Taper: 180 ISO50ISO/Bt/Mk Feed rate X-Axis: 13000mm/min. Feed rate Y-Axis: 13000mm/min. Feed rate Z-Axis: 13000mm/min. Feed rate W-Axis: 13000mm/min. ATC Toolchanger: 60 Coolant through spindle / Bar:20 Number of controlled axis: 5 Length: 12000mm Width: 6800mm Height: 4800mm Weight: 44000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: like new (used), Year of construction: 2017, Year: 2017 Control: Heidenhain iTNC 640 HSCI Location: Germany, under power Travels X Longitudinal: 14100 mm Y Vertical: 5000 mm Z Ram: 1550 mm Headstock Spindle power: 51/36 (40%/100%) KW Spindle Torque: 1500 NM Spindle speed: 5000 rpm Spindle Taper: ISO 50 Ram size: 420 x 420 mm C- axis integrated: 0.001° - continuous Desh gearbox Heads and Head changer Automatic pickup station for: 3 places Head 1: Uhami 30 continuous A and C axis 180°+, 180°- Head 2: Uhami 30 continuous A and C axis 180°+, 180°- (New in 2022) Head 3: horizontal spindle extension: 400 mm Head 4: horizontal spindle extension: 800 mm Head 5: ISO 40 vertical head to be mounted on horizontal spindle extension Dkedpfxsy D Tzpj Akton Tables Table 1 Size: 3000 x 3000 mm V- Travel: 2400 mm Table load capacity: 50 Tonnes Table 2 Size: 2500 x 2000 mm V- Travel: 2400 mm Table load capacity: 30 Tonnes Additional information: Floor plates: 2 pcs. 4000 mm x 2000 mm, 2 pcs. 5000 mm x 2000 mm Working Area separation Tool changer Robot type Spindle through coolant Chip conveyor 3D probe Movable operator platform Wireless Handwheel CE marking Approx. 14000 programming hours Continous heads, continous tables

Condition: excellent (used), functionality: fully functional, BFT 90/5-2 CNC SINUMERIK 840D/840DE Technical Specifications Drilling Spindle Diameter: 102 mm Tool Holder: ISO 50 Operating Manual (see photo) Machine Type: Floor Type Boring Mill Manufacturer: UNION KARL MARX STADT Model: BFT 90/5-2 Year of Manufacture: 1989 Control System: CNC Country of Origin: Germany Freight Terms: Ex-works Rostock, loaded free of charge, unpacked Location: Rostock Availability: Immediately Price: On request Technical Details Spindle Diameter: 102 mm X-axis Travel: 1600 mm Y-axis Travel: 1210 mm Z-axis Travel: 980 mm B-axis (Table): 360° Drilling Depth: 710 mm (W-axis) W-axis (Longitudinal Spindle Travel): 710 mm Table Load Capacity: 2.5 / 3.0 t CNC Program Control: Numerik CNC Table Size: 1000 x 1120 mm Feed Rate (x/y/z/w): 1 - 3180 mm/min Tool Clamping: ISO 50 Rapid Traverse (x/y/z): 4000 mm/min Rapid Traverse (w): 3150 mm/min Maximum Spindle Speed: 4–1600 rpm Total Connected Load: 27 kW Machine Weight approx.: 9700 kg Electrical Cabinet Dimensions: L: 2500 x W: 650 x H: 2200 mm Machine Dimensions (LxWxH): 5.2 x 3.3 x 2.8 m Dsdpoy Aiarefx Aktekn Additional Information Further Features: - Thread tapping via Z-axis possible - Coolant system with pump - Hydraulic unit

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,600 mm, spindle diameter: 130 mm, spindle speed (max.): 2,000 rpm, TECHNICAL DETAILS Travel X-axis: 2,000 mm Travel Y-axis: 1,600 mm Travel Z-axis: 1,600 mm Dkodpfxeyvtrfo Akten W-axis: 600 mm W-travel (quill extension): 900 mm Boring diameter: 800 mm Spindle diameter: 130 mm Spindle speed: 10 - 2,000 rpm Max. torque at boring spindle: 3,150 Nm Table load capacity: 8,000 kg Table size: 2,000 x 1,600 mm Clamping area: 1,800 x 2,000 mm T-slot width: 28 mm T-slot distance: 160 mm Rapid traverse X-axis: 2,500 mm/min Rapid traverse Z-axis: 2,500 mm/min Feed W-axis: 2,500 mm/min Feed Y-axis: 2,500 mm/min Rapid movement W-axis: 3,150 mm/min Rapid movement Y-axis: 5,000 mm/min Facing slide travel: 320 mm Max. torque at facing slide: 5,300 Nm Max. facing diameter: 1,400 mm MACHINE DETAILS Control: Heidenhain 430 Tool holder: ISO 50 Drive power – spindle motor: 15 - 30 kW Dimensions & Weight Dimensions (L x W x H): 6,000 x 4,000 x 4,000 mm Machine weight approx.: 40 t

Condition: ready for operation (used), SCHARMANN WB 80 with Heidenhain digital readout - Travel X/Y/Z: 1300x1200x1200 mm - Heidenhain digital readout - Rotary table: 1200 x 1200 mm - Max. table load: 5000 kg - Spindle taper: MK 5 - Automatic feeds: 0.053 - 6.35 mm - Rapid traverses - Spindle speeds: 24 - 2880 rpm Dksdpfx Asyic Tnskten - Coolant system - Various accessories & tool holders Subject to errors and input mistakes

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, rotational speed (max.): 1,250 rpm, travel distance X-axis: 850 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, controller model: Heidenhain TNC 355, TECHNICAL DETAILS X-travel: 850 mm Y-travel: 1,000 mm Z-travel: 700 mm Tool holder: SK 40 Speed: 15 - 1,250 rpm Spindle quill: 75 mm Dkodpfjxn I U Nox Akten MACHINE DETAILS Control: Heidenhain TNC 355

Condition: good (used), Stock number: 3058 Manufacturer: Scharmann Year of manufacture: Model: FBF50sct Machine number: 65 130061 Table: 1,100 x 1,000 mm Travel x-y-z: 800 – 700 – 500 mm Spindle taper: SK50 Feed: Spindle speed: 15 to 1,250 rpm Dedpox Dtq Uofx Aktekn Accessories/Equipment: Connection: Weight: approx. 6 t Dimensions: 2,400 x 2,600 x 2,200 mm Control cabinet: 1,400 x 500 x 1,800 mm

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, I am selling this machine. It can be connected and tested under power. Very good condition. X 11,500; Y 3,150; Z 2,000; clamping system M 100. Includes support column, 6 plates sized 6,500 x 1,850 x 400 mm. Rotary table E 20. Heads, etc. Djdpoxwl Tbjfx Aktjkn This is a complete workstation. Weight approx. 200,000 kg.

Condition: used, Year of construction: 1998, travel distance X-axis: 8,300 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,000 mm, table load: 30,000 kg, spindle diameter: 220 mm, BRAND: COLGAR MODEL: FRAL 70 C16 CATEGORY: CNC BORING MACHINE YEAR: 1998 CNC CONTROL: ECS CNC2600 MACHINE DIMENSIONS Length: 14,000 mm Width: 9,000 mm Height: 6,500 mm SPINDLE HEAD Quill diameter for boring: 160 mm Spindle nose type: ISO-50 Milling spindle diameter: 220 mm Spindle speed range: 2 – 1,665 rpm Spindle motor power: 55 kW Overhauled bi-rotary automatic head A axis minimum angle: 2.5° C axis minimum angle: 1° Automatic head changer system High-pressure coolant through spindle line with pump WORKING CAPACITY X axis: 8,300 mm Y axis: 3,000 mm Z axis: 1,000 mm V axis: 2,000 mm W axis: 800 mm B axis rotation: 360° A axis bi-rotary head: 360° (minimum angle 2.5°) C axis bi-rotary head: 360° (minimum angle 1°) RAM dimensions: 645 x 500 mm ROTARY TABLE Table dimensions: 2,500 x 2,500 mm Maximum load: 30,000 kg Number of Stolle plates: 2 (each 4,000 x 2,000 mm) FEED RATES Rapid feed (axes X, Y, Z, V, W): 8,000 mm/min Working feed (axes X, Y, Z, V, W): 6,000 mm/min Dkedpfex E U R Isx Akton TOOL MAGAZINE Capacity: 60 tools Tool holder: DIN 69871-B50 ACCESSORIES Machine complete with accessories, Stolle plates, and rotary table

Condition: used, Type BF 63 Spindle mount: 4MT Spindle diameter: 63 mm Spindle speed: 8–1400 rpm Dkjdpfxowrpy Rj Akten Table size: 900 x 710 mm Drilling travel: 560 mm Table load capacity: 2000 kg Rotary table: 360 degrees

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, machine/vehicle number: 14219, travel distance X-axis: 1,250 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 560 mm, spindle diameter: 75 mm, spindle speed (max.): 1,800 rpm, No minimum price – guaranteed sale to the highest bidder! With digital display of travel distances! TECHNICAL DETAILS X-axis: 1,250 mm Y-axis: 900 mm Z-axis (or W-axis): 560 mm Spindle diameter: 75 mm Spindle speeds: 18-1,800 rpm Spindle taper: SK-40 Table size: 950 mm x 950 mm MACHINE DETAILS Weight: 10,000 kg EQUIPMENT Dsdpfx Aozaqxcsktskn Accessories shown in the pictures, including tools, tool cabinets, and clamping devices.

Condition: used, functionality: fully functional, travel distance X-axis: 2,155 mm, travel distance Y-axis: 1,940 mm, travel distance Z-axis: 2,134 mm, spindle diameter: 130 mm, spindle speed (max.): 180 rpm, total width: 1,400 mm, table length: 1,600 mm, Union BFT 130 CNC Horizontal Borer Model: BFT 130 Control: Heidenhain TNC 360 Table Area: 1600 x 1400mm Spindle Diameter: 130mm Spindle Taper: ISO 50 Spindle Speeds: 4.5 – 900 RPM Facing Head Diameter: 800mm Facing Head Speed: 4.5 – 180 RPM Dodpfx Akjzbx Axjtskn Cross Travel: 2155mm Long Travel: 2131mm Vertical: 1940mm Spindle Travel: 760mm Machine With: 360 Degree Rotation of table via Control

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, TABLE Surface (mm): 1400×1200 T-slot / Width / Distance (mm): 9(11) / 22 / 125 Max permissible load (kg): 8000 Auto indexing, continuous (°): 0.001 TRAVEL Longitudinal (mm): 2500 / 3000 / 4000 Cross (mm): 1050 / 1250 (with flat ram) 1000 / 1250 (without flat ram) Vertical (mm): 1450 FEED Axis feed (mm/min): 5000 Rapid traverse (mm/min): 12000 (X, Y) 10000 (Z) 6 (C) Drive motor (Nm): T1400×1200: 50 (X), 27 (Y, Z), 50 (C) SPINDLE Taper: ISO50 Speed (rpm): 4000 2-step: 0–1000 / 1001–4000 Dkedpfoyfmtajx Aktsn Drive motor (kW): 28 / 38 WEIGHT Machine weight (kg): 30000

Condition: ready for operation (used), Available immediately, ex works: Scharmann boring table Year of manufacture approx. 1985 Dedpfxjzb Diko Aktjkn Table size 1800 x 1600 mm Table load capacity 20 tons Travel distance (X-axis) 1250 mm Electric drive 4 kW Weight 9 tons Price: EUR 8,500.00 plus VAT, ex works.

Condition: ready for operation (used), Year of construction: 2009, Available immediately ex location: CNC bed-type milling machine Iberimex Model Ecomill BF 2600 Year of manufacture 2009, low operating hours Dsdpszb Dhyefx Aktjkn Heidenhain iTNC 530 Table 2700 x 1050 mm Travel ranges X/Y/Z 2600/1000/950 mm Table load 6 t Internal coolant supply (IKZ) 14 bar Hydraulic tool clamping SK 50 spindle taper Spindle speeds 24 - 1600 rpm Spindle drive 25 kW Chip conveyor Weight 14 t Price: €21,000 plus VAT, ex location.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,120 mm, travel distance Z-axis: 1,250 mm, table load: 3,000 kg, spindle diameter: 100 mm, spindle speed (min.): 7 rpm, spindle speed (max.): 1,120 rpm, total height: 3,000 mm, total length: 6,710 mm, total width: 3,450 mm, table length: 1,250 mm, table width: 1,250 mm, feed length X-axis: 1,600 mm, feed length Y-axis: 1,120 mm, feed length Z-axis: 1,250 mm, feed length W-axis: 900 mm, quill stroke: 900 mm, quill diameter: 100 mm, overall weight: 14,000 kg, year of last overhaul: 2015, The machine is in good technical condition, total overhauled by Retos 2005 and a middle overhauled 2015. Included support column, Face plate, 2 ps of angel plates, digital readout. 11 Kw motor Could be inspected under power. Djdpfxozb Eu Io Aktekn

Condition: ready for operation (used), Year of construction: 1996, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, spindle speed (max.): 2,500 rpm, Heidenhain TNC 407 control unit Dkedezbrkpopfx Aktjn Table: 2000 x 700 mm Travel: 2000 x 800 x 800 mm Spindle: SA 50 Maximum spindle speed: 2500 rpm Weight: 10000 kg

Condition: ready for operation (used), Year of construction: 2001, travel distance X-axis: 1,300 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, spindle speed (max.): 3,000 rpm, overall weight: 10,000 kg, Heidenhain TNC 426 control Table: 1400 x 700 mm Dodpfx Aezbriloktekn Travel: 1300 x 800 x 800 mm Spindle: SA 50 Maximum spindle speed: 3000 rpm Weight: 10,000 kg

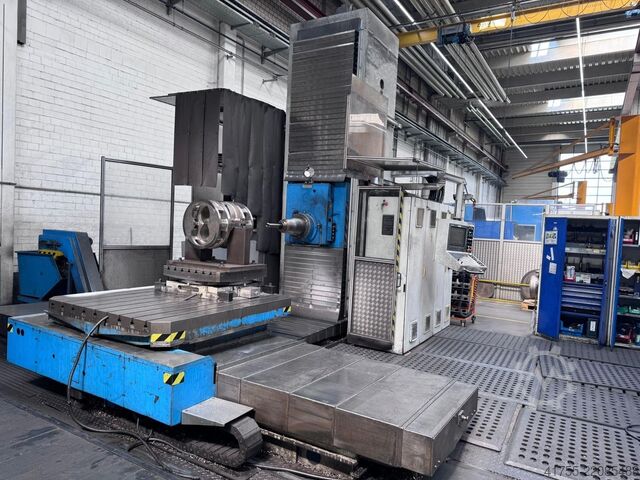

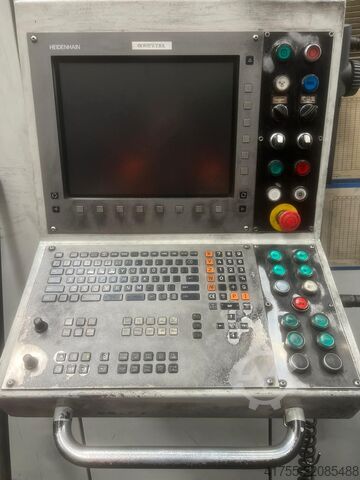

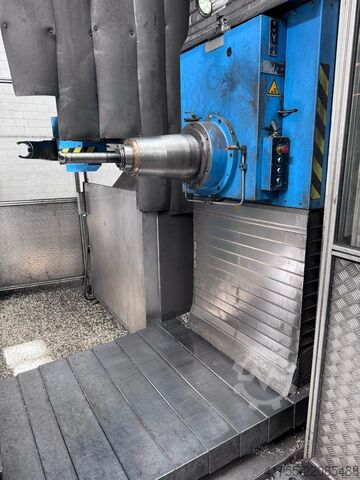

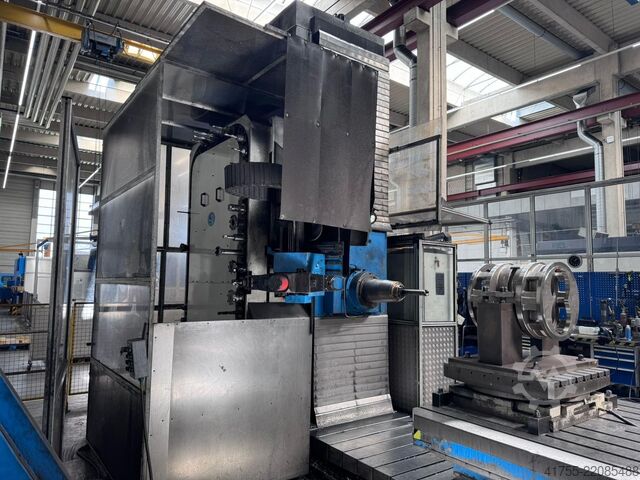

Condition: used, Year of construction: 2007, functionality: fully functional, DEFUM WFS 130N with Heidenhain 530 control. Dksdpozb U Nuofx Akten Year of manufacture: 2007 Tool holder: SK 50 Spindle speed range: 10-2500 rpm Drive power: 32 kW X-axis: 3000 mm Y-axis: 2500 mm Z-axis: 1500 mm W-axis: 900 mm Table clamping surface: 1600x1800 mm Max. table load: 12000 kg Machine weight: approx. 23000 kg

Condition: used, Year of construction: 1980, x-travel:1600 mm y-travel:800 mm z-travel:630 mm spindle taper:SK 50 feed speeds:10-6000 mm/min rapid traverse:6 m/min turning speed range - stepless:20-2000 U/min Djdpfscxxrnjx Aktekn max. table load:5000 kg dimensions of switch cabinet:1800 x 530 x 2000 mm total power requirement:18 kW weight of the machine ca.:11 t dimensions of the machine ca.:4,6 x 2,9 x 2,62 m with PHILIPS NC 6664 3-axis control with program memory, hydraulic tool clamping, coolant system, chip-conveyor, horizontal and vertical spindles (SK 50), separate electrical cabinet, NC-round table, emergency cut-off

Condition: used, Year of construction: 2007, travel distance X-axis: 8,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 1,300 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, table width: 5,500 mm, table length: 2,600 mm, total height: 4,900 mm, total width: 16,200 mm, total length: 9,000 mm, overall weight: 55,100 kg, CNC Floor Type Bed Milling Machine CNC Control Heidenhain iTNC 530 Controlled NC Table 1600 x 1600 mm Table dimensions 5500 x 2600 mm Movement X-axis 8000 mm Movement Y-axis 2100 mm Djdjza Egnjpfx Aktskn Movement Z-axis 1300 mm Movement W-axis 1000 mm C-axis-swivel of milling head body 360 ° A-axis-swivel of milling head 180° Spindle speed 36 - 6.000 R/min Spindle motor 42 / 30 kW Spindle taper DIN 69871-SK 50 Tools in tool magazine 48 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: good (used), FIL Aurora Model FU 120 Double Spindle Bed Milling Machine Year 1978 Table 500 x 1820mm Longitudinal Travel of table 1500mm Cross travel 500mm Vertical travel of head 650mm Max height from table to spindle 850mm Horizontal spindle BT 50 Speeds 25 – 1200 rpm with independent 7.5HP Drive Arbour support for Horizontal spindle Vertical Spindle (swivels) BT 50, Speeds 24 – 1600 rpm with independent 7.5HP Drive Pendant control operating Power feeds and rapids 3 axis Digital readout Weight 6000kg Dsdeyx H Uxopfx Aktskn
