Used Okuma Vertical Turning Lathe for sale (15,325)

Condition: good (used), Year of construction: 2007, Ref. -No.: 10650 Manufacturer: UMARO Type: SC27 CNC MS2 Year of construction: 2007 Type of control: CNC Control: Siemens Sinumeric 840 D Storage location: Halberstadt Country of origin: Rumänien Turning Height: 2500 mm Gear stage 2 speed range: -180 RPM Swing Diameter: 2700 mm Rapid Speed: 8000 RPM Max workpiece height: 2500 mm Max. Workpiece Weight: 30.000 kg Max torque faceplate: 40000 kNm Vertical adjustment of the crossbar support slide: 1200 mm Smallest immersion diameter: 360 mm Max. Cutting force support: 50000 Nm Drive motor faceplate: 100 kW Workpiece diameter: 2500 mm Horizontal path of the crossbar X-axis: +/- 1250 mm Vertical path of the chisel slide: 1500 mm Chisel slide cross-section 2*: 250 x 250 mm Djdpfx Ajzay H Aoktskn cutting speed: 140 m / min Cutting depth: 14 mm Tool change time: 1 min Max. vertical working feed: 6000 mm / min Max. cross feed: 8000 mm / min Travel speed: 8 m / min Piston diameter: 250 x 250 mm Stößelweg: 1500 mm Further information: The machine can be viewed while powered on by prior arrangement.

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, input voltage: 400 V, year of last overhaul: 2023, Description – General: Year of manufacture: 2001/2023 Manufacturer: Emag Machine type: VL3 Technical data: Control system: Fanuc 21i-T Swinging diameter: approx. 210 mm Maximum speed: 6,500 rpm Turret: VDI 40 mm, 12 stations The machine does not have a live tool. Hinged belt chip conveyor Spindle mount: GR. 5 Rotating parts conveyor. Machine weight: approx. 5.5 t The following work was carried out during this overhaul in 2023: - The machine was completely disassembled, cleaned, and repainted. - The main spindle was fitted with new bearings. - The guides and guide shoes in the X-axis and Z-axis were replaced. - The ball screw in the X-axis and Z-axis was replaced. - New unit for central lubrication and new hoses. - The hydraulic unit was inspected and serviced. The drive coupling between the motor and pump was replaced. Dodstpu Szjpfx Aktekn - The cooling unit was inspected and serviced; the temperature difference controller was replaced. - The clamping cylinder was fitted with new bearings and seals. - The gearbox of the A-axis was fitted with new bearings, and the coupling between the motor and gearbox was replaced. - The electrical cabinet was cleaned. - The control panel was replaced. - New screen. - New internal lighting. - The turret was disassembled, wear parts were inspected, cleaned, and re-sealed. - The turret encoder and encoder wheel were cleaned. - The length measuring systems in the X-axis and Z-axis were disassembled and cleaned. - The springs of the pickup station were replaced. - The motors of the X-axis and Z-axis were checked for bearing damage. - The panes on the work door were replaced. - The chip conveyor was completely disassembled, fitted with new bearings, cleaned, and painted. - Various small parts on the machine were also replaced, of course. The product has been described by us with the utmost care. The description is non-binding and should be verified during an inspection.

Condition: good (used), Year of construction: 1963, functionality: fully functional, Single-Column Vertical Turret Lathe | Jungenthal DK 1400 The machine was overhauled in 1996, recently cleaned, and is in good condition. - Faceplate diameter: 1,200 mm - Swing diameter: 1,500 mm - Turning height: 1,300 mm - Cross slide travel: 800 mm - Side slide horizontal traverse: 550 mm - Heidenhain Positip 855 digital readout - New operator panel - Various accessories Inspection is possible at any time by appointment. Dksdpfx Ajyft Ahoktjn

Condition: good (used), Year of construction: 1970, functionality: fully functional, Single Column Vertical Turning Lathe | Froriep DS 14 NC The machine was overhauled in 2009, recently cleaned, and is in good condition. - Table diameter: 1,400 mm - Swing diameter: 1,600 mm Dkodjyft S Aepfx Akten - Turning height: 1,500 mm - Siemens control type 840 D - Automatic tool changer - Workpiece weight: 6,500 kg - Vertical slide travel: 1,000 mm - Spindle speed: 10–315 rpm - Feed rate: 3,600 mm/min Inspection is possible at any time by prior arrangement. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: Froriep | DS14 | DS14NC

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 379082, Single-column vertical turning lathe | Schiess-Froriep 14 DKE 1250 The machine was overhauled in 2015 by Matschuk, recently cleaned and is in good condition. Dodpfxjyfurqo Aktjkn - Table diameter: 1,250 mm - Swing diameter: 1,500 mm - Turning height: 1,250 mm - Siemens control system type 840 Dsl - Tool holder Inspection is possible at any time by prior appointment.

Condition: good (used), Year of construction: 1982, functionality: fully functional, Single-column vertical turning lathe | Dörries VCE 1400 The machine was overhauled in 2010 by Hering, has recently been cleaned, and is in good condition. - Table diameter: 1,000 mm - Swing diameter: 1,400 mm - Turning height: 1,100 mm Djdpfeyft Nnjx Aktskn - Siemens CNC control type 840 D Shop Turn - Tool changer - X-axis travel: 2,000 mm - Z-axis travel: 700 mm - Slide adjustment: 1,000 mm - Rapid traverse: 6,000 mm/min - Spindle speed: 500 rpm - Handwheel - Total power requirement: 62 kW Inspection possible at any time by appointment. #Tags: Doerries | VCE1400 | Dörries VCE

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, Technical details faceplate diameter 1800 mm swing diameter 2000 mm turning height 1270 / 1120 mm Control SIEMENS 840 D workpiece weight max. 5000 kg ram head dimension 250 x 250 mm table turning speeds 1 - 320 U/min cross rail - adjustment 400 mm ram head - cross travel (X) -2770 / +2275 mm ram head - vertical travel (Z) 1250 mm c-axis 360° (0,001°) deg milling drive 37 kW turning speed range - milling 10 - 3000 U/min power capacity - table 100 kW Torque 31784 Nm feed range (X/Z) 0,1 - 15000 mm/min weight of the machine ca. 55 t Additional information Used CNC vertical lathe for turning, drilling and milling First machine installation in the year 2011. The machine was meticulously maintained by the previous owner. It was sold due to a factory closure Max. workpiece diameter: 2040 mm Max. workpiece height: 1270 mm Ram stroke: 1250 mm Djdpfxjzaa T Nj Aktokn Max. workpiece weight: 5000 kg (per pallet/chuck) Table speed range: 1.0 - 320 rpm Table drive motor: 100 kW Drilling and milling spindle: 37 kW Crossbar travel: 2 steps of 200 mm each Total electrical connection value: 218 kVA CNC control: Siemens 840 D Number of NC axes: 4 (X, Z, C, crossbar adjustment) Travels: X-axis: -1650 to + 2165 mm Z-axis: 1250 mm Rapid traverse X- Z-axis: 15 m/min Number of tool magazine spaces: 80 spaces in the chain magazine, of which 60 x HSK 100 and 20 x Capto C6 Disc magazine 12-pos. for rotary holders and attachment heads Coolant system with filter and circulation unit Chip conveyor Oil-mist-extractor 1 pallet with jaws, diameter 1800 mm 1 hydraulic chuck with base jaws, diameter 1800 mm Various drilling and milling heads 2 measuring probes Several turning tool holders Special feature: Pallet changer with two stations, equipped with a face plate Ø1800 mm and a six-jaw lever compensation chuck with mechanical centrifugal force compensation Ø1800 mm. Note: The machine is in a pit. Condition description: The cross roller bearing on the Carnaghi was replaced about half a year ago. The Siemens components in the control cabinet were also completely replaced at the end of 2023. The machine also has a measuring probe for tool measurement and an external Renishaw measuring probe for workpiece measurement. As a special feature, the machine also has a measuring probe installed on the Z-axis (Z1-axis). This brings an advantage in terms of accuracy and time, as the tool does not have to be put down for measuring. However, it is currently shut down and should be overhauled when it is put back into operation. The machine also has a Rotomors six-jaw lever compensating chuck with centrifugal force compensation, which was completely overhauled in 2020/21.

Condition: ready for operation (used), Year of construction: 2010, Dugard 32 SBP D/E Sliding Head CNC Lathe Dedsy Tcuwepfx Aktjkn Machine Type: Sliding Head CNC Lathe Year: 2010 Country of Manufacture: Taiwan Machine Builder - Chiah Chyun Machinery Co. Ltd. Control System -CC Machinery CNC Control Barfeed - Barload Machine Co. Ltd. Machine remains under power in Birmingham Machine was in production at time of inspection Terms of Sale: Sold EX WORKS Birmingham, UK Supplied with: Tooling as Photographed Machine & Barfeed manauls Swarf Conveyor (Not Pictured) Barfeed For Sale with Jet Machinery Ltd Jet Machinery Stock Number: N/A Machine Serial Number: BC991116 £17,500.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 1990, Control system: Siemens 840-C Faceplate diameter: 1800 mm Swinging diameter: 2000 mm Maximum turning height: 1100 mm (below tool) Table speed: 130 RPM Workpiece weight: 8000 kg Dodpszadagofx Aktjkn Tool changer: 12 positions

Condition: good (used), Year of construction: 2008, functionality: fully functional, 2008 CITIZEN Cincom M332-III Fully serviced, well maintained, and ready to go: ✔ Iemca Boss 332 R - 3m Magazine Bar Feeder ✔ Coolblaster High Pressure Coolant ✔ Absolent Mist Extraction ✔ Selection of Static & Driven Tooling Djdpfsy Sycvex Aktekn ✔ Fire Suppression System

Condition: new, Discover the ultimate power and precision of our vertical lathe series. With its robust construction and proven technology, it delivers groundbreaking results for your machining projects. Experience the limitless possibilities of our CNC variant and take your production to the next level. TECHNICAL MAIN DATA (CNC MODEL): - Max. swing diameter: 1500/1800/2750/4000/5000 mm - Max. turning diameter: 1250/1600/2500/4000/5000 mm - Max. workpiece height: 1000/1600/2000/2000/2000 mm - Spindle motor power: 30/37/55/75 kW - Table diameter: 1000/1250/2250/3600/3600/4500 mm - Max. table speed: 500/400/120/63/63/50 rpm ACCESSORIES: Fanuc or Siemens control, ZF gearbox, chip conveyor, lubrication system, hydraulic system, machine guard, air gun, tricolor lamp, work light, chip cart, foot pedal, standard tool holder. SPECIAL ACCESSORIES: C-axis, tool magazine, linear scale, tool presetter, workpiece probe, electrical cabinet air conditioner, special tool holder, and more. For further details, please refer to the attached PDF file. TECHNICAL MAIN DATA (CONVENTIONAL MACHINE): - Faceplate diameter: 1000|1400|1800|2000|2300 mm - Swing diameter: 1200|1600|2000|2300|2600 mm - Turning height: 1000|1250|1400|1600|1500 mm - Table speed: 6.3-200|5-160|3.2-100|5-160|2.5-80 m/min - Gear stages: 16 - Max. workpiece weight: 3.2|5|8|8|8 t - Main motor power: 22|30|37|37 kW - Approx. machine weight: 9|14|18|23|21 t ACCESSORIES: Tool holder: 5-fold; Faceplate: with 4 jaw clamps; Servo motors: for axis adjustment, and more. For further details, please refer to the attached PDF file. Conventional vertical lathe with solid and proven technology, power, and precision for the machining of heavy workpieces. - Optimal loading - easily accessible with crane and forklift - Vertical support with 5-fold tool holder and side support (optional) with separate feed for internal and external machining - Heavy-duty column construction with wide, hardened guides - Hydraulic clamping of the crossbeam - Stable guide construction provides excellent stability and accuracy to the vertical arm - The spindle runs in a highly precise double-row roller bearing and is adjustable Dkjdpfx Aksd I I Iljten - The drive is through a reduction gear for high torque and a speed range of 2.5 - 80 min- Warranty: 12 months on the machine Now get a 15% energy subsidy from BAFA when replacing an old machine! Also benefit from the favorable leasing and hire purchase conditions of our leasing partners. Ask us about it. Of course, you also receive free delivery, assembly/commissioning, and ready-to-use handover as well as control training from us. The special net price displayed refers to the smallest model of the conventional series. The images show the CNC variants as well as a conventional version.

Condition: excellent (used), functionality: fully functional, spindle bore: 46 mm, turning diameter over bed slide: 350 mm, turning diameter over top slide: 200 mm, center height: 175 mm, turning length: 800 mm, spindle speed (max.): 2,000 rpm, three-jaw chuck diameter: 200 mm, A Nardini lathe is for sale in good used condition, as shown in the photos. Technical specifications: • Manufacturer: Nardini • Model: MS-175E • Center-to-center distance/turning length: approx. 800 mm • Center height: approx. 175 mm • Turning diameter over bed: approx. 350 mm • Turning diameter over carriage: approx. 200 mm • Max. spindle speed: approx. 2,000 rpm • Spindle bore: approx. Ø46 mm • Röhm four-jaw chuck: approx. Ø 200 mm • Condition: Used, in working order Shipping via freight forwarder available (inquire for ZIP code) International buyers are welcome! You will receive an invoice with VAT shown. Viewing/pickup is possible by appointment in 42855 Remscheid. Sale from location 42855 Remscheid, ex works. Subject to errors in technical data and prior sale. Dkjdpfxsy Ughks Aktjn

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, LATHE FOR EDUCATIONAL USE For sale is a Drechselmeister Stratos FU 230 LV (long version) lathe with a center distance of 1,000 mm. The machine is in very good condition – it is a lathe used for educational purposes and has few operating hours. Therefore, it comes with a full warranty. Technical data: - Center height 230 mm - Swing diameter 455 mm (with optional external turning attachment 800 mm!) - Center distance approx. 955 mm for the SPECIAL MODEL STRATOS FU-230 LV (can be extended further with an optional extension table!) - Spindle connection M33 x 3.5 (hardened) with ASR (Euro) drain safety groove - Spindle and tailstock taper MK2 - Speeds (2 belt stages): 60 – 1,350 rpm and 180 – 3,750 rpm - Quill travel 100 mm (with scale and trapezoidal thread) - Motor 2 hp (connection 230 V) - Weight SPECIAL MODEL LV 195 kg The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Dkedpfx Aewud Izjktjn Freight shipping: Austria: € 105.00 incl. VAT. Germany: € 125.00 incl. VAT. South Tyrol: € 150.00 incl. VAT. Related terms: Lathe, turning machine, machine tool, wood lathe, turning, lathe tool, woodturning, machining, machine Reference: 5912

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, LATHE FOR WOOD TURNING For sale is a used lathe, model Drechselmeister Twister FU 200, with a center distance of 715 mm. The machine is in very good condition. Technical data: - Center height 200 mm - Swing diameter 395 mm (700 mm with optional external turning attachment) - Center distance approx. 715 mm (can be extended optionally) - Spindle connection M33 x 3.5 with ASR (Euro) drain safety groove - Spindle and tailstock taper MK2 - Speeds (2 belt stages): 60 – 1,350 rpm and 180 – 3,750 rpm - Quill travel 100 mm (with trapezoidal thread), prepared for ER-25 drill chuck - Motor 1.5 kW / 2 hp (230 V connection) - Brake switch, 2-stage - Weight (standard version) 166 kg The machine is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Shipping by freight forwarder: Austria: € 95.00 incl. VAT Germany: € 120.00 incl. VAT South Tyrol: € 140.00 incl. VAT Related terms: Lathe, turning machine, wood lathe, turning, woodturning, turning tools, wood turning, machine Reference A0117 Dkedpfewudkijx Akten

Year of construction: 2007, condition: excellent (used), X AXIS: 762 MM Y AXIS: 560 MM Z AXIS: 460 MM SPINDLE SPEED: 15,000 RPM SPINDLE CONE: BT 40 TABLE DIMENSION: 460 X 760 MM MAXIMUM LOAD: 400 KG RAPID FEEDS X/Y AXIS: 40,000 MM/MIN Djdepyg Rkspfx Aktskn Z AXIS RAPID FEEDS: 32,000 MM/MIN WORKING FEED: 32,000 MM/MIN TOOL WAREHOUSE: 20 PLACES TOOL CHANGE TIME: 1.2 SEC – 3.8 SEC MAXIMUM TOOL WEIGHT: 8 KG MAXIMUM TOOL LENGTH: 300 MM CONTROL: OSP-P200M

Condition: good (used), Year of construction: 1963, Vertical lathe JUNGENTHAL Type: DK 1400 built in 1963 with 1 axis digital readout. turning diameter max : 1400 mm face plate : 1250 mm Automatic turret head spindle speed : 3,5-180 rpm feeds : 0,063 - 3,15 mm/rev rapid traverse : 1800 mm/min Further data see data sheet Machine documentation available . Dimensions : Length 4 m Width 2,4 m Height 3 m Weight 16t Good general condition . Dksdpovi Hryjfx Akton

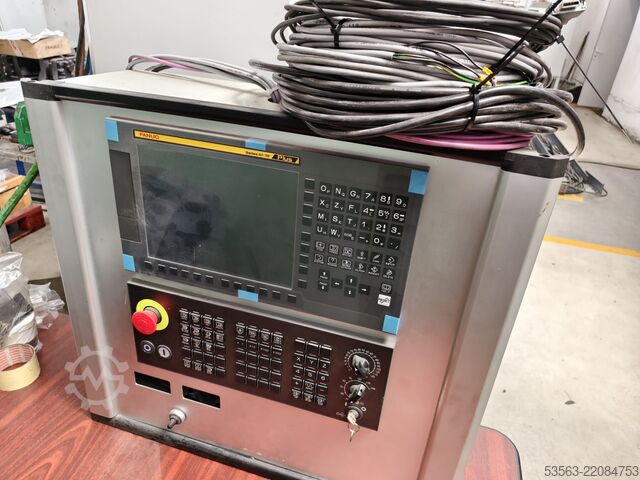

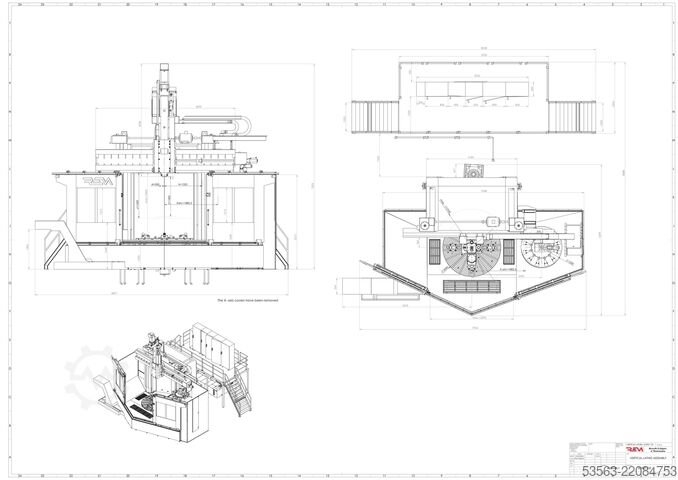

Condition: new, Year of construction: 2026, functionality: fully functional, turning height: 2,300 mm, workpiece weight (max.): 12,000 kg, turning diameter over cross slide: 2,650 mm, turning diameter: 2,700 mm, faceplate diameter: 2,000 mm, total height: 7,100 mm, total width: 5,500 mm, total length: 8,500 mm, rotary table diameter: 2,000 mm, rotational speed (max.): 250 rpm, rotational speed (min.): 1 rpm, spindle speed (min.): 5 rpm, spindle speed (max.): 2,500 rpm, table load: 12,000 kg, table diameter: 2,000 mm, warranty duration: 24 months, overall weight: 63,000 kg, faceplate torque: 43,000 Nm, repeat accuracy: 0.015 mm, REM SCR 27 1SF — CNC Vertical Turning & Milling/Drilling Center 🔴 MACHINE CURRENTLY UNDER ASSEMBLY — DELIVERY MAX 3 MONTHS 🔴 24-MONTH WARRANTY — LONGEST IN ITS CLASS Dkjdpfxozb Ufvs Aktjn 🔴 UNBEATABLE PRICE FOR EUROPEAN CNC QUALITY ━━━━━ MACHINE HIGHLIGHTS ━━━━━ ✓ Complete turning + milling + drilling in ONE setup ✓ 12-Station ATC — bi-directional, 30 sec tool change ✓ Live spindle ISO 50 — 5 to 2,500 RPM | 37 kW ✓ C-Axis for full contour milling ✓ FANUC 0i-TF PLUS CNC — global support ✓ Heidenhain absolute measuring system (X: LC 195F) ✓ CE certified, full enclosure 3,300mm height ✓ Heavy-duty Meehanite cast iron structure ━━━━━ TECHNICAL SPECIFICATIONS ━━━━━ • Max Machining Diameter: 2,650 mm | Swing: 2,700 mm • Max Machining Height: 2,300 mm • Table Diameter: 2,000 mm (8 T-slots + 4 clamping jaws) • Max Workpiece Weight: 12,000 kg • Table Speed (turning): 1–250 RPM • Main Motor: 100 kW FANUC servo | Torque: 43,000 Nm • Ram Cross Section: 250×250 mm • X/Z Rapid Feed: 10,000 mm/min | Feed: 0.02–6,000 mm/min • X/Z Thrust Force: 35,000 N • ATC: 12-station disc | Max tool Ø 300mm | L 400mm • Coolant: 2,000 L tank | External 10 bar | Through-spindle 40 bar • Chip Conveyor: SARIGÖL hinged, 500mm wide • Accuracy: ±0.020 mm/m | Repeatability: ±0.015 mm • Electrical: 400V/50Hz | 140 KVA | Fanuc 0i-TF PLUS • Weight: 63,000 kg | 8,500×5,500×7,100 mm ━━━━━ IDEAL APPLICATIONS ━━━━━ Large gear blanks | Ring gears | Wind energy hubs & rings Heavy castings & forgings | Oil & gas flanges Mining equipment components | Aerospace large parts ━━━━━ COMMERCIAL TERMS ━━━━━ Delivery: MAX 3 MONTHS from order Warranty: 24 MONTHS parts + labor Incoterms: EXW Bacău, Romania Payment: 50% advance + 50% before shipment Installation & commissioning: included Manufacturer: REM Bacău, Romania

Condition: used, Year of construction: 2005, turning diameter 140 mm swing diameter 250 mm turning height 380 mm Control SIN840 spindle turning speed - stepless 1 - 6.000 U/min power capacity at 40 % load 38,00 kW Spindle head DIN55026 - Size 6 spindle diameter in front bearing 110 mm travel -x axis 300 mm feed X-axis 1 - 30.000 mm/min rapid traverse X-axis 30,00 m/min feed force X axis 9.000 N travel -z axis 700 mm feed Z-Axis 1 - 40.000 mm/min rapid traverse Z-axis 40,00 m/min feed force Z axis 10.000 N no. of tools in turret 1 11 no. of tools in turret 2 11 tool taper VDI 40 total power requirement 70,00 kW weight of the machine ca. 22,00 t dimensions of the machine ca. 5,80 x 8,60 x H3,80 m Djdpfsv I En Rjx Aktokn Vertical turning machine with Siemens SINUMERIK 840D control, chip conveyor, dust exhauster, infeed and outfeed, turning gripper.

Condition: good (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: X12018, overall weight: 2,850 kg, Equipment: documentation/manual, Due to the cessation of production, we are selling a well-maintained Citizen C32 VIII long-bed lathe, manufactured in 2004. Equipment: - 2 spindles - live tooling - 6 programmable axes - 2 C-axes Dksdpjyl St Ssfx Akten - chip conveyor - Iemca bar feeder (Boss 332 E/R, 2005) - parts conveyor - warning light - fire extinguisher Type: C32 VIII Manufacturing number: MCL2032/0413 Date of manufacture: 2004 Weight: 2850 kg Serial number: X12018 We are also open to discussing the purchase of additional equipment (oil mist extractor, parts centrifuge, compressor, etc.). If you have any further questions or require more information, please send us a message or call us.

Condition: used, Year of construction: 2019, Technical details: Dedpemu Rtujfx Aktokn bar material dia.: 38 mm turning length: 350 mm turning speeds: 7.000 / 7.000 U/min number of tools: 30 (3 x 10) driven tools: ja / yes control: FANUC 31i-B5 rapid traverse: 30 m/min total power requirement: 10,5 kVA weight of the machine ca.: 6,5 t dimensions of the machine ca.: 2,50 x 1,45 x 1,75 plus Lademagazin m work piece power: 4 kW toolpiece turning speed range: 5.700 1/min Accerories main spindle power 11 kW sub spindle power 7,5 kW CNC sliding headstock machine STAR ST 38, 3 turrets, 12 CNC Axis (X1/Z1/Y1/C1/X2/Z2/Y2/YA2/C2/X3/Z3/Y3, Fireextinguisher KRAFT und BAUER FB 703, partscatcher and conveyor belt (for long parts), LTA oilmist suction, chiller for oil, machining with oil as coolant, reading hours: approx. 14.500 hours "machine on", approx. 4.100 hours "machining" *

Condition: used, Technical details: table diameter: 4500 mm faceplate diameter: 4500 mm operating hours: 0 h swing diameter: 5000 mm turning diameter: 5000 mm workpiece height max.: 2500 mm control: Sinumerik 840D SL x-axis: 300 Hub/ram Slide mm x-axis: 2850 Hub / ram travel mm x-axis: 2850 working without tool mm x-axis: 5000 with tool changer mm w-axis: 1800 Querwegelevating cross rail mm tool holder / places: 12 tool taper: HSK 100 (spindle) workpiece weight: 100 t table speed: 1 - 50 U/min T-slots: 8 Stück (36 H12) stroke speed: fräsen ram speed: 4000 U/min rapid power traverse in X-and Z direction: 8000 mm/min Torque: fräsen: 100.000 Nm Torque: drehen: 200.000 Nm total power requirement: 80 (2x40) kW weight of the machine ca.: 140 t dimension machine xH: 11,5 x 6,6 x 8,4 m NEW CNC vertical turret lathe - manufactured upon official order and deposit. The photos shown are of a newly built machine that we delivered to a customer. (The photos are for illustrative purposes only.) Dkjdsu Ix H Depfx Akten Application of the manufacturing processes: Turning, such as external longitudinal turning, internal and external facing and profile machining. Grooving, such as internal and external Drilling, such as short hole drilling and deep hole drilling Milling, such as face-corner profile and T-slot milling Thread cutting But also suitable for roughing and end machining. The machine bed, designed with a welded construction, absorbs extreme cutting forces. The table is made of high-strength meehanite cast iron. To withstand heavy loads, the part weight is supported by two high-precision tapered roller bearings. Furthermore, the table is equipped with hydrodynamic support for the workpiece. other features: automatic tool change jaw chuck (8 pieces with power clamping spindle and hardened jaws) incl. cooling system 40bar with filter unit hydraulic and lubrication equipment ATOS and Dropsa with measuring system of axes Heidenhain Renishaw NEW - with guarantee & service via WWM AG *

Condition: used, Year of construction: 1990, Technical details: spindle passage: 23 mm z-axis: 150 mm turning length: 150 mm stroke: x+z Achse / Axis/eje/eixo/os = 30 mm facing movement (x-axis): 30 mm longitudinal traverse (z-axis): 30 mm Dksdpeu Iwyvjfx Akton control: Num 760T spindle turning speed - continuous: U/min feed speed: x/y: 5 mm/min feed speed: z: 10 mm/min tool turret: 2 Stück/pcs mit je/each 6 tools operating pressure: max. 45 bar total power requirement: 8,0 kW weight of the machine ca.: 2,2 t dimension machine xH: 2,45x1,3x2,2 m dimensions of the bar loader L-W-H: 4,65x0,5x1,3 m techn. details: - bar clamping hydraulic -automatic workpiece discharge (via catch basket) - 2 turrets with each 6 tool tapers - coolant device - control NUM 760 (size: L:1,0xW0,8mxH:1,56m) Zubehör: - bar loader magazine make IEMCA type CS 112/31 accessories: -24 div. tool tapers - device tool Sylvac system ( size:L:0,58xW:0,5xH:0,43m) *

Condition: ready for operation (used), Year of construction: 1984, VTL Titan SC 2000 Chuck diameter 2000 mm Max. turning diameter 2150 mm Max. work piece height 1600 mm Max. work piece weight 15000 kg Main motor power 55 kw Movie with machine underpower available Weigth of machines aprox 31.5 to Dodpfjruncdex Aktjkn

Condition: used, Year of construction: 2005, CNC Mitsubishi Mieldas 635 LC Max. machining diameter Ø 32 mm (from Ø 10 mm) Max. machining length 320 mm for the chuck Max. front drilling diameter Ø 12 mm Max. front tapping diameter M 10, tap M 8 (die) Through-hole diameter of the spindle Ø36 mm Main spindle speed from 200 to 8,000 min¯¹ Main spindle speed change Continuous S + 4-digit numerical value Main spindle indexing 1° Main spindle C-axis 0.001° Max. diameter of the chuck Ø 32 mm of the rear spindle Max. workpiece length for pick-up 145 mm Dsdpjy Uvy Ajfx Aktskn from the rear spindle Max. workpiece overhang length 25 mm of the rear spindle Max. drilling diameter in the Ø 10 mm rear machining process Max. tapping diameter in the M8 rear machining process Rear spindle speed from 200 to 7,000 min¯¹ Rear spindle speed change Continuous S + 4-digit numerical value Rear spindle indexing 1° Counter-spindle C-axis 0.001° Tool holder spindle Max. tapping diameter Ø 7 mm Spindle speed M 6 Spindle speed change from 200 to 5,000 min¯¹ Continuous S + 4-digit numerical value Opposite tool holder Max. drilling diameter Ø 7 mm Max. tapping diameter M 6 Spindle speed from 200 to 4,500 min¯¹ Spindle speed change Continuous S + 4-digit numerical value Guide sleeve and chuck models Main spindle chuck MC081-M Guide sleeve FG531-M Rego type ER16/AR16 chuck Rear spindle chuck FC081-M-K Number of tools to be mounted Up to 18 tools + α Tool dimensions Tool (multiple tool holder) 16 x 169 x 130 mm Sleeve (opposite tool holder) Ø 25.4 mm Maximum diameter of the tool mounted in the rotating tool holder of the tool holder Drill and front milling cutter Ø 10 mm Rapid feed rate 20 m/min Minimum increment of movement X1 axis 0.001 mm Y1 axis 0.001 mm Z1 axis 0.001 mm X2 axis 0.001 mm Z2 axis 0.001 mm Z3 axis 0.001 mm Axis travel X1 axis 108 mm Y1 axis 275 mm Z1 axis 325 mm X2 axis 228 mm Z2 axis 130 mm Z3 axis 410 mm Bar length 2,500 mm Center height 1,132 mm IEMCA BOSS 332-E BAR FEEDER INCLUDED Machine complete with manuals and CE declaration of conformity. All technical data shown are indicative and may be subject to change without notice, and therefore should not be considered binding.

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, LOW USAGE - GE FANUC 20-T Dksdjy U Ntpopfx Aktsn
