Bohrmaschine

Maka

Condition: used, Year of construction: 2001, machine/vehicle number: 21012101, functionality: fully functional, operating hours: 49,849 h, input voltage: 415 V, input current: 36 A, input frequency: 50 Hz, type of input current: AC, workpiece length (max.): 2,250 mm, workpiece width (max.): 1,500 mm, workpiece height (max.): 1,000 mm, workpiece weight (max.): 420 kg, number of axes: 5, number of slots in tool magazine: 10, controller manufacturer: Siemens, actuation type: electric, total height: 4,000 mm, total length: 7,300 mm, total width: 7,000 mm, table length: 2,250 mm, table width: 1,500 mm, control voltage: 24 V, 5-axis CNC machining center for wood or plastic. Blsdozhtpfspfx Aqwel The machine was used for contour milling of plastic components. It is equipped with an HSD spindle, and the tool holder is of the HSK63 type. The machine can be purchased with or without an extraction system, depending on the intended application. The dimensions specified for the machine include the extraction system. An inspection of the machine is possible at any time; it is currently still in production.

Condition: used, Year of construction: 1973, Storage location: Nattheim Blsdpevvkt Usfx Aqwel

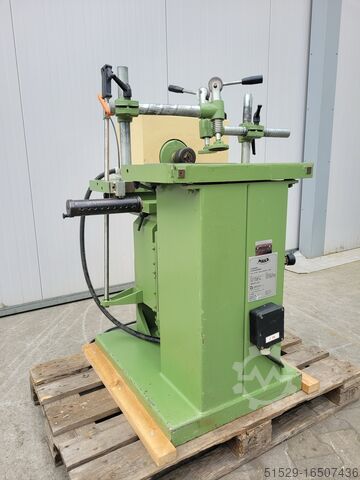

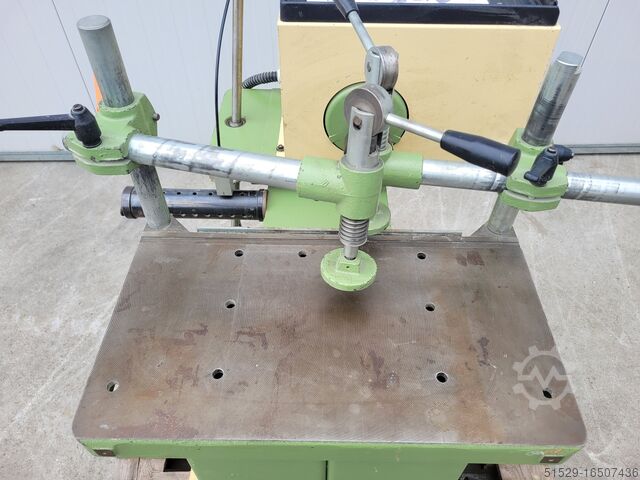

Condition: reconditioned (used), Mortising machine, swing chisel mortising machine MAKA type DB 5 with many mortising tools, see pictures Workpiece stop 2 pieces Stop rail right / left 2150 mm Workpiece blow-out 2x Foot switch Pneumatic workpiece clamping on the side 1 piece Pneumatic workpiece clamping from above 2 pieces Extraction connection D 120 mm Blsdov Hm Nmepfx Aqwjl Weight approx. 550 kg Dimensions approx. L x W x H = 1200 mm x 800 mm x 1500 mm (without stop rails) Note on used machines: • Errors in technical information and prior sale reserved. • Prices stated are pick-up prices from location - free loading! • The machines have been cleaned and function-tested. • All machines are purchased as seen without any claim to warranty. The buyer is free to inspect the machines on site. • Special agreements are only possible in writing. (We will only answer inquiries if you provide your address + telephone number!)

Condition: good (used), Year of construction: 1999, MAKA HC 57 robot, for 5-axis machining Year of manufacture: 1999 Machine in gantry design with rack and pinion drive. Technical data: CNC control BWO 900C, for 5-axis machining. Integrated PC with 1 MB memory and 3.5" floppy disk drive. Mobile control panel. Machine table approx. 6,000 x approx. 1,270 mm. Working areas / machinable cube size with tool D 160 / length 160 mm: Y-axis: approx. 6,000 mm in 3-axis operation, approx. 5,700 mm in 5-axis operation X-axis: approx. 1,050 mm in 5-axis operation Z-axis: approx. 190 mm / travel approx. 420 mm A-axis: 540° B-axis: 360° (swivel axis +/- 180°) Rapid traverse speed X/Y-axis: 45 m/min. Z-axis: 10 m/min. 1 universal head for 5-axis milling, with 50° angled head, power max. 12.5 kW, speed continuously variable, adjustable up to 17,000 rpm. Milling spindle liquid-cooled. Chip extraction system with slat curtain and suction nozzle for room air extraction for 5-axis operation and swiveling extraction for 3-axis operation. Tool interface ISO 40 for automatic tool changer system. 1 chain tool magazine with 24 spaces for tools up to D = 90 mm, with sorted storage up to max. 160 mm. (Three spaces are required for this). Machine table: 10 support tubes on linear guides with pneumatic release device for quick positioning. 2 control circuits for stops "Raise / Lower" 2 control circuits for e.g. sliding strip "Raise / Lower" 2 control circuits for pneumatics "Clamp / Release" 2 vacuum control circuits with button for clamping and automatic reset via CNC programming. 1 chip conveyor integrated in the table, for removing chips and small waste up to max. approx. 100 x 100 x 100 mm. Vacuum supply: 1 vacuum pump, including tank with 250 liter capacity for rapid vacuum build-up. Other: 10 vacuum supports with various suction cups. 4 clamping devices for posts / curved parts, with pneumatic clamping. 4 pneumatic stops Bedezwk Taopfx Aqwsll Automatic central lubrication. Control cabinet with air conditioning unit. Work safety: Moving protective cabin with safety bumpers on the operator side. Any necessary safety measures for the rear of the machine must be provided by the customer. The machine can be inspected in working order in the southern Germany region, near the A81 highway / Black Forest.

Condition: ready for operation (used), Year of construction: 2007, machine/vehicle number: 26010607, functionality: fully functional, input voltage: 400 V, input current: 63 A, input frequency: 50 Hz, type of input current: three-phase, travel distance X-axis: 5,900 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 280 mm, workpiece length (max.): 5,900 mm, workpiece width (max.): 1,600 mm, workpiece height (max.): 280 mm, number of axes: 5, number of slots in tool magazine: 20, controller manufacturer: SIEMENS SINUMERIK, total height: 3,200 mm, total length: 11,000 mm, total width: 4,700 mm, overall weight: 10,000 kg, table length: 5,900 mm, table width: 1,600 mm, Equipment: CE marking, MAKA PE 75 5-axis machining center – in good working order and ready for use. The machine was used for the production of wooden stairs. Maximum spindle speed: 24,000 rpm Tool holder: HSK-F63 Number of milling spindles: 1 Vertical drilling spindles: 16 Horizontal spindles in the X-axis: 2 Horizontal spindles in the Y-axis: 2 Vacuum pump: 130 m³/h Number of vacuum pumps: 1 Blsdezwcfzopfx Aqwjl Number of traverses/consoles: 8 Pneumatic pressure: 6 bar A-axis: ±90° / 180° C-axis: 540° Rapid traverse X/Y: 60 m/min Rapid traverse Z: 24 m/min Electrospindle cooling: liquid Table: traversing/console type Application: wood processing / stair production.

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, For sale is a robust MAKA/Griggio surface planer, model AH 430. The machine features a robust, heavy-duty design and is suitable for professional use in carpentry, joinery, and woodworking. Technical data / Features: Manufacturer: MAKA/Griggio Blsdozvu Uxspfx Aqwol Model: AH 430 Planing width: 430 mm Year of manufacture: 1994 Motor power: 4.0 kW Connection: 380 V / 50 Hz / 3 phases long infeed and outfeed tables, total length approx. 2,600 mm 4-knife cutterblock CENTROFIX system with reversible knives adjustable fence manual chip thickness adjustment via handwheel dust extraction port motor brake GS-tested for dust emissions massive and robust construction The machine is in used condition, which is good considering its age. The surface planer was used as a training machine in a vocational school and is fully functional. The machine is subject to differential taxation. An inspection and demonstration can be arranged by appointment. Transportation is possible for an additional fee! The machine will be inspected before sale. For used machines with a year of manufacture of 2009 or earlier, the warranty is excluded when sold to commercial customers. Technical data and features may vary. Errors, prior sales, and changes reserved. All information without guarantee.

Condition: used, Year of construction: 2012, - Work area: X: 9000 mm / Y: 2700 mm - Gantry 1: 5-axis milling spindle 20/26 kW - 32-position tool changer - Gantry 2: 2x13 spindle drilling unit Technical data - Heavy-duty gantry system with 2 gantries - Gantries with drives on both sides (gantry drive) - CNC control SIEMENS 840D sl / PCU 50 with NCU 730 - Operator panel OP 15 with 15" display, mounted on a guide rail along the longitudinal axis Work area / machinable cube size with tool length/diameter of 160 mm - X-axis: 9000 mm with both gantries - Y-axis: 2700 mm - Z-axis: (Standard cube size 420 mm) - Customer-specific design for workpiece thicknesses up to 60 mm - 5-axis head Equipment, Gantry 1 - 1 universal head for 5-axis milling - Milling spindle power: 20/26 kW (S1/S6) - Speed adjustable up to 24,000 rpm - Water-cooled - Tool interface HSK F63 for automatic tool changes - Thread cutting is possible! - 1 chain-type tool magazine with 32 positions - With rotary gripper for fast tool changes - Magazine fixed on the operator side Equipment, Gantry 2 - 2 head mounting brackets - Equipped with 2 heavy-duty multi-spindle drilling units each - With common dust extraction hood - Each drilling unit with 13 drilling spindles (total of 26 drilling spindles) - Individually selectable vertically - Arrangement in an L-shape - 2 angled drilling spindles adjustable from 0 - 25° - 1 right, 1 left, each approx. 2.2 kW, n= 2800 rpm - Drill chuck collet Rego Fix ER 25 M Machine table - Base frame with linear guide - 12 table traverses on a linear guide for positioning in the X-direction, individually driven and positionable via NC drives Bjdpezuw Ixefx Aqwjll - Vacuum supply integrated into the table traverse - Each traverse is individually vacuum-monitored and linked to the machine control system Workpiece infeed function - 1 belt conveyor consisting of 4 belt strands - Width 40 mm, each traverse with lifting devices - Lifting device NC-controlled - Stroke 110 mm (+10 mm, -100 mm) - The machine should be installed in a foundation pit of approx. 300 mm - Vacuum pump Bush type: Mink MM 1322 - Suction capacity 250 m³/h - With intermediate tank 500 l for rapid vacuum generation - 2 chip transport belts under the machining area for the removal of chips and/or small swarf up to a size of max. 100 x 100 x 100 mm - Automatic central lubrication Work safety - Moving protective cabin on both gantries - Protective cabin with safety bumpers and safety light curtain system on the operator and rear sides (due to automatic table adjustment)

Year of construction: 2006, condition: ready for operation (used), Travel X/Y/Z: 12100mm/2350mm/800mm, swivel A-axis: +/-98°, rapid traverse X/Y/Z/A: 45/45/24/10 m/min, processing length: 11000mm, speed: 24000 rpm, table: 10 support crossbars, 2 hydraulically swiveling workpiece stops, control: BWO 930, operating hours: 23792h, dimensions X/Y: 18300mm/6250mm. Including moving gantry version with Gentry drive on both sides, coolant spraying system with minimum quantity fine atomization. Documentation available. Bsdpjtqfqxefx Aqwjll

Year of construction: 2005, condition: ready for operation (used), A Maka CNC 4-axis milling and drilling machine for plastic, wood and aluminum is available. Travel X/Y/Z: 2000mm/6000mm/250mm, C-axis: 360°, rapid traverse X/Y/Z: 45m/min/45m/min/24m/min, spindle mount: HSK63, spindle power: 12kW, spindle speed: 24000rpm. Tool places: 12, angle head places: 3, machine dimensions X/Y/Z: 12000mm/5700mm/3200mm, control: BWO 920, documentation available. On-site inspection is possible. Bljdpovmq Tvofx Aqwsl

Condition: ready for operation (used), A Maka 5-axis CNC machining center for aluminum, plastic, or wood in need of repair is offered. Travel path X/Y/Z: 2500mm/1500mm/650mm, max. fixture height: 180mm, rapid traverse X/Y/Z: 60m/min, C-axis rotation: 540°, A-axis swivel: +/-98° (196° total range), number of work tables: 2, table size per table: 2500mm x 1500mm, magazine capacity: 20 tools per magazine, total tool positions: 2x20. The drive motor of the Z-axis is defective. Inspection possible by appointment. Bodezcyq Hopfx Aqwsll
