Spraying machines Makor 2013

Makor

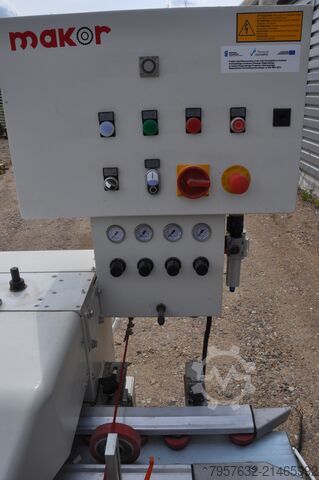

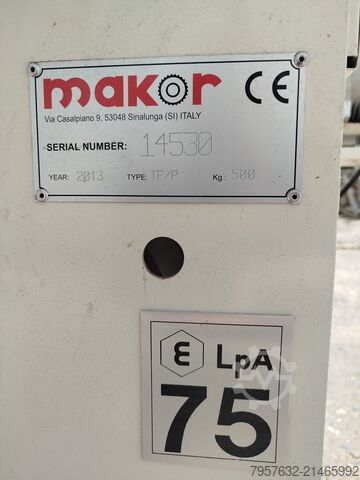

Condition: like new (used), Year of construction: 2013, functionality: fully functional, overall weight: 500 kg, MAKOR TF/P PLUS Putty Application Machine 19.06.6512 Dsdpfoytc Rkex Afboup Type: TF/P Plus Maximum working width: 150 mm Maximum height: 120 mm Feed speed adjustable up to 140 m/min Top powered pressure rollers x 6 Pneumatic pressure adjustment Bottom driven rollers x 6 CE mark Year of manufacture: 2013 Product description: - Paint without waste – Verniciatura senza sprechi - Robust and efficient transport system featuring 6 motor-driven pressure units. - Various application heads ensure optimal results even for filling and defect repair materials. Designed for continuous cycle application of putty, gypsum, and paint onto mouldings, picture frames, and extruded profiles using a suitably shaped steel counter-template. The frame is made of steel sheet and tubular steel. Guaranteed forward feed via 6 lower metal rollers and 6 upper pressure wheels made of rubber, with variable speed control by inverter. The upper pressure wheels are mounted on free-running bearings to minimize improper wear. The pneumatic control panel is equipped with a selector for engaging the upper pressure wheels and independent pressure regulators.

Condition: used, Year of construction: 2006, overall weight: 1,200 kg, Crosscut saw. Strip cutting machine MAKOR SAP 30 Dsdpfx Ajytc Ivefbeup The machine is perfectly suited for cutting wooden and MDF strips. Year of manufacture: 2006

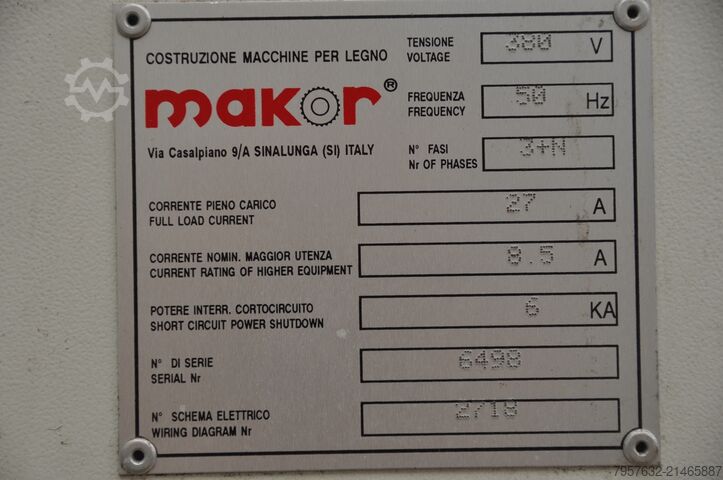

Year of construction: 2001, condition: used, functionality: unexamined, Edgebander for mouldings using hot stamping method MAKOR type DORA 7, year of manufacture 2001 Duodpfjytc E Uox Afbjp

Condition: like new (used), Year of construction: 2023, operating hours: 500 h, functionality: fully functional, Automatic door painting line comprising: Automatic door destacker, door by door Automatic painting robot with spraying Door stacker onto trolleys Door dimensions: lengths from 2000 to 2600 mm Dedpfx Ajyrr Dksfbeup widths from 730 to 1030 mm

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, We are Penope Oy and we provide solutions for industry in Finland but also worldvide. We are official Makor dealer in Finland. Technical specs: Very little used vacuum extuding machine, year 2023. Dedpfstqu Dijx Afboup IN FEEDER FOR VACUUM mod. TEP 2000 reinforced version The in feeder, which is integral part of the vacuum coater, is equipped with high adherence belt and piece side guides. It is use to properly feed profiles in the vacuum head. TECHNICAL DATA TEP 2000 for vacuum Max. working width mm 220 Working height mm 850±30 Feed speed m/min 25÷150 Feed motor power (with inverter) kW 0,55 VACUUM EXTRUDING MACHINE mod. STORM WB Vacuum extruding machine for applying water base paints, designed in stainless steel plate (inox) and anti-adherence material. The machine is complete with a “cutting down” unit which allows a high reduction of the polluting emissions and a complete recovery of the excessive paint in order to reduce the consumption of paint to the minimum. PAINTING Extruding head realised in anti-adherence material. The head is complete with an adjustable profile guiding system, with paint adduction distributors. All the inner components are easily taken apart for a quick cleaning. A double diaphragm pneumatic pump with high capacity, transfers the paint from the tank to the extruding head, complete with a basket filter in stainless steel (inox) and an anti-pulse device for the interruption and feeding of the product. AUTOMATIC FILLING SYSTEM Automatic filling system for automatic decanting of the product directly from the paint drum to the tank of the machine. The system is also provided with an acoustic alarm in order to signal decrease of paint level inside the tank. Thanks to this system it is possible to maintain in circulation a minimum quantity of the product. CONTROL PANEL General electrical switch-board which is integral part of the aspiration tower equipped with control panel for the start-up and the control of the machine. Two vacuum indicating gauges for the control of vacuum degree and of loss of filter efficiency. TECHNICAL DATA STORM WB Compressed air consumption (~5 bar) nl/min 1500 Working height mm 870 +/-30 Turbines capacity (each) mc/h 470÷600 mbar 200÷250 Turbine motor power x 3 Kw 11 AUTOMATIC PRE-WASHING SYSTEM The automatic PRE-washing system allows a quicker product change or an easier maintenance of the machine. The cycle consists of the following phases: 1) Through a three-way valve the feeding pump sends the remaining product to an external container till the tank is completely empty. 2) Through hydric plant (at customer’s charge) the product tank is filled with water. 3) Turbines are activated while the previous three-way valve goes back to working position so that the feed pump can send in circulation the clean water for a defined time necessary for the washing. 4) The three-way valve goes back to discharge position and the tank is emptied by the washing water. 5) The automatic filling system activates for the new product.

Condition: excellent (used), Year of construction: 2015, Brand: Makor Type: Robospray Twin Duodpfxjiu Hbno Afbjp Year: 2015 Inner dimension L: 670 cm Inner dimension W: 330 cm Inner dimension H: 213 cm Exhaust system: Yes Electric connection: 400 V Dimension L: 11000 mm Dimension W: 4600 mm Dimension H: 4500 mm Includes - 2x electric foil roll-off units; - 1x Beerepoot mobile roller conveyor

Condition: used, Year of construction: 2016, Used Makor START ONE spray coating machine suitable for low-volume woodworking production. Designed for applying water-based or solvent-based paints and glues to veneered components and PVC panels. Ideal for companies moving from manual finishing to automatic spray coating. Equipped with PLC control system with intuitive interface and automatic panel detection to optimise paint usage. Features a self-cleaning paper transport system, reducing maintenance and downtime. Spraying unit includes an electronically controlled oscillating arm with capacity for up to 4 spray guns, 2 high-pressure feed circuits, and quick-change coupling system. Efficient air-flow and filtration system ensures clean operation and environmental compliance. Technical Data: • Feed speed: 1–4.5 m/min • Air capacity: 10,000 m³/h • Installed power: 7 kW • Working height: approx. 900 mm Dedpex Iggyefx Afboup

Condition: ready for operation (used), Year of construction: 2006, working width: 150 mm, overall weight: 150 kg, Conveyor Belt 2500 mm Manufacturer: Makor Type: TEP 2500 Powered conveyor belt from a finishing line (positioned in front of a Makor profile spraying machine), Length approx. 2500 mm Belt width: 150 mm Pass-through width (with existing side guides): max. approx. 320 mm Feed speed steplessly adjustable via variator Equipped with stable, adjustable side guides Dimensions approx. 2500 x 550 mm (LxW) Weight approx. 150 kg Djdpfx Afoxtnfrebeup Documentation available

Year of construction: 2006, condition: ready for operation (used), I sell the edge spraying automat with UV-drying and sanding units MAKOR GEMINI 56, Baujahr 2006. 2-Zone Vacuumpainting with self pumps system WITHOUT lost paint 2-Zone UV-drying 2 pcs. Edge sanding aggregates tiltable. Dujdpfx Afeim Eyxobjp Material is immediately dry and useable ! Very good condition. Available immediately. Possible to test.
