MAN TGS 28.440 6x4-4 2-Seitenkipper Recycling Kran

Condition

New

Location

Lemgo-Lieme Germany

Other MAN TGS 28.440 6x4-4 2-Seitenkipper Recycling Kran

MAN TGS 28.440 6x4-4 2-Seitenkipper Recycling Kran

Show map

Machine data

Machine type:: Other

Manufacturer:: MAN

Model:: TGS 28.440 6x4-4 2-Seitenkipper Recycling Kran

Condition:: new

Price & Location

Seller location:: Trifte 61- 65, 32657 Lemgo-Lieme, Germany

Call

Technical details

Power:: 316 kW (429.64 HP)

Overall weight:: 28,000 kg

Fuel type:: diesel

Color:: white

Axle configuration:: 3 axles

Gearing type:: automatic

Loading space width:: 2,410 mm

Loading space length:: 5,200 mm

Loading space height:: 1,000 mm

Equipment:: ABS, air conditioning, crane, electronic stability program (ESP), navigation system, soot filter

Details about the offer

Listing ID:: A202-95405

Reference number:: 3184

Update:: 14.10.2025

Description

Internal reference number for customer inquiries: 3184
----NEW at PAVIC

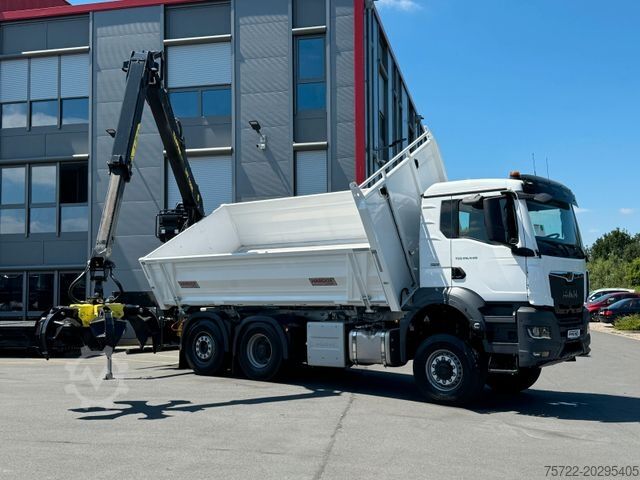

MAN TGS 28.440 6x4-4 BL 2-way tipper and Tajfun Liv L150K83 recycling crane

Vehicle: MAN 02676 LFAJ, 316 kW (430 hp), 2,200 Nm torque, Euro 6e emission standard
* 40,000 kg permissible gross combination weight (NatZu)
Gedpfx Asxnn Dqsfpeuh
* 44,000 kg permissible gross combination weight (TechH)
* 3,600 mm main wheelbase
* MAN EVBec high-performance engine brake, multi-stage
* MAN EasyStart hill-hold function
* Brake lining wear indicator with warning
* LED side marker lights
* MAN TipMatic 12.28 OD automated transmission
* MAN EfficientRoll transmission function
* MAN Idle Speed Driving transmission function
* Rocking-free function
* Trailing axle, 9,000 kg, non-driven, straight, steered, liftable
* 6x4-4
* Leaf/air suspension
* Differential locks driven rear axles
* Differential locks driven front axles
* and much more

Body:

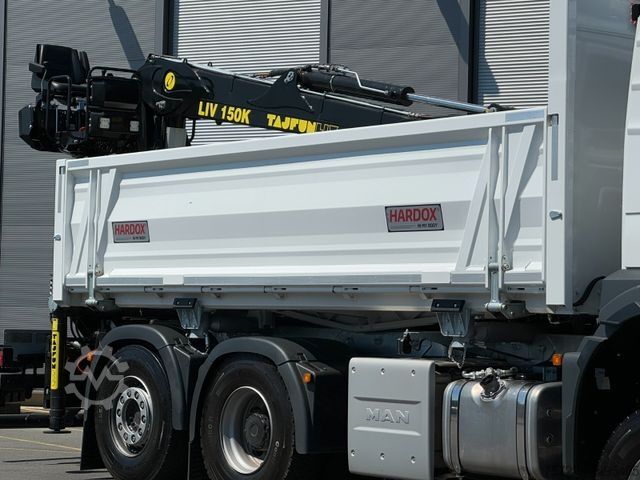

* PAVIC special body for recycling vehicles, hot-dip galvanized
* Bulkhead at cab height with round tube for strap storage
* Load platform internal dimensions: length 5,200 mm, width 2,410 mm, height 1,000 mm
* Material: S355, thickness: 4 mm
* Hardox steel drop sides
* Hydraulic drop sides on both sides! (hydraulic opening top to bottom)
* Each hydraulic drop side with 2 hydraulic cylinders mounted under the tipper, controllable from the cab via individual pneumatic valves
* Material: Hardox 400
* 2-circuit trailer tipper hydraulics at the rear
* Plastic toolbox
* and much more

Recycling loading crane:

* Tajfun Liv L150K83 (lifting capacity: at 3 m = 4,340 kg, at 5 m = 2,810 kg, at 8.3 m = 1,830 kg)
* Double slewing mechanism with oil-bath lubrication
* High seat mounted - 2-lever + 2-foot pedal control
* Dual-circuit hydraulic system
* Support legs, mechanically swing-up (as needed)
* Support legs integrated into base frame, hydraulic extension on both sides (operable from below and from high seat)

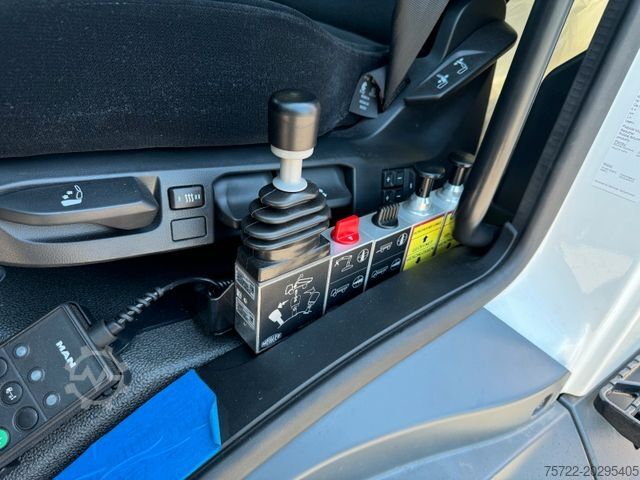

* New fully digital crane cockpit
* TajfunLIV PO-250 6x grab (6-shell polyp grab for precise work)
* 2 stabilizer pads
* Aluminum hydraulic oil tank
* and much more

Financing, leasing, or hire purchase available.

Our sales team will be happy to answer any further questions.

This is a non-binding offer. Subject to prior sale, errors, and modifications.
