CNC Burnisher 1530 AVAILABLE ON HAND

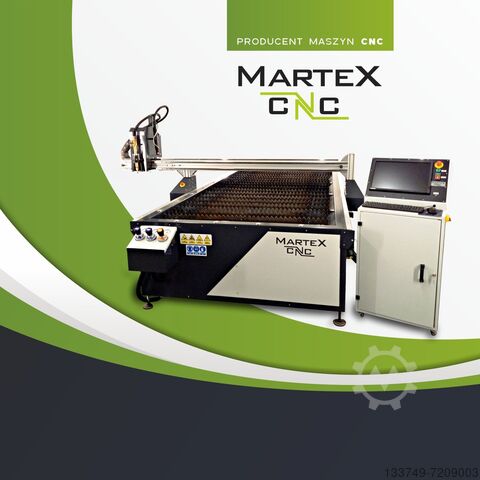

MARTEX CNC MTX 1530

Year of construction: 2023, condition: new, PLASMA CUTTING MACHINE MODEL MTX 1500/3000 Construction: steel+aluminium Overall dimensions: 3350/2200/1300 Working area: 3100/1520/140 XY axis drive: 4Nm stepper motors with gears, precision grade 8 Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasma system Collision protection system to prevent burner damage Linear guide: TBI Automatic material detection system Power supply: 240V Maximum load: 1700kg Total weight: 1200kg net INCLUDED: Blsdpeh Rabnofx Abmep - control panel -water table -exchangeable grate -control software in German, English, Polish -Certification of conformity CE - DTR - warranty The possibility of selecting the appropriate Hypertherm cutter to individual needs of the company.

Year of construction: 2023, condition: new, PLASM PLOTER MODEL MTX 1530 Ventilated Construction: steel+aluminum Working field: 3000/1500/200 XY axis drive double-sided gate drive: 4Nm stepper motors with gears, gear strips Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasm system Linear guides: Hiwin IGUS guide Automatic material detection system Bljdpfx Asnfvlgebmop Power supply: 240V Permissible load: 1800kg Total weight: 800kg net USB port for opening projects and transferring files using external pen-drives Sheet metal detection system THC cutting height control system Hiwin wire guides Double-sided gate drive: X-axis stepper motor and gear rails Y axis stepper motor and toothed rails Z axis stepper motor and ball screw Drives realized with Hiwin brand rails Ventilated table adapted for fume extraction INCLUDED: -ventilated table -control software in Polish -Declaration of Conformity CE - DTR - warranty. -start-up and training included in the price The latest control system available in our plotters: Integrated THC height controller Anti-diving torch function Types of accepted files : DXF, PLT ( hpgl ), G-Codes (.tap) Integrated CAM module: MyMini CAM -. Automatic object recognition Ven. External. Path analysis in advance Cutting parameter database Correction of design angle to material Ability to cut from any point Possibility of cutting from the end DXF,PLT import Automatic generation of paths with offsets, entries and exits The program can be used with an external CAM program Separate speed for holes Parameter database Project correction to material angle Soft and Hardware limits THC anti-diving functions Game pad control capability Material detection by touch system, floating head WHY IT'S WORKING WE ARE POLISH MANUFACTURER OF PLASMA BURNERS CLOSE COOPERATION WITH PROMA-ELECTRONIKA COMPANY (PRODUCER OF THC) PROFESSIONAL GUIDE RAILS OF RENOWNED COMPANY HIWIN, A FEATURE OF THESE GUIDES IS VERY LONG LIFE, HIGH QUALITY OF CUTTING NOT REQUIRING FURTHER PROCESSING COMPONENTS SUCH AS GEARS, MOUNTS, HANDLES, ETC. ARE MADE BY US USING CNC TECHNOLOGY, WHICH RESULTS IN HIGH QUALITY AND REPEATABILITY OUR STRENGTHS HIGH CLASS SHIELDED CABLES INDUCTIVE SENSORS ON ALL AXES, WHICH ARE NOT SUBJECT TO DUST JAMMING ADVANCED THC MY PLASM SMOOTH BURNER OPERATION CPC INTERFACE (VOLTAGE DIVIDER SEPARATOR) MOUNTED ON CUTTING MACHINES WE ASSEMBLE CUTTING MACHINES DELIVERED BY A CUSTOMER OR WE PURCHASE CUTTING MACHINES MEETING CUSTOMER'S REQUIREMENTS WE ASSIST IN ARRANGING LEASES It is possible to select the appropriate cutting machine to individual needs of the company. We offer other dimensions of tables.

Condition: new, Year of construction: 2024, PLASMA BURNER MODEL MTX 1500/3000 Construction: steel+aluminum Overall dimensions: 3350/2200/1300 Working area: 3100/1520/140 XY axis drive double-sided gate drive: 4Nm stepper motors with gears, gear rails class accuracy 8 Z axis drive: stepper motor ball screw Travel speed: up to 25m/min Z axis control system: THC My plasm system Collision system to protect the torch from damage Blsdpfx Absrb Dyzsmep Linear guides: TBI Automatic material detection system Power supply: 240V Permissible load: 1700kg Total weight: 1200kg net INCLUDED: - control panel -water table -replaceable grate -control software in German, English, Polish -Declaration of Conformity CE - DTR It is possible to select the appropriate Hypertherm cutter to meet individual customer needs.
