Caliper

MASSI 3000 - 2000

Condition: excellent (used), Year of construction: 2003, max. wheel diameter 600 mm gear width 700 mm max. module 20 min. module 0,5 table diameter 300 mm x-travel 300 mm y-travel 600 mm z-travel 700 mm workpiece weight 300 kg Control Zeiss max. workpiece diameter 600 mm clamping length 20 - 1000 mm ical angle 90 ° total power requirement 2 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 3,0 x 2,0 x 2,4 m Form measuring machine, gear measuring machine, coordinate measuring machine -> Primar MX 4 WL Suitable for gear shafts, sprocket waves, gears, pistons, gearbox, connecting Isdpewyxycjfx Ac Hjik rods, camshafts and crankshaft, crankshaft housings, cylinder heads, ... Air suspended, centering and tilting table, retention, highly precise execution! Software: gear, roller milling, piston, bowling wheel, crankshaft, connecting rods New software update 2014!

Condition: good (used), Year of construction: 2015, measuring range Z-axis: 50 mm, feed length X-axis: 200 mm, travel distance Y-axis: 500 mm, A Mahr contour measuring station is for sale in good, used condition, as shown in the pictures. Technical data: • Manufacturer: Mahr GmbH Göttingen • Model: XC-20 With feed device: PCV-200 • Measuring range: approx. 0.2 to 200 mm • Measuring range (in Z): approx. 50 mm • Includes 2x measuring probes: Ijdexpw Syspfx Ac Hsik - CP probe arm 350-M/16/16/6.5 double tip - PCV/CD probe arm 350 With measuring stand: ST-500 • Height adjustment range: approx. 500 mm • Hard stone measuring plate: approx. 700x550 mm With MCP-21 hand-held control panel Includes Midrange Standard control system • Year of manufacture: 2015 • Condition: Used, functional The MarSurf XC 20 is considered the absolute top-of-the-line device for contour evaluation. The optimally coordinated device configuration offers the highest performance standards. Shipping costs by freight forwarder: approx. £110 You will receive an invoice with VAT shown separately. Viewing/collection is possible by arrangement in 42855 Remscheid. Sale from location 42855 Remscheid, free loading. Subject to errors in technical data and prior sale.

Condition: excellent (used), Mahr Mahr MarSurf CD 120 / CT120 Complete System For sale is a professional contour and surface measuring system from Mahr, consisting of several devices, accessories, calibration standards, and extensive training documentation. This is a high-quality laboratory or quality measurement system for precise analysis of surface geometry, contours, and measurement parameters. Main unit: Mahr MarSurf CD 120 (Contour Measuring System) CNC contour measuring instrument with vertical axis system Precision measuring module with stylus holder Granite measuring plate with guides Suitable for contour measurements on technical components Typical measuring ranges: Vertical (Z-axis): approx. 60–120 mm (model-dependent) Horizontal (X-axis): approx. 100–120 mm Extremely high accuracy due to granite base and backlash-free guides Control units: Mahr MidRange / MidRange CNC (Type MCP-22 / MCP-23) Control and operating unit for the axes Interface for measurement software (MarWin / MarSurf XC) Mahr ST 500 External control or sensor module (often for special probes) Software and Documentation Status MarSurf XC2 V. 3.01–03.4 MarSurf XC20 V. 5.00–10.1 MarWin v13.20-07 Operation manuals, training folders, training documents Measuring examples, diagrams, technical instructions This software is designed for evaluating contours, profiles, and surface parameters. Accessories / Measuring and Calibration Parts Stylus and probe arm sets Precision styluses of various shapes and lengths Replacement needles and mounting tools Stylus holder with protective case Calibration and reference pieces Mahr Contour 2 Block with reference sphere Calibration and parameter data For PCV, CD 120, LD 120 CDs and data carriers with parameters and software Transport and protective cases Several original cases with foam inserts Calibration seal/inspection sticker visible (valid until 2026) Isdsx A Ur Ropfx Ac Heik Typical voltage data for the Mahr MarSurf / MidRange / CT series MarSurf CD 120 (Contour measuring unit / axis drive) Supplied via control unit Internal usually: 24 V DC External power supply via MidRange control unit Mahr MidRange control unit (MCP-21 / MCP-22 / MCP-23) This device is the central power supply unit. Typical values: Primary: 230 V AC / 50-60 Hz Secondary: 24 V DC (regulated) Power consumption: approx. 40–80 W Mahr ST 500 Also connected to the MidRange system Powered by 24 V DC CT120 / Probe systems Sensors operate at low voltage 5–24 V DC Supplied by the main unit (no separate power supply) Accessories, manual control units, interface boxes Usually 5 V or 24 V DC, depending on module Weight: approx. 65–73 kg Important note: "The table shown in the photos is not included in the sale." Condition: used Scope of delivery: (see photo) (Subject to change and errors in the technical data and specifications!) Further questions can be answered by phone.

Condition: ready for operation (used), Year of construction: 2008, machine/vehicle number: 6851350, Resolution (Z) 0.38 µm (175 mm) / 0.19 µm (350 mm); system: 0.04 µm Contact speed (Z) 0.1 – 1 mm/s Positioning (X/Z) X: 0.2 – 8 mm/s; Z: 0.2 – 10 mm/s Measurement speed 0.2 – 4 mm/s Measuring length (X) 0.2 – 120 mm Measuring range (Z) 50 mm Arms 175 mm, 350 mm Guideway deviation < 1 µm / 120 mm Stylus radius 25 µm Measuring force 1 – 120 mN Additional features Automation, protective elements, advanced calibrations, user safety Iisdpfsw S Egxsx Ac Hek

Condition: ready for operation (used), MarSurf M300 MarSurf RD 18 Mahr roughness measuring device with evaluation unit The device can only be operated with a cable. Battery operation without function. Bluetooth Measuring principle: stylus method Probe: inductive skid probe Unit of measurement: selectable Measuring range: 350 µm Profile resolution: 8 nm Characteristic values: Ra, Rq, Rz (Ry (JIS) corresponds to Rz), Rz (JIS), Rmax, Rp, RpA (ASME), Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, R3z, RPc, Rmr (tp (JIS, ASME) corresponds to Rmr), RSm, RSk, RS, CR, CF, CL, R, Ar, Rx, Rv Vertical scale automatic/selectable Horizontal scale dependent on cut-off Total distance In according to ISO/JIS: 1.25 mm / 4.0 mm / 12.5 mm Number n of individual measuring sections acc. to ISO/JIS: selectable 1-5 Scanning speed 0.5 mm/s Probe tip: 2 µm Measuring force: approx. 0.7 mN You are welcome to visit us for an inspection. We will be happy to arrange a cost-effective forwarding agent for you. organize Iiedpfxovcly Ns Ac Hek You will receive a proper invoice. A net invoice can also be issued for foreign customers. Prerequisite is a valid VAT number. Subject to prior sale. Visit our store and have a look at our other offers. Company names and trademarks are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article may occur and are reserved.

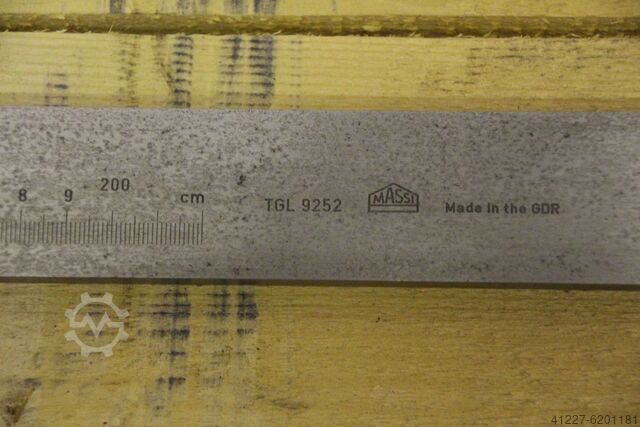

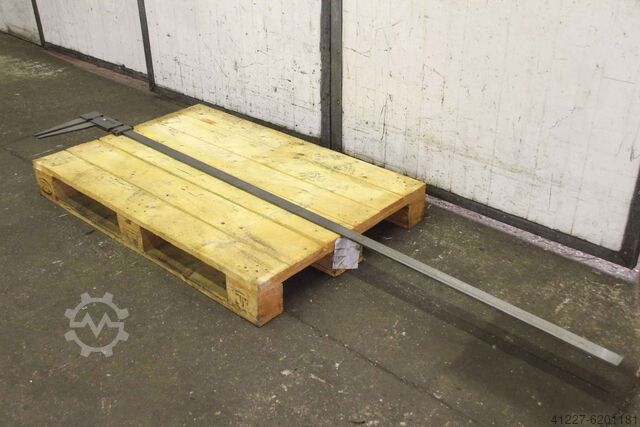

Condition: used, Vernier caliper, caliper, caliper -Manufacturer: Massi, caliper, caliper with fine adjustment according to TGL 9252 -Measuring range: 0-2000 mm Isdjg Si I Sopfx Ac Heik -Dimension: 2260/302 / H17 mm -Weight: 7.4 kg

Condition: ready for operation (used), Mahr MarSurf M 400 SD26 roughness measuring device Brand: MAHR Model: MarSurf M 400 Probe system: free-probing system Roughness measuring range: +/- 250 µm, +/- 750 µm Minimum scanning distance: 1.75 mm Iiedpfovr S Rmsx Ac Hok Maximum scanning distance: 17.5 mm Cut-off wavelength: 0.25 mm, 0.8 mm, 2.5 mm Measurement profile memory (number of individual values): 40,000 pcs Measurement profile memory (number of profiles): 30 pcs New price: €11,190 net - Bluetooth connection between the feed unit and the display unit. - Measure in all directions horizontally, vertically and overhead. You are welcome to come by for a viewing. We would be happy to organize a cost-effective shipping company for you! You will receive a proper invoice. A net invoice can also be created for foreign customers. A valid VAT identification number is required. Subject to prior sale. Visit our shop and take a look at our other offers. Company names and trademarks shown are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article can occur and are reserved.

Condition: reconditioned (used), Mahr Rougness Measuring system M2 - measuring range 12,5mm - skid probing 300µm - computing device with TFT display - Printer Iodpfovki Sljx Ac Heik - Adjustable rack with turntable

Condition: ready for operation (used), Mahr MarSurf M 400 SD26 Roughness measuring device Measuring device Evaluation unit Brand: MAHR Model: MarSurf M 400 Touch probe: Free touch probe Measuring range roughness: +/- 250 µm, +/- 750 µm Scanning distance min.: 1.75 mm Scanning distance max.: 17.5 mm Cut-off wavelength: 0.25 mm, 0.8 mm, 2.5 mm Iodjvclcwepfx Ac Hjik Measuring profile memory (number of individual values): 40000 STK Measuring profile memory (number of profiles): 30 ST New price: 11.190 € net Calibration standard is not included in the scope of delivery - Bluetooth connection between the feed unit and the display unit. - Measure in all directions horizontally, vertically and overhead. You are welcome to visit us for an inspection. We will be happy to arrange a cost-effective forwarding agent for you. organize! You will receive a proper invoice. A net invoice can also be issued for foreign customers. Prerequisite is a valid VAT number. Subject to prior sale. Visit our store and have a look at our other offers. Company names and trademarks are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article may occur and are reserved

Condition: ready for operation (used), Year of construction: 2012, MarSurf M400 MarSurf SD 26 Mahr roughness measuring device with evaluation unit Brand: MAHR Isdeq Nl Ewjpfx Ac Hjik Model: MarSurf M 400 Touch probe: Free touch probe Measuring range roughness: +/- 250 µm, +/- 750 µm Scanning distance min.: 1.75 mm Scanning distance max.: 17.5 mm Cut-off wavelength: 0.25 mm, 0.8 mm, 2.5 mm Measuring profile memory (number of individual values): 40000 STK Measuring profile memory (number of profiles): 30 ST New price: 11.190 € net - Bluetooth connection between the feed unit and the display unit. - Measure in all directions horizontally, vertically and overhead. You are welcome to visit us for an inspection. You will receive a proper invoice. A net invoice can also be issued for foreign customers. Prerequisite is a valid VAT number. Subject to prior sale. Visit our store and have a look at our other offers. Company names and trademarks are the property of their owners and are used only to identify and describe the products. Deviations from technical data and errors in the description of the article may occur and are reserved.
