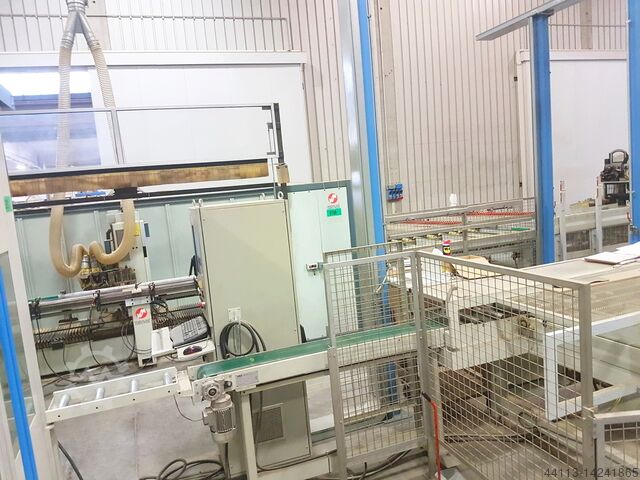

Line for door jambs (frames) - CNC

MASTERWOOD + AMS Multitec + Teknomat 3000

Condition: ready for operation (used), Technical characteristics Unit drilling screwing hinge ANUBA Mounted on swivel support -10 to 90° CN Slide movement THK Drilling group 9HP 3000/24000 rpm On swivel support -10 to 90° CN Ljlhstqkateccqmsaa Tool loader, 7 tool holders 6 workpiece supports with suction cup and vices locks - plugs - faceplate - strikers - hinges - barrels - set max wood thickness 120 mm stroke 1000 mm CN control cabinet Industrial PC MASTER SYSTEM CAD CAM Power and Motors Voltage: 400 V Pluging: Three-phased Overall dimensions

Condition: good (used), Code: 0462 Brand: MASTERWOOD Ljlhccqevhaq Hemjaa Model: TEKNOMAT 2004 TF - CE Standard CNC Routing-anuba inserting machine with 4 controlled axis for anuba hinge assembly, milling, hardware and various - CE Standard Technical data: Table size mm 3300 x 260 Max distance between two anuba hinges mm 2700 Max height anuba inserting head unit positioned at 0° mm 200 Max workpiece thickness anuba unit positioned at 90° mm 120 Axis speed : X axis mt/min 40 - Y axis mt/min 7 - Z axis mt/min 7 Anuba unit: Drilling motor Hp 1 - Screwing motor Hp 1 - Inclination managed by control -7 +90° Milling Unit: Motor Hp 3 - Cutter attachment ER 25 - Rotation speed 18000 rpm Electrical cabinet Protection Cabin CE Standard Total Kw 10 Compressed air 7 Atm Overall dimensions mm 4550 x 2650 x 2200 h Weight kg 1760

Condition: defective spare-parts repository (used), Year of construction: 2012, Functionality: not functional, machine/vehicle number: ATSP 1/10/12, Control unit defective and missing! MACHINE DETAILS Lajlowa S Uyshccqmja Supply voltage: 3~400 V Frequency: 50 Hz Rated power: 17 kW Protection class: IP2X

Condition: used, - Edition Partnership - With our TF 100 2.0 "Partnership Edition" we offer CNC technology for the highest demands. And at a sensational price. Drilling, grooving, milling Unique in operation and in the "Partnership Edition" even more so in terms of features: The TF 100 2.0, specially developed for furniture and interior TF 100 2.0, specially developed for furniture and interior than 5 m² production area, it can perform drilling 5 levels of the workpiece, groove sawing work and also milling work. The machine impresses with its extremely high processing speed with maximum precision and ease of operation. The standard pre-equipment for angular gears, the optional the optional CLAMEX and lock case milling cutters can be can be retrofitted easily and at any time. The TF 100 2.0 "Partnership Edition" is completely manufactured in in our large factory in Rimini, the headquarters of Masterwood, and is 100% "Made in Italy". ----- Technical data ----- Max. workpiece length X: unlimited, Laslhccou Tiwvsqmoa max. workpiece length Y: 1,000 mm, max. tool thickness Z: 60 mm, Vertical spindles X - direction: 5 pieces, Vertical spindles Y - direction: 5 pieces, Horizontal double drilling spindles X - direction: 2 + 2 pieces, Horizontal double drilling spindles Y - direction: 1 + 1 piece, Units: 16 drill head, Drilling spindle speed: 4,000 rpm, Distance between drilling spindles: 32 mm, Motor power: 1.7 kW, Grooving saw: X - direction, Saw blade Ø: 125 mm, Extraction connection Ø: 150 mm, Dimensions (LxWxH): 1,920 x 2,818 x 1,620 mm, Weight: 1,500 kg

Condition: good (used), Code: 0100 Brand: MASTERWOOD Model: OMS 4MM - CE Standard Chain and lock mortising machine for all types of lock housing, for wooden doors, window frames , furniture, shelves - CE Standard Laslhccjwd Rwbjqmoa Aggregate with 2 horizontal milling cutters for simultaneous execution of key slot and handle hole Max depth of cut mm 150 Max length of cut mm 330 Transversal stroke mm 80 Max working height for doors mm 1000 Vertical worktable stroke mm 250 Mortising machine motor power output Kw 3 Vertical unit motor power output Kw 0,55 Horizontal unit motor power output Kw 1,84 Suction port diameter mm 120 Overall dimensions mm 1400 x 950 x 2100 h Weight kg 850

Condition: ready for operation (used), Year of construction: 2002, - USED - 3-AXIS VERTICAL MACHINING CENTRE WITH CONTINUOUS 4th-AXIS TABLE   X-AXIS TRAVEL: 800 mm Y-AXIS TRAVEL: 550 mm Z-AXIS TRAVEL: 510 mm SPINDLE: 8000 rpm; BT 40 TABLE SIZE: 450 x 900 mm MAX ADMITTED LOAD: 800 Kg CONTROL UNIT: FANUC 0i-M Laolhccqjuttqmomea NOTE: CONTINUOUS 4-TH AXIS TABLE

Condition: excellent (used), Year of construction: 2004, chain mortising machine with additional unit made up of two horizontal routers for the execution of the handle and the key holes and two adjustable and motorised swinging units for the execution of slots vertical working unit: max work piece thickness 230 mm max work piece height 710/ 1050 mm vertical stroke length 150 mm horizontal stroke length 300 mm Lelslpcffohccqmjaa traverse head stroke 80 mm head tilting +/- 45 deg. vertical stroke of head stock bracket 250 mm headstock bracket tilting +/- 45 deg. max. workpiece height 1000 mm chain motor 2,2 kW, 400V, 50 Hz horizontal working unit: swinging unit no. 2 min/ max. longitudinal stroke 80/ 130 mm manual traversal stroke 140 mm pneumatic transversal stroke 140 mm swinging unit motor 0,18 kW, 400 V, 50 Hz router motor 1,8 kW, 400V, 50 Hz weight approx. 650 kg incl. pump for automatic chain lubrication incl. tools incl. manual Advise used machines: • Technical data without obligation, mistake and intermediate sale reserve. • Price is considered ex-location price • All articles or machines are bought as seen without any entitlement on warranty. • It is left to the choice of the buyer to view the machines before at its location. • Special arrangements are possible but only valid in written form. (We answer your inquiries only with stated address + telephone number!)

Condition: ready for operation (used), Year of construction: 2012, Functionality: fully functional, Masterwood 18.38M5 5 axis 5 axis 14 Kw liquid cooling spindle Bridge construction machine Toolchanger 16 positions HSK 63-F Drillinghead 19 spindels Vacuümpump Becker 250m3 Flat table Working area 3800 x 1860 x 200 Lslhccjwd I S Njqmoaa Remote control Fence Windows PC

Condition: excellent (used), POINT TO POINT BORING machine with CN model MASTERWOOD SPEEDY 207 second hand machine for custom furniture manufacturing, kitchen furniture, bathroom furniture, and various processes Boring head with 5 independent vertical chucks and 1 double horizontal chuck Saw for longitudinal cuts Machine table with 1390 x 750 mm boring capacity and two side jump up stops handled by the control unit to execute with only one program and one intermediate hold panels up to 2800 x 750 mm size Lelhccjwd Irvjqmoaa Possibility of boring 2800 mm panels Pneumatic tool displacement mm 60 Max panel thickness mm 50 Spindles rotation rpm 4500 Saw rotation rpm 6000 Vacuum pump motor Hp 1,5 Vacuum cup diameter mm 80 Front stop complete with 4 locking cylinders for drilling narrow workpieces and strips Multitasking control complete with interactive graphic programming, 9" video, boring programs, optimizing working cycle, graphic, parametric, diagnostic modes Overall dimensions - Machine : mm 2500 x 1800 x 1800 h - Weight kg 850 Overall dimensions - Electric board : mm 800 x 520 x 1200 - Weight Kg 120

Condition: used, Year of construction: 2019, Working dimension X: 3.600 mm Working dimension Y: 1.700 mm Working dimension Z: 350 mm Independent Z-axes: 2 Number of milling spindles: 1 Rotation speed max: 24.000 rpm 4th axis: Yes 5th axis: 5-axes spindle Tool clamping system: HSK-F63 Tool changer positions: 27 Disc tool changer 22-fold: Yes Pickup tool changer: Yes Vertical drilling spindles: 22 Horizontal drilling spindles in X: 6 Horizontal drilling spindles in Y: 4 Groove saw: in X-direction Gantry machine: beidseitig angetriebene Gantrymaschine Machine table: Pod and rail table Electronic end position detection: Yes Number of consoles: 6 Pneumatic pipe connectors: an den Konsolen Vacuum pump: Yes Number of vacuum pumps: 2 Capacity vacuum pump: 200 m³/h Special workpiece clamping system: Clamps for beams Safety device: Bumper Chip conveyor: Yes Interface for .dxf data: Yes Remote control: Yes Tool charge measurement: Yes Chip deflector: Yes Control: PC control Software: MASTERWOOD MASTERWORK, MASTERWOOD MASTER AT, MASTERWOOD MASTER 3D Conformity marking: CE mark Ljlhcjwctg Njcqmsaa Total connection: 61,3 kW Weight: 6.000 kg Space requirement Length: 7,23 m Space requirement Width: 5,55 m Space requirement Height: 3,16 m

Condition: excellent (used), Year of construction: 2009, Medium format Lelewcdyashccqmeaa Operating hours: 50,862 hours

Condition: excellent (used), MASTERWOOD Project TF Machining Center - Used - Through-feed machining, Air table in the work area, Hardened, dust-protected prism guides, Ball screws on all axes, Network card for remote maintenance, Integrated control cabinet, Saw unit for grooving in the X direction, Manual central lubrication ----- Technical Specifications ----- Min. workpiece length X: 250 mm, Lslhcowb Evgecqmsaa Min. workpiece length Y: 100 mm, Min. workpiece thickness: 10 mm, Max. workpiece length X: infinite, Max. workpiece length Y: 1,000 mm, Max. workpiece thickness: 60 mm, Operating system: Windows, Machine control software: Masterwork, Number of vertical drilling spindles: 10, Number of horizontal double drilling spindles: 10 in X-direction: 2 pcs. Number of horizontal double drill bits in Y-direction: 1 pc. Saw blade Ø of saw unit: 125 mm Extraction connection Ø: 150 mm Required air flow: 2,000 m³/h Required air speed: 20/30 m/s Compressed air requirement: 1,000 l/min. Dimensions (LxWxH): 2,200 x 2,480 x 1,584 mm Weight: 1,500 kg Quality information: - Complete basic cleaning - Electrical system checked - Pneumatic system checked - Adjusted according to manufacturer's specifications - Ready for immediate use

Condition: ready for operation (used), - Hydraulic clamp - Hydraulic knife movement - Working width: 3100 mm - Maximum height: 70 mm - Backgauge adjustable to size - Electrically adjustable backgauge - Motor power: 7.5 kW - 380V Lslhowb Ernoccqmsaa - Year: 1994

Condition: new, Year of construction: 2025, Exhibition machine Year of manufacture: 2025 Equipment and technical data: The Masterwood CNC machining center PROJECT TF is ideal for complex CNC machining in the smallest of spaces, both for solid wood, panel materials or other materials. Advantages: - Very small space requirement - Maximum time savings thanks to extremely fast production times - Fast amortization thanks to low purchase price - Quick learning of the technology thanks to extremely simple operation - Cleanliness of the workpieces with low suction power thanks to machining from below - Extremely fast, simple and variable programming with the MASTERWORK software (standard) - Extremely fast and simple programming of complete cabinets through the use of Palette CAD (option) Technical data: Axes: X-axis: Max. workpiece length: unlimited Min. workpiece length: 250mm Travel speed: 0-25 m/min. Y-axis: Max. workpiece width: 1,000mm for all units Min. workpiece width: 85mm Travel speed: 0-50 m/min. Z-axis: Max. workpiece thickness: 60mm Min. workpiece thickness: 10mm Travel speed: 0-20 m/min. The minimum and maximum workpiece sizes depend on the weight and also on the ratio of length to width! Units: 16mm drilling head: Vertical spindles in X direction: 5 pieces Vertical spindles in Y direction: 5 pieces Horizontal double drilling spindle in X direction: 2+2 pieces Horizontal double drilling spindle in Y direction: 1+1 pieces Distance between drilling spindles: 32mm Speed of drilling spindles: 4,000 rpm. Motor: 1.7 kW Groove saw: in X direction Speed: 4,000 rpm Max. saw blade diameter: 125mm Motor: 1.7 kW (The groove saw is integrated in the drill head) Lelhccsv E Szxoqmeaa Control: Personal computer Operating system: Windows 10 Pro - 64 bit Processor: Intel Hard disk with at least 300 GB storage space Color screen Integrated video card 2 Ethernet cards Program: MASTERWORK MACHINE VERSION Other data: Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec. Extraction nozzle: 1 x 150mm Other features: - Air tables in the work area - Roller table in the inlet and outlet - Sensor for plate measurement - Ball screw and linear guides - Rack and pinion drive - Import of DXF files (Operating instructions, circuit and pneumatic diagram are included in digital form) "PARTNERSHIP EDITION" consisting of: Milling unit, including MASTERWORK software extension Speed: 1,000 to 18,000 rpm. Motor: 4.5 kW with ISO 30 mount Incl. integrated suction control (when drilling only the drill head is suctioned, when milling only the milling unit is suctioned) 6-way tool changer Tool equipment, consisting of: 3 pieces 5mm – GL 70mm - blind hole drill (right) 2 pieces 5mm – GL 70mm - blind hole drill (left) 1 piece 5mm – GL 70mm - through drill (left) 2 pieces 8mm – GL 57.5mm - blind hole drill (right) 2 pieces 8mm – GL 57.5mm - blind hole drill (left 1 piece 10mm – GL 57.5mm – blind hole drill (right 1 piece 10mm – GL 57.5mm – blind hole drill (left 1 piece 10mm – GL 70mm – blind hole drill (left) 1 piece 8mm – GL 70mm - blind hole drill (right) 1 piece

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 400 h, material width: 450 mm, working width: 450 mm, Material width 450 mm Print width 445 mm Jumbo rolls D 1000 mm Print length 228.6 mm to 609.6 mm 8 flexographic printing units 8 UV cassettes 2x hot air drying Printing speed max 150 m/min Feed printing unit +/- 4 mm Punching width 450 mm Punching length from 304.8 mm to 609.6 mm Rewind diameter D 800 mm Materials to be printed: Self-adhesive labels (paper, PET, BOPP, PVC) Paper from 30 to 200 gsm Film from 20my (BOPP), 35 my PVC/PET, shrink 12 my PET Cardboard up to 400 gsm Accessories: 16 impression cylinders 8 anilox cylinders 1 die-cutting cylinder 1 IEEC corona treatment (one-sided) 1 Meech web cleaning unit (double-sided) 2 punching units Lajleqa Ax Nohccqmoa optional 1 turning cross 1 Delam/Relam 1 Coldfoil unwinder 8 LED cassette dryer GEW We would be happy to make you an offer.

Condition: good (used), Code: 0385 Brand: MASTERWOOD Model: CN 3 T F CNC chisel mortiser with router for the execution of shutters of any type, uprights of frames in general, milling of panels, Stanley hinges, balconies, doors, etc.. Technical data: Max workpiece size mm 150 x 110 x 2800 Working head with quick setting device of tool stroke Max slot depth mm 130 Vertical head stroke mm 140 Longitudinal speed mt/min 30 Laolhccqsunh U Ajmsa Main motor Hp 3 High-frequency drilling-routing unit (T.F.) with controlled axis - Power Hp 5-7,5 - Speed rpm 12000/18000 Numerical control unit with video with memory storage capacity of 50 cycles (higher ) The control can also perform a sequence of different working cycle and carry out automatically right, left, or mirror type machining. Overall dimensions : machine mm 4300 x 1600 x 1600 - electrical panel mm 1200 x 500 x 950 h Weight kg 2600

Condition: good (used), Masterwood MULTI-SPINDLE DRILL Laelhsv Ahlnjccqmja 23 spindles left/right spindles spindle spacing 32mm drilling vertically, horizontally or at an angle 4 pneumatic clamps 380V power supply, the machine is fully functional, ready to work

Condition: used, MASTERWOOD TF100 machining center -used- Machining in throughfeed, Air table at the working area, Ball screw spindles on all axes, Network card for remote maintenance, integrated control cabinet, Sawing unit for grooving in X-direction, Manual central lubrication, Sensor for panel measurement, Windows 10 PC, new drill set, new DIA milling cutter ----- Technical data ----- min. Workpiece length X: 250 mm, min. Workpiece length Y: 80 mm, min. Workpiece thickness: 10 mm, max. workpiece length X: unlimited mm, max. workpiece length Y: 1000 mm, max. workpiece thickness: 60 mm, Laolevira Njhccqmea Operating system: Windows 10, Planning software: Masterworks, Main spindle speed: 1,000 - 18,000 rpm, Drill spindle capacity: 10, No. horiz. Double drilling spindles in X-direction: 2 pcs, No. horiz. Double drilling spindles in Y-direction: 1 piece, Saw blade Ø of saw unit: 125 mm, Suction connection Ø: 150 mm, Compressed air connection: 8 bar, Dimensions (LxWxH): 1,990 x 2,410 x 1,510 mm, Weight: 1,300 kg

Condition: new, Year of construction: 2024, load capacity: 3,000 kg, container turning device, welding table, welding turntable, roller stand 3000 Kg load capacity with foot remote control Speed infinitely variable 80 to 1600 mm / min. diameter 40mm to 1400mm Roller diameter 200mm L: 800 x W:370 x H:450 Model or color deviation possible Laologu Edyjhccqmea

Condition: used, Year of construction: 2015, Used machine Year of manufacture: 2015 Condition: Functionally tested Technical specifications: Axes: X-axis: Max. workpiece length: unlimited Min. workpiece length: 250 mm Travel speed: 0-25 m/min. Y-axis: Max. workpiece width: 1,000 mm for all units Min. workpiece width: 80 mm Travel speed: 0-50 m/min. Z-axis: Max. workpiece thickness: 60 mm Min. workpiece thickness: 10 mm Travel speed: 0-20 m/min. The minimum and maximum workpiece sizes depend on the weight and the length-to-width ratio! Units: Milling unit with 4.5 kW motor (frequency-controlled) including MASTERWORK software extension Speed: 1,000 to 18,000 rpm including integrated extraction control (only the drill head is vacuumed during drilling, only the milling unit during milling) 4-station tool changer for ISO 30 taper 16 mm drill head: Vertical spindles in X direction: 5 Vertical spindles in Y direction: 5 Horizontal double drilling spindle in X direction: 2 + 2 Horizontal double drilling spindle in Y direction: 1 + 1 Drill spindle spacing: 32 mm Drill spindle speed: 4,000 rpm Motor: 1.7 kW Grooving saw: in X-direction Speed: 4,000 rpm Max. saw blade diameter: 125 mm Motor: 1.7 kW (The grooving saw is integrated into the drill head) Program: MASTERWORK MACHINE VERSION Additional data: Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2,000 m³/h Air speed: 25 - 30 m/sec. Extraction nozzle: 1 x 150 mm Other features: - Air tables in the work area - Roller table in the infeed and outfeed - Sensor for plate measurement - Ball screw and linear guides - Rack and pinion drive - Central lubrication - Import of DXF files Machine dimensions: 2100 x 2410 x 1510 mm Weight: approx. 1300 kg Lslhcswb Eg Eocqmeaa Required air pressure: 8 bar Air consumption: max. 750 l/min. Extraction: Volume: 2000 m³/h Air velocity: 25 - 30 m/s Extraction nozzle: 1 x 150 mm Availability: Short term Location: Hochheim

Condition: new, total length: 2,700 mm, total height: 130 mm, support length: 50 mm, number of suspension locks: 4, load capacity: 3,000 kg, Stow traverses 270 cm, 3000 kg, new goods from stock! PNB0413 S355MC pallet racks, heavy-duty racks, industrial racks, high racks, cross beams Data: - Length: 270 cm - Height: 13 cm - Width: 5 cm - Shelving system: Stow - Type: Pal Rack NS - Max. load per pair of traverses: 3000 kg with evenly distributed load. - Traverse type: PNB0413 S355MC - Incl. locking pins - New goods from stock, available for immediate delivery. -- AVAILABLE IN MULTIPLE QUANTITIES IMMEDIATELY-- Price: €36.00 net €42.84 gross You will receive an invoice with VAT shown. Transport: Delivery is carried out by our partner shipping company on request, the costs for this depend on the zip code. Assembly: Lelhcjwai Hyecqmoaa Our trained staff will be happy to assist you with the professional assembly and disassembly of your business equipment if required. Our recommendation: Let us know what you need... We will be happy to help you realize your projects, from planning to ordering to assembly. Are you interested or have any questions? Simply contact us by message or call. You can find our telephone number on our company website. ☎️ You can reach us by phone from Monday to Friday, 8:00 a.m. to 3:00 p.m. Alternatively, you can send us a message with your name and number and we will get back to you as soon as possible.

Condition: good (used), Code: 0251 Brand: MASTERWOOD Model: SPEEDY 207- CE Standard Numerical control point to point boring machine for custom furniture manufacturing, kitchen furniture, bathroom furniture, and various processes - CE Standard Boring head with 5 independent vertical chucks and 1 double horizontal chuck Saw for longitudinal cuts Machine table with 1390 x 750 mm boring capacity and two side jump up stops handled by the control unit to execute with only one program and one intermediate hold panels up to 2800 x 750 mm size Possibility of boring 2800 mm panels Lajlhccsim R Nioqmea Pneumatic tool displacement mm 60 Max panel thickness mm 50 Spindles rotation rpm 4500 Saw rotation rpm 6000 Vacuum pump motor Hp 1,5 Vacuum cup diameter mm 80 Front stop complete with 4 locking cylinders for drilling narrow workpieces and strips Multitasking control complete with interactive graphic programming, 9" video, boring programs, optimizing working cycle, graphic, parametric, diagnostic modes Polycarbonate safety hood Overall dimensions - Machine : mm 2500 x 1800 x 1800 h - Weight kg 850 Overall dimensions - Electric board : mm 800 x 520 x 1200 - Weight Kg 120

Condition: used, Functionality: fully functional, Masterwood Winner 3.2 Working area 3100 x 1250 ISO30 Toolchanger Drillinghead Sawblade in X Year 1999 Ljlhev T Tpteccqmoaa 2 working fields ISO cones and collets Masterwork CAD-CAM 100m3

Year of construction: 2015, Condition: excellent (used), VMC 3 axis AMS super dart year of production 2015 Control FANUC MACHINE CAPACITY X - Axis Travel mm 600 Y - Axis Travel mm 450 Z - Axis Travel mm 500 Dist. From Spindle Face To Table Top mm 235 - 735 Table size mm 900 x 450 Max. load on table kgf 400 max spindle speed 15000rpm BT30 high cooling through the spindle automatic tool changer 20 tools weight machine 4500kg Laslhccskvpnmjqmoa with machine chip conveyor with pomps low hours machine

Condition: as good as new (ex-display), Remark: This is a II. Wahl product, new product unused. II. Wahl means there may be dust deposits, minimal scratches or dirt or dirt may be present. Technical data for the unit carrier: Manufacturer: SSI Schaefer Rack system: R 3000 Included in delivery: 01x unit carrier, II. choice (new goods) Material color: sendzimir galvanized total length: approx. 780 mm clear span: approx. 715 mm dimension: approx. 40 x 35 mm (WxH) material thickness: approx. 1,50 mm Suitable for a shelf depth of 800 mm Your contact person in our company: Lelhon E Nffsccqmeaa Mr.: Andre Evering Mr.: Mario Klöver Mr.: Falk Deutsch General information about the item: This item is offered for pickup only. A desired transport or shipment of this or a dispatch of this article is associated with additional costs, which can be requested separately depending on the delivery location or scope of delivery can be requested from us.
