Universal machining center

Matec 30HV

Condition: ready for operation (used), Year of construction: 1997, operating hours: 36,111 h, travel distance X-axis: 4,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 800 mm, controller manufacturer: HEIDENHAIN, controller model: LE 430 CA, overall weight: 16,000 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 15,000 W, number of axes: 4, This 4-axis Matec 30 HV CNC was manufactured in 1997. It features an impressive X-axis travel of 4000 mm, Y-axis travel of 600 mm, and Z-axis travel of 800 mm. The machine is equipped with a powerful 10 kW drive and a tool changer with 36 magazine positions. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV CNC vertical machining centre we have for sale. Contact us for further details. • Axes travel and speeds • X-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min • Y-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min • Z-axis; rapid traverse: 30 m/min; feed rate: up to 30,000 mm/min • Spindle • Drive power (100% duty cycle): 10 kW from 2000 rpm; torque 48 Nm up to 2000 rpm; approx. 6 Nm at 15,000 rpm (M = P*9550/n) Dedpfxoyzq A Se Aktjkn • Drive power (25% duty cycle): 15 kW from 2000 rpm; torque 72 Nm up to 2000 rpm; approx. 10 Nm at 15,000 rpm (M = P*9550/n) • Coolant: Internal coolant 20 bar • Head: Swivel head with 1° indexing increments • Tooling • Tool changer: 36 positions • Max. tool diameter: 130 mm • Work area and clamping • Max. workpiece length for double-sided end machining: X = 3500 mm − 2 × max. tool length • Clamping surface: X = 4500 mm (clamping plate length) • Y = 650 mm (clamping plate length); 7 T-slots, 125 mm spacing • Electrical connection: Total connected load 42 kVA

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 2,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 840D, spindle speed (max.): 12,000 rpm, spindle motor power: 30,000 W, number of slots in tool magazine: 36, number of axes: 5, This 5-axis Matec 30 HV was manufactured in 2006. It features a travel capacity of 2000 mm in the X-axis, 600 mm in the Y-axis, and 800 mm in the Z-axis. The machine is equipped with a Sinumerik 840D CNC control, a tool magazine with 36 positions, and a spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV vertical machining centre we have for sale. Contact us for further details. Dkodpfoy Rrlmex Akten • Electronic handwheel • Tool magazine capacity: 36 positions • Through-spindle coolant (IKZ): 20 bar Additional equipment • NC rotary table: RW/NC 220/320 • Measuring probe • Paper filter unit: 450 liters Technical Specification Taper Size HSK 63

Condition: like new (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 1786, travel distance X-axis: 3,000 mm, travel distance Y-axis: 825 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Siemens, controller model: Sinumerik One, table load: 1,500 kg, rotary table diameter: 800 mm, rotational speed (min.): 25 rpm, spindle speed (min.): 20 rpm, spindle speed (max.): 15,000 rpm, coolant supply: 20 bar, number of spindles: 1, tool length: 460 mm, tool diameter: 200 mm, tool weight: 10,000 g, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, MATEC-30HV X = 3,000 mm Y = 825 mm Z = 1,100 mm / Horizontal Z = 975 mm / Vertical - 1-axis CNC swivel head Swivel radius 300 mm, maximum swivel angle +/- 105 degrees Direct path measuring system +/-3, optionally continuous or settable with clamping Clamping forces: 2,400 Nm unclamped, 4,200 Nm clamped - Bellows with steel lamellae - Direct path measuring system on X, Y, Z axis - Chip conveyor - Rinsing gun - Centralized oil lubrication - Work area lighting - Siemens Sinumerik ONE control Modern CNC system for highly productive machine tools, consisting of: NCU 1740 22" ITC2200 V3 display MCP 2200 machine control panel - Electronic handwheel (portable) HT2 - Telephone diagnostics / remote maintenance - Motor spindle 15,000 rpm Motor spindle with 30 kW (40% duty cycle) 17 kW (100% duty cycle) Torque 191 Nm (40% duty cycle) 108 Nm (100% duty cycle) - Internal coolant supply 20 bar Tank capacity of paper filter system 900 l Filter capacity 160 l/min. - High-pressure coolant at external nozzles High-pressure coolant pump switchable via M-function in the part program to the external nozzles at the spindle head. #20 bar# - IK-compressed air through the tool Dkedjxg Dhcjpfx Akten - Partition wall for double-station system - 3D wireless probe - RTS table probe for measuring and inspection - UT-Tec collision monitoring - Automatic safety doors

Condition: like new (used), Year of construction: 2024, functionality: fully functional, machine/vehicle number: 1791, MATEC 30HV/NC X = 2,000 mm Y = 825 mm Z = 800 mm / horizontal Z = 675 mm / vertical - 1-axis CNC swivel head Swivel radius 300 mm, swivel angle max. +/- 105 degrees Direct path measuring system +/-3, optionally continuous or indexed with clamping Clamping forces: 2,400 Nm unclamped, 4,200 Nm clamped - Electronic handwheel (portable) - Remote diagnosis / remote maintenance - Tool magazine with 48 positions - Additional tool magazine with 216 positions Fixed tool magazine for loading the internal tool changer of a machine tool. Including: - Linear and rotary axes with drives - Controllers and sensors - Gripper for tool holder SK40 Dodpexg D Atsfx Aktokn - Sheet steel enclosure - 6 tool levels for storing up to 216 tools with SK40 holders D = 80 mm or D = 160 mm if adjacent slots are free, comprising: 40 pcs. with L = 430 mm 64 pcs. with L = 260 mm 112 pcs. with L = 160 mm Maximum tool weight: 10 kg - Tool loading and unloading via tool flap - Transfer to machine via double gripper - Tool data entry via the machine operating panel, selection of tool positions via the operating panel of the additional magazine - Option: Operating panel for tool data entry at additional magazine - Additional price for motor spindle 9,000 rpm Motor spindle with 30 kW (40% duty cycle) 17 kW (100% duty cycle) Torque 191 Nm (40% duty cycle) 108 Nm (100% duty cycle) - Internal coolant supply 20 bar - Internal coolant supply 40 bar - Compressed air to external nozzles - Internal compressed air through tool - Rotoclear - Automatic safety doors - HOWIMAT CNC 220.2/TMI-50 rotary table 1-axis precision indexing table with direct drive Indexing accuracy deviation max. +/- 10 seconds Radial/axial runout deviation max. +/- 0.003 mm - Single rotary union for rotary table or counter bearing - Zero-point clamping system integrated in the machine table, without draw studs and cover. - Tool breakage monitoring - Fully enclosed work area with roof - Bellows with steel lamellae - Direct measuring system X-, Y-, Z-axis - Chip conveyor - Rinsing gun - Centralized oil lubrication - Work area lighting - Installation elements

Condition: ready for operation (used), Year of construction: 2012, operating hours: 50,106 h, travel distance X-axis: 3,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, spindle speed (max.): 9,000 rpm, spindle motor power: 16,000 W, number of axes: 5, This 5-axis Matec 30 HV vertical machining centre was manufactured in 2012. It features a generous X-axis travel of 3000 mm, Y-axis travel of 800 mm, and Z-axis travel of 800 mm (horizontal). The machine is equipped with a powerful motor spindle, capable of speeds up to 9000 rpm, and a maximum table load of approximately 2500 kg. If you are looking to get high-quality machining capabilities, consider the Matec 30 HV machine we have for sale. Contact us for further details. • Travel Z: 800 mm (horizontal) • Travel Z: 700 mm (vertical) • Tilting swivel head with 1° indexing (Hirth coupling) • Swivel radius: 250 mm • Spindle power: 16 kW (40% duty cycle) • Spindle power: 11 kW (100% duty cycle) • Torque: 100 Nm (40% duty cycle) • Voltage: 400 V • Installed power: 55 kW • Central lubrication system • Machine status: fully functional • Operating hours: 50,106 h • Control: Rexroth IndraMotion MTX Additional equipment • NC rotary table Ø800 mm (horizontal), maximum table load approx. 2500 kg • Internal coolant supply through spindle (20 bar) Dedpfx Aeyrqvlsktjkn • Paper band filter coolant system with approx. 450 l tank • Electronic handwheel • 3D measuring probe (Renishaw) • Work area lightingPlease note: the vice and zero-point clamping system shown are not included in the scope of delivery. Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2007, operating hours: 14,136 h, travel distance X-axis: 1,300 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 800 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC530, table load: 400 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 16,000 W, number of axes: 4, This 4-axis Matec MATEC 30 HV/K was manufactured in 2007, featuring a robust vertical machining center design. It includes a Rexroth control, a standard spindle with a speed range of 20-15,000 rpm, and a maximum torque of 100 Nm. The machine offers a tool changer with a capacity of 36 tools and a machine table that supports up to 400 kg. If you are looking to get high-quality milling capabilities consider the Matec MATEC 30 HV/K machine we have for sale. Contact us for more information. Machine Benefits Qualitative Machine Benefits • The machine was manufactured in 2007 but was retrofitted in 2016 Technical Machine Benefits • Hard disk: 26 gb Dkedpfx Akjx D Ix Totsn • Integrated network card • Max. Torque: 100 nm (40% ed) • Temperature-controlled liquid cooling • Work area: fully encapsulated with roof, bellows (steel slats) • Installation: height-adjustable set-up elements • Matec hv 30 was overhauled in 2016 by manufacturer matec maschinenbau Extra Information Cooling & Accessories Coolant: High-pressure Coolant Supply (20 bar, optional 40 bar) Paper Belt Filter (30 µm fineness) Tank Volume: 450 l Chip Conveyor: Integrated Scraper Conveyor Oil Mist Extraction: Electrostatic Filter (1000 m³/h) Measuring & Safety Technology Direct Measuring System: Linear encoder in all axes 3D Measuring Probe: Radio transmission to the control system Tool Monitoring: Laser-supported Tool Breakage Monitoring Tool Length Measurement (software) Optional Spindle (HSK 63-A): Higher Power: 30 kW / 190 Nm Drilling Capacity (steel): up to 60 mm Milling Capacity: approx. 500 cm³/min Technical Specification Taper Size HSK 63

Condition: reconditioned (used), Year of construction: 2007, operating hours: 21,990 h, functionality: fully functional, machine/vehicle number: 0903, travel distance X-axis: 3,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 1,100 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, controller model: Heidenhain iTNC530, Equipment: chip conveyor, rotational speed infinitely variable, Travel: 3000 x 800 x 1100 mm (X-Y-Z) Heidenhain iTNC530 control Handwheel 48 tools in the chain Motor spindle: 12,000 rpm / 30 kW / 198 Nm Tool holder HSK63 Direct measuring systems on all axes ICS 20 bar with band filter system, capacity 450 liters Mounted NC rotary table for H/V, diameter 500 mm 3D measuring probe Renishaw Dkjdpfx Akoyqx N Dsten Tool setting probe Renishaw New motor spindle, new X-axis ball screw, geometry aligned, completely serviced.

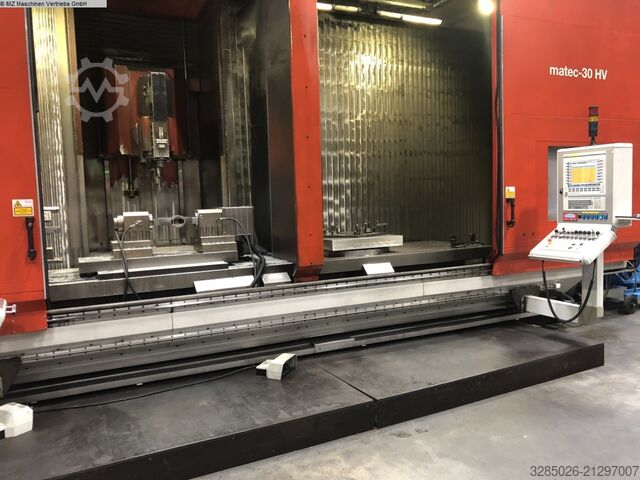

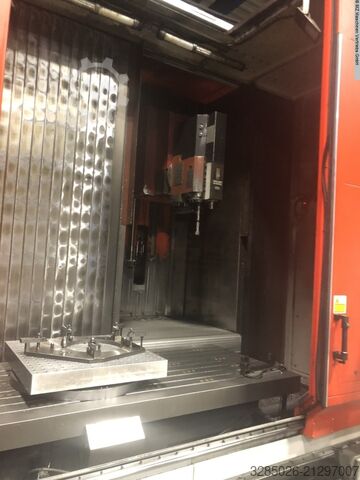

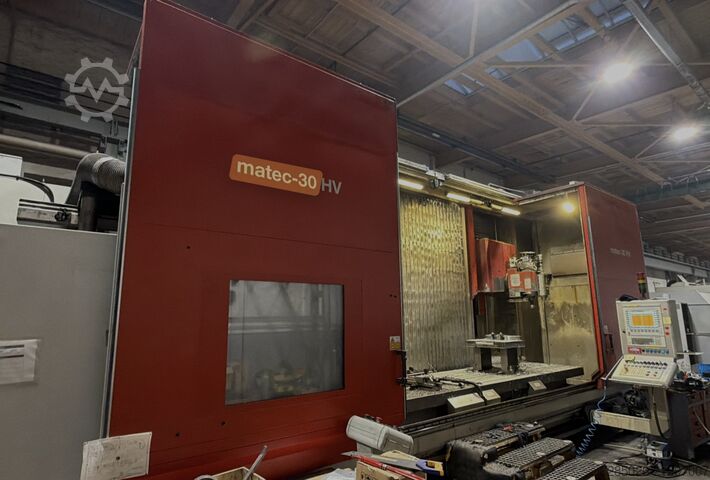

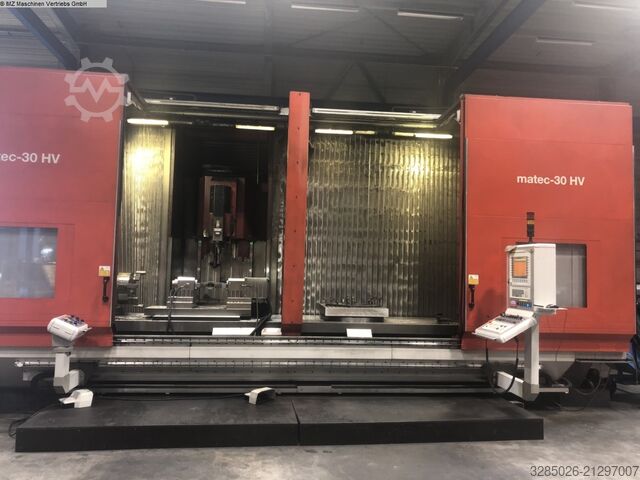

Condition: good (used), Year of construction: 2009, operating hours: 20,000 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,300 mm, Equipment: chip conveyor, Good conditions, millturn function with spindle head. Dedsyl S Ntopfx Aktskn
