Laboratory thermosal system pad dryer

Mathis THN 10988

Mathis THN 10988 Laboratory Thermosol System

Application
This padder-dryer combination has proven itself extremely effective in practice.
It is used in this form for a wide variety of hot air treatment processes, such as drying, setting, condensing, thermosolizing, etc.
This system is used wherever a certain sample size is required, for example, to produce sample collections or similar.

THA Dryer
If the padder and dryer are to be used separately in addition to continuous operation, the THA dryer should be selected.

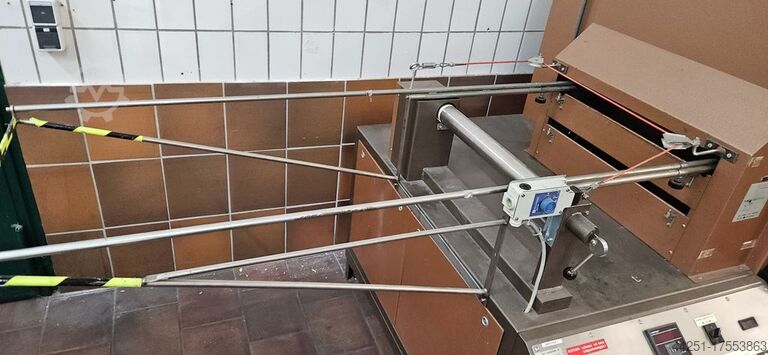

This unit is equipped with an unwinder at the dryer inlet and an extractor at its outlet.
This element determines the fabric speed when operated separately.
This offers the advantage of using the padder and dryer independently and simultaneously.
The fabric is then transferred to the dryer for drying, setting, condensing, etc.

If all of the above-mentioned applications are to be ensured and if the use of pin frames is also desired for stand-alone operation of the dryer, the THN model is preferable.
The standard pin frames are suitable for a sample size of max. 50 x 50 cm (larger pin frames available upon request).
Lengthwise adjustable frames for woven fabrics or lengthwise and widthwise adjustable material holders for warp-knitted and knitted fabrics,
nonwovens, etc., as well as clamp frames for foils and paper, are available.

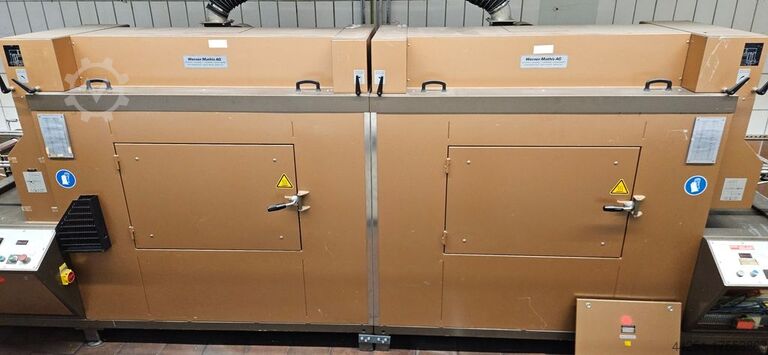

Drying Chamber

The drying chamber, including the electrical equipment box and control panel, are mounted on a base frame and bolted together to form a single unit.

Good thermal insulation of the dryer is ensured by its double-walled construction with insulation between them.

The nozzle array, with a length of 1300 mm, is divided into an upper and lower nozzle compartment. A control flap allows for equal ventilation from top and bottom, or more air from top or bottom.

Fan and Heater

Intense air circulation is ensured by a powerful fan with a capacity of approximately 900-3500 m³/h, combined with a well-tuned heating output, resulting in optimal evaporation performance.

A dual-protection monitoring system reduces maintenance and increases the operational reliability of the dryer.

The heating capacity is designed for rapid heating and is automatically reduced once the desired temperature is reached to avoid unnecessary power surges.

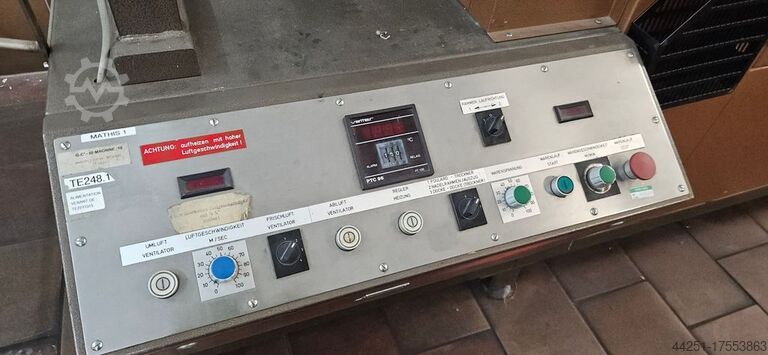

The temperature is controlled by an electronic measuring and control device in the range of 20-250°C.

The fresh air is drawn directly into the recirculation fan via a fan. The desired flow rate can be adjusted using a step switch.

Technical Specifications
Fgedpfx Aju D Ariefpoh

Air velocity approx. 4-12 m/sec
Air flow approx. 900-3500 m3/h
Temperature range up to 250°C
Heating output approx. 27 kW
Nozzle area 1300 mm
Fabric tension continuously adjustable
Fresh air supply adjustable to multiple levels

Dimensions: LxWxH = 4800 x 1380 x 1750 mm

Purchase price: €86,275

Other items in other sizes – new and used – can be found in our shop!
International shipping costs upon request!
