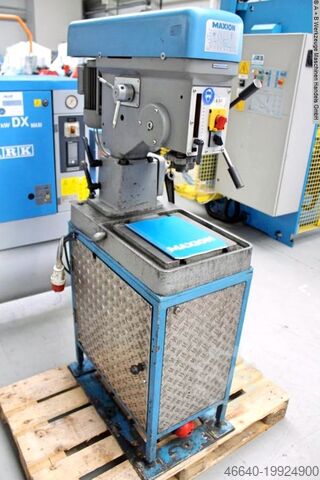

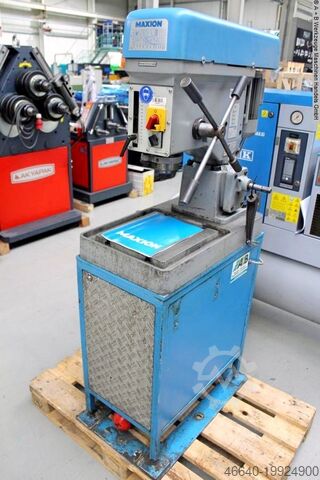

Bench Drilling Machine

MAXION BT 25 ST

Condition: used, Year of construction: 1998, bore capacity in steel (diameter) 25.0 / 30.0 mm throat 260 mm bore stroke 120 mm spindle taper 3 MK table: 390 x 420 mm T-slots 2x B 14.0 mm table height 900 mm turning speeds 80 - 1400 U/min column diameter 110 mm distance spindle /table 220 - 600 mm total power requirement 0.7 / 1.3 kW weight 275 kg range L-W-H 900 x 900 x 1600 mm Machine from a maintenance workshop TABLE DRILLING MACHINE / DRILLING HEAD HEIGHT ADJUSTABLE WITH CONSTANT TABLE HEIGHT Furnishing: - pole-changing motor - Continuous speed adjustment including analogue speed display - Spindle feed manually via cross handle Fjdpoxab Sfofx Aa Njgi - Drill head height adjustable, via hand crank - machined base plate with T-slots - adjustable drilling depth stop - Front main switch - Machine base including coolant system - Operation manual * Machine link: ?machineno=1008-9093640

Condition: good (used), Gillardon GT 16 bench drill - MK2 holder - infinitely variable speed Good condition, fully functional, can be inspected and tested on site. Shipping also abroad. Inspection : Basically, I would like to point out that the item can be inspected and tested under power before purchase to avoid misunderstandings. Please ask questions before buying to avoid any ambiguities. For general questions or to make an appointment for a viewing, I can be reached at any time at the telephone number below or above. Errors in the description and prior sale reserved. VAT is shown separately on my invoices. Fedjum Stajpfx Aa Nogi Shipping with forwarding agent.

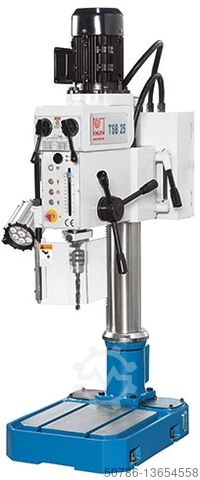

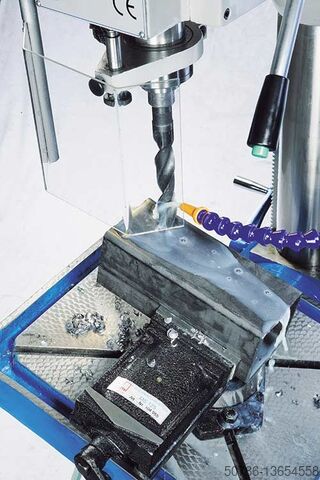

Condition: new, The TSB 25 is a versatile Column Drilling Machine that offers impressive performance and compact dimensions, making it an ideal choice for any workshop, whether in steel construction or repair. As part of the KNUTH TSB bench drill series, this machine features a robust main spindle gearbox that provides high torque along with a wide speed range, accommodating various drilling tasks with ease. With a drilling capacity of 25 mm, a throat of 240 mm, and a spindle speed range of 125 to 2825 rpm, the TSB 25 is designed for efficiency. The swivel drill head allows for angled drilling, while the height-adjustable machine head ensures optimal usability. Additionally, standard equipment includes a base, protective shield, LED work lamp, and drill chuck, which enhance safety and convenience during operation. For those looking for a reliable and powerful Column Drilling Machine, the TSB 25 is an excellent choice. Request a quote today to learn more about this robust addition to your workshop. Fsdpoqa Au Tefx Aa Negi

Condition: good (used), Year of construction: 2002, machine/vehicle number: 025137, Offer 24190 Technical specifications: - Drilling capacity: 25 mm Fjdpfx Aajwyl H Ns Nogi - Drill spindle taper: MK 3 - Drill spindle stroke: 140 mm - 8 spindle speeds: 100 - 2900 rpm - Min./max. distance spindle/table: 110 / 405 mm - Work light - Quick-action drill chuck - Coolant device - Machine vice - Machine base - Drive: 400 V / 0.75 kW - Required space (W x H x D): 400 x 1250 x 600 mm - Weight approx.: 200 kg

Condition: new, ELMAG Geared pillar drill GBM 3/30 SNA - Set Fast geared pillar drill 1,200 / 900 W The robust GBM 3/30 SNA pillar model is equipped with a powerful special gearbox, has a drilling capacity of 30 mm in steel and, with a quill spacing of 820 mm, offers plenty of space for holding tall workpieces. Helical gears made of steel and pressed material ensure high load capacity and smooth running. The GBM 3/30 SNA is therefore a perfect solution for medium-sized requirements in steel construction and metalworking stores, also for small batch processing. Standard equipment - Quick-action drill chuck B 16, 1 - 16 mm - Taper arbor MK 3 / B 16 - Reducing sleeve MK 3 / MK 2 - Reducing sleeve MK 3 / MK 1 - Drive-out wedge - Operating instructions / CE Set equipment - GBM 3/30 SNA geared pillar drill - Machine vice 120 or 150 mm - Two clamping screws 14 mm - 9-piece drill cartridge, 14.5 mm - 30 mm, MK 2 / MK 3 Fodpfx Aajt Edzae Njgi - Cutting oil spray ADVANTAGES Drilling capacity Ø 30 mm Automatic sleeve feed (0.1; 0.15; 0.22; 0.33 mm/rev) Cubature 500x350x870 mm Spindle projection 320 mm Powerful drive motor 400 V, 2-stage 1,200 / 900 W Smooth-running quality gearbox with heavy-duty helical gearing 8 speeds 75 - 3,010 rpm Drill spindle with precision bearing Clockwise and counter-clockwise rotation Drill spindle protection cover Drilling depth scale and stop Tool ejector Large, precise drill table with T-slots and coolant channel Heavy-duty, ground steel column with gear rack Rotatable and height-adjustable drill head Heavy-duty, ground steel column with toothed rack Emergency stop button / zero voltage release TECHNICAL DATA Drilling capacity in steel 30 mm Thread cutting capacity M22 Spindle holder (turning spindle) MK 3 Speed range 75 - 3010 rpm Speed steps 8 Quill stroke 150 mm Quill feed stages 4 Column diameter 105 mm T-slots, width 14 mm Drill head stroke 270 mm Drill table stroke 500 mm Spindle projection 320 mm Drill table rotatable ± 180 ° Drill head rotatable ± 180 ° Quill spacing table 50 - 820 mm Drilling table surface 500x350 mm Motor power (2-stage) 900 / 1200 W Mains connection 400/50 V/Hz Cubature 500x350x870 mm Base plate area (lxw) 400x670 mm Weight 210 kg

Condition: used, Year of construction: 2007, bore capacity in steel (diameter) 30 mm throat 260 mm bore stroke 125 mm continious capacity 25 mm Fjdowngqlspfx Aa Nsgi threading bis M20 spindle taper MK 3 turning speed range - stepless 125 - 4000 U/min transmission ratio 2 feed manuell bore depth 125 mm column diameter 110 mm table surface area 420 x340 mm incl. new, heavy-duty machine jaw vice (jaw width 100 mm)

Condition: new, The TSB 35 is a robust and precise column drilling machine that stands out in the category of column drilling machines. Designed by KNUTH, this bench drill series is compact yet delivers high drilling performance suitable for a wide variety of applications, from steel construction to repair shops. The TSB 35 features a powerful spindle gearbox for high torque and an extensive speed range with 12 adjustable levels, allowing for a drilling capacity of up to 35 mm. The machine is built with a rigid cast-iron construction, ensuring stability during operation. Additionally, the drill head can swivel ± 45°, enabling angled drilling, while the automatic quill feed simplifies the process for larger drilling diameters. Equipped with standard features like a protective shield, LED work lamp, and a coolant system, this machine is a valuable asset for any workshop. To enhance your workshop’s capabilities with the TSB 35 column drilling machine, request a quote today. Fodsqa Avfopfx Aa Njgi

Condition: ready for operation (used), A small geared drilling machine Knuth is available. Drilling capacity steel: 25mm, thread cutting steel: M10-M12, spindle taper: MT3, speed: 2900rpm, quill stroke: 400mm, arm reach: 250mm, table dimensions X/Y: 270mm/300mm. Machine dimensions X/Y/Z: approx. 600mm/600mm/1200mm, weight: approx. 200kg. An on-site inspection is possible. Fgedpfxjw Iqhas Aa Nei

Condition: used, Boring power 23.0 / 28.0 mm Boring depth max. 140 mm Center of spindle to wall or column 300 mm Column diameter 125 mm Size of table plate 415 x 385 mm Fodpfxexabbye Aa Negi Speed 100 - 2000 U/min. spindle taper MT 2 MK voltage 380 V Motor output 0.9 / 1.4 KW weight of the machine ca. 225 kg Dimensions (L/W/H) 900 x 600 x 1960 mm maintained condition (!!) Furnishing: - V-belt operated column drilling machine - Right/left running of the work spindle - Pole-changing drive motor - manual spindle feed via cross handle - Work table with 2x T-slots - Table height adjustment via hand crank - machined base plate with 3x T-slots - manual V-belt tension (front handwheel) - Connection cable including 16A plug * Machine link: ?machineno=1008-9103760

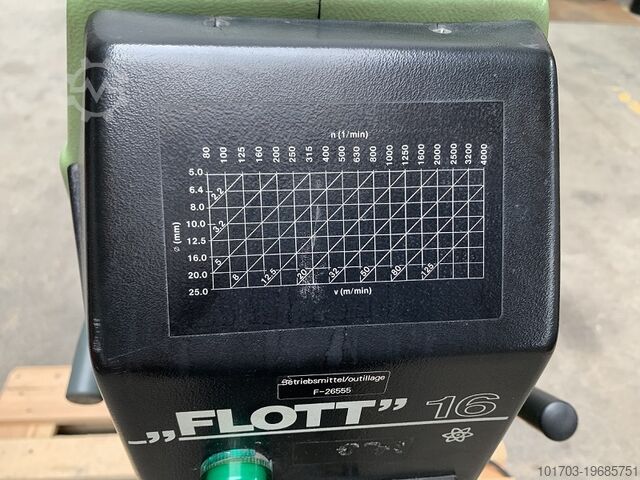

Condition: used, Column Drilling Machine FLOTT type 16 STG/R2 Spindle: CM2 Spindle exit: 100 mm Spindle speed: from 80 to 2000 RPM Table size: Length 340 mm x Width 280 mm Maxi distance spindle nose/table (lower table): 400 mm Throat depth: 240 mm 2 speed motor 2,2 kW Drilling/tapping function Adjustment by belt variator Electronic RPM speed not working Voltage: 380 V Width: 500 mm Depth800 mm Fjdpfxsw E En De Aa Njgi Total height: 1100 mm Weight: approx 150 kg
