Coolant equipment

Mayfran

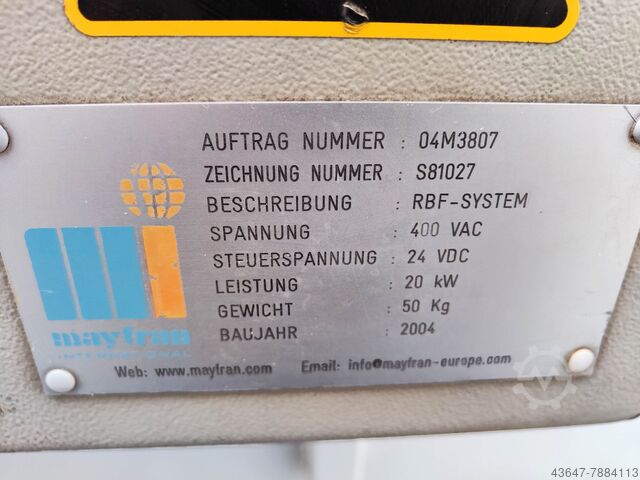

Condition: used, Mayfran Emulsion Treatment System, Emulsion Separator, Chip Handling System, Used Machine Manufacturer: Mayfran Overall dimensions: 3300 x 2100 x 2200 mm Year of manufacture: 2004 Processing and filtration capacity: 700 l/min Gkodpfx Aoy Uc Tpsixsa Filtration precision: 40 ppm > 20 µm Tank volume: 7250 l Pump performance: 4 kW; 160 l/min; 5 bar

Condition: used, Mayfran Emulsion Treatment System, Emulsion Processor, Chip Management – Used Machine Manufacturer: Mayfran Overall Dimensions: 3300 x 2100 x 2200 mm Type: RBF-SYSTEM S78480 Year of Manufacture: 2003 Processing and Filtration Capacity: 700 l/min Filtration Fineness: 40 ppm > 20 µm Tank Volume: 7250 l Pump Performance: 5.5 kW; 600 l/min; 5 bar Gedpjzqbnujfx Aixska

Condition: used, Year of construction: 1991, total length: 1,520 mm, total width: 720 mm, power: 30 kW (40.79 HP), Fully overhauled, lubricated, and ready for operation. Automatic two-shaft hydraulic shredder designed for crushing and disentangling metal chips, plastics, wood, electrical cables, and other materials. It is controlled by a PLC that monitors sensors, manages shaft rotation, and automatically activates the reverse function, if several blockages occur within a short period, the shredder shuts down. In addition, the unit automatically switches off after a set period when operating without load. Technical Highlights: Power 30 kW Max hydraulic pressure: 250 bar Torque: 11,780 Nm Gkodpfx Aiowk Egwexsa 2 crushing shafts with blades Hydraulic drive with gear transmission (Valmet BB 3150CC) Automatic blade pressure adjustment (disc spring system)

Year of construction: 2019, condition: like new (used), functionality: fully functional, machine/vehicle number: P13.19W3479.01, MAYFRAN CENTRIFUGE VBU 300 400V/50Hz 0.55kW 1.29A Inlet diameter 400mm Gkodozky Awjpfx Aixea Equipped with SEW Motor DRN80MK4, manufactured in 2019, and a speed inductive sensor. The machine is almost unused, with original paint and no signs of wear. Complete with steel frame, RAL 5010 color. Fully operational machine, requiring only wiring. Available for testing. Frame dimensions: 1580x560x1680 (WxLxH) Footprint dimensions: 1580x680x1680 (WxLxH) Centrifuge inlet height from the ground: 2300, inlet diameter 400, equipped with a steel protection net. Outlet diameter: 200mm - Current height approx. 1000 - Maximum height approx. 1465

Condition: used, Chip conveyor, chip elevator, inclined conveyor belt, used machine Manufacturer: Mayfran Type: POO.96M3806.01 Overall dimensions: Width: 6300 mm Depth: 1050 mm Height: 1820 mm Gkjdpfx Asydbzvoixsa Belt size: 6600 × 330 mm Electrical data: 400 V Slat size: 30 mm Slat pitch: 245 mm

Condition: used, Technical details: Gkodpju Nxrpjfx Aixea drive motor: 4 kW revolution per minute: 14 U/min voltage: 380 V / Hz weight: ca. 0,5 t Chip Crusher - Shredder 2-shaft crusher current feed size 400 x 360mm crushing tools 8 pieces per shaft current drop-out size L: 350 x W: 250mm gear motor manufacturer Vector accessories: 2 crusher discs *

Condition: used, Technical details: Gedpfou Nuqhex Aixjka band width: F1 = 350 mm conveying height: C = 1200 mm weight of the machine approx.: 1050 kg dimension machine xH: ca. G 5,25 x 1,2 x 1,6 m total power requirement: 2,5 kW Belt conveyor hinged type This chip conveyor can be repositioned using the 3x swivel wheels. It is fixed to the floor with the 4x adjusting screws. Chip inlet: open (not covered) L: 880 x W: 500mm; total inlet approx. 2000mm x 480mm (incl. cover) Insertion data: A 2,500 x F 530 x W 350mm Cooling water tank 600 x1200 x 200mm with pump and two measuring sensors Very good, in rarely used condition. *

Condition: used, Year of construction: 2019, liter capacity 980 l Gksdpfjwhzmhex Aixoa Pressure of pump 8 / 20 bar control Schütze / Contactors weight of the machine ca. 560 kg dimensions of the machine ca. 2,3 x 2,0 x 1,8 m Coolant System MAYFRAM - DPF400-V980 SKD (BFU 980 /S/20+/8) - NEW, unused - universally applicable - can be controlled via contactors - incl. paper band filter - Number of pumps: 3 - Pump capacity: 4.0 kW, 2,917 rpm, 5.8 m³/h, 96.6 l/min, pressure 25 bar, max. temp. 90°C 3.0 kW, 3,514 rpm, 20.5 m³/h, 341.66 l/min, pressure 25 bar, max. temp. 90°C -.- kW, 2,864 rpm, 2.0 m³/h, 33.3 l/min, pressure 25 bar, max. temp. 90°C

Condition: used, Year of construction: 2019, liter capacity 980 l Pressure of pump 8 / 20 bar control Schütze / Contactors weight of the machine ca. 560 kg dimensions of the machine ca. 2,3 x 2,0 x 1,8 m Coolant System MAYFRAN - BFU 980 /S/20+/8 - NEW, unused - universally applicable Gkedpjx Ak Etjfx Aixoa - can be controlled via contactors - incl. paper band filter - Number of pumps: 2 - Pump capacity: 4.0 kW, 2,917 rpm, 5.8 m³, 96.6 l/min, pressure 25 bar, max. temperature 90°C -.- kW, 2,864 rpm, 2.0 m³/h, 33.3 l/min, pressure 25 bar, max. temperature 90°C

Condition: used, Year of construction: 2019, liter capacity 980 l Pressure of pump 8 / 20 bar Gjdpswhzm Uefx Aixska control Schütze / Contactors weight of the machine ca. 560 kg dimensions of the machine ca. 2,3 x 2,0 x 1,8 m Coolant System MAYFRAN - BFU 980 /S/20+/8 - NEW, unused - universally applicable - can be controlled via contactors - incl. paper band filter - Number of pumps: 2 - Pump capacity: 4.0 kW, 2,917 rpm, 5.8 m³, 96.6 l/min, pressure 25 bar, max. temperature 90°C -.- kW, 2,864 rpm, 2.0 m³/h, 33.3 l/min, pressure 25 bar, max. temperature 90°C
