Turning and Milling Center

MAZAK HQR-250 MSY

CONTROLS
.. CNC controls MAZAK SMOOTH G

BASIC FUNCTIONS
.. number of spindles: 2
.. number of turrets: 2
.. live positions: yes

WORKING RANGE TURNING
.. swing diameter (max): 370 mm
.. turning diameter (max): 344 mm
.. bar diameter (max): 80 mm

MAIN SPINDLE
.. spindle revolutions (max): 4000 /min
.. drive power: 26 kW
.. spindle positioning: 0.0001 °
.. c-axis: yes

COUNTER SPINDLE
.. spindle revolutions (max): 5000 /min
.. drive power: 22 kW
.. spindle positioning: 0.0001 °
.. c-axis: yes

X/Z SLIDE
.. Z-axis travel: 760 mm
.. X-axis travel: 207 mm
.. Y-axis travel: 100 mm
.. number of tool positions (total): 12
.. number of live positions: 12
.. - rotation speeds (max): 6000 /min
.. - drive power: 11 kW

X/Z SLIDE
.. Z-axis travel: 815 mm
Codexlh Rropfx Abwohc
.. X-axis travel: 141 mm
.. Y-axis travel: 70 mm
.. number of tool positions (total): 12
.. number of live positions: 12
.. - rotation speeds (max): 6000 /min

ATTACHMENTS (TURNING)

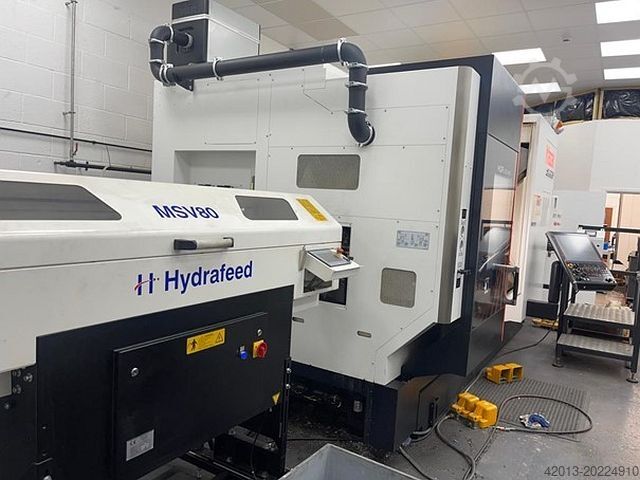

.. bar magazine: yes
.. - bar diameter (max): 80 mm
.. workpiece unloading system: yes
.. chip conveyor: yes
.. coolant unit: yes
.. coolant through turret: yes
.. through spindle coolant attachment: yes
.. aspiration unit: yes
.. hydraulic system: yes
.. European CE standards: yes


Accessories
- 1 set of tool holders
- 1 pc. collet chuck Hainbuch 80 mm Axfix for main spindle
- 1 pc. 3-jaw chuck Kitagawa BB210 for main spindle 1 pc. 1 pc. collet chuck Hainbuch 80 mm Axfix for counter spindle
- Collet chuck Hainbuch 80 mm Axfix for counter spindle
