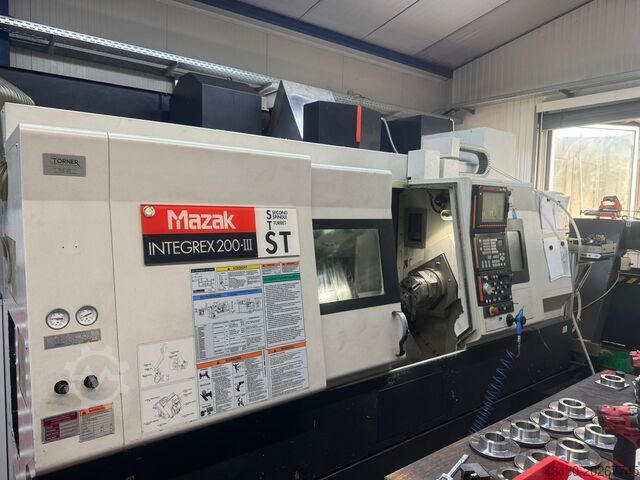

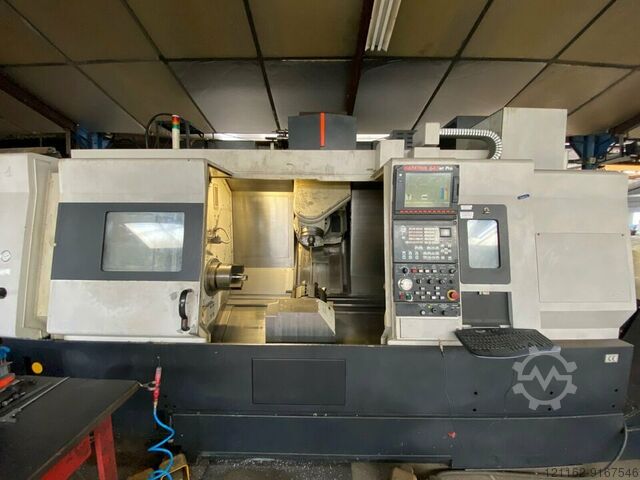

MAZAK INTEGREX 200-III ST

MAZAK INTEGREX 200-III ST

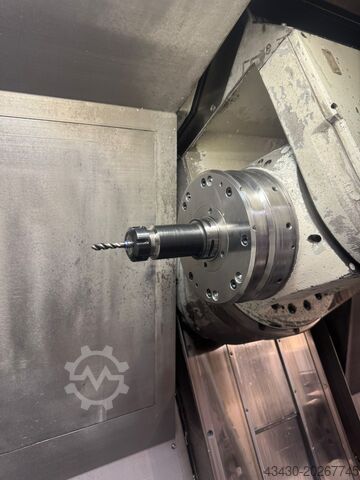

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 172087, turning diameter: 660 mm, spindle bore: 76 mm, spindle speed (max.): 5,000 rpm, controller model: MAZATROL Fusion 640 MT, spindle torque (max.): 349 Nm, TECHNICAL DETAILS Maximum turning diameter: 660 mm Main spindle Speed range: 35–5,000 rpm Power (10 min / continuous operation): 22 / 15 kW Maximum torque: 349 Nm Spindle bore: 76 mm Chuck diameter: 210 mm C-axis indexing: 0.0001° Ibedpfx Ajzgufron Ijc Sub-spindle Speed range: 35–5,000 rpm Power (10 min / continuous operation): 18.5 / 15 kW Maximum torque: 326 Nm Chuck diameter: 210 mm C-axis indexing: 0.0001° Cooling Coolant tank volume: 300 l Pump capacity: 20 l/min Pump pressure: 5 bar Compressed air requirement: 5 bar, 500 l/min MACHINE DETAILS Control model: MAZATROL Fusion 640 MT Total power consumption: 66 kVA Operating voltage: 400 V / 50 Hz EQUIPMENT Technical documentation Chip conveyor with cooling system 20-position tool magazine B-axis (positioning in 0.001° increments) C-axis Y-axis Milling spindle Angular positioning of the sub-spindle Synchronization of main and sub-spindle Tool setting system (Tool Eye) Interlock for the front door Complete cooling system Interface for IC memory card

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Iodpotk It Ssfx An Iobc Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: good (used), Description: The machine is in good technical condition, with the possibility of testing by prior arrangement. Maximum turning diameter: 660 mm Maximum swung diameter: 660 mm Main spindle: - Speed range: 35–5,000 rpm - Main drive power: 22/15 kW - Maximum torque: 349 Nm - Spindle bore: 76 mm - Chuck diameter: 210 mm - Indexing (C axis): 0.0001° Iodey Amqzopfx An Iebc Sub spindle: - Speed range: 35–5,000 rpm - Power (10 min/continuous): 18.5/15 kW - Maximum torque: 326 Nm - Chuck diameter: 210 mm - Indexing (C axis): 0.0001° Coolant tank capacity: 300 l Machine power supply: 66 kVA Operating voltage: 400 V / 50 Hz Air pressure: 5 bar, 500 l/min Control system: MAZATROL Fusion 640 MT Flush cooling: - Pump capacity: 20 l/min - Pump pressure: 5 bar Accessories: - Technical documentation - Chip conveyor with coolant - Tool magazine for 20 tools - B axis (positioned at 0.001° increments) - C and Y axes - Sub spindle angular position indexing - Synchronization of main and sub spindle - Tool presetting system (Tool Eye) - Front door locking - 20-position tool magazine - Complete cooling system - Interface for IC memory card

Year of construction: 2005, condition: excellent (used), KLIKLOK CERTIWRAP C-80 ID.NO. 2505 Kliklok HST Certiwrap C-80 sleeve machine for putting cardboard packaging around products. 3x different tools included & associated Nordson glue set year mod 2005. Ibodeki Tlqepfx An Ioc No. 1. 160 x 388 mm. No. 2. 160 x 407 mm No. 3. 422 x 162 mm dimensions 470 x 130 H 170 cm.

Condition: good (used), Year of construction: 1997, Also available CONQUEST T51 model The used HARDINGE CONQUEST T42L 3-axis motorized CNC lathe is a robust and precise medium-sized inclined bed numerical control lathe, turning length approximately 700mm, bar passage 42m, automatic turret with 12 positions with motorized tools, FANUC 18-T CNC with color LCD and RS232 serial interface for data transfer 5″ ASA spindle maximum revolutions: 4,200 rpm continuous C-axis Ibodpfx Anjvtrc Ss Ijc 20HP spindle power X-axis travel: 172mm Z-axis travel: 575mm machine weight 4,000 Kg. Complete with 210mm AUTOBLOCK hydraulic chuck, tool presetting, programmable tailstock, 2 motorized tool holders (1 axial and 1 radial), chip evacuator, set of fixed and manual tool holders and backup disk; Year of construction 1997; machine compliant with “CE” standards, in excellent condition.

Condition: excellent (used), Year of construction: 2007, X-axis: 1,600 mm Y-axis: 800 mm Z-axis: 740 mm Max. workpiece size: 1,600 x 700 mm Max. table load: 1,200 kg Spindle speed: 12,000 rpm Tool holder: SK40 Ibodpfxezcpplj An Ioc Tool changer: 24 positions Control system: HAAS Version M15 Includes 4th and 5th axes, ORIGINAL HAAS Includes chip conveyor Includes documentation

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MAIN SPINDLE - Spindle nose : A2-8 - Spindle power : 18,5 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 80 [mm] - Max. turning diameter : 366 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 280 x 785 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6000 [rpm] * Live tools power : 5,5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM5 - Distance between centers : 705 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kVA] MACHINE HOURS - Number of working hours : 7261 [h] WEIGHT & DIMENSIONS - Machine floor space : 3800 x 2143 [mm] - Machine height : 2232 [mm] - Machine weight : 6100 [kg] Ibjdpfsyxr U Rjx An Ioc EQUIPMENT - CNC : MORI MSX-850 III (Mitsubishi 720BM) - Tool probe - 3 colors status lamp - Coolant tank - Chips conveyor - Chuck 3 jaws : hydraulique - Number of turning tool holders : 3

Condition: excellent (used), Year of construction: 2018, operating hours: 15,845 h, functionality: fully functional, machine/vehicle number: S6E182501, spindle bore: 65 mm, spindle speed (max.): 5,000 rpm, spindle motor power: 22 W, The machine is very well maintained, with 90% of its operation carried out by a single user. Serviced according to the manufacturer's recommendations. Ibodpfxeyvtugs An Ijc

Condition: excellent (used), Year of construction: 2009, operating hours: 87,000 h, functionality: fully functional, turning length: 600 mm, turning diameter over cross slide: 410 mm, spindle speed (min.): 22,000 rpm, For sale is a CNC turning center from the manufacturer DMG, type CTX beta 800, built in 2009. Available immediately. The machine is in good condition and fully functional. Technically sound and ready for immediate use. Technical data: Machine type: CNC turning center Manufacturer: DMG Type: CTX beta 800 Year of manufacture: 2009 Control: Heidenhain 4290 Max. turning length: 600 mm Tool turret: 12-position Tool holder: VDI 40 Operating hours: approx. 87,000 h Isdpoyq Hq Nsfx An Isbc Spindle hours: approx. 22,000 h Linear guide Z1 recently renewed Turret drive S2 recently replaced Machine regularly serviced by customer support technically sound and fully functional Inspection under power possible by arrangement Service and maintenance reports available large accessory package powered tools from WTO further documentation and images available upon request If interested, please write or call. Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg

Condition: good (used), Year of construction: 2006, operating hours: 9,911 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, Equipment: documentation/manual, CNC machining center CHIRON FZ08 KS Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Year of manufacturing: 2006 CNC control : FANUC 18i-MB5 Number of axes : 7 Stroke X axis : 450 [mm] Stroke Y axis : 270 [mm] Stroke Z axis : 310 [mm] Traversing feeds X, Y and Z axes : 75000 [mm/min] Ijdjx Iiw Ijpfx An Isbc Max. bar diameter in turning spindle : 32 [mm] Main spindle max. speed : 8000 [rpm] Main spindle max. power : 12 [kW] Angular A axis stroke : 360 [°] A axis indexing precision : 0.001 [°] B axis swivelling stroke : -20° / +115 [°] B axis indexing precision : 0.001 [°] Spindle type : HSK40 Max. spindle speed : 30000 [rpm] Tool changer magazin number of stations : 40 Part turnaround by robot (6th side machining) : Yes RS232 Interface : Yes Total power required : 17 [kVA] Supply voltage : 400 [V] Number of running hours : 9911 [h] Dimensions : 1500 x 2600 x 2300 [mm] Weight : 3400 [Kg] EQUIPMENT INCLUDED: x1 RENISHAW TS27R tool probe x1 spindle cooling unit x1 parts catcher x1 coolant tank x1 unit for 6th face machining (gripping system not included) x29 tool holders type HSK40 BIG KAISER x10 collets type F37 SCHAUBLIN x1 washing gun x1 3-color status light x1 maintenance manual x1 electrical diagrams manual x1 operator's manual x1 programming manual Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed Machine similar to brands such as Okamoto, ELB, GER, Tacchella, Karstens, Jones & Shipman, Jung, Favretto, Blohm. Internal and external grinding (ID/OD) also to be considered. Surface grinder, lathe, machining center, milling machine.
