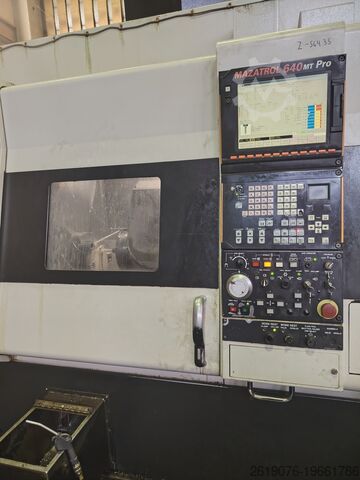

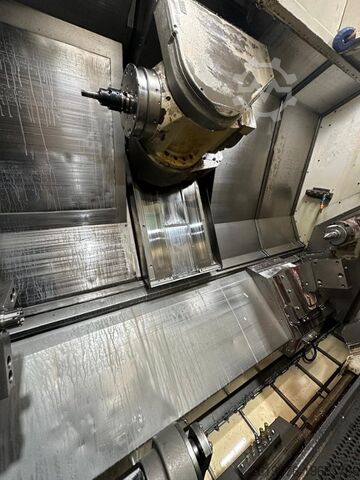

CNC turn-mill center

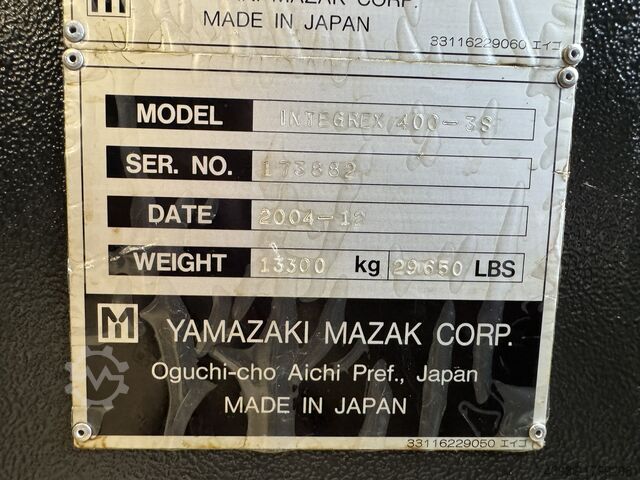

Mazak Integrex 400 II-S

Condition: new, Year of construction: 2025, turning diameter over cross slide: 250 mm, turning length: 730 mm, turning diameter: 500 mm, spindle speed (max.): 1,800 rpm, CNC lathe machine CK 6150 with flat bed We offer a new CNC lathe machine model CK6150. We use this machine in our production and you can see it in operation before ordering. The CK 6150 lathe has a flat bed and hardening guides, which ensures a long period of operation of the equipment. The machine is equipped with a CNC system, the GSK CNC system is installed as standard. Optionally, the machine can be equipped with a Fanuc or Siemens CNC system. The machine can have a tool holder for 4-6 or 8 tools, depending on the customer's wishes. It is possible to install a hydraulic chuck on the machine, which will greatly simplify the process of installing parts on it and a hydraulic tailstock. The CK 6150 lathe can be equipped with additional supporting frame for more accurate manufacturing of long parts. Technical specifications: Model CK 6150 x 1000 Maximum workpiece diameter over bed 500 mm Maximum workpiece diameter over support 250 mm Maximum workpiece length 1000 mm Maximum turning length 730 mm Spindle bore diameter 82 mm Spindle speed 150-1800 rpm Engine power 7.5 kW Mechanical chuck (hydraulic optional) Chuck size 250 mm. 4-position tool holder (6 or 8 optional) Maximum tool size for tool holder 25x25 mm Machine weight 2700 kg Machine dimensions 2650×1700×1820 mm We can also supply lathes CK 6140, CK 6150 and CK 6160 with other dimensions of the working part: CK 6140 dimensions of the working part 550/750 mm CK 6150 dimensions of the working part 1000/1500/2000 mm CK 6160 dimensions of the working part 1000/1500/2000 mm CK 6152E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6185E dimensions of the working part 1000/1500/2000/3000/4000 mm CK 61100E dimensions of the working part 1000/1500/2000/3000 mm CK 61125E dimensions of the working part 1000/1500/2000/3000 mm Fsdpfxexdmgvs Aptogd

Condition: excellent (used), Year of construction: 2010, operating hours: 6,848 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 20 rpm, rotational speed (min.): 3,000 rpm, overall weight: 21,600 kg, power: 28 kW (38.07 HP), CNC Bed Type Milling Machine, LAGUN, GBM 42 with iTNC530; Year of manufacture: 2010 - X axis travel: 4000 mm - Y axis travel: 1200 mm Fedpfx Apsy Iduuotegd - Z axis travel: 1500 mm - Table size: 4200 x 1000 mm - Spindle speed range: 20 - 3000 rpm, 34.5/28 kW - Spindle taper: SK 50 DIN69871A - Through-spindle coolant (IKZ): 24 bar - Air blast through spindle - Tool changer: 24 stations - Linear scales: on all 3 axes - Control system: Heidenhain TNC530i - Power-on hours: 25,474 h - Program run hours: 6,848 h - Electronic handwheel: Heidenhain HR410 - Chip conveyor - Automatic milling head in 2 planes, 2.5 degrees - Heidenhain digital drives with Siemens motors - Automatic 2-speed ZF gearbox - Heidenhain linear scales on all three axes with overpressure system - Coolant pressure adjustable in 4 stages via M-function, optional compressed air through the spindle - Control cabinet with active cooling unit - Total power: 28 kW - Machine weight: 21,600 kg - Space requirement (W x D x H): 10 x 6 x 3.8 m - Single-shift operation - Condition: very good

Condition: used, Year of construction: 2018, functionality: fully functional, travel distance X-axis: 1,520 mm, travel distance Y-axis: 520 mm, travel distance Z-axis: 460 mm, rapid traverse X-axis: 32 m/min, rapid traverse Y-axis: 32 m/min, rapid traverse Z-axis: 32 m/min, controller manufacturer: SIEMENS, controller model: 840D, rotational speed (max.): 12,000 rpm, overall weight: 10,000 kg, spindle speed (max.): 12,000 rpm, spindle nose: ISO 40, number of slots in tool magazine: 32, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Year: 2018, CE compliant CNC: SIEMENS 840D with SHOP MILL 4+1 axes ONLY 18,300 power-on hours Worktable dimensions: 2-piece table - fixed 920x540 mm / rotary-tilting 650x500 mm (with extension ring) Longitudinal X-axis travel: 1520 mm Transversal Y-axis travel: 520 mm Fgjdpfxsy Azclj Apted Vertical Z-axis travel: 420 mm Spindle taper type: ISO 40 Spindle speed: 12,000 rpm Automatic tool changer: 32 positions Spindle motor power: 15 kW Approximate net weight: 10,000 kg Accessories: Internal coolant Chip conveyor Full upper enclosure Pneumatic door opening BLUM tool presetting and workpiece probe capability

Condition: good (used), Year of construction: 2006, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, Travel paths Longitudinal (X): 2500 mm Vertical (Y): 1250 mm Transverse (Z): 1000 mm Table size (rotary): Length: 1000 mm Width: 1000 mm Max. table load: 5000 kg T-slots: 6 x 22 mm H10 Drive power: 100% duty cycle, 24 kW Fedpfoykbxzjx Aptogd Tool holder: ISO 50, DIN 69871 - AD Spindle speeds: 20 – 4000 rpm Torque: 479 Nm Feed rates (X, Y, Z): 10 – 10,000 mm/min Rapid traverse (X, Y, Z): 25,000 mm/min Weight: approx. 15,000 kg Equipment: - Internal coolant supply according to DIN 69871 Form AD, including minimum quantity oil lubrication with 15 different dosing levels via programmable M-functions; 20 bar - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the CNC control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots. - Chip conveyor for TA-D 25 - Tool changer Accessories - Front-mounted movable control pendant including Heidenhain iTNC 530 control (1 processor) - Portable electronic handwheel HR 420 with 3 m spiral cable (option) - 3D thermal expansion compensation - Automatically indexing milling head / 2 planes with 2.5° indexing (H200) (option) - Distance spindle nose to table edge: 250 mm - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the machine control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots - Coolant system with 150 l tank capacity, delivery pressure 5 bar, delivery rate 50 l/min, discharge via shower ring around spindle - Splash guard enclosure, fully enclosed on 4 sides with front sliding doors and an additional sliding door on the left side column and viewing windows on all 4 sides - Heidenhain drive motors on all axes with digital drive technology - INA linear roller guide system on all axes - Direct linear measuring system Heidenhain on all axes - Telescopic covers for X-axis guideways - Ball screws on X, Y, and Z axes - Automatic cycle lubrication for all axes and moving components - Electrical equipment by Siemens - Hydraulic system by Vickers

Condition: reconditioned (used), functionality: fully functional, machine/vehicle number: F39033, KEKEISEN Universal Bed Milling Machine UBF 2000/13, machine no. F39033; Fodpfx Asykuxhjptsgd well maintained, very good condition, mechanically partly overhauled in 2025 2-axis universal head automatically swivelling, with locking in Hirth coupling Intermediate positions adjustable in 1° steps by jog mode SK50 tool holder according to DIN 69871/872 Longitudinal travel of the table (X-axis) 2000 mm Transverse travel of the headstock (Y-axis) 1000 mm Vertical travel of the headstock (Z-axis) 1300 mm Machine table size 2200 x 960 mm, with T-slots 22 mm, spacing 140 mm Rotary table rotation 360° (stepless, with clamping) Rotary table load 5000 kg Spindle power 30 kW (100%ED), max. torque 1180 Nm Spindle speed 20 - 3800 rpm (infinitely variable in 2 ranges), with oil cooling Axis speeds 4 m/min or 10 m/min rapid traverse CNC control Heidenhain TNC 426 CA with electric handwheel HR 330 Drive system make Baumüller Coolant system with inner cooling up to 16 bar. Air/water changeover Purolator double-switching filter with 200 litre collecting tank Tool changer for 30 tools Work area panelling all round, open at the top, with longitudinal chip conveyor Connection data 400 V; 50 Hz; approx. 55 kVA without installation elements (fixators),

Condition: good (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: ABCM 1250/3, type of input current: three-phase, Gas burner for I-beams. Fsdpsrbif Tefx Aptegd manufacturer - Peddinghaus Germany; type - ABCM 1250/3; control - Fagor; The device is connected and functional.

Condition: used, Year of construction: 2007, x-travel 2.000 mm y-travel 800 mm z-travel 1.000 mm Control Heidenhain iTNC 530 spindle tunring speed 4.500 U/min tool taper SK 50 number of tool places 20 Pos. table surface area 2.000 x 700 mm max. table load 4.000 kg Fedpfx Ajy Nfbroptogd weight of the machine ca. 11.000 kg auto power on hours ca. 23.408 h Processing hours ca. 5.834 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice and errors. Prior sale is reserved.

Condition: used, Year of construction: 2013, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: 62130810, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,050 mm, travel distance Z-axis: 1,300 mm, feed length X-axis: 1,000 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 1,000 mm, rapid traverse X-axis: 16,000 m/min, rapid traverse Y-axis: 16,000 m/min, rapid traverse Z-axis: 16,000 m/min, CNC bed-type milling machine Kiheung KNC U1050 - Control: HEIDENHAIN iTNC 530 - Tool holder SK50 - Coolant tank 600 l - Universal automatic milling head A 4 Plus - High-performance cooling system with 2 high-pressure pumps, CTS 16 bar, paper filter Fjdpjxp N H Nofx Aptogd - 2 coolant water tanks - Coolant spray gun - Hinged chip conveyor

Condition: used, Year of construction: 2012, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: 66120101, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,600 mm, Model X 4000 - HEIDENHAIN iTNC 530 path control - Feed in all 3 axes - Rapid traverse X: 16,000 mm/min, Rapid traverse Y: 12,000 mm/min, Rapid traverse Z: 10,000 mm/min - Coolant tank with option for through-spindle cooling, 2 pumps, 1,700 l Fodpfsxp Nutex Aptsgd - Vertical tool changer for 24 tools - Universal automatic milling head A 4 Plus - CTS 16 bar through-spindle cooling - Air through the spindle (max. 10 bar) - Hinged belt chip conveyor X 4000, rear, raised discharge - Hinged belt chip conveyor, front, raised discharge, narrow version

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,250 mm, table load: 2,500 kg, rotational speed (max.): 3,000 rpm, overall weight: 10,000 kg, CNC Heidenhain TNC 530 Fodpfoy Nnunex Aptjgd Maximum spindle speed: 3000 rpm Automatic tool changer SA 50 Power: 22 kW Tool changer Travel: 2000 x 1000 x 1250 mm Chip conveyor Machine weight: 12,500 kg
