CNC turn-mill center

MAZAK INTEGREX i-150

Condition: ready for operation (used), Year of construction: 2012, Main Drive Number of axis 5 This 5-axis Mazak INTEGREX I-150 turn-mill centre was manufactured in 2012. Consider the opportunity to buy this Mazak INTEGREX I-150 turn-mill centre. Contact us for more information. Application Types Turning Dsdpfx Ahsx D I Rps Secb

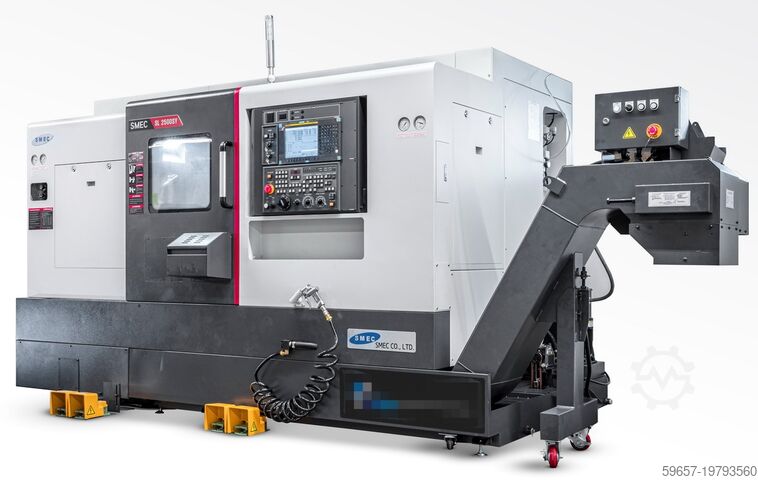

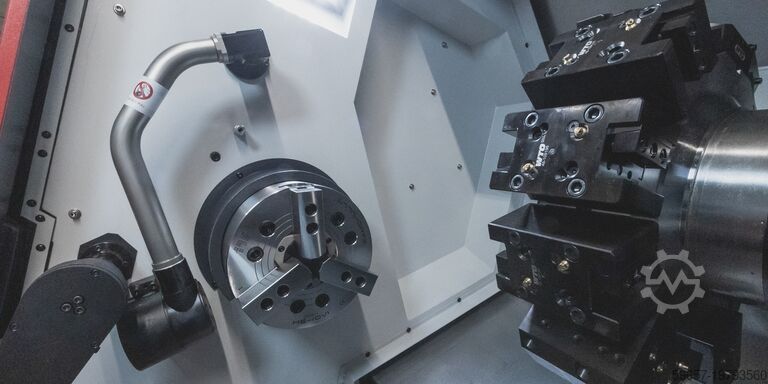

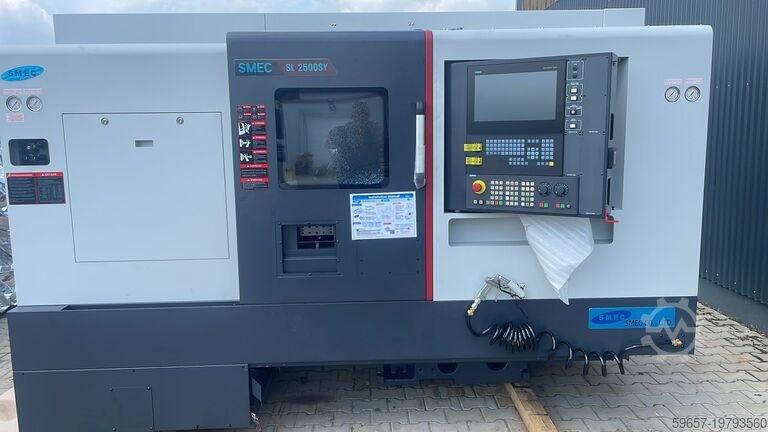

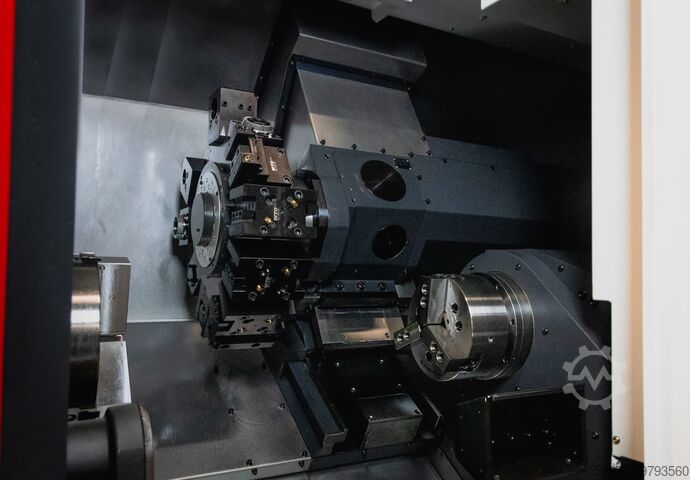

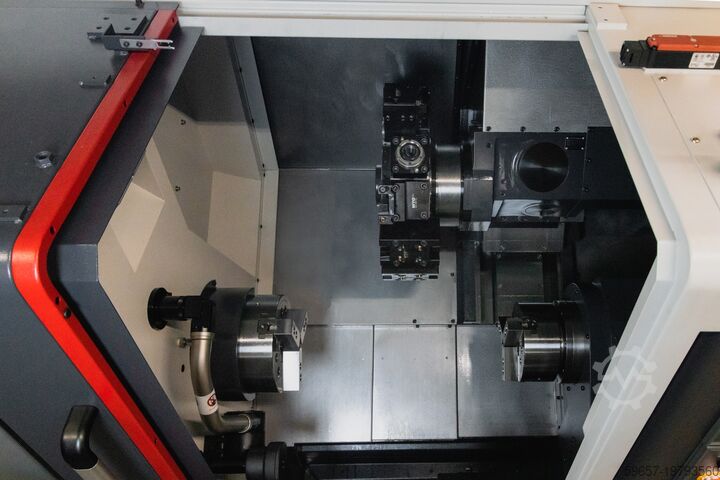

Condition: excellent (used), Year of construction: 2024, CNC Lathe Manufacturer: SMEC Machine Model: SL 2500 ASY Control: Siemens 828 D Year of Manufacture: 2024 - Demonstration machine TECHNICAL DATA Work Area - Max. turning diameter (mm): 360 - Max. machining length (mm): 490 - Swing diameter over bed (mm): 650 - Swing diameter over cross slide (mm): 540 Travel Paths - X-axis (mm): 235 - Z-axis (mm): 580 - Y-axis (mm): 100 (±50) - B-axis (mm): 580 Main Spindle - Chuck diameter (mm): 210 (8”) - Spindle nose standard: A2-6 - Max. bar capacity (mm): 68 - Spindle bore diameter (mm): 78 - Motor power (kW): 10.5/19.95 - Max. torque (Nm): 443.7 / S6 15% - Max. speed (rpm): 4,000 Sub Spindle - Chuck diameter (mm): 175 (6”) - Spindle bearing inner diameter (mm): 90 - Max. bar capacity (mm): 36 - Spindle bore diameter (mm): 45 - Motor power (kW): 7.5 - Max. torque (Nm): 67.9 / S6 15% - Max. speed (rpm): 6,000 Turret - Number of driven tool stations: 12 - Tool interface: BMT65 - Driven tool motor power (kW): 5.5/8.3 - Max. speed, driven tools (rpm): 5,000 - Max. torque, driven tools (Nm): 57.3 - Indexing time, station to station (sec): 0.2 - Indexing repeatability (mm): ±0.003 FEATURES + CNC control: Siemens SINUMERIK 828D incl. OPERATE + PPU290 (touchscreen) + Flat guideways on all axes + Coolant system with 10 bar delivery pressure incl. coolant gun + Oil skimmer with endless band for tramp oil separation + 3-color status light + LED work area lighting + Bar feeder interface for magazine connection + Chip conveyor, discharge to the right + Parts ejector at sub spindle incl. through-spindle coolant + Chuck blow-off device at main spindle + Parts catcher with collection box + Automatic tool measurement arm + Advanced operation features + DXF reader + 3-jaw power chuck Ø210 mm (8”) + 3-jaw power chuck Ø175 mm (6”) Dcsdjw Rby Eopfx Ah Seb DIMENSIONS / WEIGHT L x W x H (mm): 3,643 (4,667) x 2,030 x 2,085 Height (mm): 2,085 Technical data and information subject to change and errors excepted.

Condition: excellent (used), Year of construction: 2011, Turning and milling center, year of manufacture 2011 Condition: very good X - 370 mm Z - 435 mm Y - 200 mm W - 300 mm Main spindle 5,000 rpm 11 kW Driven tools 12,000 rpm 7.5 kW 72 tool stations HSK63 Thread cutting + cylindrical and polar interpolation Bar loading magazine IRCO B-axis 0.0001˚ C-axis 0.0001˚ Dodpexr A Hnsfx Ah Socb High-precision option X-Y-Z Automatic Tool Eye Automatic part removal Air blow-off at turret High-pressure cooling 70 bar Renishaw NC 4 laser Renishaw OMP 60 incl. Inspection Plus Chip conveyor Hainbuch TOPlus

Condition: good (used), Year of construction: 2010, operating hours: 39,252 h, functionality: fully functional, turning length: 385 mm, travel distance X-axis: 370 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 435 mm, number of slots in tool magazine: 36, TECHNICAL DETAILS Max. machining length: 385 mm X-axis: 370 mm Y-axis: 200 mm Z-axis: 435 mm Rapid traverse speed X-axis: 40,000 mm/min Y-axis: 40,000 mm/min Z-axis: 40,000 mm/min Main spindle Chuck size: 6" Spindle speed: max. 5,000 rpm Spindle motor (40% duty cycle): 11 kW Spindle motor (continuous runtime): 7.5 kW Dcodpfx Ajwixguoh Sob Milling spindle Spindle speed: max. 12,000 rpm Torque (20% duty cycle): max. 49.1 N m Torque (continuous runtime): 19.6 N m Spindle motor (20% duty cycle): 7.5 kW (10 HP) Spindle motor (continuous runtime): 3 kW (4 HP) B-axis Indexing increment: min. 0.0001° Swivel range: -10° to 190° Tool changer Tool holder: Capto-C6 Tool capacity: 36 Tool diameter: max. 90 mm Tool diameter (with free adjacent positions): max. 125 mm Tool length (from measuring line): max. 210 mm Tool weight: max. 5 kg MACHINE DETAILS Width: 2,320 mm Length: 2,500 mm Height: 2,500 mm Weight: 7,300 kg EQUIPMENT - Automatic tool changer - Robot not included - can be purchased separately - No lower vise

Condition: good (used), Year of construction: 1997, functionality: fully functional, Specifications Manufacturer MAZAK Dodpfx Ahsvk Ewkj Socb Model SQT 30MS Year 1997 Condition Used Description MAZAK SUPER QUICK TURN 30MS CNC SUB SPINDLE, 'C' AXIS, DRIVEN TOOLING LATHE WITH MAZATROL T PLUS CONTROL Kitagawa B-212 3 Jaw Power Chuck. Maximum Swing Ø560mm. Maximum Swing Over Cross Slide Ø500mm. Maximum Turning Ø413mm. Distance Between Spindles 1,035mm. Main Spindle Bore Ø88mm, Sub Ø61mm. Axis Travel 'X'=244mm, 'Z'=1,035mm, 'B'=1,067mm. Maximum Main & Sub Spindle Speeds 3,000rpm. Maximum Milling Spindle Speed 1,500rpm. 12 Station Turret. TOOLINGS INCLUDED WHICH WERE USED IN THE WORKSHOP AND EQUIPMENT FROM PHOTOS WEIGHT 6700 KG DIMENSIONS: LENGHT 4010 mm WIDE 2100 mm HEIGHT 2160 mm

Condition: good (used), Year of construction: 2011, functionality: fully functional, turning length: 385 mm, travel distance X-axis: 370 mm, travel distance Y-axis: 200 mm, travel distance Z-axis: 435 mm, number of slots in tool magazine: 36, TECHNICAL DETAILS Max. machining length: 385 mm X-axis: 370 mm Y-axis: 200 mm Z-axis: 435 mm Rapid traverse speed X-axis: 40,000 mm/min Y-axis: 40,000 mm/min Z-axis: 40,000 mm/min Main spindle Chuck size: 6" Spindle speed: max. 5,000 rpm Spindle motor (40% duty cycle): 11 kW Spindle motor (continuous runtime): 7.5 kW Milling spindle Spindle speed: max. 12,000 rpm Torque (20% duty cycle): max. 49.1 N m Torque (continuous runtime): 19.6 N m Spindle motor (20% duty cycle): 7.5 kW (10 HP) Spindle motor (continuous runtime): 3 kW (4 HP) B-axis Indexing increment: min. 0.0001° Swivel range: -10° to 190° Tool changer Tool holder: HSK-A63 Dsdowa Tunepfx Ah Sjcb Tool capacity: 36 Tool diameter: max. 90 mm Tool diameter (with free adjacent positions): max. 125 mm Tool length (from measuring line): max. 210 mm Tool weight: max. 5 kg MACHINE DETAILS Width: 2,320 mm Length: 2,500 mm Height: 2,500 mm Weight: 7,300 kg EQUIPMENT - Automatic tool changer - Robot not included
